FT118S
1x18"超低频音箱
产品概述

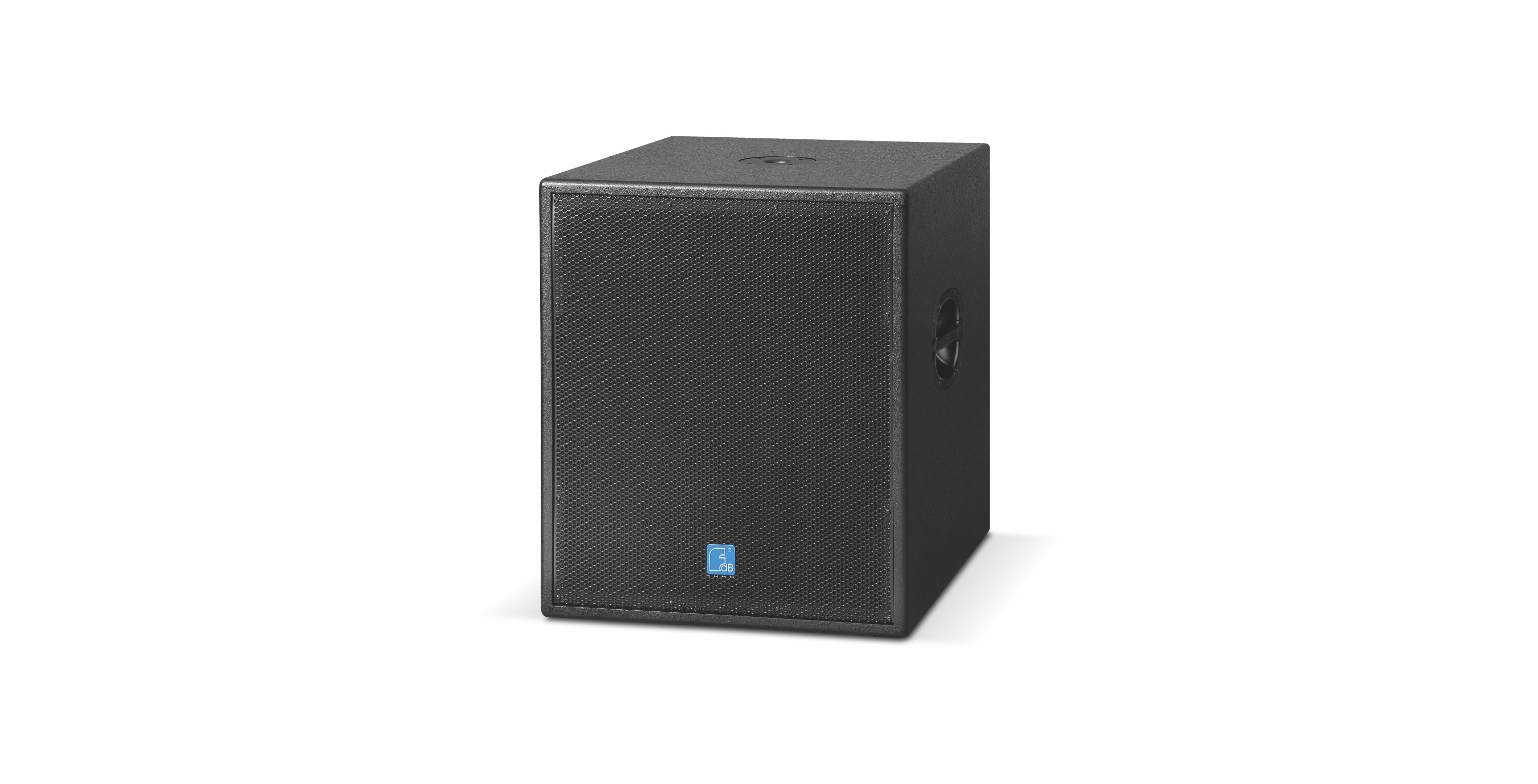

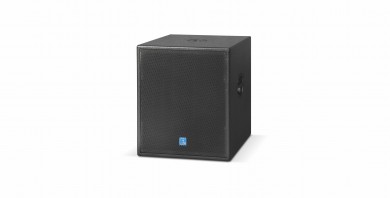

FT118S是一款单18"超低音箱。单元配置：1只18" 75芯高效率低音单元，倒相式箱体设计。箱体采用高密度复合板，水性环保喷涂制作。
产品特点
产品特征
●高强度复合板箱体
●倒相式设计，低音有力度
适用范围
●配合FT全频音箱是用
技术参数
| MODEL | FT118S |
| FREQUENCY RESPONSE(-3dB) | -- |
| FREQUENCY RESPONSE(-10dB) | 35Hz-200Hz |
| LF DRIVER | 1×18"/ 3"voice coil |
| HF DRIVER | -- |
| RATED POWER | 400W RMS,1600W peak |
| SENSITIVITY | 99dB 1watt/1 metre |
| MAXIMUM SPL | 125dB continuous,131dB peak |
| IMPEDANCE | 8 ohms |
| DISPERSION(-6dB) | -- |
| CROSSOVER FREQUENCIES | -- |
| INPUT CONNECTORS | 2×Speakon NL4 |
| PACKAGE SIZE | 655×615×715 mm |
| NET WEIGHT | 34 kg/pc |
| GROSS WEIGHT | 39 kg/pc |
