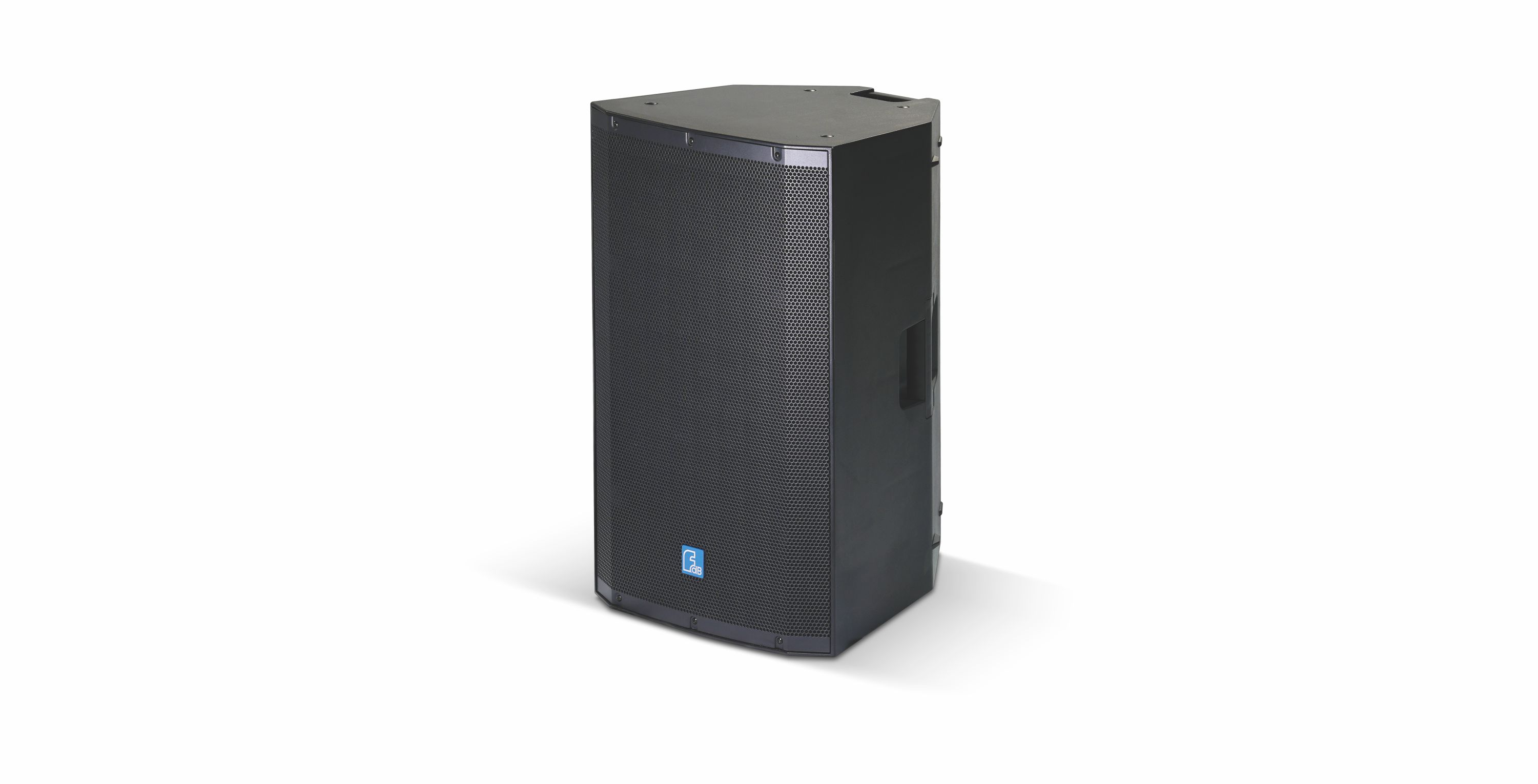

PS15/PS15A
1x15" 2-way Loudspeaker System
DESCRIPTION
PS series is a group of well optimized design of the latest generation, strong polypropylene material box of professional speakers, with the characteristics of full functions, light weight, high SPL, clear, bright and balanced sound quality , exquisite appearance and so on. All adopt high quality unit configuration, the box molded by injection mold.
FEATURES
● Strong polypropylene box, injection molding
● High quality unit configuration
● Digital amplifier with DSP, multiple preset modes can be selected or stored
● Multiple hanging points and support, easy to use
● Applications: Conference rooms, multi-function halls, Entertainment venues, Mobile Performances
SPECIFICATIONS
| MODEL | PS15 | PS15A |
| FREQUENCY RESPONSE(-10dB) | 55Hz-18kHz | 55Hz-18kHz |
| LF DRIVER | 1×15" | 1×15" |
| 2.5"voice coil | 2.5"voice coil | |
| HF DRIVER | 1×1" | 1×1" |
| 1.4"voice coil | 1.4"voice coil | |
| RATED POWER | 300W RMS | 400W/8Ω |
| 1200W peak | +100W/8Ω | |
| SENSITIVITY | 98dB 1watt/1 metre | -- |
| MAXIMUM SPL | 122dB continuous | 122dB continuous |
| 128dB peak | 128dB peak | |
| IMPEDANCE | 8 ohms | -- |
| DISPERSION(-6dB) | 90°×60° | 90°×60° |
| CROSSOVER FREQUENCIES | 2.2kHz passive | -- |
| INPUT CONNECTORS | 2×Speakon NL4 | |
| PACKAGE SIZE | 545×530×771mm | 545×530×771mm |
| NET WEIGHT | 26 kg/pc | 28 kg/pc |
| GROSS WEIGHT | 30 kg/pc | 32 kg/pc |
CONFIGURATION
DOWNLOAD
