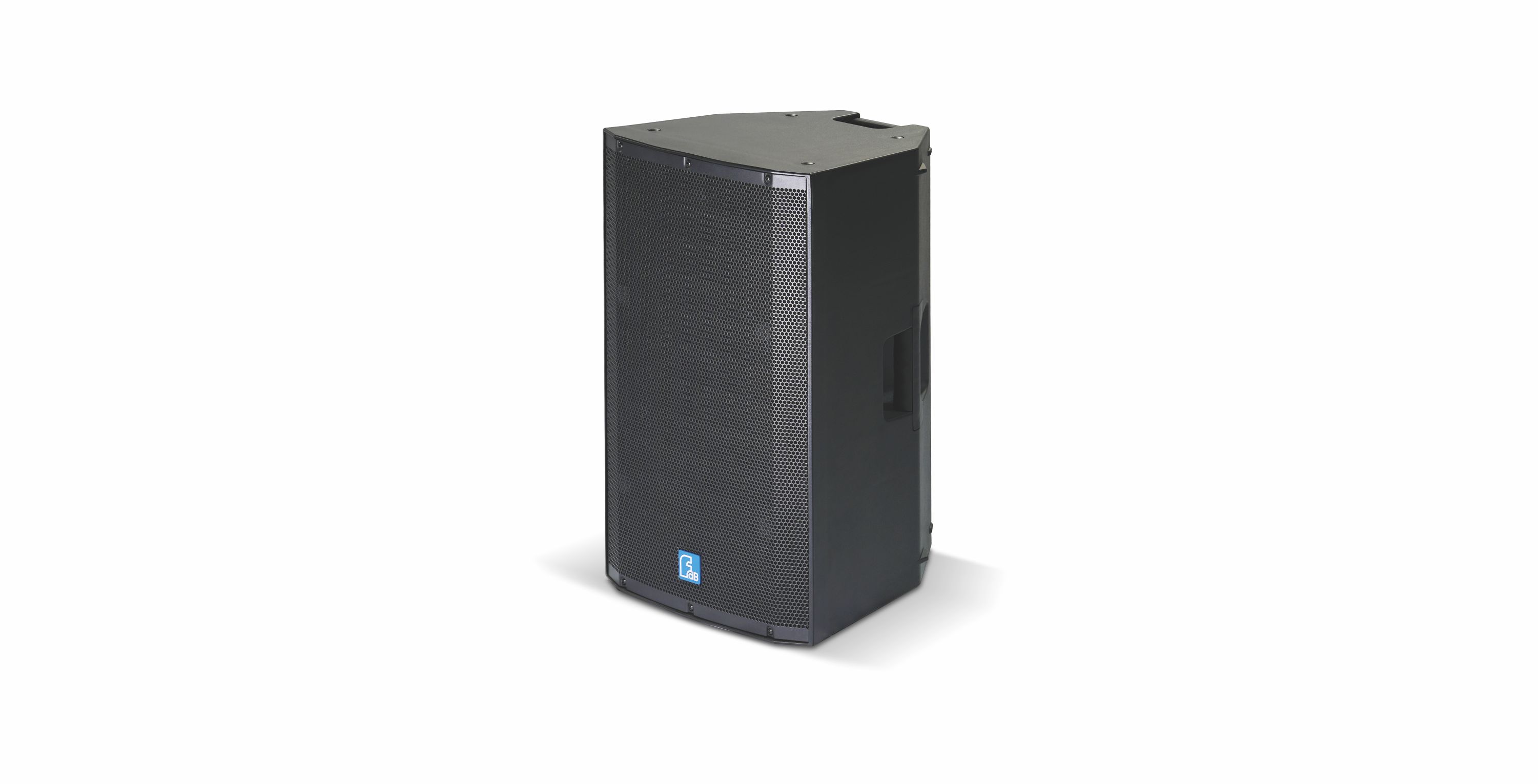

PS12/PS12A
1x12" 2-way Loudspeaker System
DESCRIPTION
PS series is a group of well optimized design of the latest generation, strong polypropylene material box of professional speakers, with the characteristics of full functions, light weight, high SPL, clear, bright and balanced sound quality , exquisite appearance and so on. All adopt high quality unit configuration, the box molded by injection mold.
FEATURES
● Strong polypropylene box, injection molding
● High quality unit configuration

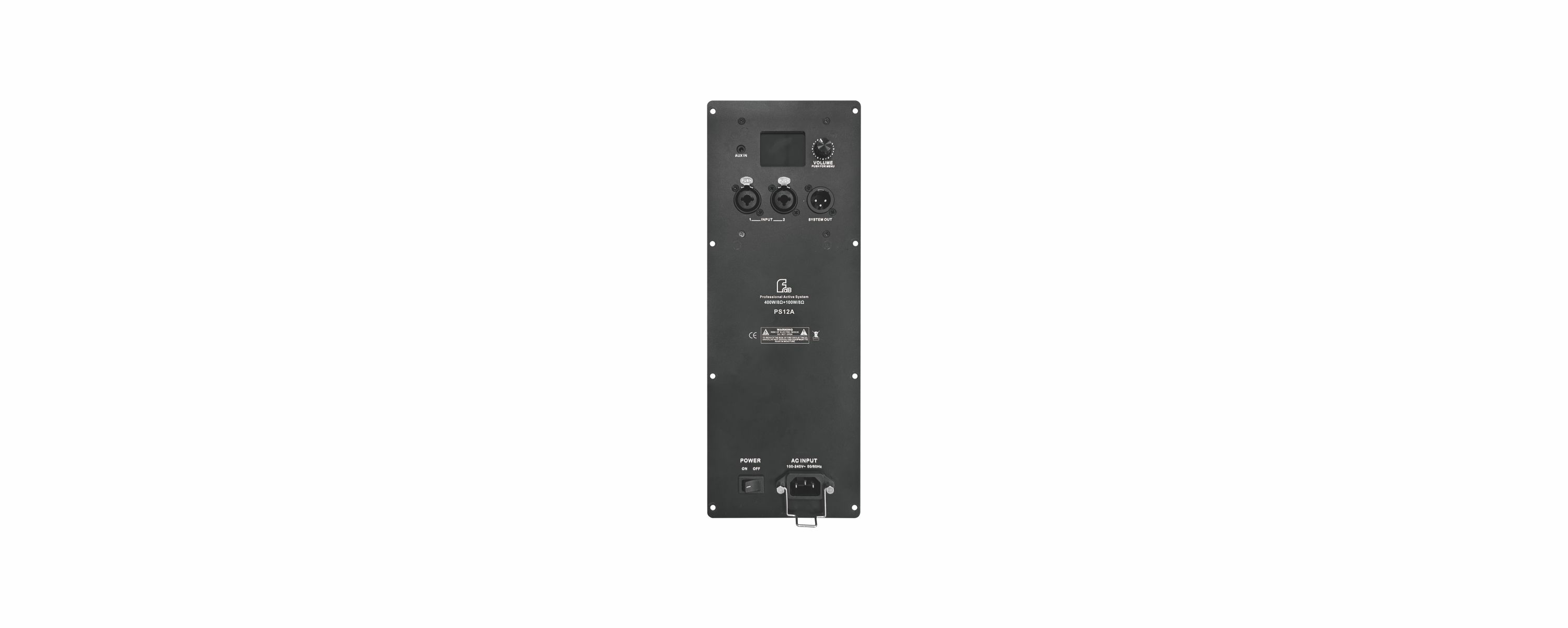

● Digital amplifier with DSP, multiple preset modes can be selected or stored
● Multiple hanging points and support, easy to use
● Applications: Conference rooms, multi-function halls, Entertainment venues, Mobile Performances
SPECIFICATIONS
| MODEL | PS12 | PS12A |
| FREQUENCY RESPONSE(-10dB) | 60Hz-18kHz | 60Hz-18kHz |
| LF DRIVER | 1×12" | 1×12" |
| 2.5" voice coil | 2.5" voice coil | |
| HF DRIVER | 1×1" | 1×1"(25mm) |
| 1.4"voice coil | 1.4"voice coil | |
| RATED POWER | 250W RMS | 400W/8Ω |
| 1000W peak | +100W/8Ω | |
| SENSITIVITY | 97dB 1watt/1 metre | -- |
| MAXIMUM SPL | 120 dB continuous | 120 dB continuous |
| 126dB peak | 126dB peak | |
| IMPEDANCE | 8 ohms | -- |
| DISPERSION(-6dB) | 90°×60° | 90°×60° |
| CROSSOVER FREQUENCIES | 1.8kHz passive | -- |
| INPUT CONNECTORS | 2×Speakon NL4 | |
| PACKAGE SIZE | 450×450×685mm | 450×450×685mm |
| NET WEIGHT | 18 kg/pc | 20 kg/pc |
| GROSS WEIGHT | 21 kg/pc | 23 kg/pc |

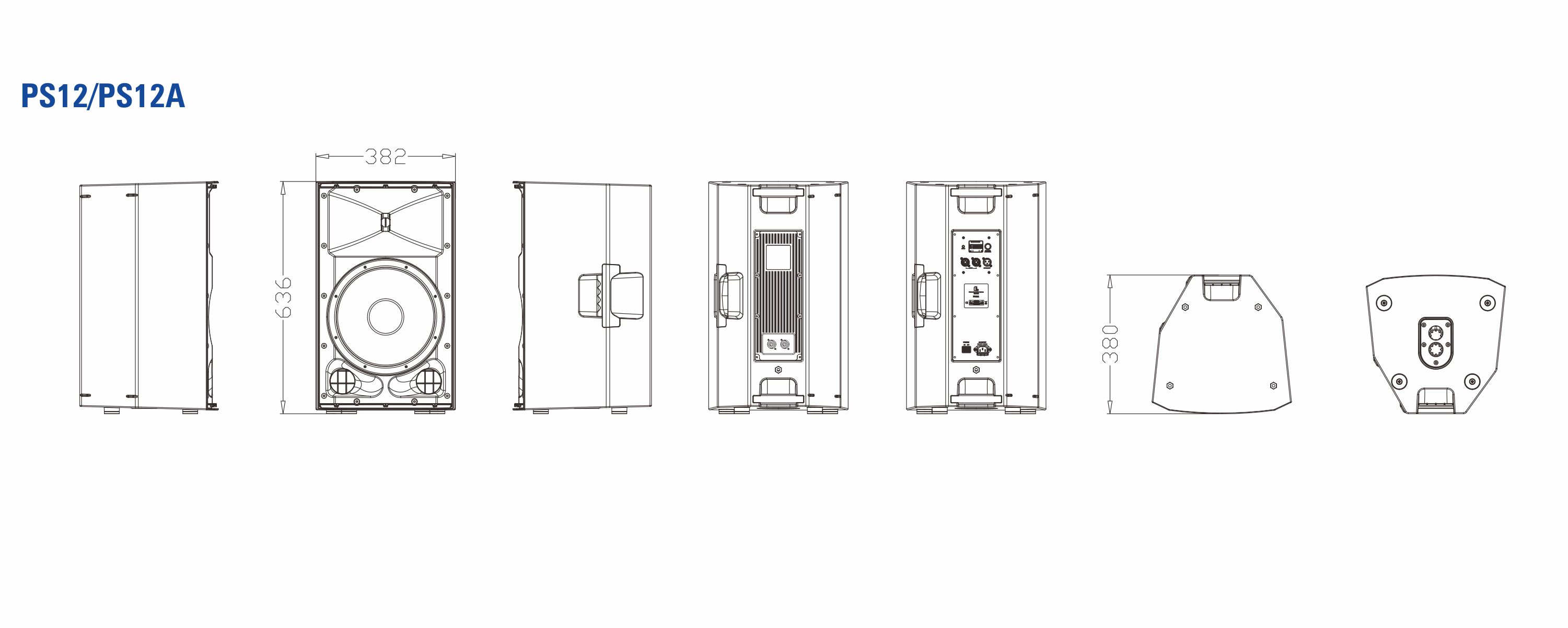

CONFIGURATION
DOWNLOAD
