S206
2x6.5" Two-way Loudspeaker System
DESCRIPTION
The S206 is a 2x6.5", small sized, light weight, two way full range speaker with clear and soft sound. Unit configuration: 2x6.5" high efficiency mid-bass unit, 1x1" exit throat 34mm polyester diaphragm HF driver coaxial unit. The cabinet is made of multilayer composite plywood with wear-resistant polyurea paint.
FEATURES
●Clear and soft sound
●Multi-ways for installation
●Applications: conference rooms, multifunction halls, classrooms
●Multi-ways for installation
●Applications: conference rooms, multifunction halls, classrooms
SPECIFICATIONS
| MODEL | S206 |
| FREQUENCY RESPONSE(-3dB) | 90 Hz-18kHz |
| FREQUENCY RESPONSE(-10dB) | 85Hz-20KHz |
| DRIVERS | 2×6.5"(165mm)/2"voice coil LF |
| 1×1"(25mm)/1.4"voice coil HF | |
| RATED POWER | 240W RMS,960W peak |
| SENSITIVITY | 93dB 1watt/1meter |
| MAXIMUM SPL | 116dB continuous,122dB peak |
| IMPEDANCE | 4 ohms nominal |
| DISPERSION(-6dB) | 90°×50° |
| CROSSOVER FREQUENCIES | 300Hz, 2.5kHz passive |
| INPUT CONNECTORS | Covered barrier strip terminals |
| PACKAGE SIZE | 280mm×280mm×490mm(pair/carton) |
| NET WEIGHT | 10 kg/pc |
| GROSS WEIGHT | 12 kg/pc |

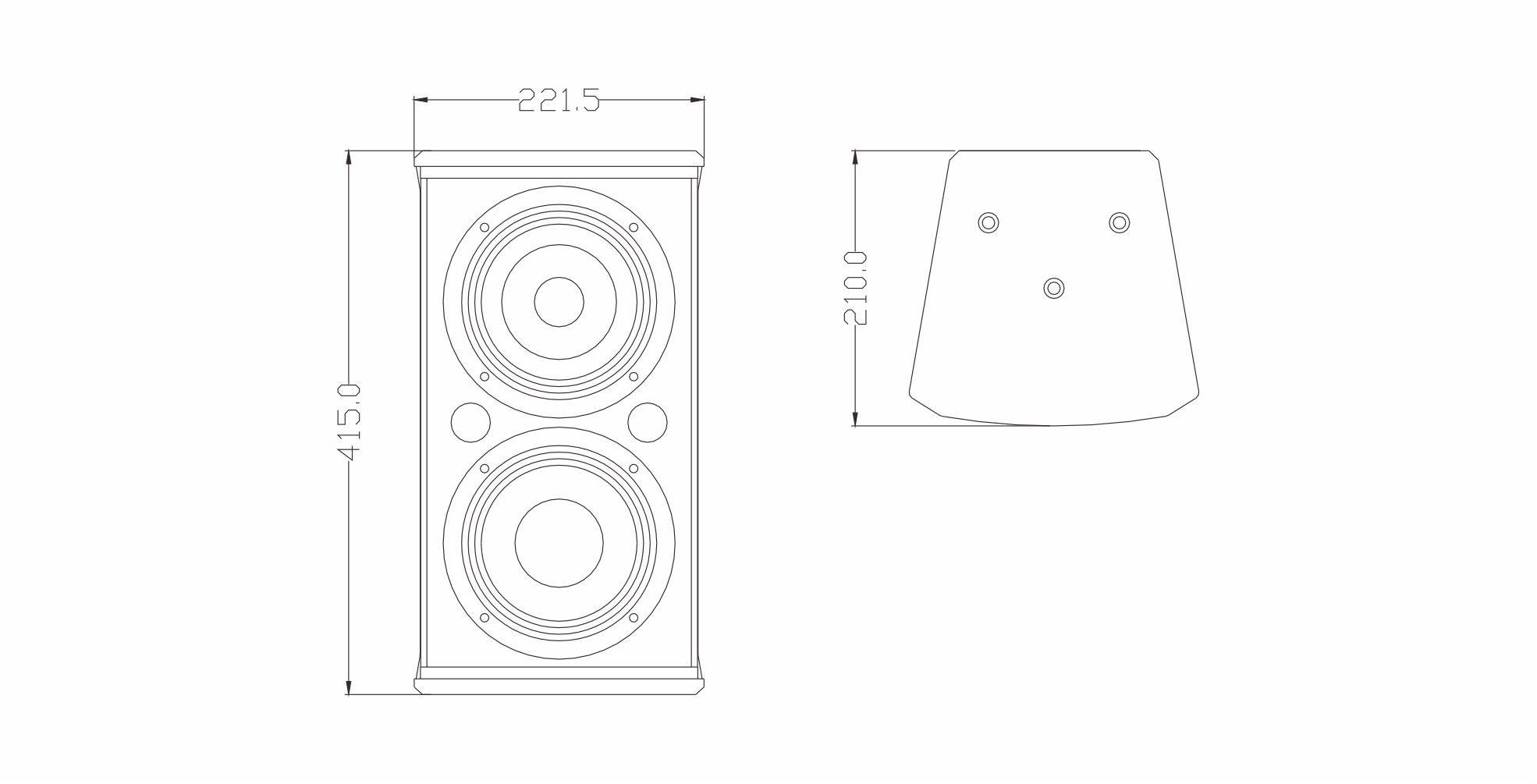

CONFIGURATION
DOWNLOAD
