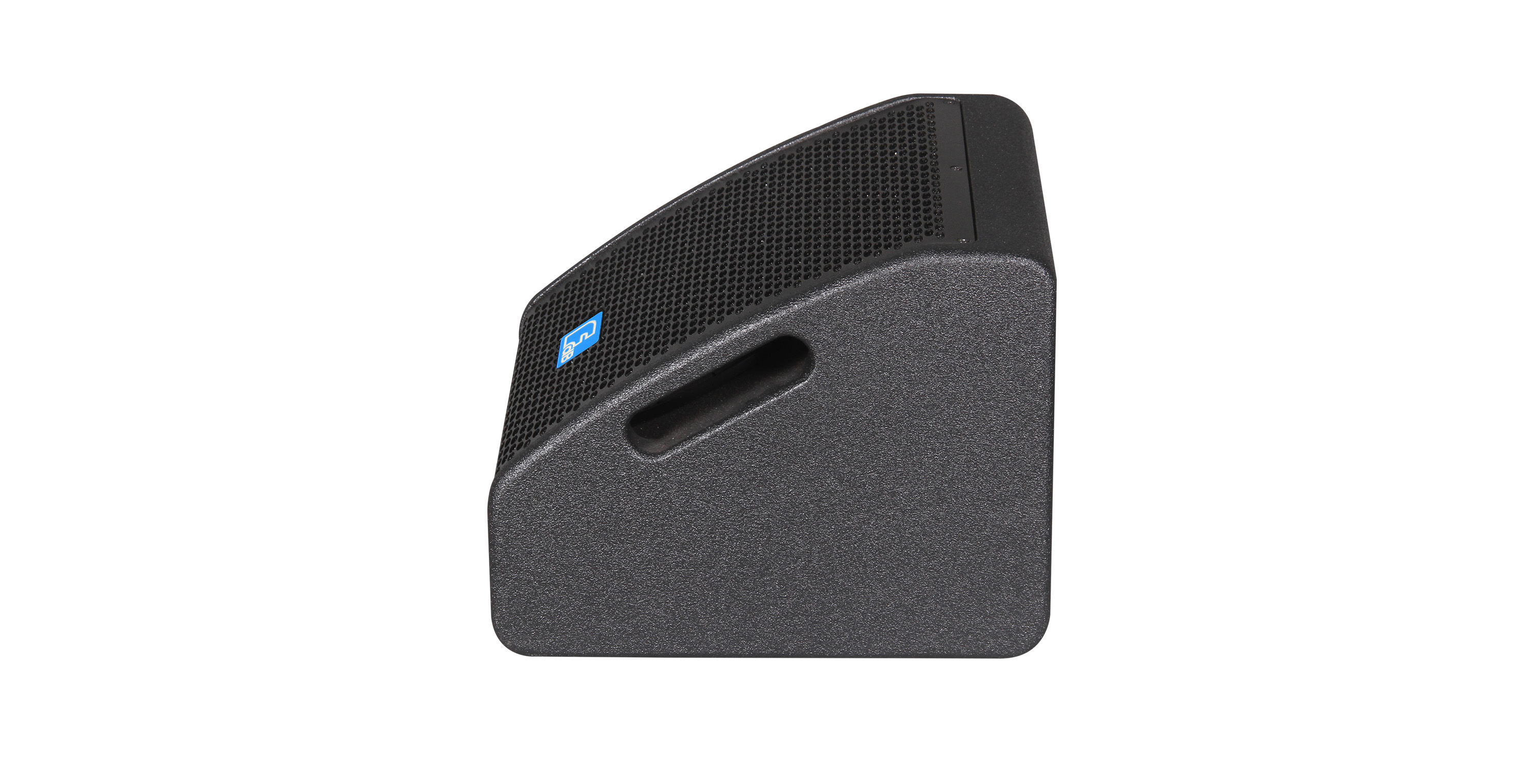

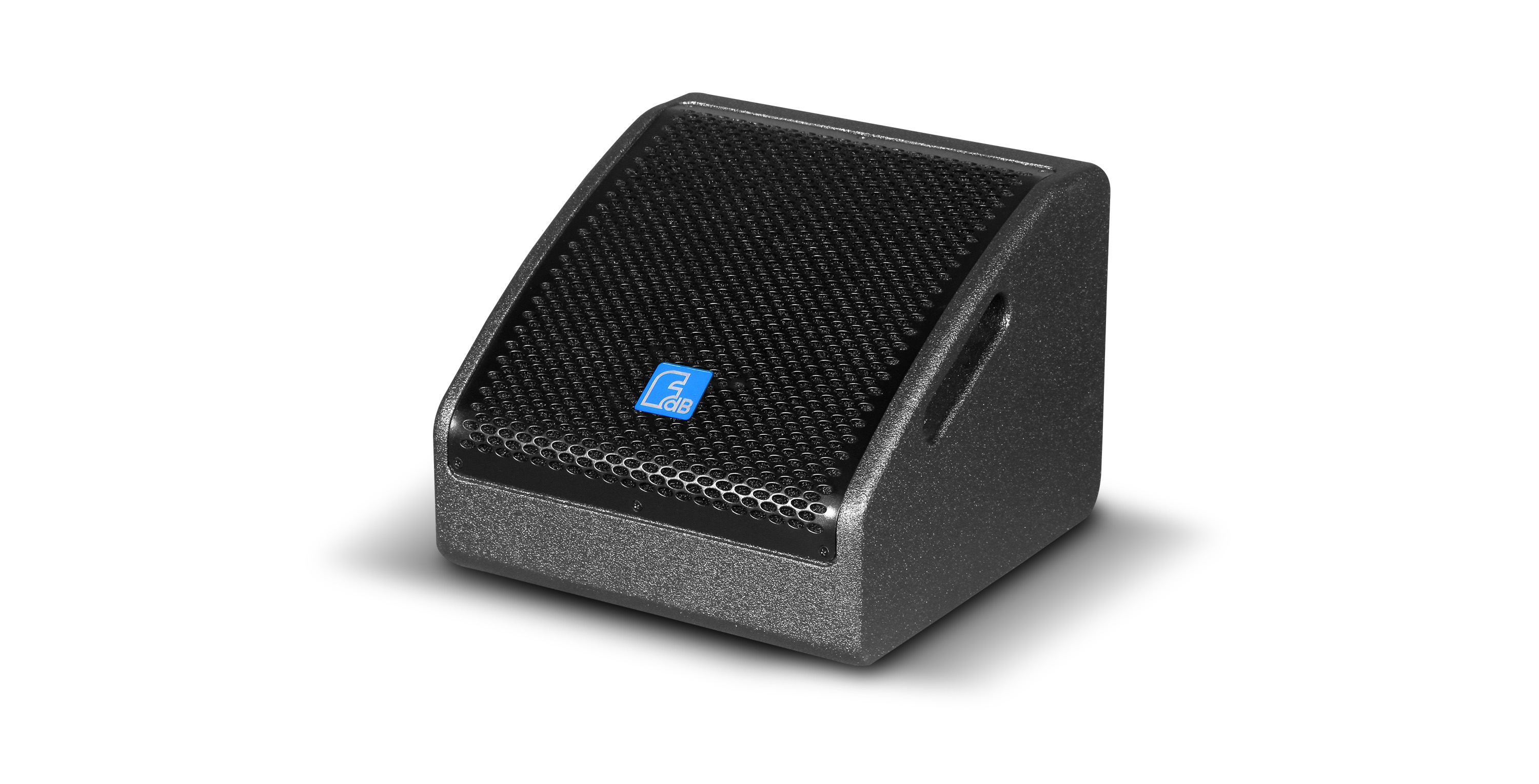

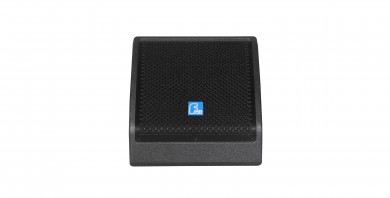

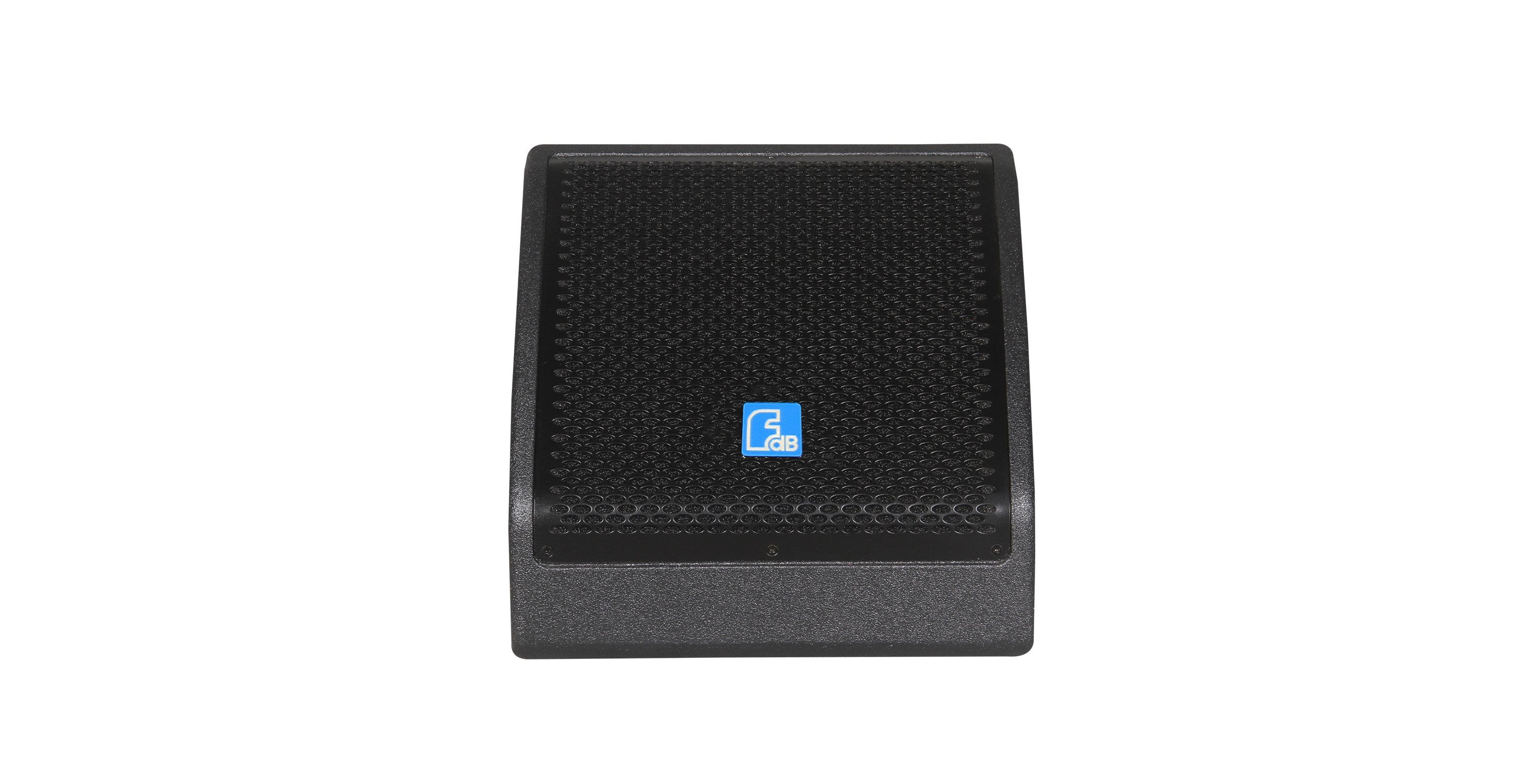

MR108/MR108A
1x8" 2-way loudspeaker system
DESCRIPTION

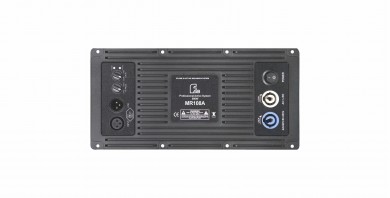

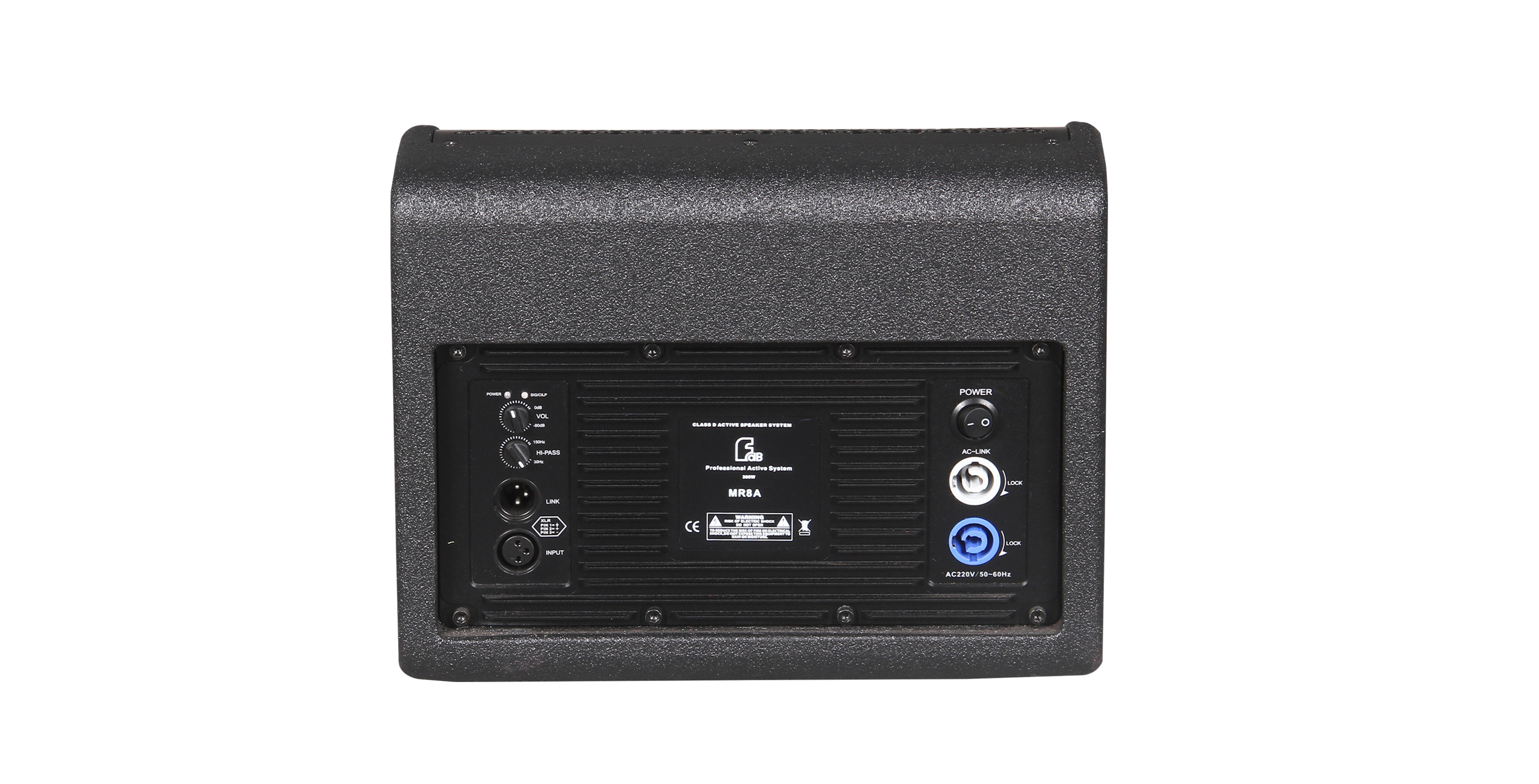

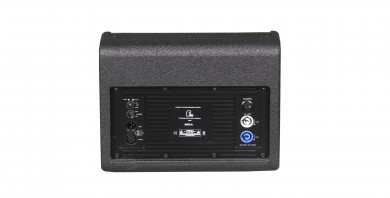

MR108 is a compact, small size, coaxial, 2-way full range monitor speaker, has balanced and real sound quality. Configuration:1x8" high efficency mid-bass unit and 1x1" exit throat 44mm voice coil HF driver with horn make up the coaxial. The cabinet is made of multilayer composite plywood with wear-resistant polyurea paint. MR108A is equipped with digital amplifier based on MR108 to be an active speaker.
FEATURES
●High quality coaxial design
●Small size, light weight
●Can be placed on stage , can be hung
●Applications: Stage monitor
●Small size, light weight
●Can be placed on stage , can be hung
●Applications: Stage monitor
SPECIFICATIONS
| MODEL | MR108 | MR108A |
| FREQUENCY RESPONSE(-3dB) | 90Hz-18KHz | 90Hz-18KHz |
| FREQUENCY RESPONSE(-10dB) | 85Hz-20KHz | 85Hz-20KHz |
| DRIVERS | 1×8"(200mm)/ 2"voice coil LF | 1×8"(200mm)/ 2"voice coil LF |
| 1×1"(25mm) / 1.4"voice coil HF | 1×1"(25mm) / 1.4"voice coil HF | |
| RATED POWER | 150W RMS,600W peak | 300W/8Ω |
| SENSITIVITY | 95dB 1watt/1 metre | — |
| MAXIMUM SPL | 116dB continuous,122dB peak | 116dB continuous,122dB peak |
| IMPEDANCE | 8 ohms nominal | — |
| DISPERSION(-6dB) | 90° ×90° | 90° ×90° |
| CROSSOVER FREQUENCIES | 2.2kHz passive | — |
| INPUT CONNECTORS | 2×Speakon NL4 | INPUT TYPE: Balanced Differential line |
| PACKAGE SIZE | 420mm×345mm×425mm | 420mm×345mm×425mm |
| NET WEIGHT | 10 kg/pc | 12 kg/pc |
| GROSS WEIGHT | 12 kg/pc | 14 kg/pc |

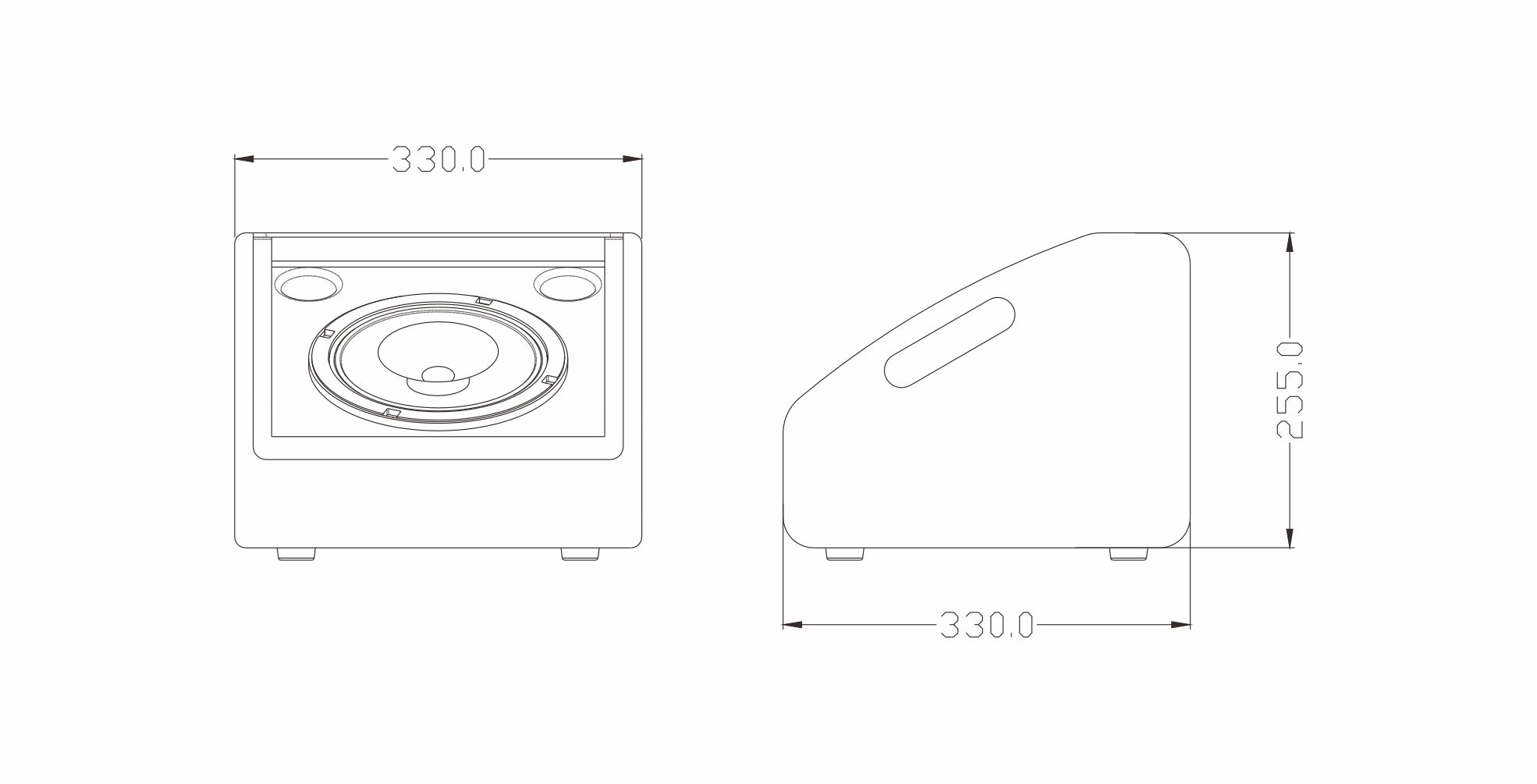

CONFIGURATION
