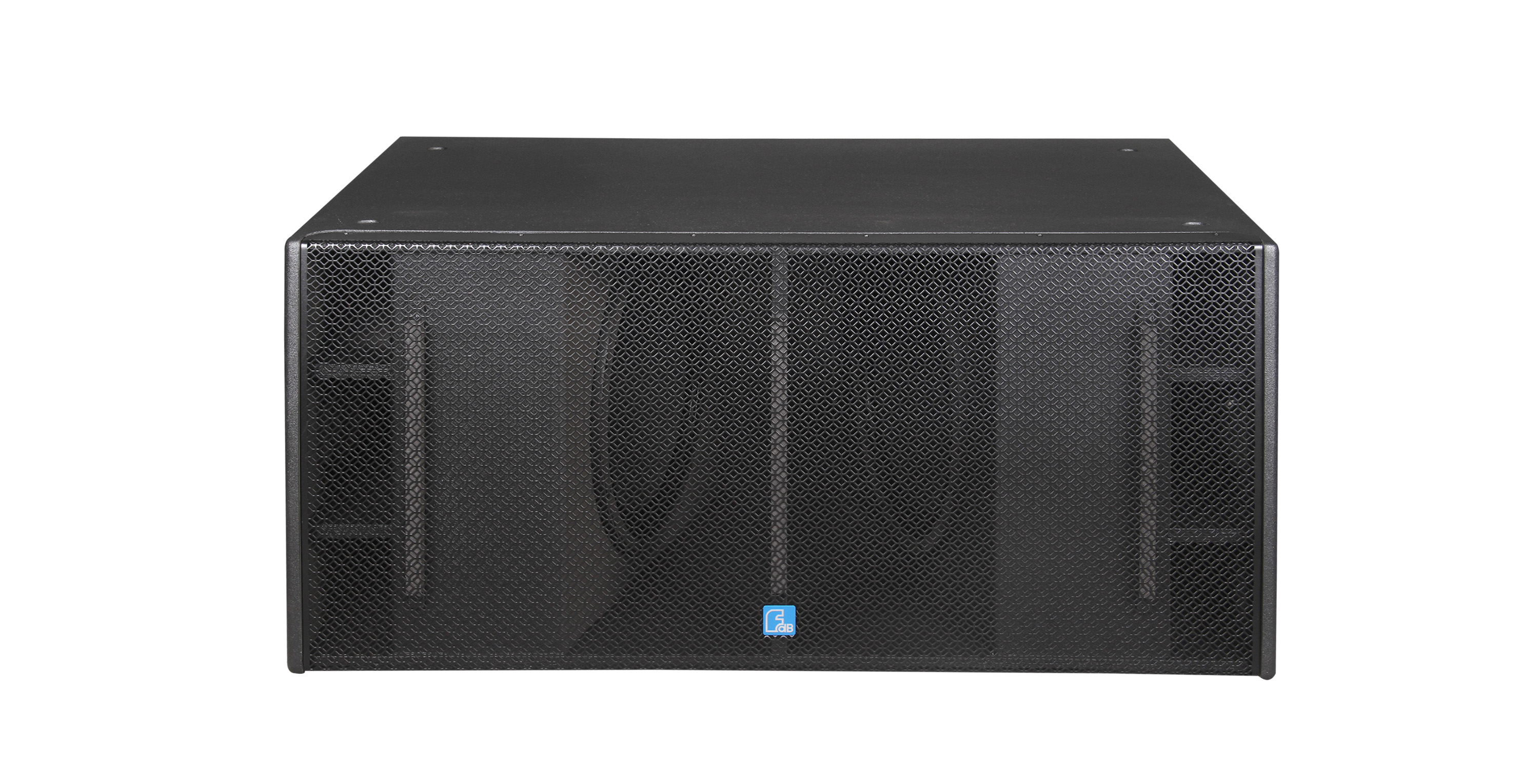

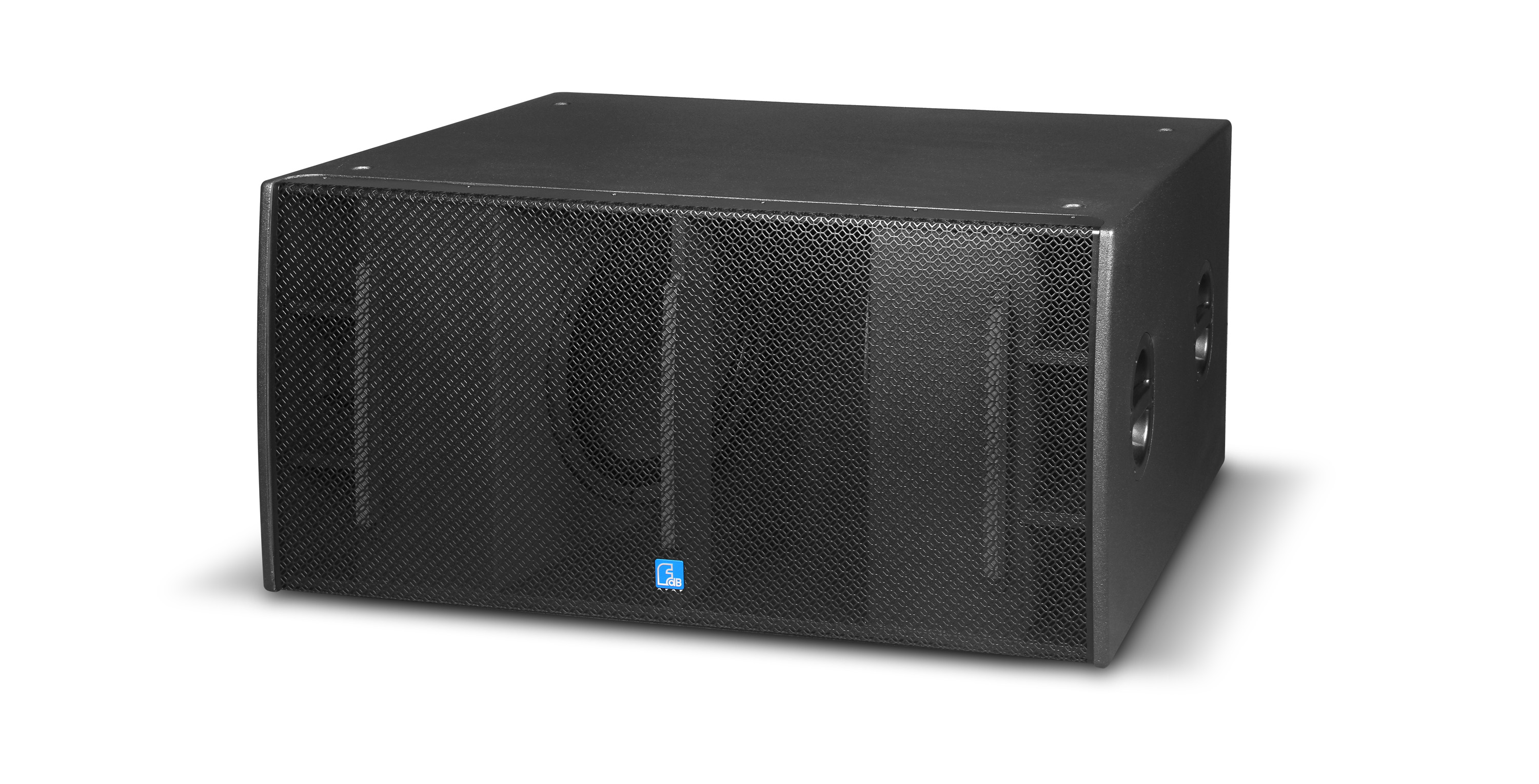

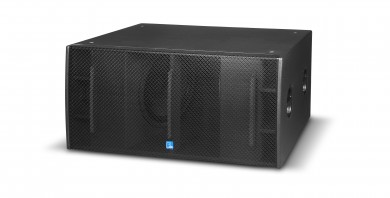

DLA218B
2x18" Sub-woofer
DESCRIPTION
DLA218B is a dual 18" subwoofer. It features 2x18" 100mm voice coil woofer,bass-reflex design, can be used with line array and point source full range speakers to improve the low frequency performance. The cabinet is made of multilayer composite plywood with wear-resistant polyurea paint.
FEATURES
●High quality components, bass-reflex design, full and powerful sound
●Applications: meet a variety of occasions, can be combined with line array and point source full range speaker freely
●Applications: meet a variety of occasions, can be combined with line array and point source full range speaker freely
SPECIFICATIONS
| MODEL | DLA218B |
| FREQUENCY RESPONSE(-3dB) | 35Hz-150Hz |
| DRIVERS | 2×18"(460mm)/4"voice coil LF |
| RATED POWER | 1200W RMS,4800W peak |
| SENSITIVITY | 103dB 1watt/1meter |
| MAXIMUM SPL | 134dB continuous,140dB peak |
| IMPEDANCE | 4 ohms nominal |
| INPUT CONNECTORS | 2×Speakon NL4 |
| PACKAGE SIZE | 1272mm×872mm×658mm |
| NET WEIGHT | 80 kg/pc |
| GROSS WEIGHT | 92 kg/pc |
