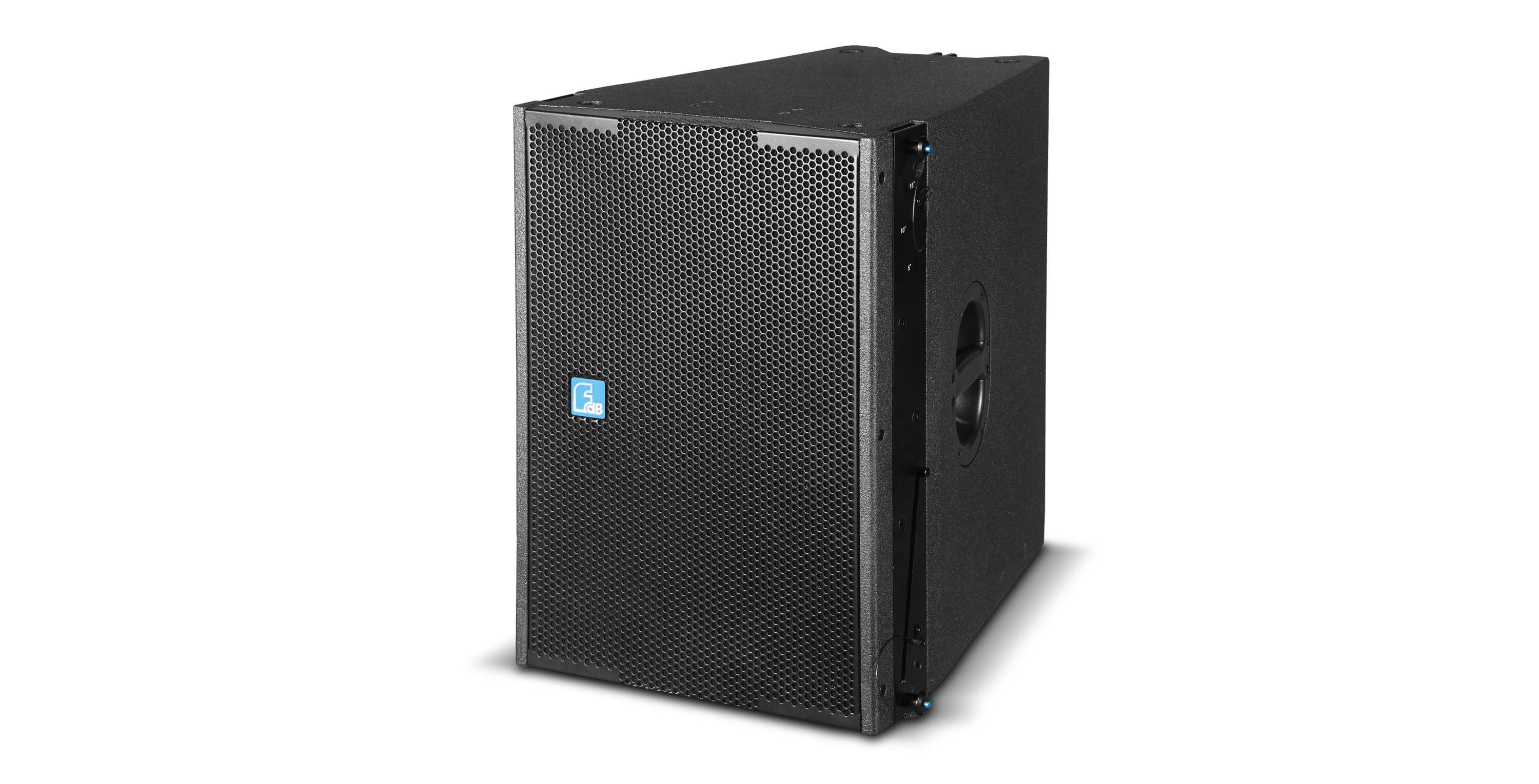

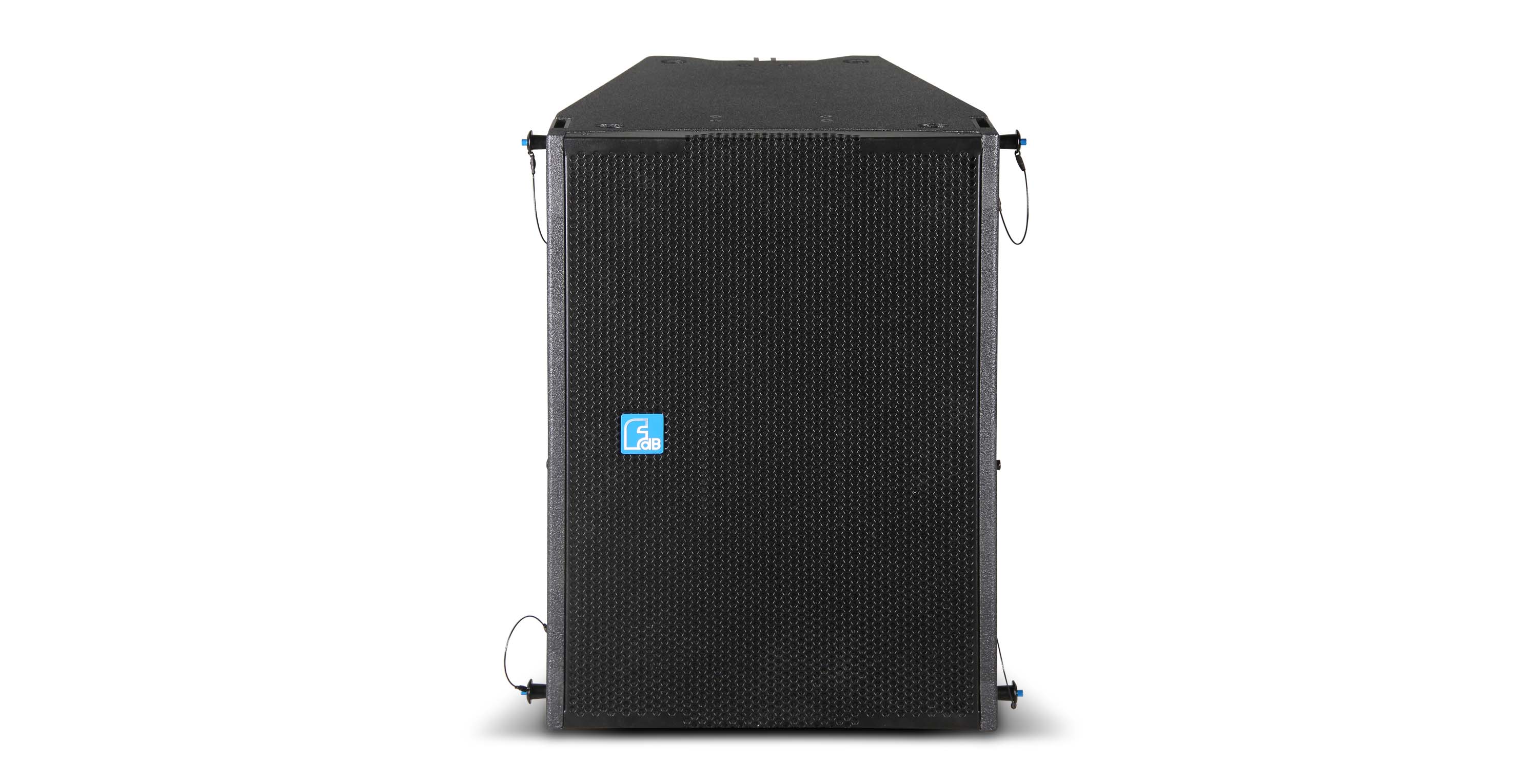

NX510/NX510A
2x10" 2-way line array system /2x10" 2-way active line array system
DESCRIPTION

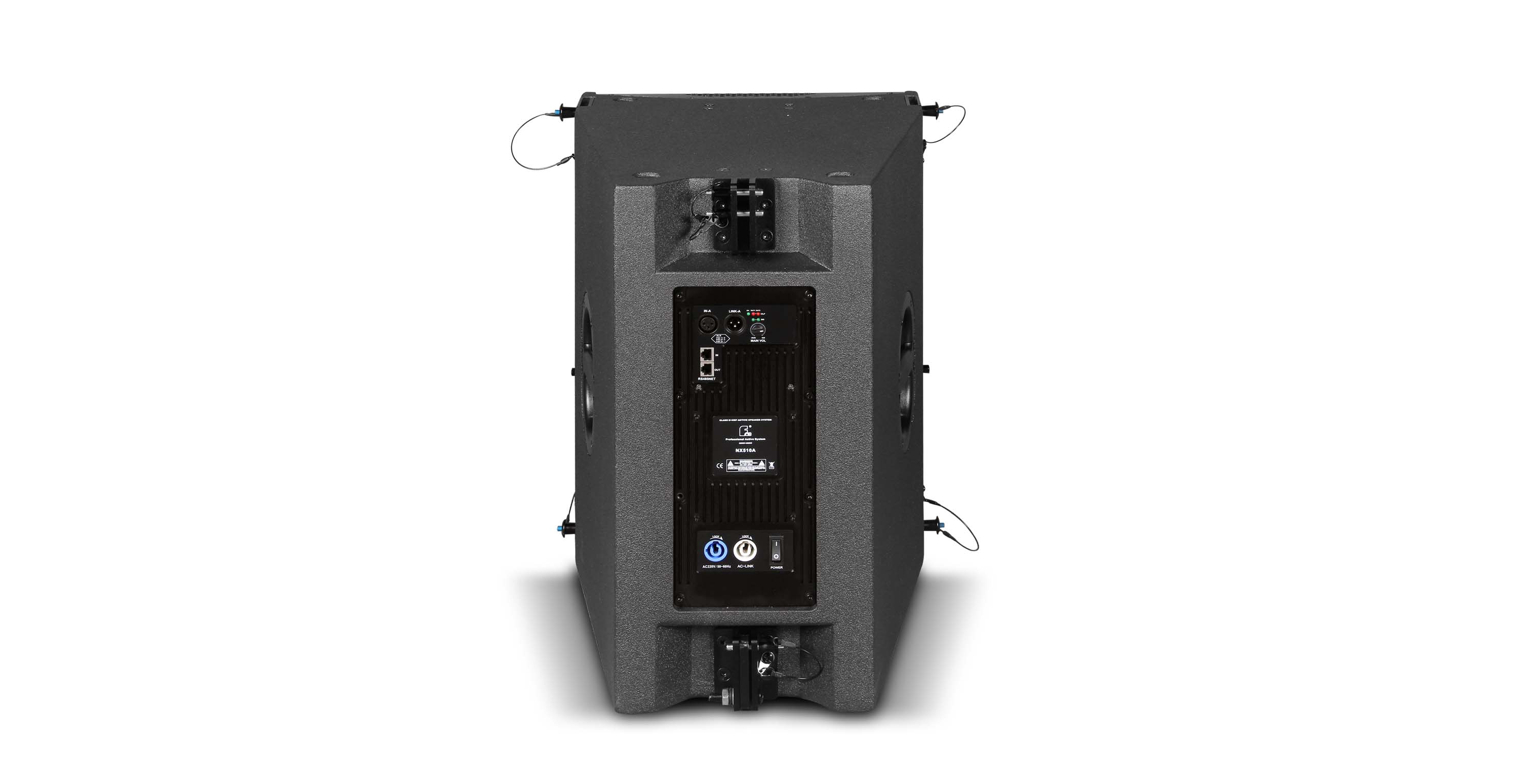

NX510 is a compact loudspeaker system using medium and low frequency horn and high frequency linear coupling technology, which can obtain relatively high SPL by using small volume and weight, and can be combined with more than one, can be used with stand and can be hung, which is more convenient and fast to install. NX510 is fitted with two 10" neodymium LF drivers and three 1" neodymium HF drivers coupled to a patent horn,made of high quality plywood with polyurea waterproof paint. NX510A is equipped with FA2.68 digital amplifier module based on NX510 to be an active loudspeaker.
FEATURES
FEATURES
●High quality plywood with polyurea waterproof paint
●Application of coupling technology
●Coaxial design
●Small size, high SPL

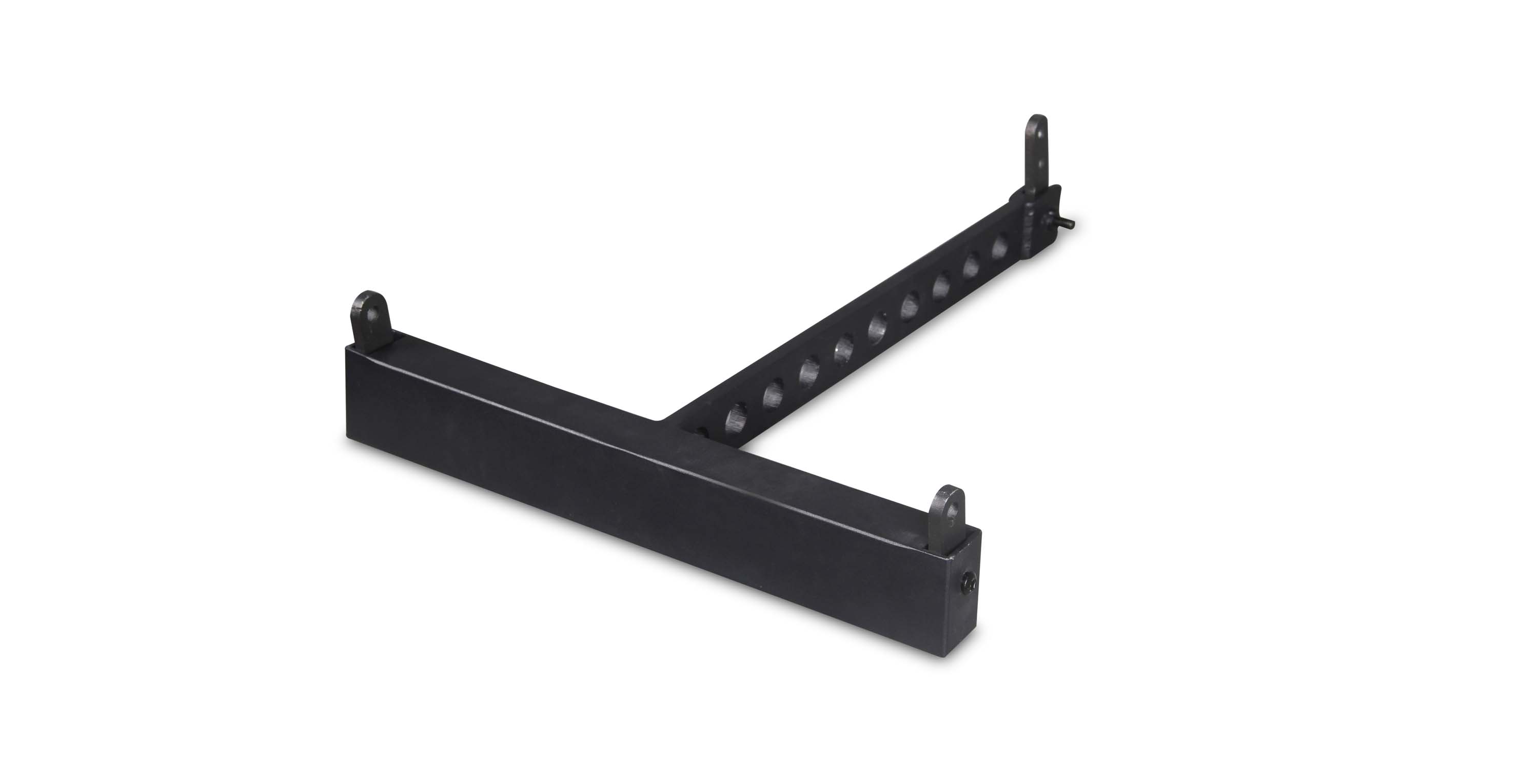

●Support pole mounting, can be hung, more convenient to install
●Used for moving performance, clubs,multi-purpose hall, theatre and stadiums
●High quality plywood with polyurea waterproof paint
●Application of coupling technology
●Coaxial design
●Small size, high SPL
●Support pole mounting, can be hung, more convenient to install
●Used for moving performance, clubs,multi-purpose hall, theatre and stadiums
SPECIFICATIONS
| MODEL | NX510 | NX510A |
| FREQUENCY RESPONSE(-3dB) | LF: 70Hz-2.5kHz | 70Hz-18kHz |
| HF: 1kHz-18kHz | -- | |
| DRIVERS | 2×10"(250mm)/3" voice coil LF | 2×10"(250mm)/3" voice coil LF |
| 3×1"(25mm)/1.7" voice coil HF | 3×1"(25mm)/1.7" voice coil HF | |
| RATED POWER | LF: 600W RMS,2400W peak | 600W/8Ω+800W/8Ω |
| HF: 180W RMS,720W peak | -- | |
| SENSITIVITY | LF:106dB 1watt/1meter | -- |
| HF:111dB 1watt/1meter | -- | |
| MAXIMUM SPL | LF:134dB continuous,140dB peak | 134dB continuous,140dB peak |
| HF:134dB continuous,140dB peak | -- | |
| IMPEDANCE | LF：8 ohms nominal | -- |
| HF：6 ohms nominal | -- | |
| DISPERSION(-6dB) | 90° × 30° | 90° ×30° |
| CROSSOVER FREQUENCIES | 1.5KHz passive | -- |
| INPUT CONNECTORS | 2×Speakon NL4 | INPUT TYPE: Balanced Differential line |

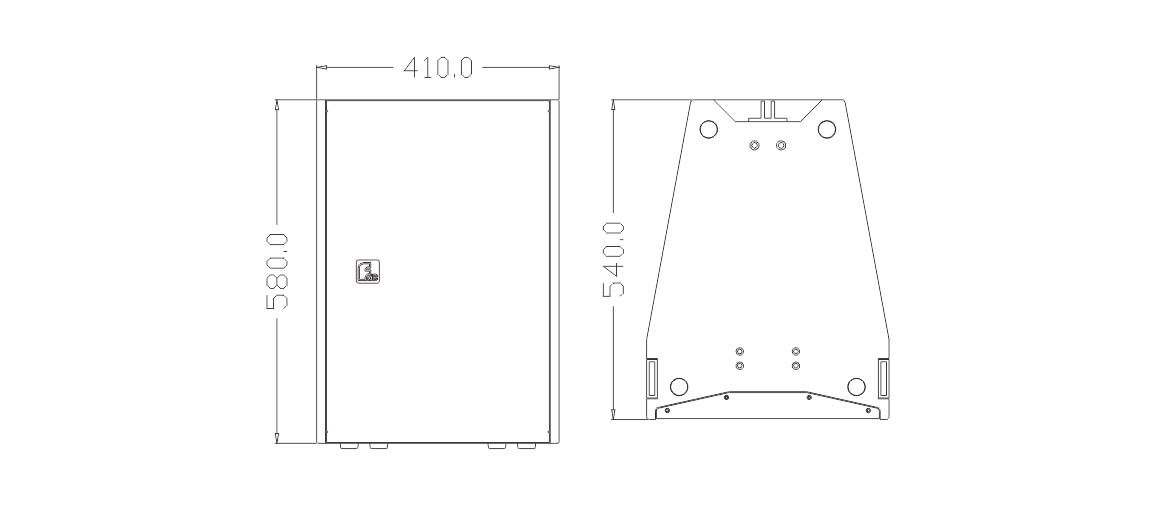

| PACKAGE SIZE | 650mm×520mm×695mm | 650mm×520mm×695mm |
| NET WEIGHT | 35kg/pc | 38kg/pc |
| GROSS WEIGHT | 39kg/pc | 42kg/pc |

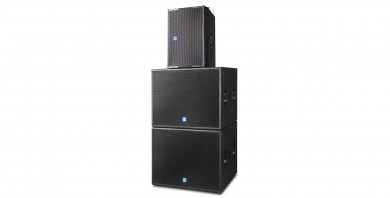

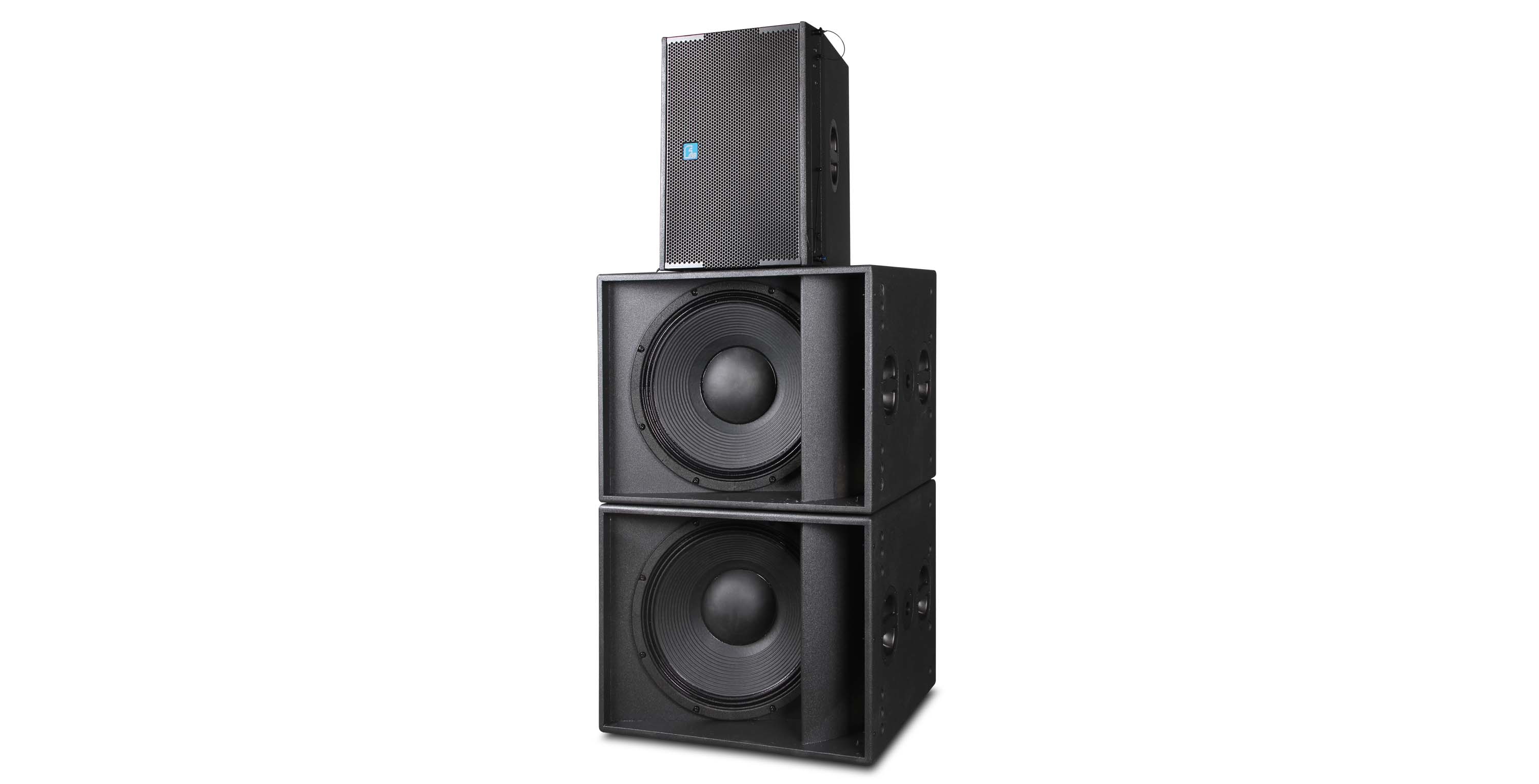

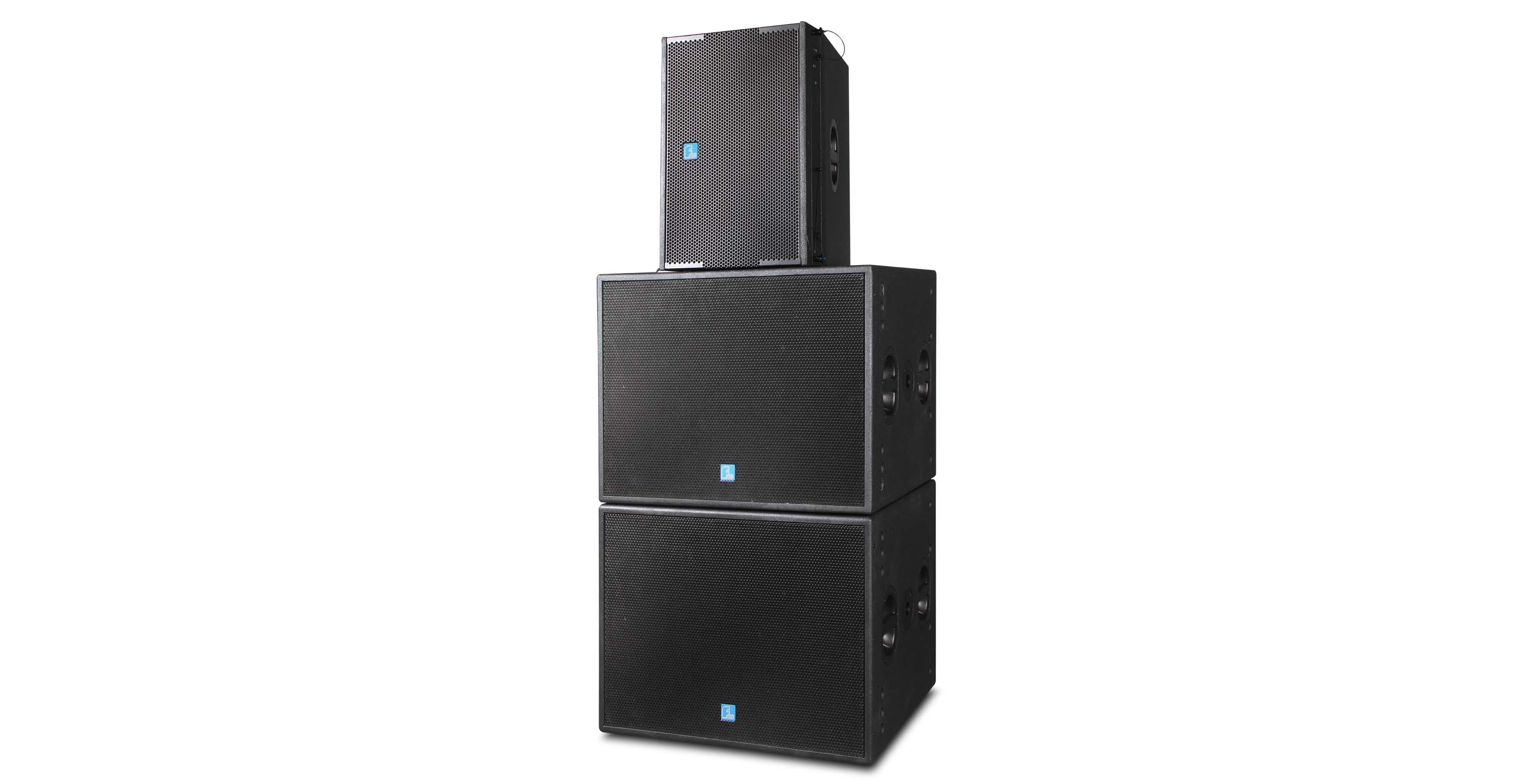

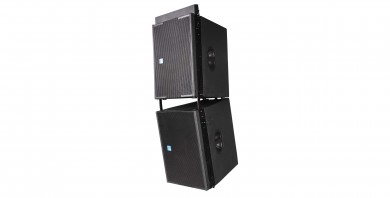

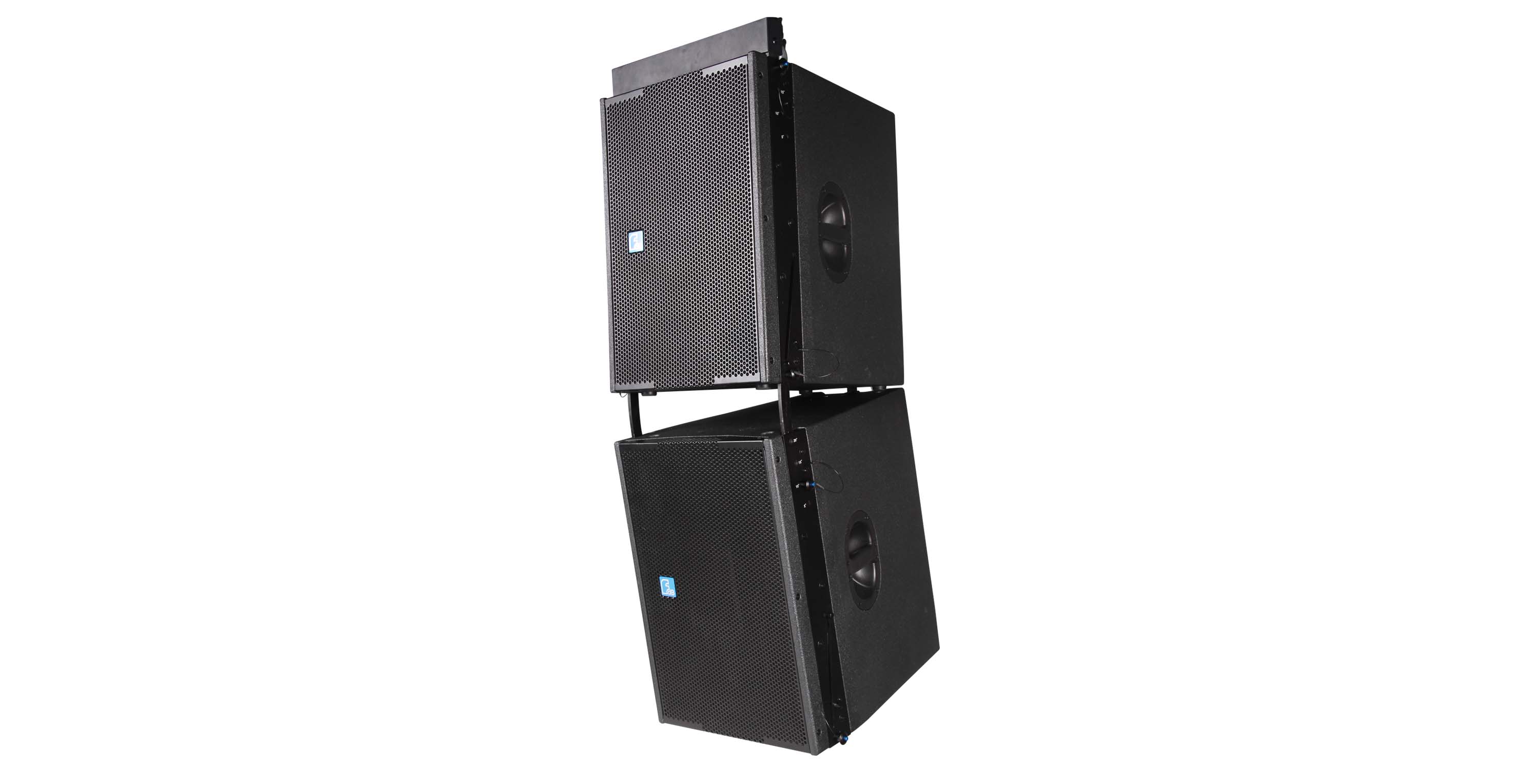

CONFIGURATION
