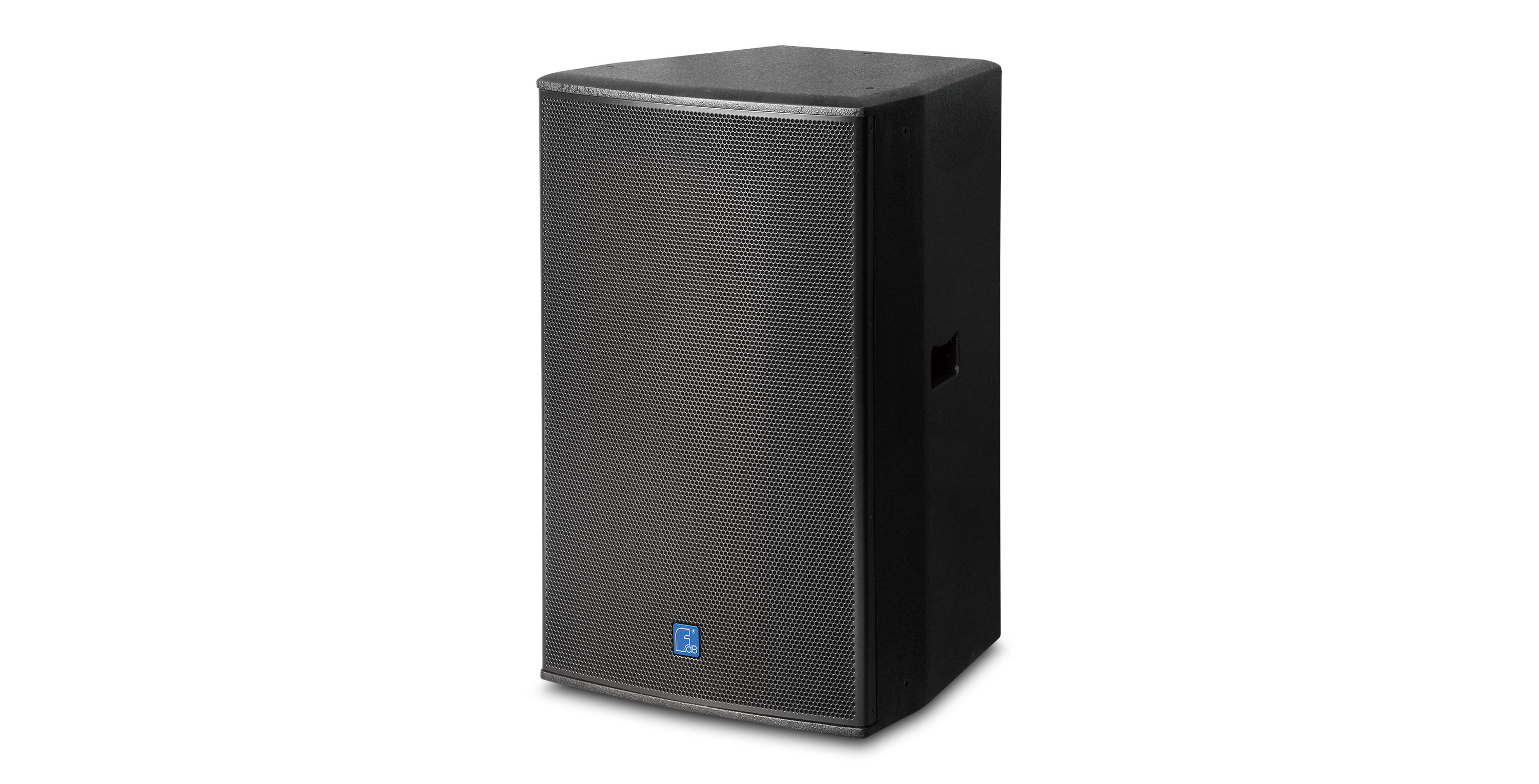

KR15
1x15" 2-way Loudspeaker System
DESCRIPTION
The KR15 is a special designed for KTV fixed installation, two way full range speaker, in the human music listening sense has a good performance. Unit configuration: 1x15" high efficiency mid-bass unit, 1x1" exit throat 44mm poliyimide diaphragm HF driver with 100°×70° rotatable horn. The cabinet is made of multilayer composite plywood with water-based environmental protection paint.
FEATURES
●High quality unit configuration
●Rotatable horn
●Multi-hanging points to meet different demands of installation
●Back vented design with rich bass sound
●Applications: KTV entertainment
●Rotatable horn
●Multi-hanging points to meet different demands of installation
●Back vented design with rich bass sound
●Applications: KTV entertainment
SPECIFICATIONS
| FREQUENCY RESPONSE(-3dB) | 45 Hz-18kHz |
|
FREQUENCY RESPONSE(-10dB) |
40 Hz-20kHz |
| DRIVERS | 1×15"(385mm)/3"voice coil LF |
| 1×1"(25mm)/1.7"voice coil HF | |
| RATED POWER | 400W RMS,1600W peak |
| SENSITIVITY | 98dB 1watt/1 metre |
| MAXIMUM SPL | 124dB continuous,130 dB peak |
| IMPEDANCE | 8 ohms nominal |
| DISPERSION(-6dB) | 100° × 70° |
| CROSSOVER FREQUENCIES | 2.5kHz passive |
| INPUT CONNECTORS | 2×Speakon NL4 |
| PACKAGE SIZE | 540mm×540mm×795mm |
| NET WEIGHT | 26 kg/pc |
| GROSS WEIGHT | 29 kg/pc |
