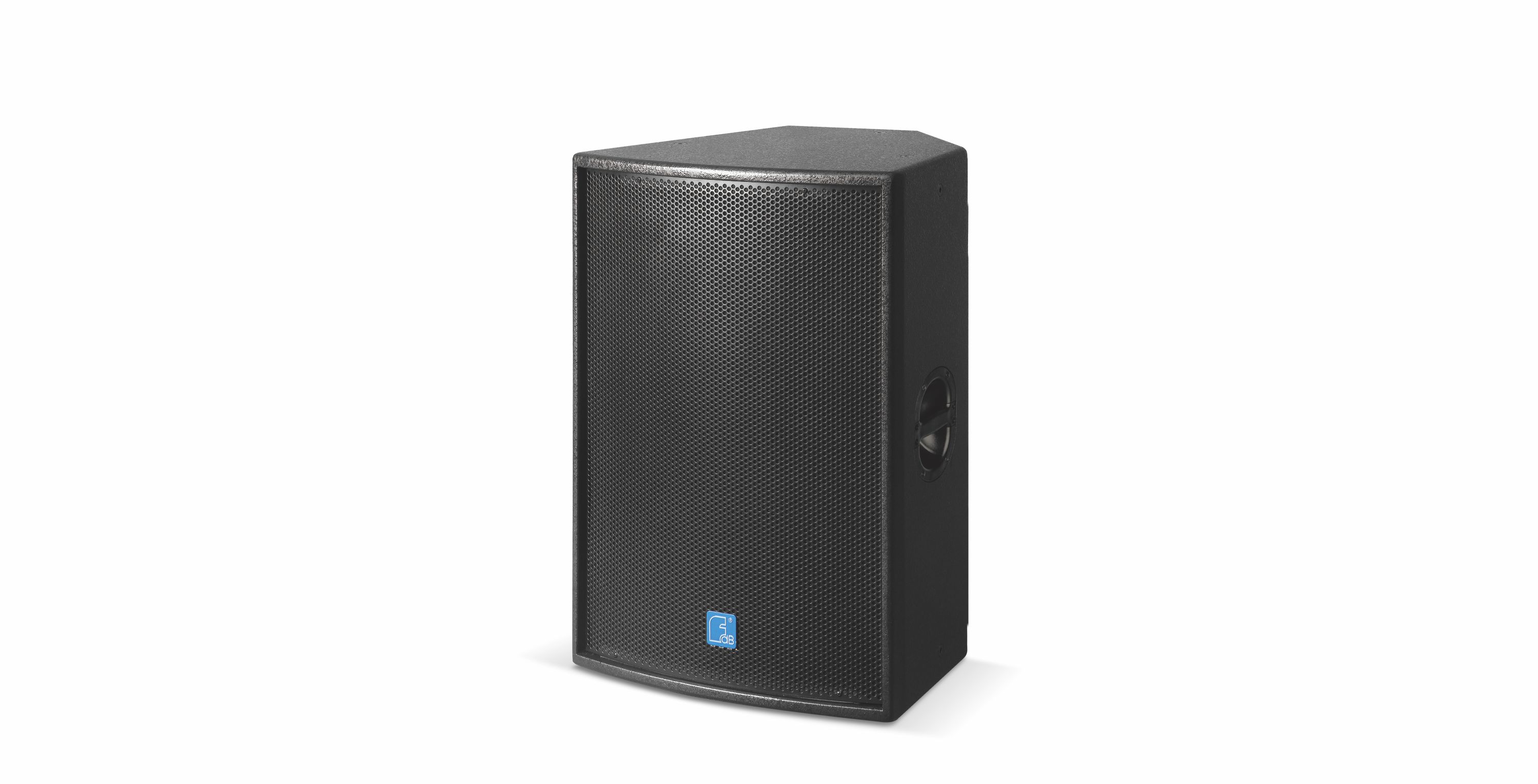

FT15II    1x15"2-way Loudspeaker System

DESCRIPTION

The FT15Ⅱ is a 2-way system with one15"(385mm) woofer and one 1"(25mm) exit compression driver mounted on a rotatable 80°×50° horn.




FEATURES

FEATURES
●High quality MDF with special environmental protection paint
●Wide-bandwidth system
●Rotatable 80°×50° horn







SPECIFICATIONS

FREQUENCY RESPONSE(-3dB) 40Hz-20kHz
FREQUENCY RESPONSE(-10dB)
35Hz-20kHz
DRIVERS 1×15"(385mm)/2.5" voice coil LF
1×1"(25mm)/ 1.4"voice coil HF
RATED POWER 300W RMS,1200W peak
SENSITIVITY 97dB 1watt/1 metre
MAXIMUM SPL 121 dB continuous,127 dB peak
IMPEDANCE 8 ohms nominal
DISPERSION(-6dB) 80°×50°
CROSSOVER FREQUENCIES 2kHz passive
INPUT CONNECTORS 2×Speakon NL4
PACKAGE SIZE 565mm×545mm×795mm
NET WEIGHT 27 kg/pc
GROSS WEIGHT 30 kg/pc
