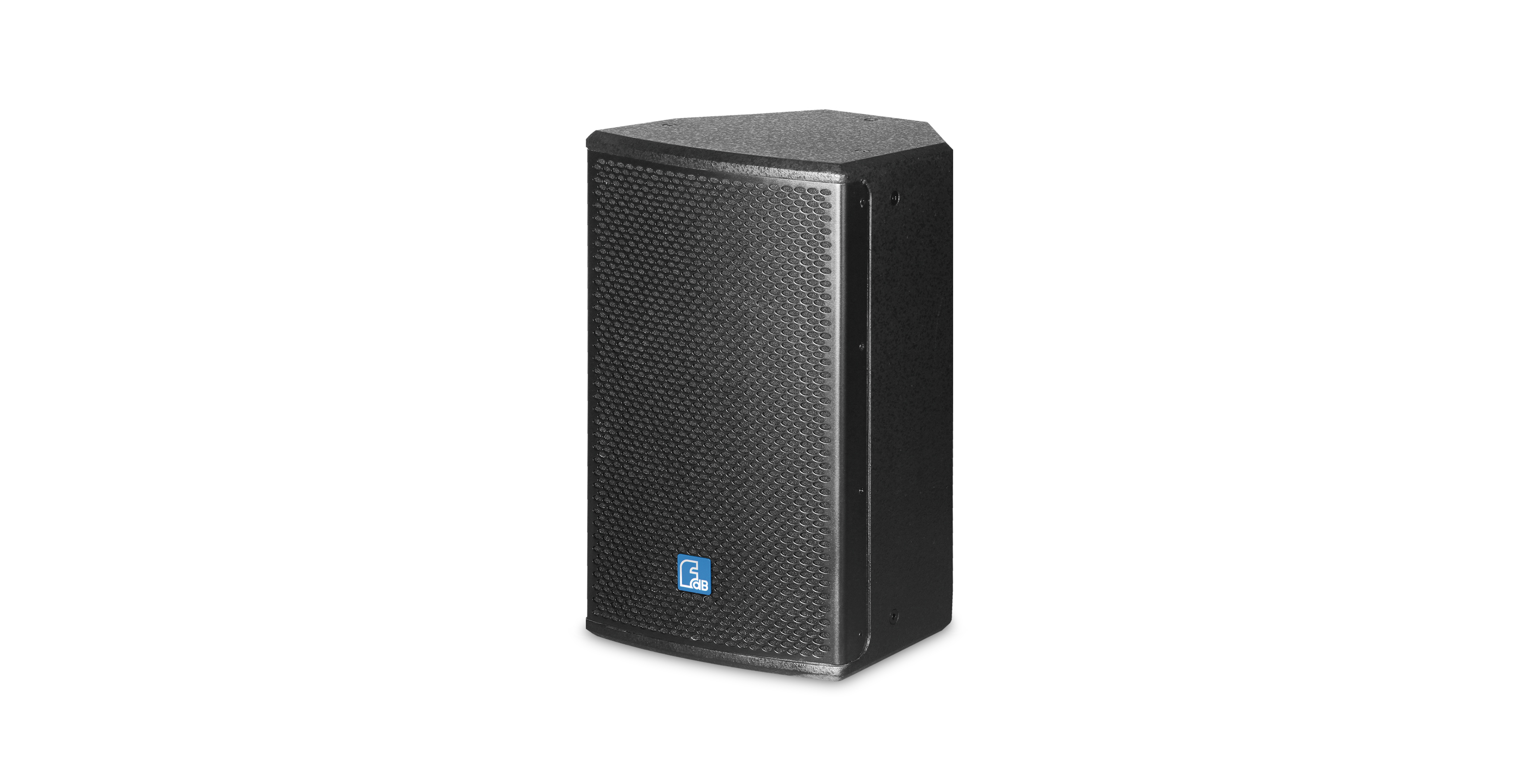

U110VI
1x10" 2-way Loudspeaker System
DESCRIPTION
The U110VI is a 10" two way full range speaker with clear and bright sound. Unit configuration: 1x10" high efficiency mid-bass unit, 1x1" exit throat 44mm poliyimide diaphragm HF driver with 90°×50° rotatable horn. The cabinet is made of multilayer composite plywood with wear-resistant polyurea paint.
FEATURES
●High quality unit configuration, high strength plywood housing
●Multi-hanging points and support, easy and quick operation
●Applications: large-scale indoor sound reinforcement, multifunction halls, high-end hotel clubs, touring, band reinforcement and monitor speaker
●Multi-hanging points and support, easy and quick operation
●Applications: large-scale indoor sound reinforcement, multifunction halls, high-end hotel clubs, touring, band reinforcement and monitor speaker
SPECIFICATIONS
| MODEL | U110VI |
| FREQUENCY RESPONSE(-3dB) | 55 Hz-18kHz |
| FREQUENCY RESPONSE(-10dB) | 50 Hz-20kHz |
| DRIVERS | 1×10"(250mm)/2.5"voice coil LF |
| 1×1"(25mm)/1.7"voice coil HF | |
| RATED POWER | 250W RMS,1000W peak |
| SENSITIVITY | 95dB 1watt/1 metre |
| MAXIMUM SPL | 119dB continuous,125 dB peak |
| IMPEDANCE | 8 ohms nominal |
| DISPERSION(-6dB) | 90°×50° |
| CROSSOVER FREQUENCIES | 2kHz passive |
| INPUT CONNECTORS | 2×Speakon NL4 |
| PACKAGE SIZE | 400mm×390mm×595mm |
| NET WEIGHT | 15 kg/pc |
| GROSS WEIGHT | 18 kg/pc |
