LH15HII

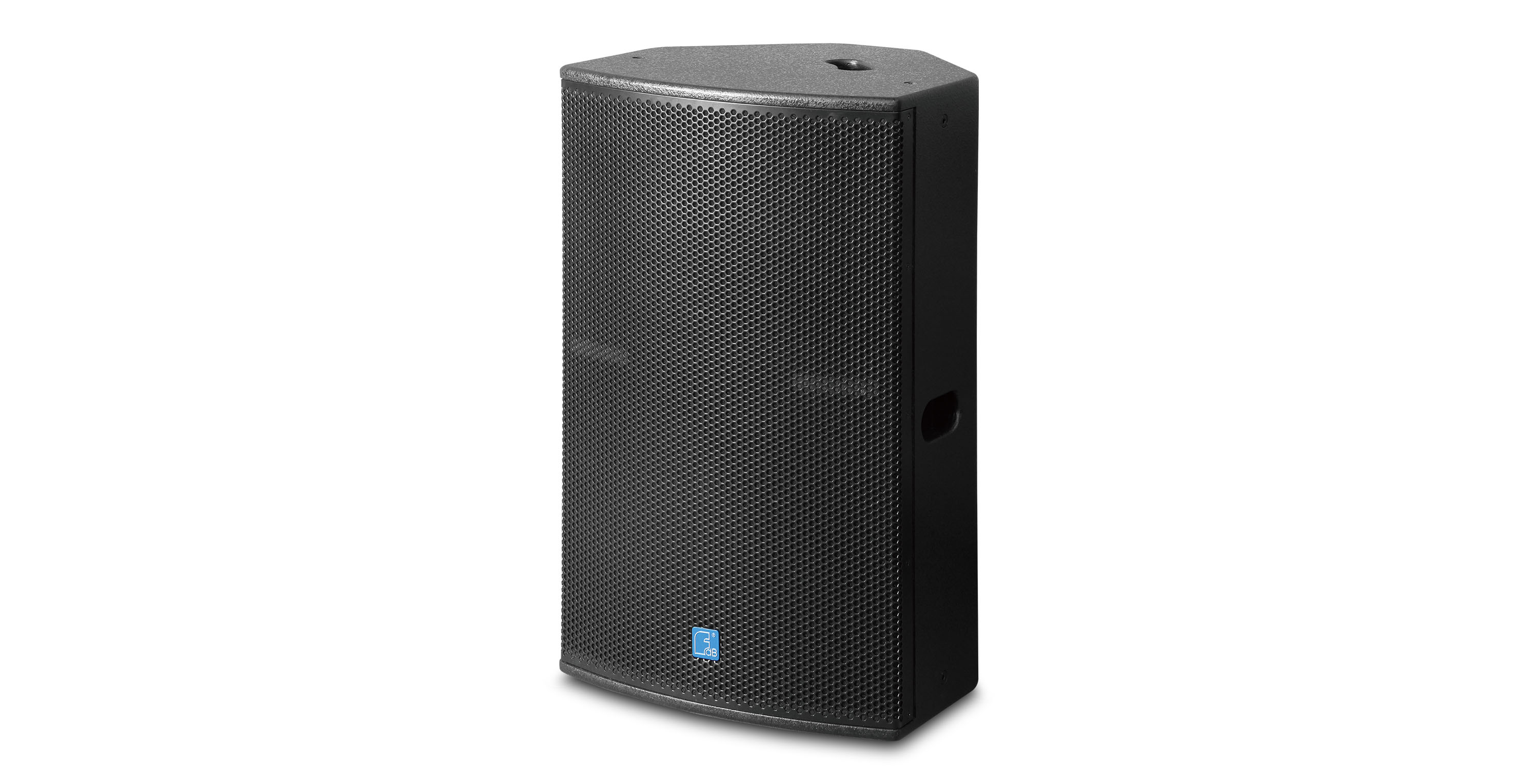

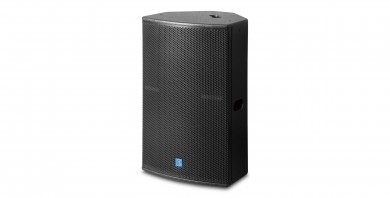

1x15" 2-way Loudspeaker System
DESCRIPTION
The LH15HⅡ is a 15", light weight, high SPL, two way full range speaker with bright and powerful sound. Unit configuration: 1x15" high power neodymium mid-bass unit, 1x1.4" exit throat 75mm neodymium composite diaphragm HF driver with 90°×40° rotatable horn. The cabinet is made of multilayer composite plywood with wear-resistant polyurea paint.
FEATURES
●High quality unit configuration, high strength plywood housing
●Small size, light weight, easy handling and fixed installation
●Multi-hanging points and support, easy and quick operation
●Applications: large-scale indoor sound reinforcement, multifunction halls, high-end hotel clubs, touring, band reinforcement and monitor speaker
●Small size, light weight, easy handling and fixed installation
●Multi-hanging points and support, easy and quick operation
●Applications: large-scale indoor sound reinforcement, multifunction halls, high-end hotel clubs, touring, band reinforcement and monitor speaker
SPECIFICATIONS
| MODEL | LH15HⅡ |
| FREQUENCY RESPONSE(-3dB) | 45 Hz-18kHz |
| FREQUENCY RESPONSE(-10dB) | 40 Hz-20kHz |
| DRIVERS | 1×15"(385mm)/4"voice coil LF |
| 1×1.4"(36mm)/3"voice coil HF | |
| RATED POWER | 600W RMS,2400W peak |
| SENSITIVITY | 98dB 1watt/1 metre |
| MAXIMUM SPL | 126dB continuous,132 dB peak |
| IMPEDANCE | 8 ohms nominal |
| DISPERSION(-6dB) | 90°×40° |
| CROSSOVER FREQUENCIES | 1.5kHz passive |
| INPUT CONNECTORS | 2×Speakon NL4 |
| PACKAGE SIZE | 540mm×525mm×812mm |
| NET WEIGHT | 26 kg/pc |
| GROSS WEIGHT | 29 kg/pc |
