Location： >> Products >> K Column System
>> K118BII/K118BASII
K118BII/K118BASII
1x18"Sub-woofer/1x18"Active Sub-woofer
DESCRIPTION

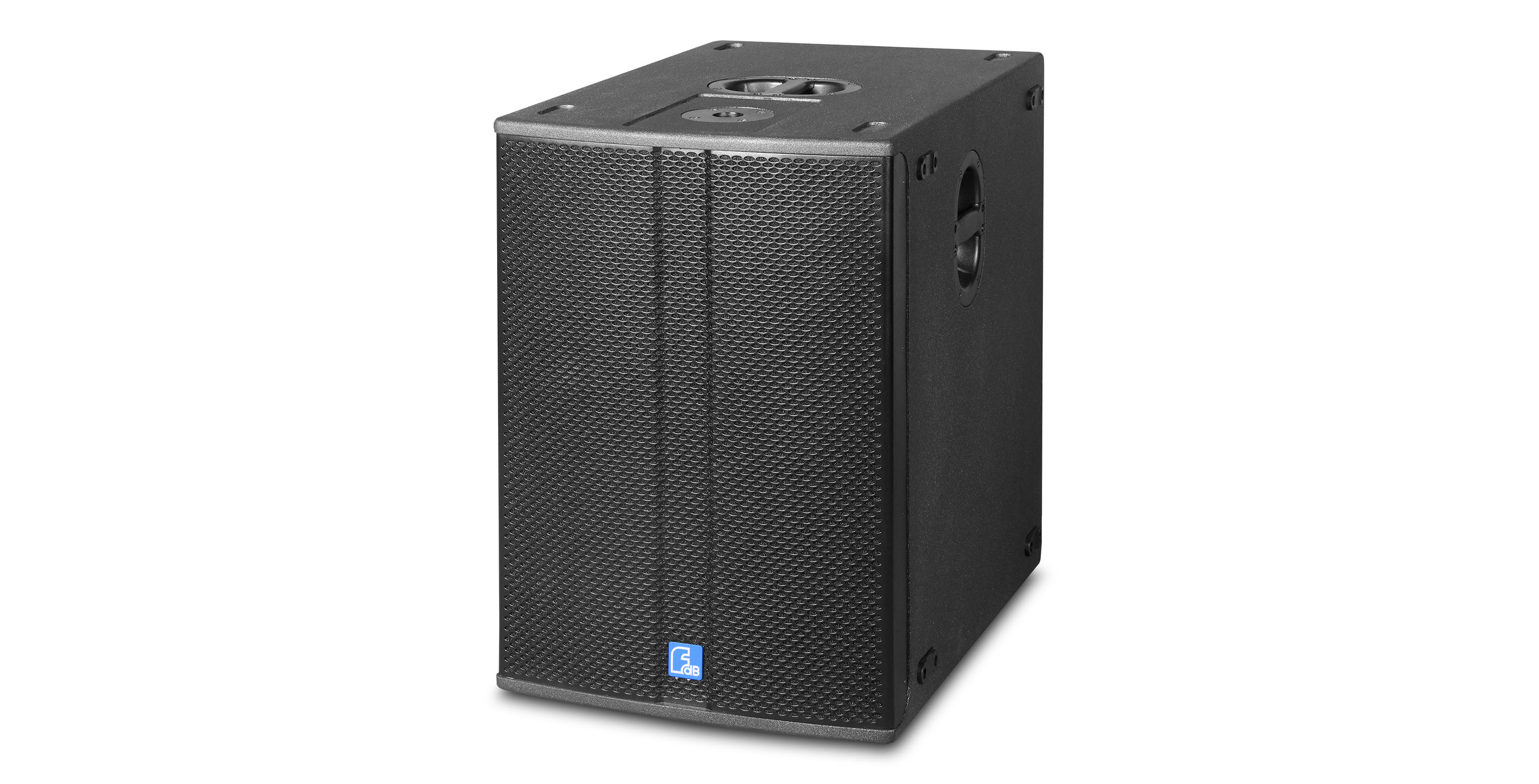

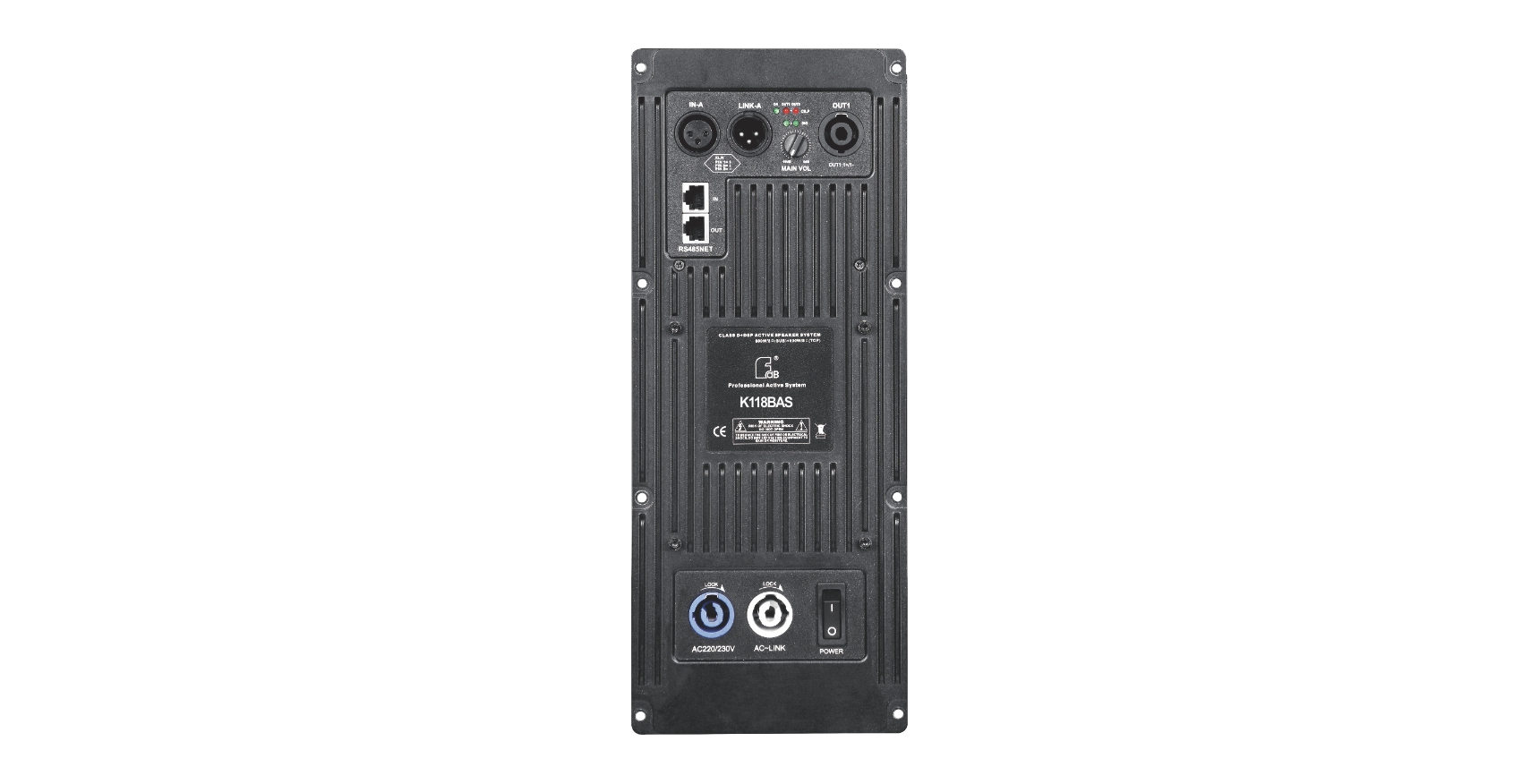

K118BⅡ is a single 18" subwoofer, using 4" voice coil woofer, made of high quality plywood with polyurea waterproof paint. K118BASⅡ is equipped with SA2.68 digital amplifier module to be an active system with full range and sub outputs based on K118BⅡ.
FEATURES
● High quality plywood with wear-resistant and waterproof polyurea paint
● Bass reflex design
● Hidden and external connections
● High temperature 4"(100mm) voice coil
● Top hat fitting for pole mounting to K series
● To match K606Ⅱ/K806Ⅱ
● Bass reflex design
● Hidden and external connections
● High temperature 4"(100mm) voice coil
● Top hat fitting for pole mounting to K series
● To match K606Ⅱ/K806Ⅱ
SPECIFICATIONS
| MODEL | K118BII | K118BASII |
| FREQUENCY RESPONSE(-3dB) | 35Hz-300Hz | 35Hz-300Hz and 50Hz-18kHz |
| DRIVERS | 1X18"(460mm) | 1X18"(460mm) |
| 4"voice coil LF | 4"voice coil LF | |
| RATED POWER | 600W(RMS),2400W peak | 900W/4Ω+1200W/4Ω |
| SENSITIVITY | 99dB 1watt/1meter | -- |
| MAXIMUM SPL | 127dB continuous,133dB peak | 127dB continuous,133dB peak |
| IMPEDANCE | 8 ohms nominal | -- |
| INPUT CONNECTORS | 2×Speakon NL4 | INPUT TYPE:Balanced Differential line |
| PACKAGE SIZE | 802mmx567mmx789mm | 802mmx567mmx789mm |
| NET WEIGHT | 42 kg/pc | 44 kg/pc |
| GROSS WEIGHT | 47 kg/pc | 49 kg/pc |
