DESCRIPTION

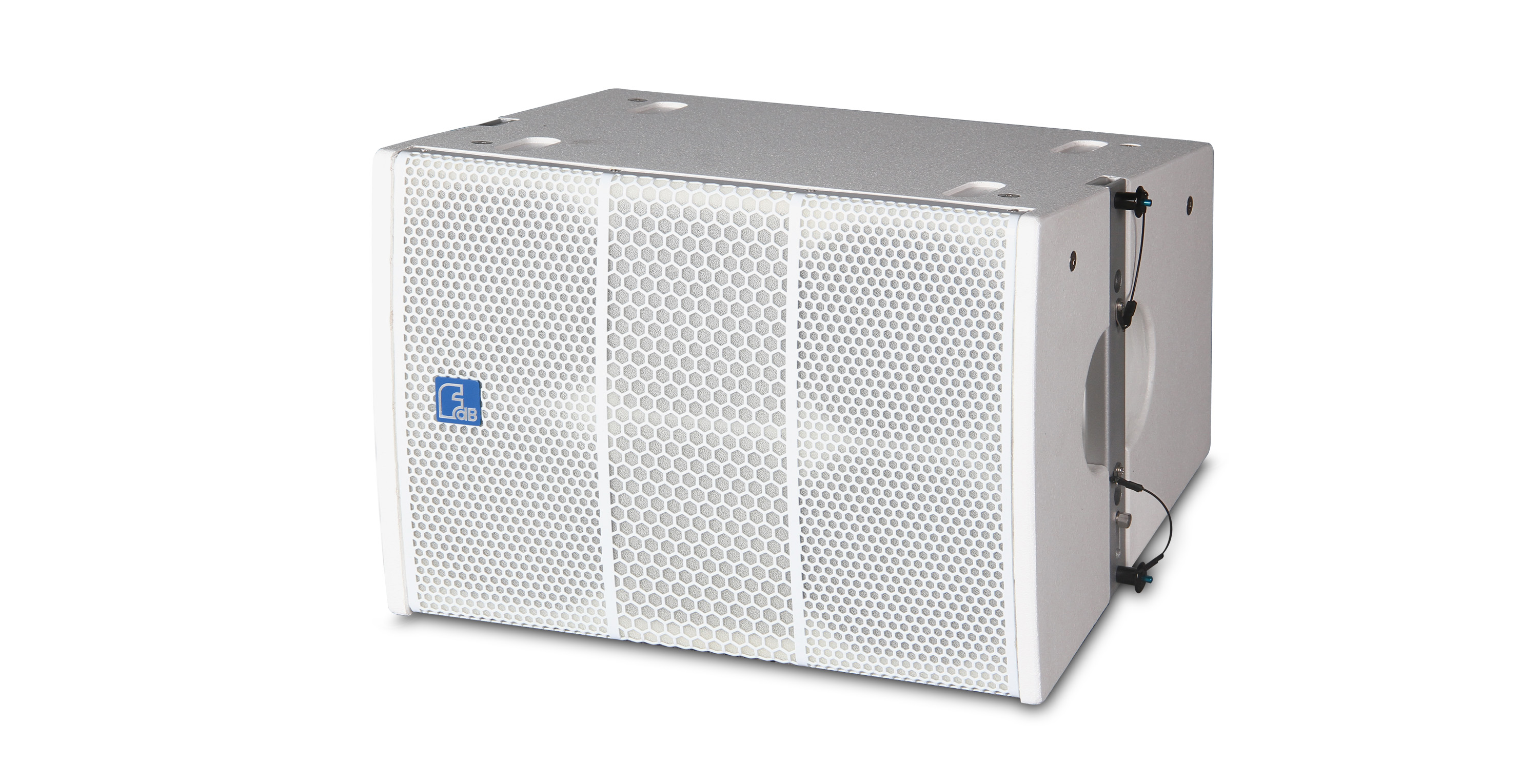

The MLA406 is a mini line array loudspeaker for small and medium scale sound reinforcement. MLA406 is a 2.5-way design housing fitted with four 6" neodymium LF drivers and two 1" neodymium HF drivers coupled to a patent line array horn, made of high quality plywood with special environmental protection paint. MLA406A is equipped FA1.6 digital amplifier module to be active loudspeaker based on MLA406.
FEATURES
●High quality plywood with special environmental protection paint
●High quality neodymium components
●Patent line array horn
●Bi-amp and passive way choice
●Small cabinet with light weight
●Convenient for tripod and fixed installation
●Good used for conference rooms, mutli-purpose halls, high-end hotels and moving performances
SPECIFICATIONS
|
MODE |
MLA406 |
MLA406DA |
|
LFREQUENCY RESPONSE(-3dB) |
80Hz-18KHz |
80Hz-18KHz |
|
LFREQUENCY RESPONSE(-10dB) |
75Hz-20KHz |
75Hz-20KHz |
|
DRIVERS |
4x6"(160mm)/1.5"voice coil LF 2x1"(25mm)/1.7"voice coil HF |
4x6"(160mm)/1.5"voice coil LF 2x1"(25mm)/1.7"voice coil HF |
| RATED POWER |
320W RMS,1280W peak |
600W/8Ω |
|
SENSITIVITY |
99dB 1watt/1meter |
-- |
|
MAXIMUM SPL |
124dB continuous,130dB peak |
124dB continuous,130dB peak |
|
IMPEDANCE |
8 ohms nominal |
-- |
|
DISPERSION(-6dB) |
Horizontal coverage:110°, Vertical coverage: varies, depending on arry length and configuration |
Horizontal coverage:110°, Vertical coverage: varies, depending on arry length and configuration |
|
CROSSOVER FREQUENCIES |
700Hz,1.9kHz passive |
- |
|
INPUT CONNECTORS |
2×Speakon NL4 |
INPUT TYPE: Balanced Differential line |
|
PACKAGE SIZE |
490mmx410mmx577mm |
490mmx410mmx577mm |
|
NET WEIGHT |
17 kg/pc |
19 kg/pc |
|
GROSS WEIGHT |
21 kg/pc |
23 kg/pc |
