MT-9000
演出话筒
产品概述

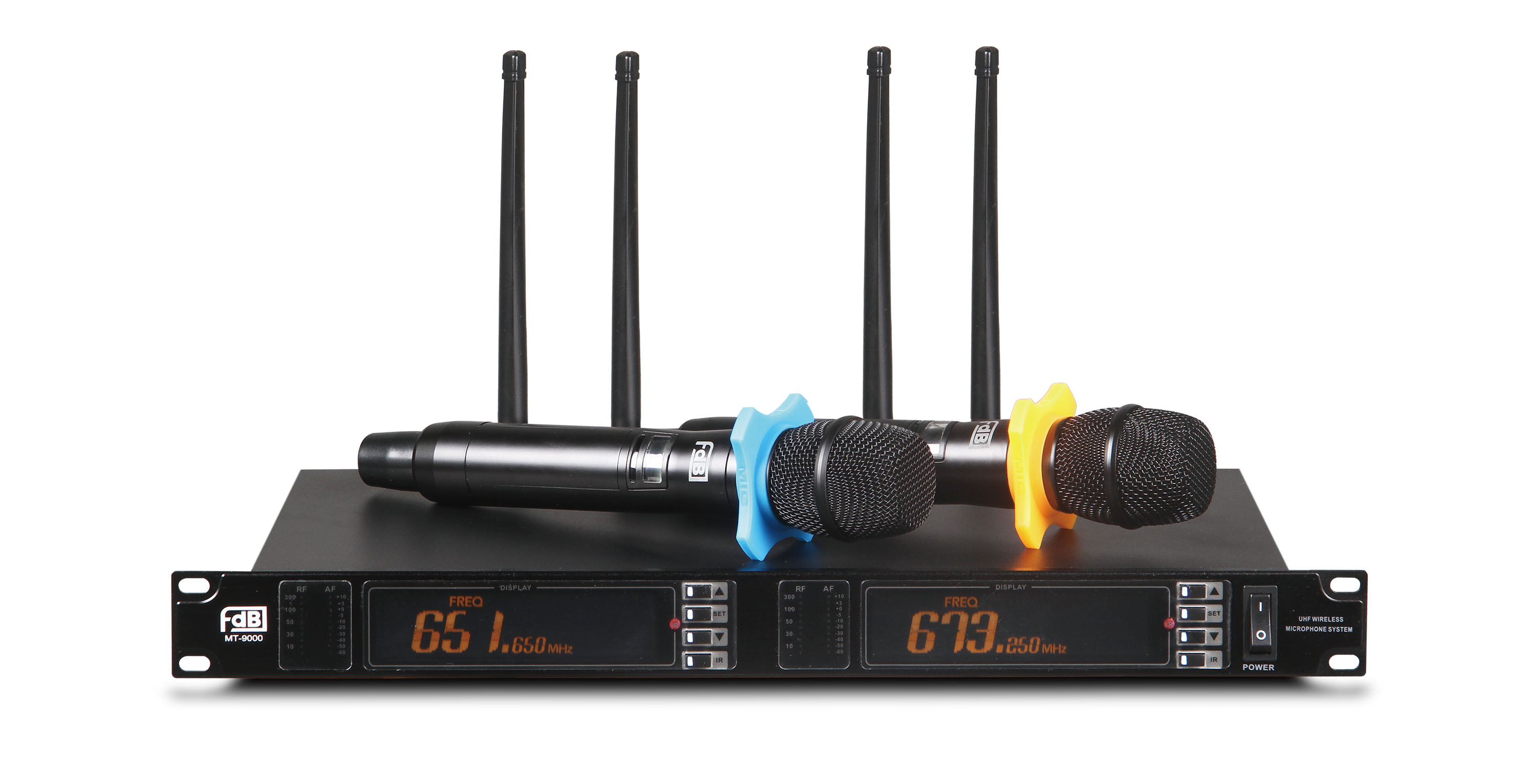

MT-9000是一款U段一拖二真分集无线麦克风系统，双天线自动分级选讯，接收距离远，不易掉线；数字导频，具有数字ID身份识别功能，杜绝干扰和窜频现象；内置强大的音频处理器，相位补偿，失真修正、动态补偿、动态扩展等功能，可根据演出现场灵活选用手持、头戴、领夹麦克风，以满足各种演出场所需要。
技术参数
| 型号MODEL | MT-9000 | |
|

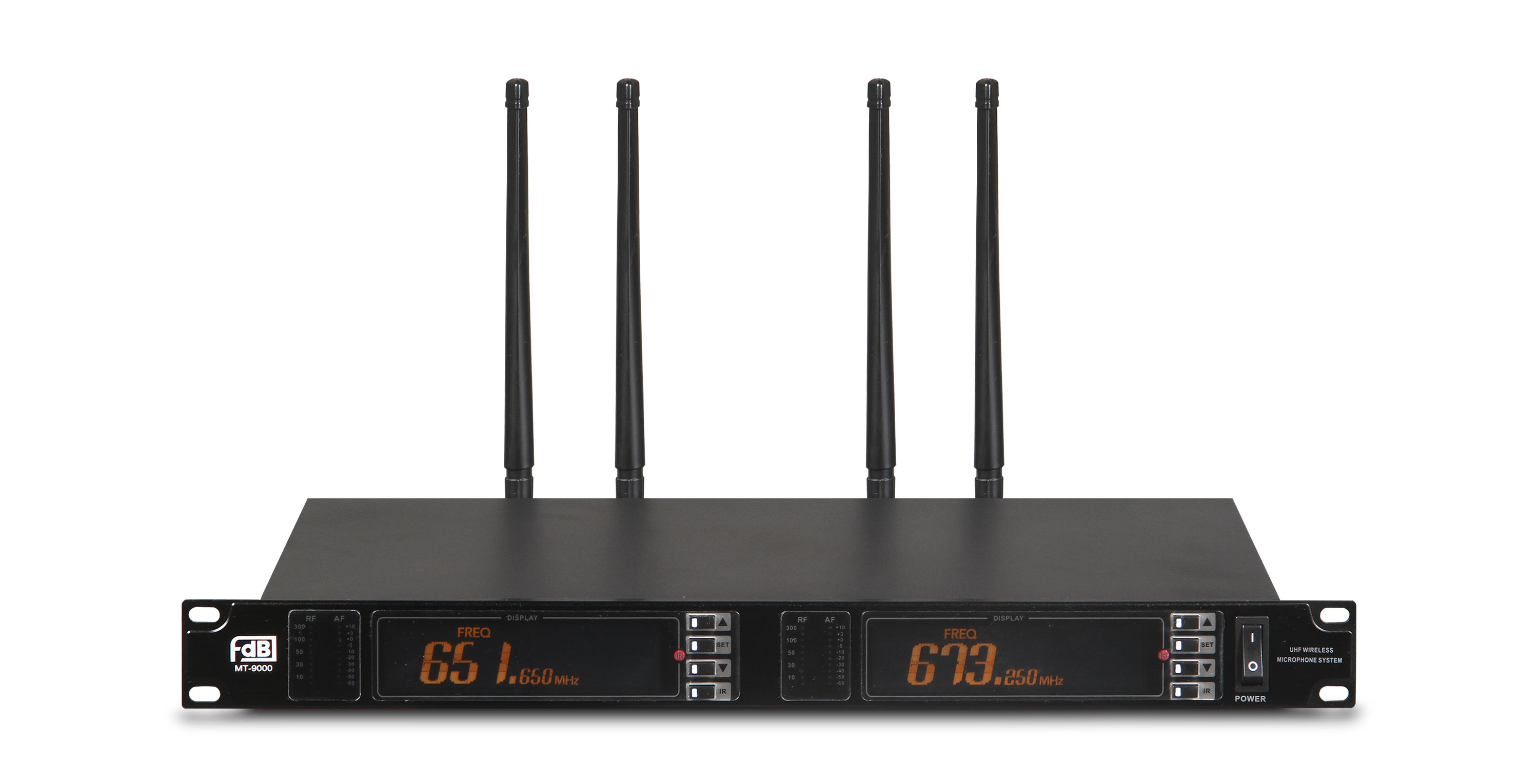

接收机 RECEIVER |
频率范围FREQUENCY RESPONSE | 640.25-690.25MHz |
| 最大通道数 MAX. CHANNELS | 200 | |
| 带宽 BAND WIDTH | 50MHz | |
| 接收灵敏度RECIVER SENSITIVITY | -105dBu | |
| 信噪比 S/N RATIO | ≥105dB(A计权) | |
| 失真度DISTROTION | ＜1% | |
| 音频最大输出电平 MAX. OUTPUT LEVEL | 8dBu | |
| 电源POWER | 18V DC 800mA | |
| 型号MODEL | MT-9000H | |
|

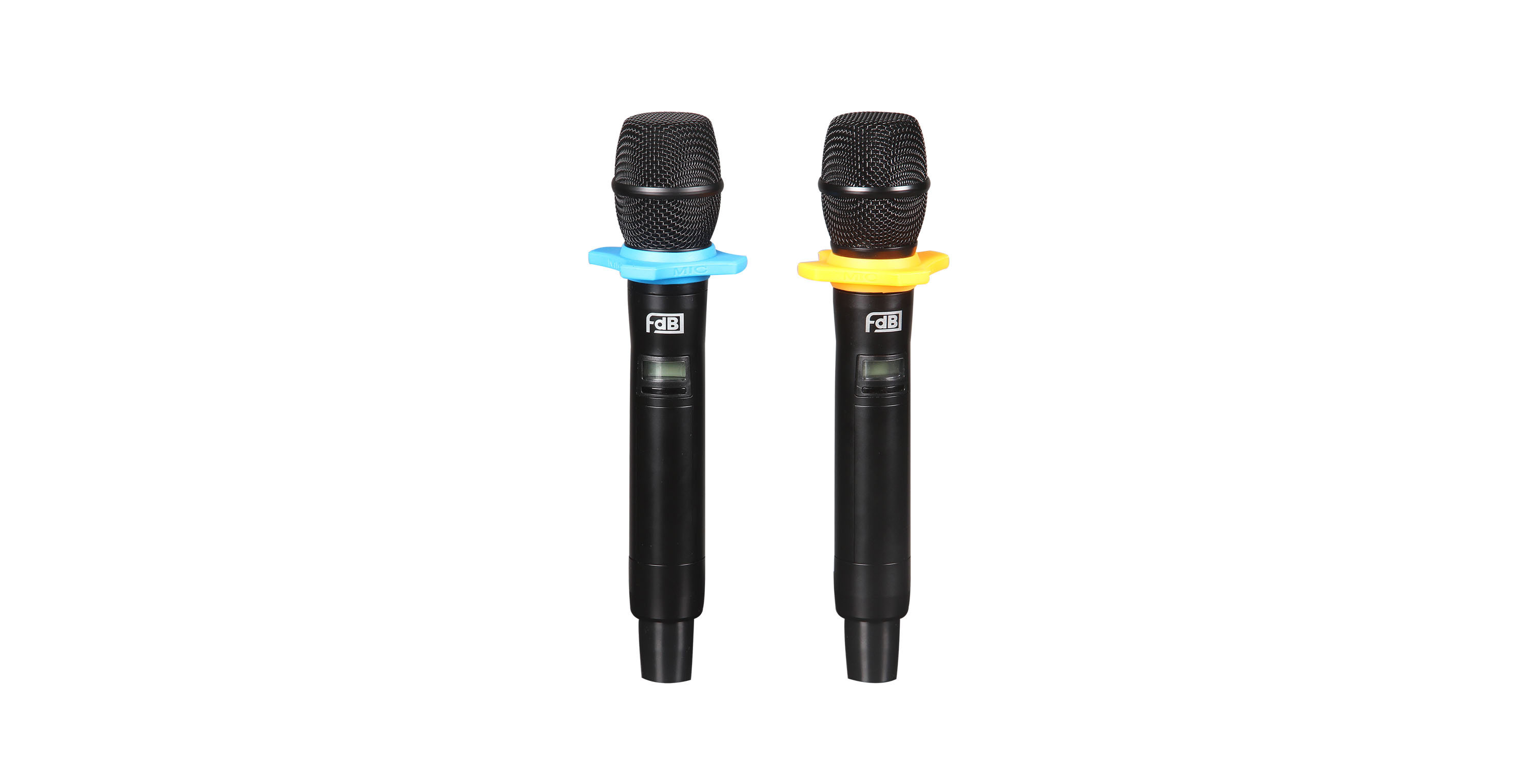

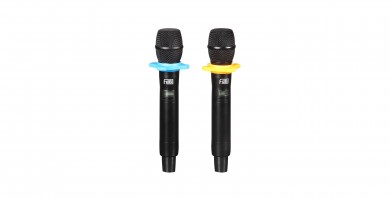

手持麦克风 HANDHELD MICROPHONE |
频率范围FREQUENCY RESPONSE | 640.25-690.25MHz |
| 带宽 BAND WIDTH | 50MHz | |
| 谐波抑制HARMONIC SUPPRESSION | ＞55dBc | |
| 最大频率偏移MAX.FREQUENCY OFFSET | ±48KHz | |
| 频率响应FREQUENCY RESPONSE | 50Hz-16KHz(-3dB) | |
| 唛头 CAPSULE | 动圈心形 DYNAMIC CARDIOID | |
| 信噪比S/N RATIO | ≥105dB(A计权) | |
| 失真度THD | ＜1% | |
| 电源POWER REQUIREMENTS | 2节AA电池或者充电电池 | |
| 电池寿命BATTERY LIFE | 8小时（碱性电池） 8 HOURS (ALKALINE) | |
| 型号MODEL | MT-9000C | |
|

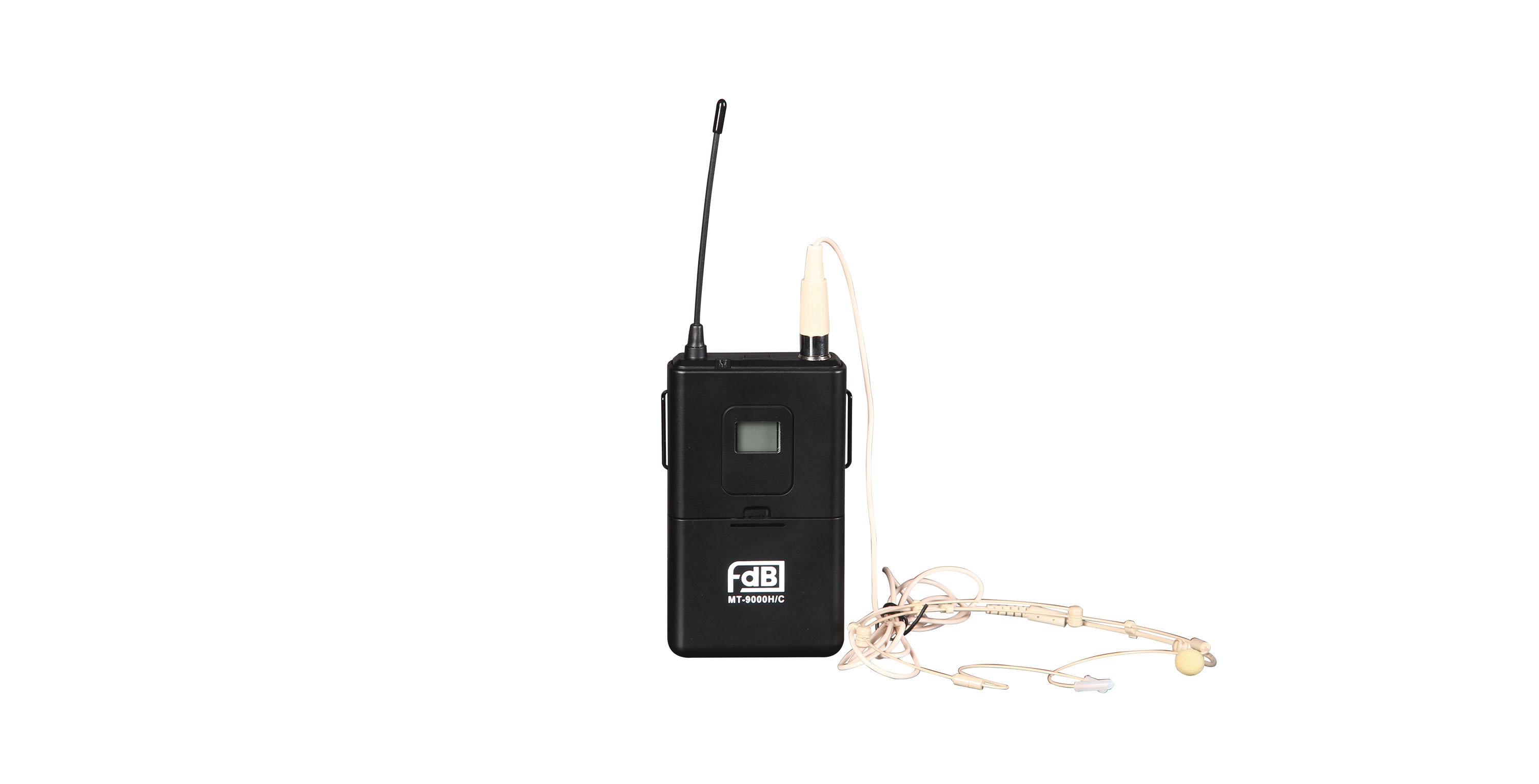

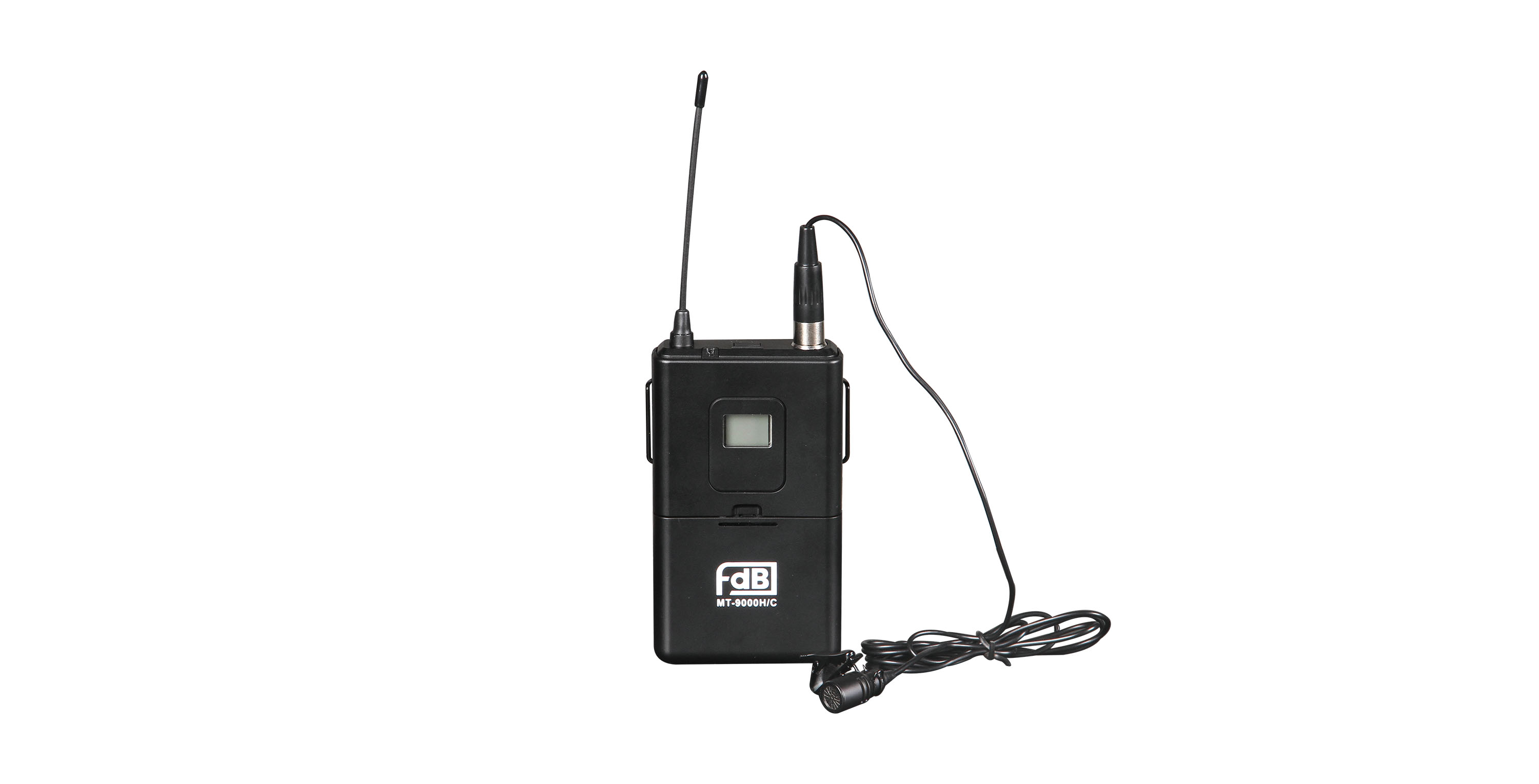

腰包发射器 BELTPACK TRANSMITTER |
频率范围FREQUENCY RESPONSE | 640.25-690.25MHz |
| 带宽BANDWIDTH | 50MHz | |
| 谐波抑制HARMONIC SUPPRESSION | ＞55dBc | |
| 最大频率偏移MAX.FREQUENCY OFFSET | ±48KHz | |
| 频率响应FREQUENCY RESPONSE | 50Hz-18KHz(-3dB) | |
| 话筒MICROPHONE | 头戴/领夹迷你XLR, HEADWORN / CLIP MICROPHONE MINI XLR | |
| 信噪比S/N RATIO | ≥105dB(A计权) | |
| 失真度DISTROTION | ＜1% | |
| 电源 POWER REQUIREMENTS | 2节AA电池或者充电电池, 2 AA OR RECHARGEABLE BATTERY | |
| 电池寿命BATTERY LIFE | 8小时（碱性电池） 8 HOURS (ALKALINE) |
资料下载
MT-9000.PDF
