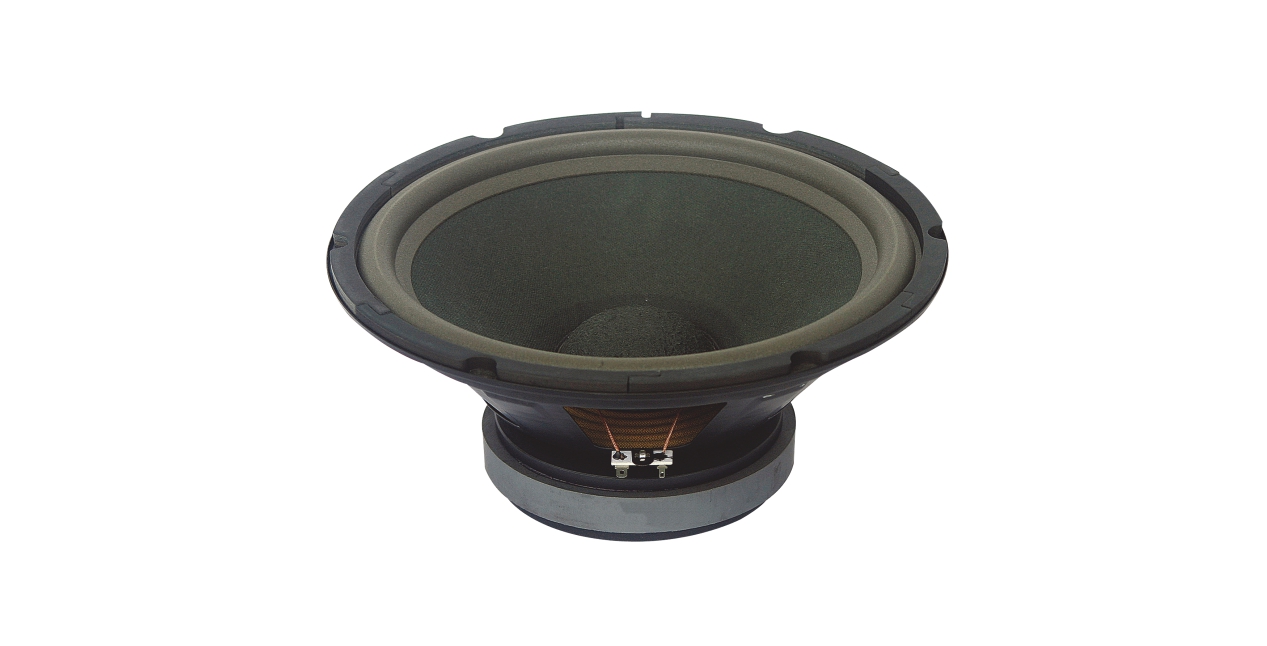

K1265
技术参数
| MODEL | K1265 | |
| GENERAL SPECIFICATIONS | ||
| Nominal Diameter | 300/12 | mm/inch |
| Rated Impedance | 8 | ohm |
| Peak Power Capacity | 800 | Watt |
| Power Capacity | 200 | Watt |
| Sensitivity | 94 | dB |
| Frequency Range | 30-2500 | Hz |
| Minimum Impedance | 6 | ohm |
| Voice Coil Diameter | 65/2.5 | mm/inch |
| Voice Coil Material | Copper | |
| Voice Coil Winding Depth | 16 | mm |
| Number of layers | 4 | |
| Kind of layer | outside | |
| Top Plate Thickness | 8 | mm |
| Cone Material | Half pressed pulp | |
| THIELE - SMALL PARAMETERS4 | ||
| Resonance frequency Fs | 30 | Hz |
| DC resistance Re | 5.6 | ohm |
| Mechanical facto Qms | 4.3 | |
| Electrical factor Qes | 0.23 | |
| Total factor Qts | 0.22 | |
| BL Factor BL | 18.6 | T.m |
| Effective Moving Mass Mms | 73.6 | gr |
| Equivalent Cas air load Vas | 133 | liters |
| Effettive piston area Sd | 0.053 | m2 |
| Max. linear excursion (mathematical) Smax | ±4 | mm |
| Voice -C coil inductance @ 1KHz Le | 1.6 | mH |
| MOUNTING INFORMATION | ||
| Overall Diameter | 310 | mm |
| Bolt Circle Diameter | 294 | mm |
| Baffle Cutout Diameter | 278 | mm |
| Depth | 135 | mm |
| SHIPPING INFORMATION | ||
| Net Weight | 4.7 | kg |
| Shipping Weight | 5.1 | kg |
| Shipping Box | 325x325x170 | mm |
