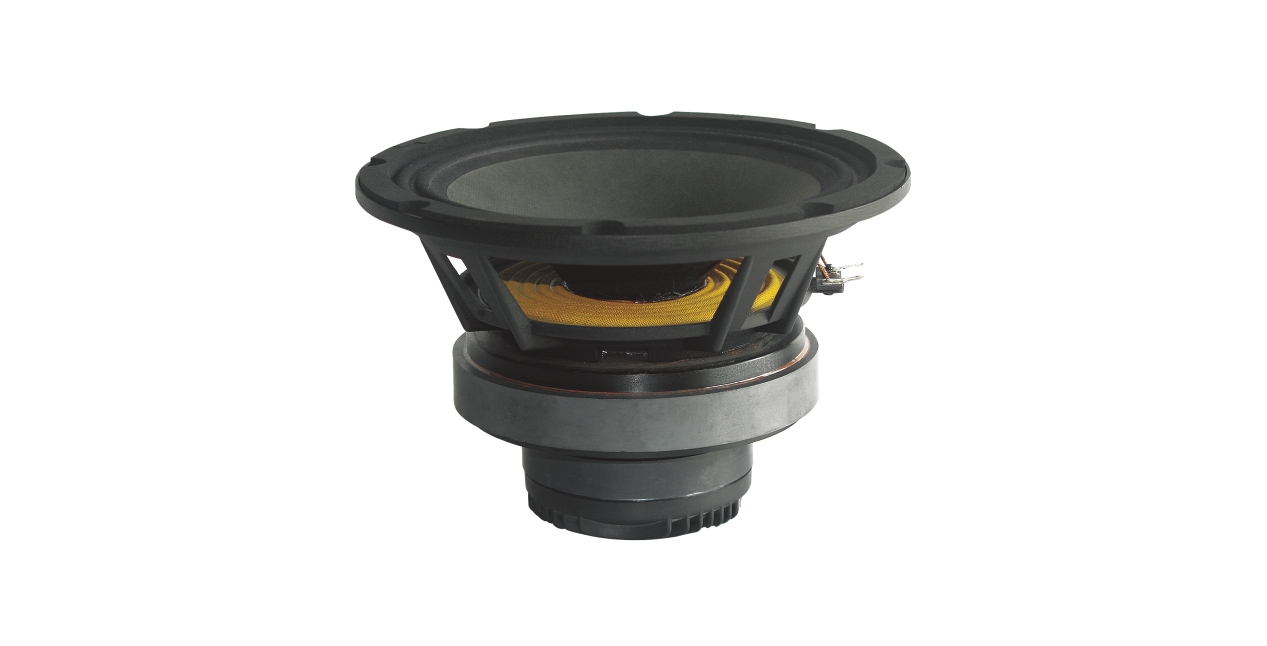

CX834

技术参数

MODEL CX834
GENERAL SPECIFICATIONS
Nominal Diameter (lf)200/8,(hf)34.4/1.4 mm/inch
Rated Impedance 8 ohm
Peak Power Capacity  480 Watt
Power Capacity  120 Watt
Sensitivity (lf)94,(hf)107 dB
Frequency Range (lf)50-4000,(hf)1500-20000 Hz
Minimum Impedance (lf)6, (hf)7.8 ohm
Voice Coil Diameter (lf)50/2,(hf)34.4/1.4 mm/inch
Voice Coil Material (lf)Copper, (hf)CCAR
Voice Coil Winding Depth (lf)13 mm
Number of layers (lf)2
Kind of layer outside
Top Plate Thickness 8 mm
Cone Material Half pressed pulp
Diaphragm Material Pure Titanium
Suspension Material Pure Titanium
THIELE- SMALL PARAMETERS4
Resonance frequency                         Fs 50 Hz
DC resistance                                       Re 7.2 ohm
Mechanical facto                                  Qms 1.58
Electrical factor                                    Qes 0.29
Total factor                                            Qts 0.24
BL Factor                                              BL 13 T.m
Effective Moving Mass                         Mms 22 gr
Equivalent Cas air load                        Vas 31 liters
Effettive piston area                             Sd 0.022 m2
Max. linear excursion (mathematical)  Smax ±2.5 mm
Voice-coil inductance @ 1KHz             Le 0.9 mH
MOUNTING INFORMATION
Overall Diameter 210 mm
Bolt Circle Diameter 197 mm
Baffle Cutout Diameter 182 mm
Depth 150 mm
SHIPPING INFORMATION
Net Weight 4.2 kg
Shipping Weight 4.5 kg
Shipping Box 220x220x170 mm
