LH18B
1x18"超低频音箱
产品概述
The LH18B is a single 18" low frequency enclosure designed for sub-bass reinforcement to LH compact series in a wide variety of fixed installation, fitted with one 18" neodymium woofer.
LH18B是一款单18"超低音箱。采用一只18"100芯强磁低音单元，带通式箱体设计，箱体采用多层复合夹板，特殊环保喷涂制作。
产品特点
FEATURES
●High quality plywood with special environmental protection paint
●Bandpass sub-bass
●High temperature 4"(100mm) voice coil
●高质量单元配置，高强度夹板箱体
●带通式设计，低音强劲自然
●超长品质保证期：品质与信心的保证
适用范围
●用于有超低音重放需求的高级卡拉OK包房、慢摇吧
●多功能厅、高级酒店会所
●High quality plywood with special environmental protection paint
●Bandpass sub-bass
●High temperature 4"(100mm) voice coil
●Top hat fitting for pole mounting to LH series
●高质量单元配置，高强度夹板箱体
●带通式设计，低音强劲自然
●超长品质保证期：品质与信心的保证
适用范围
●用于有超低音重放需求的高级卡拉OK包房、慢摇吧
●多功能厅、高级酒店会所
●流动商演、乐队扩声
技术参数
| FREQUENCY RESPONSE(-3dB) | 40 Hz-150Hz |
| DRIVERS | 1×18"(460mm)/4"voice coil LF |
| RATED POWER | 600W RMS,2400W peak |
| SENSITIVITY | 99dB 1watt/1 metre |
| MAXIMUM SPL | 126 dB continuous,132 dB peak |
| IMPEDANCE | 8 ohms nominal |
| INPUT CONNECTORS | 2×Speakon NL4 |
| PACKAGE SIZE | 792mm×692mm×697mm |
| NET WEIGHT | 37 kg/pc |
| GROSS WEIGHT | 43 kg/pc |

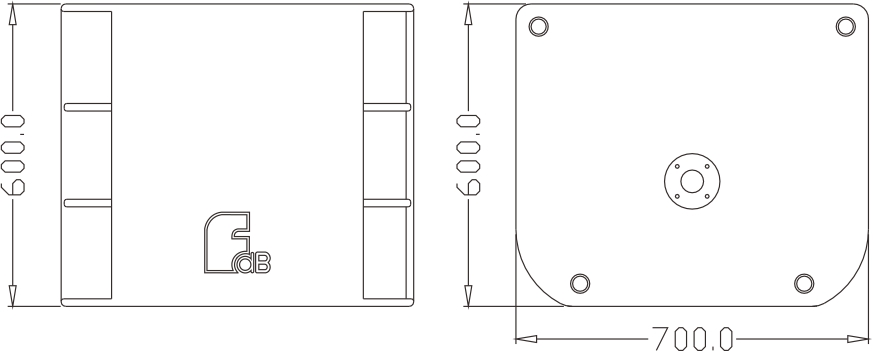

安装尺寸图
