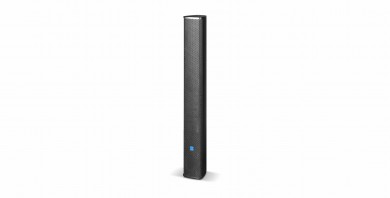

K3
8x3" 2-way Loudspeaker System
DESCRIPTION

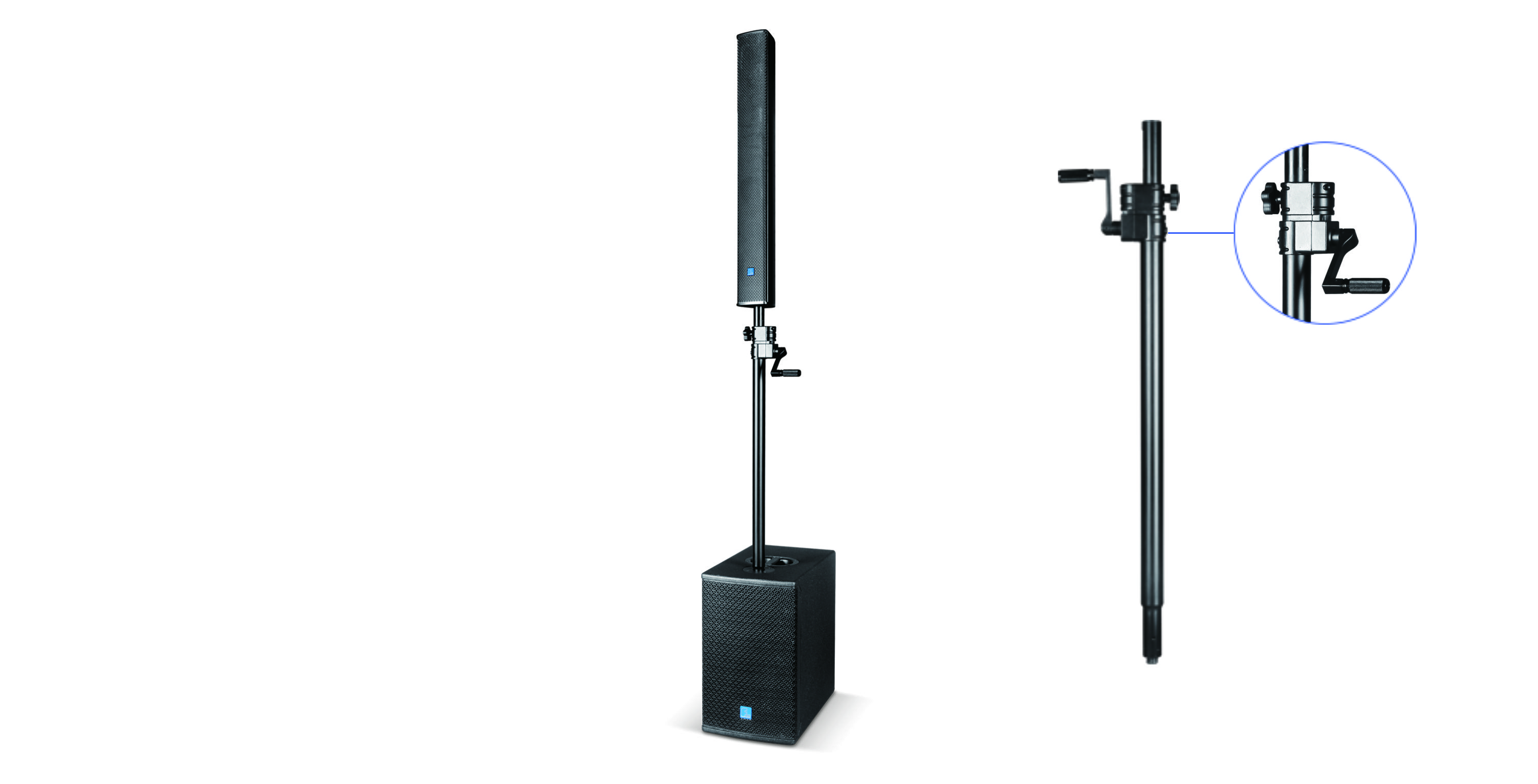

K series is a group of two-way column system with two channels digital amplifier with DSP. The small-sized column uses aluminum alloy housing and neodymium units,with small size, light weigh,high sensitivity,clear and bright sound,can be used alone or combined with active subwoofers into a sound reinforcement system. K12BAS, K15BAS are active subwoofers with two channels digital amplifier with DSP.
FEATURES
● Small volume and light weight for full range speaker
● Clear and bright sound for full range
● Full function, rich and elastic bass
● Multiple ways of instllation and combination
● Clear and bright sound for full range
● Full function, rich and elastic bass
● Multiple ways of instllation and combination
● Applications: band performance, small mobile business performance, conference rooms, multi-purpose halls, churches
SPECIFICATIONS
| MODEL | K3 |
| FREQUENCY RESPONSE(-10dB) | 120Hz-18kHz |
| LF DRIVER | 8×3"/0.8"voice coil Mid/High Unit |
| HF DRIVER | 1×1"/1"voice coil |
| RATED POWER | 200W RMS,800W peak |
| SENSITIVITY | 97dB 1watt/1meter |
| MAXIMUM SPL | 120 dB continuous,126dB peak |
| IMPEDANCE | 8 ohms |
| DISPERSION(-6dB) | 120°×30° |
| CROSSOVER FREQUENCIES | 2.9 kHz passive |
| INPUT CONNECTORS | 2×Speakon NL4 |
| PACKAGE SIZE | 955×305×160 mm (1pair/carton) |
| NET WEIGHT | 6 kg/pc |
| GROSS WEIGHT | 15 kg/pair |

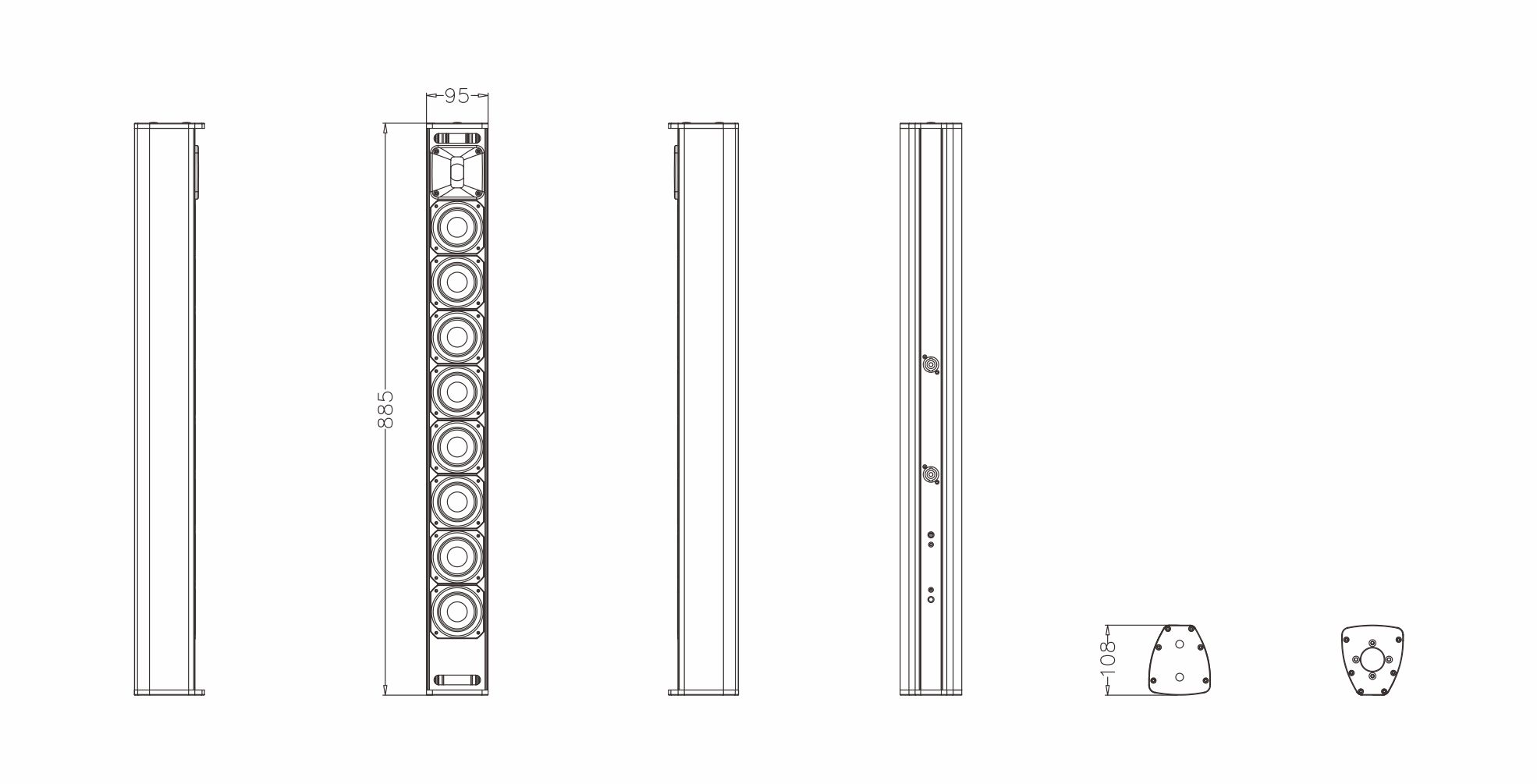

CONFIGURATION
