K4

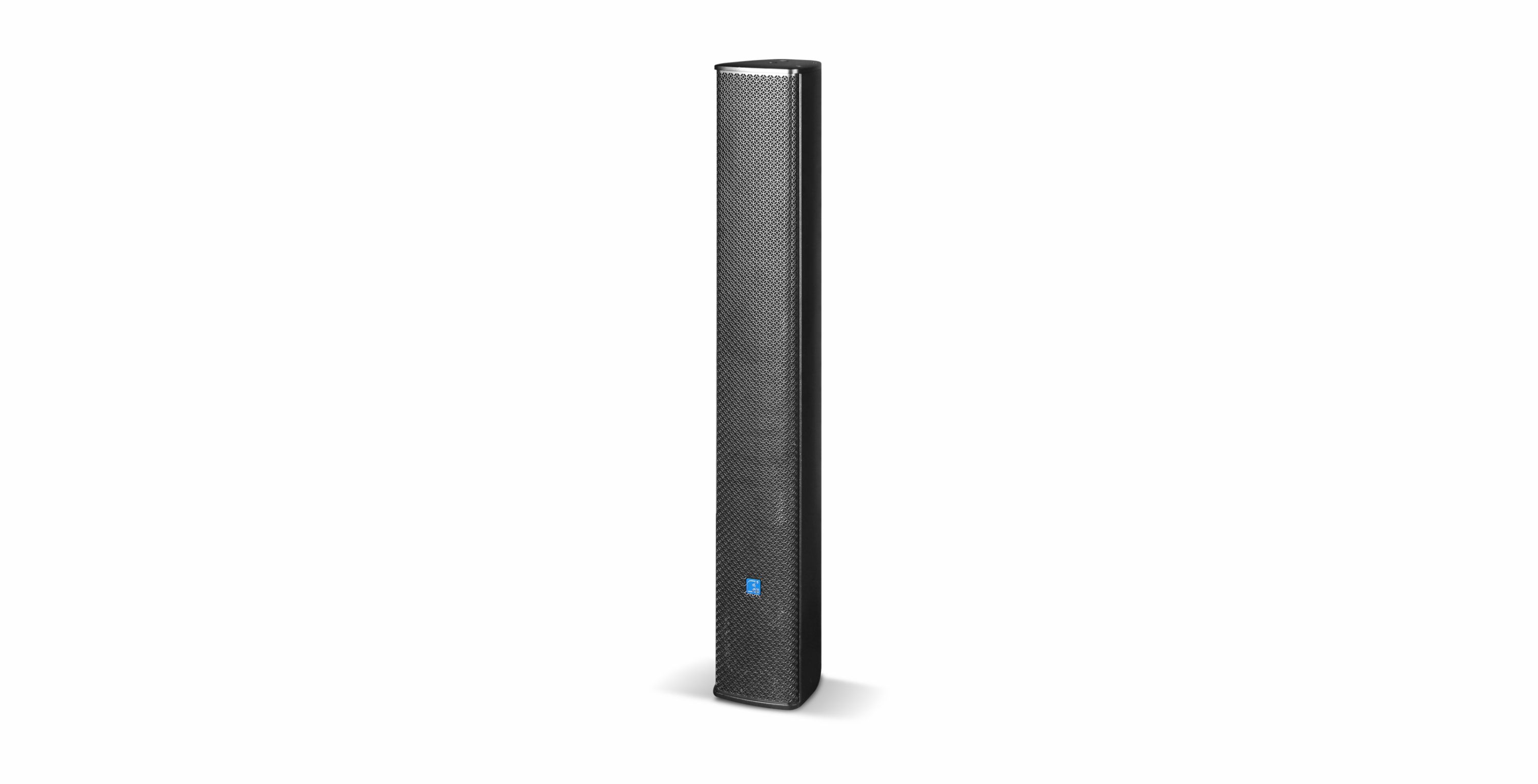

6x4" 2-way Loudspeaker System
DESCRIPTION

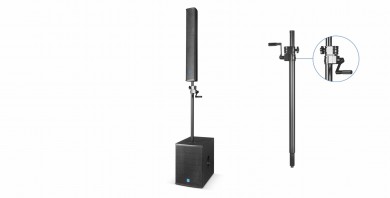

K series is a group of two-way column system with two channels digital amplifier with DSP. The small-sized column uses aluminum alloy housing and neodymium units,with small size, light weigh,high sensitivity,clear and bright sound,can be used alone or combined with active subwoofers into a sound reinforcement system. K12BAS, K15BAS are active subwoofers with two channels digital amplifier with DSP.
SPECIFICATIONS
| MODEL | K4 |
| FREQUENCY RESPONSE(-10dB) | 120Hz-18kHz |
| LF DRIVER | 6×4"/ 1"voice coil |
| HF DRIVER | 1×1"/ 1.7"voice coil |
| RATED POWER | 200W RMS,800W peak |
| SENSITIVITY | 97dB 1watt/1meter |
| MAXIMUM SPL | 120dB continuous,126dB peak |
| IMPEDANCE | 6 ohms |
| DISPERSION(-6dB) | 100°×40° |
| CROSSOVER FREQUENCIES | 2.7kHz passive |
| INPUT CONNECTORS | 2×Speakon NL4 |
| PACKAGE SIZE | 990×380×193mm (1pair/carton) |
| NET WEIGHT | 9 kg/pc |
| GROSS WEIGHT | 22 kg/pair |
