DESCRIPTION

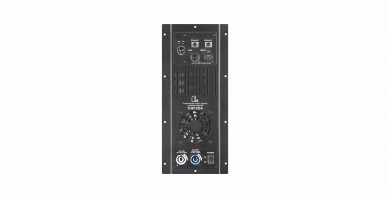

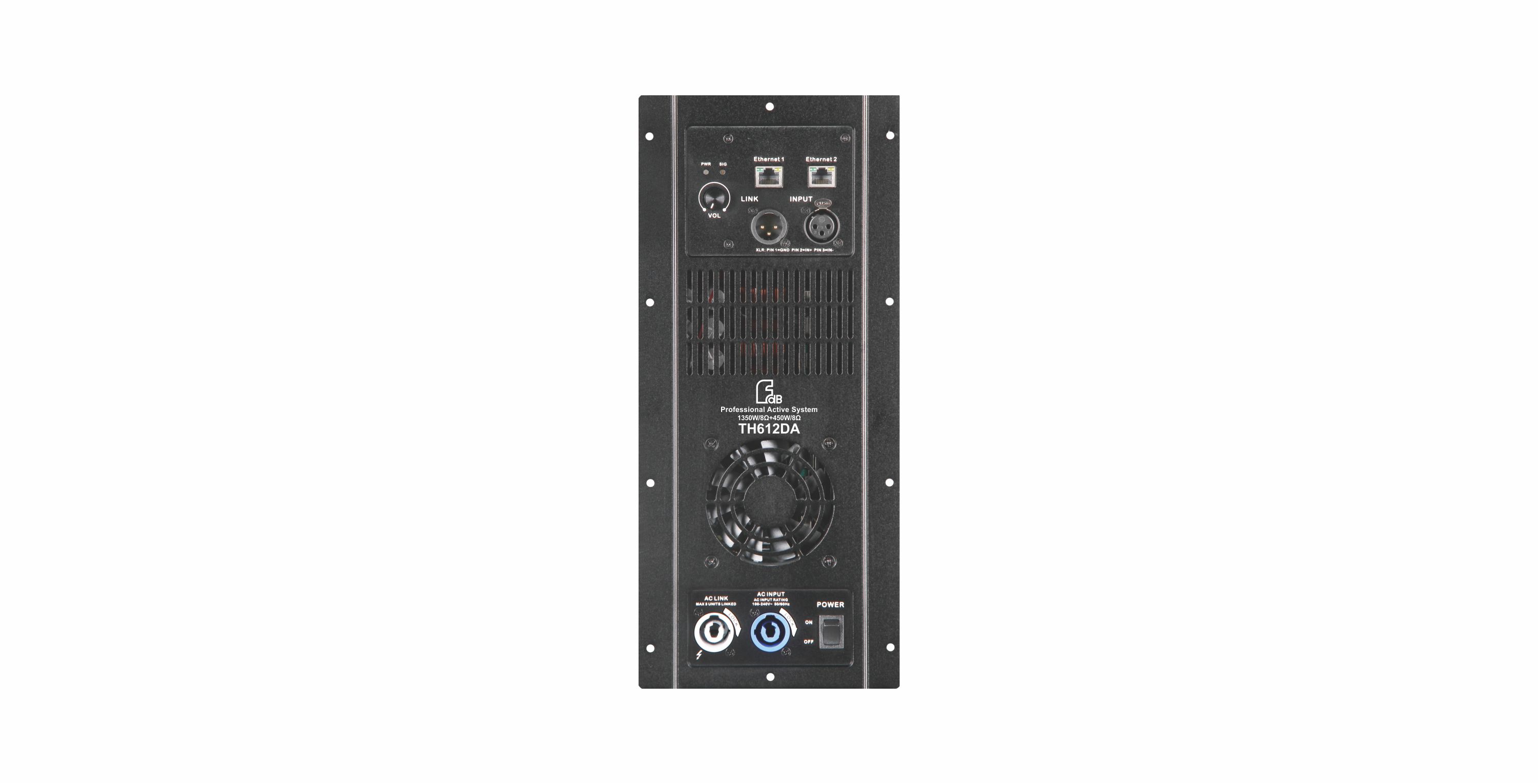

TH Series is a high sensitivity, high SPL, long-throw speaker, mid-bass and HF driver all feature horn-loaded design, make the sound transparent and bright, all adopt neodymium units, the cabinet is made of multilayer composite plywood with wear-resistant polyurea paint. The model with A is an active speaker equipped with two channels digital amplifier with DSP.
FEATURES
● High power, high sensitivity, high SPL
● Clear, transparent and bright sound
● Can be used for single hanging, a variety of combinations of hanging
● Active or passive options are available
● Applications: theatres, concert halls, multifunction halls, lecture halls, bars, livehouse, large-scale sound reinforcement, touring
SPECIFICATIONS
| MODEL | TH612 | TH612DA |
| FREQUENCY RESPONSE(-10dB) | LF:60Hz-800Hz,MF+HF:500Hz-18kHz | 60Hz-18kHz |
| LF DRIVER | 2×12"/3" voice coil | 2×12"/3" voice coil |
| MF DRIVER | 2×1.4"/3.5" voice coil | 2×1.4"/3.5"voice coil |
| HF DRIVER | 2×1.4"/1.7" voice coil | 2×1.4"/1.7" voice coil |
| RATED POWER | LF:600W RMS,2400W peak ; MF+HF:300W RMS,1200W peak | 1350W/8Ω+450W/8Ω |
| SENSITIVITY | LF:103dB 1watt/1 metre ; MF+HF:110dB 1watt/1 metre | -- |
| MAXIMUM SPL | LF:130dB continuous,136dB peak ; MF+HF:134dB continuous,140dB peak | 130dB continuous,136dB peak |
| IMPEDANCE | LF:8 ohms ; MF+HF:8 ohms | – |
| DISPERSION(-6dB) | 80°×30° | 80°×30° |
| CROSSOVER FREQUENCIES | 600Hz passive | -- |
| INPUT CONNECTORS | 2×Speakon NL4 | Balanced Differential line |
| PACKAGE SIZE | 665×555×780mm | 665×555×780mm |
| NET WEIGHT | 43 kg/pc | 46 kg/pc |
| GROSS WEIGHT | 48 kg/pc | 51 kg/pc |

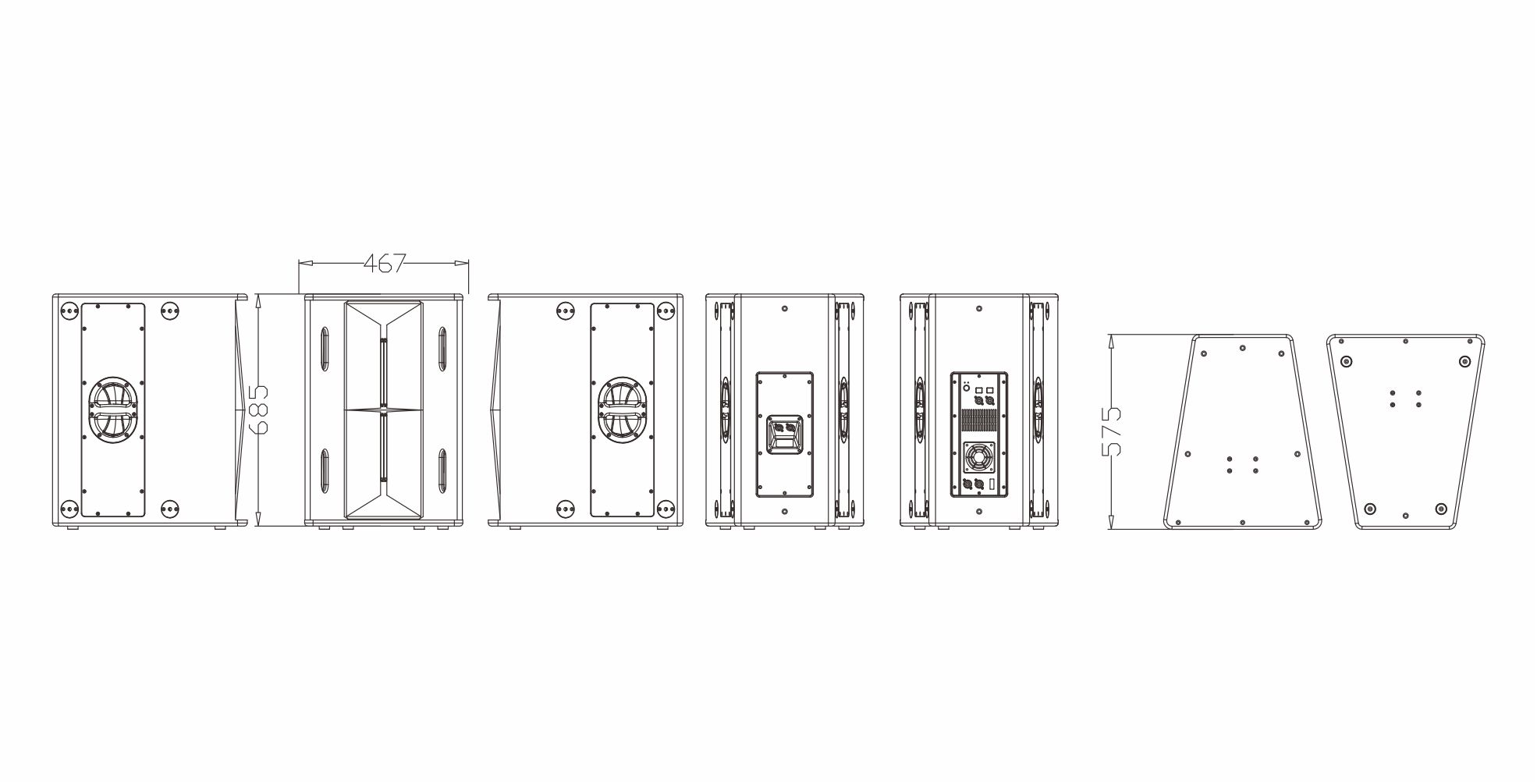

CONFIGURATION
