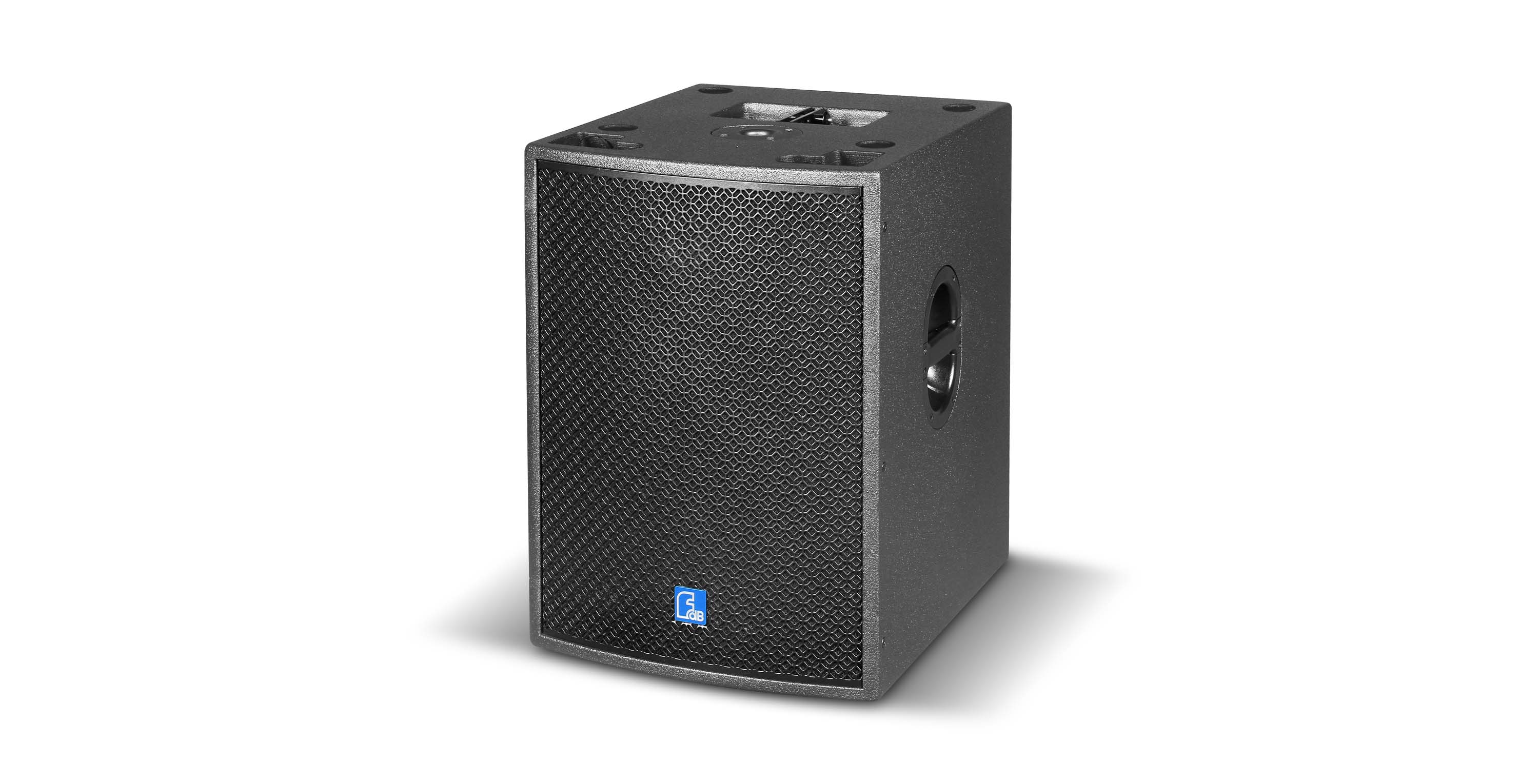

DLA815BAS
1x15" 线阵超低音箱
DESCRIPTION

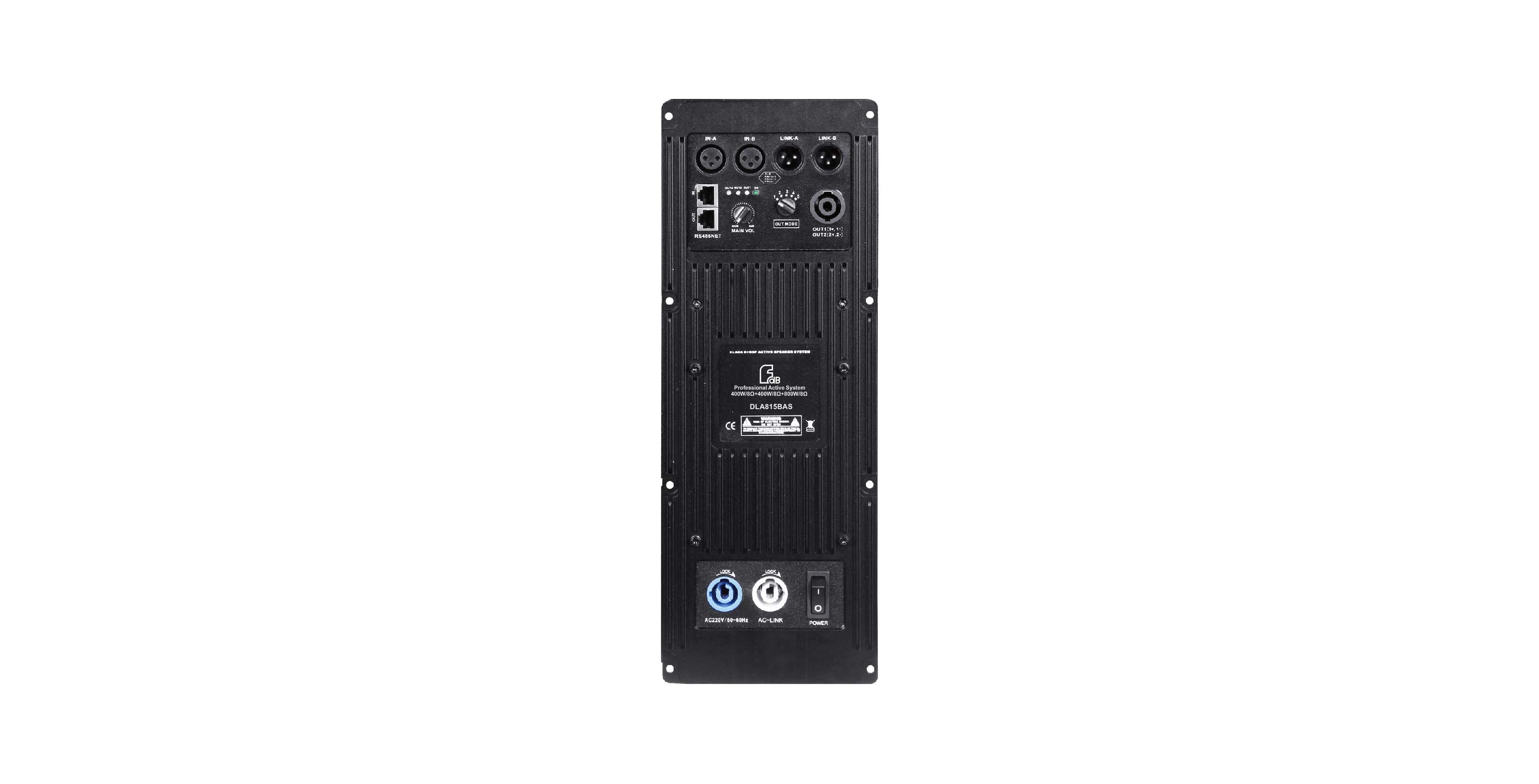

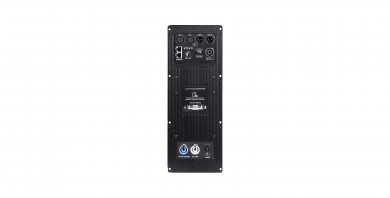

DLA815BAS is an active subwoofer system, equipped with a three channels digital amplifier with DSP, drive itself 15" subwoofer, can also drive two DLA803, form a small system, can support and stack combination, meet a variety of small scenarios, system combination is convenient and fast. Unit configuration: 1x15" 75mm voice coil special designed woofer unit, bass-reflex design. The cabinet is made of multilayer composite plywood with wear-resistant polyurea paint.
FEATURES
●Special customized woofer unit, bass- reflex design, full and elastic sound

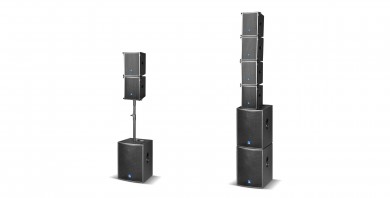

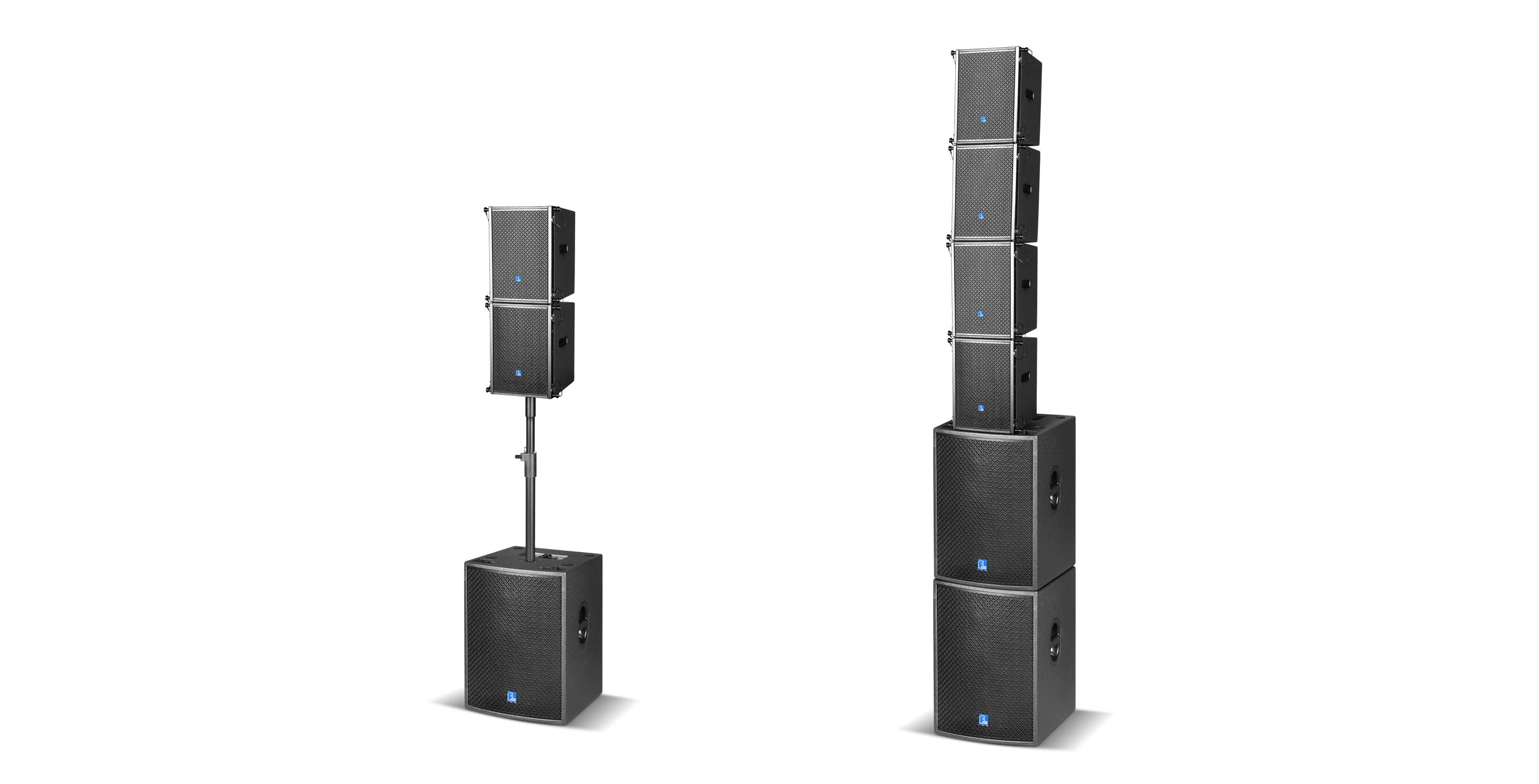

●Quick setup for stacking and supporting
●Quick setup for stacking and supporting
●Applications: multifunction halls, lecture halls, large classrooms, churches and touring
SPECIFICATIONS
| MODEL | DLA815BAS |
| FREQUENCY RESPONSE(-3dB) | 40Hz-300Hz and 50Hz-20kHz |
| DRIVERS | 1×15"(385mm)/3"voice coil LF |
| RATED POWER | 400W/8Ω+400W/8Ω+800W/8Ω |
| SENSITIVITY | — |
| MAXIMUM SPL | 125dB continuous,131dB peak |
| IMPEDANCE | — |
| INPUT CONNECTORS | INPUT TYPE: Balanced Differential line |
| PACKAGE SIZE | 600mm×520mm×680mm |
| NET WEIGHT | 34 kg/pc |
| GROSS WEIGHT | 37 kg/pc |
