DLA121W
1x21" 线阵超低音箱
DESCRIPTION

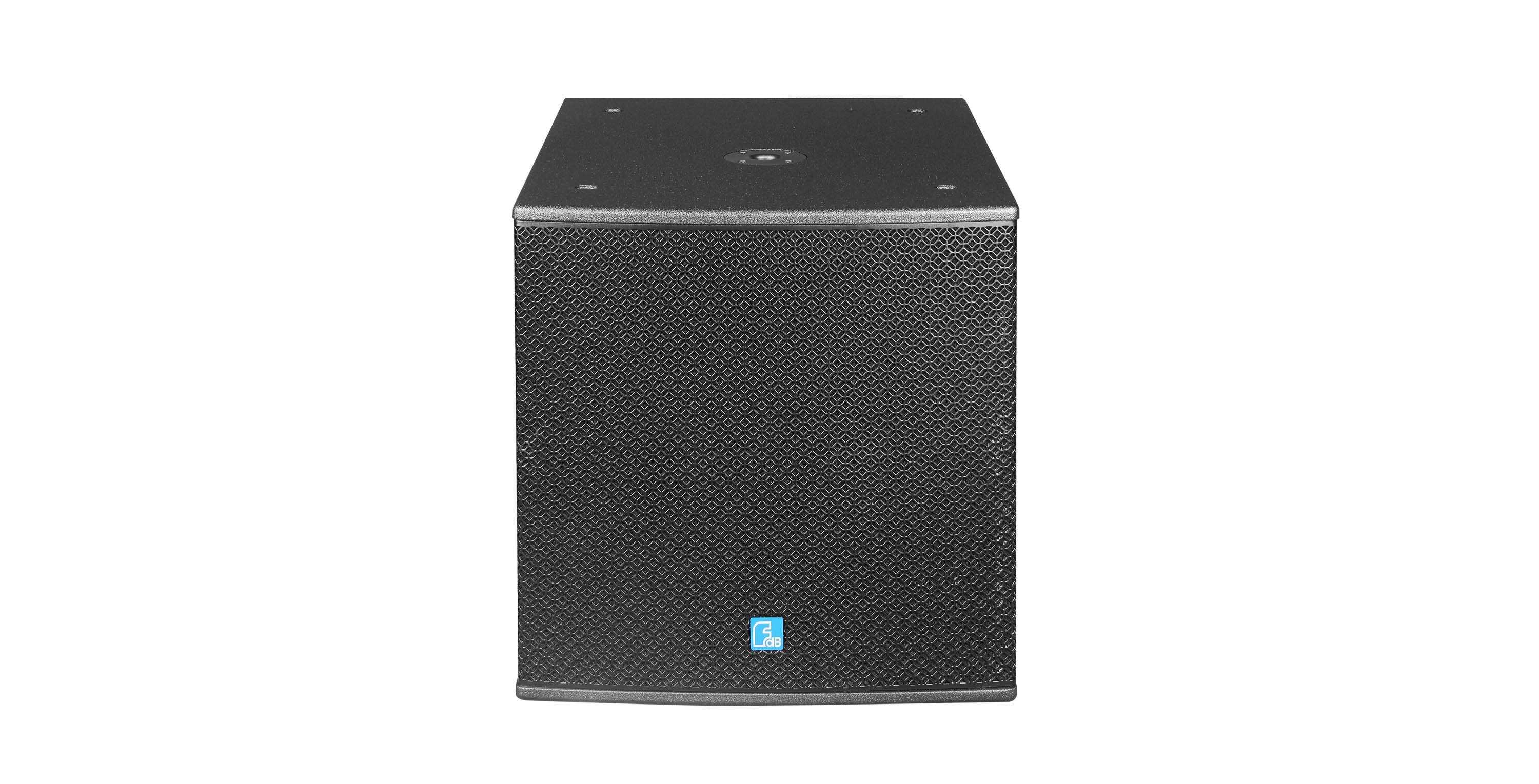

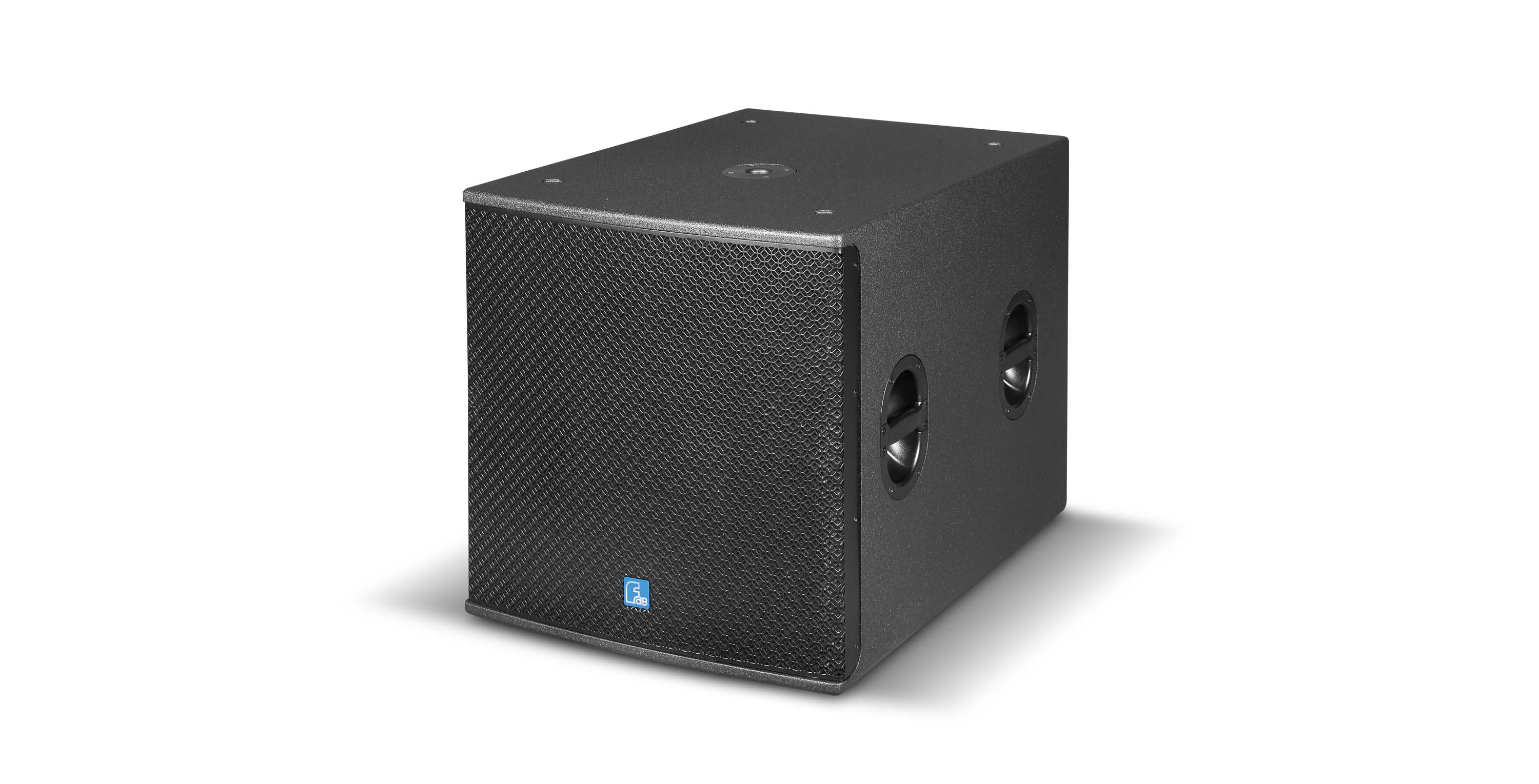

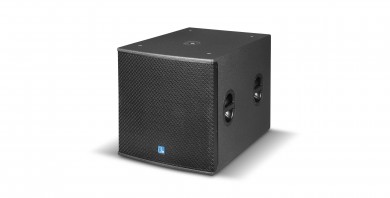

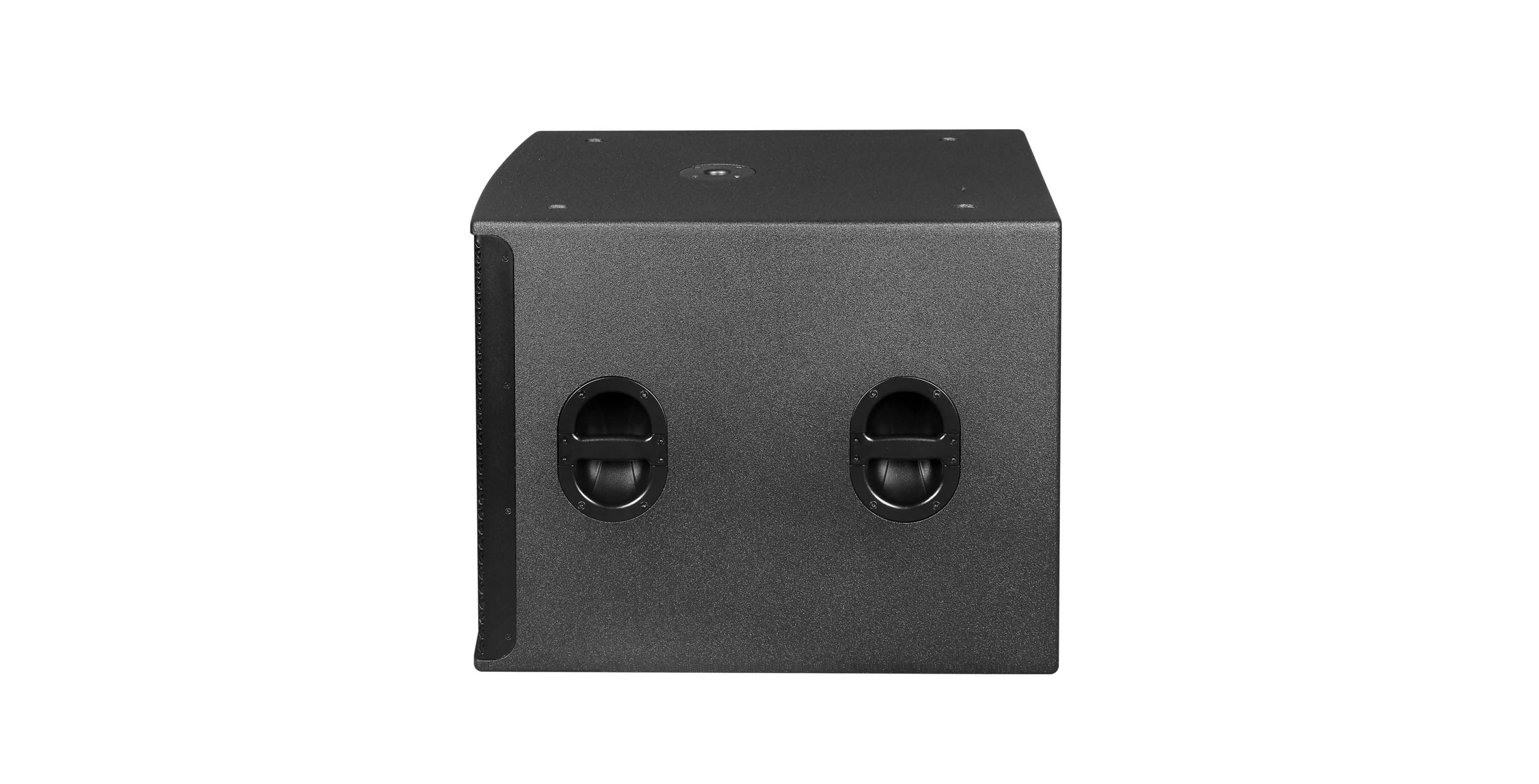

DLA121W is a single 21" subwoofer. It features 1x21" 115mm voice coil woofer, bass-reflex design, can be used with line array and point source full range speakers to improve the low frequency performance. The cabinet is made of multilayer composite plywood with wear-resistant polyurea paint.
FEATURES
●High quality components, bass-reflex design, full and powerful sound
●Applications: meet a variety of occasions, can be combined with line array and point source full range speaker freely
SPECIFICATIONS
| MODEL | DLA121W |
| FREQUENCY RESPONSE(-3dB) | 40Hz-300Hz |
| DRIVERS | 1×21"(530mm)/4.5"voice coil LF |
| RATED POWER | 800W RMS,3200W peak |
| SENSITIVITY | 100dB 1watt/1meter |
| MAXIMUM SPL | 129dB continuous,135dB peak |
| IMPEDANCE | 4 ohms nominal |
| INPUT CONNECTORS | 2×Speakon NL4 |
| PACKAGE SIZE | 870mm×690mm×695mm |
| NET WEIGHT | 55 kg/pc |
| GROSS WEIGHT | 61 kg/pc |
CONFIGURATION
DOWNLOAD
DLA121W -2023.pdf
