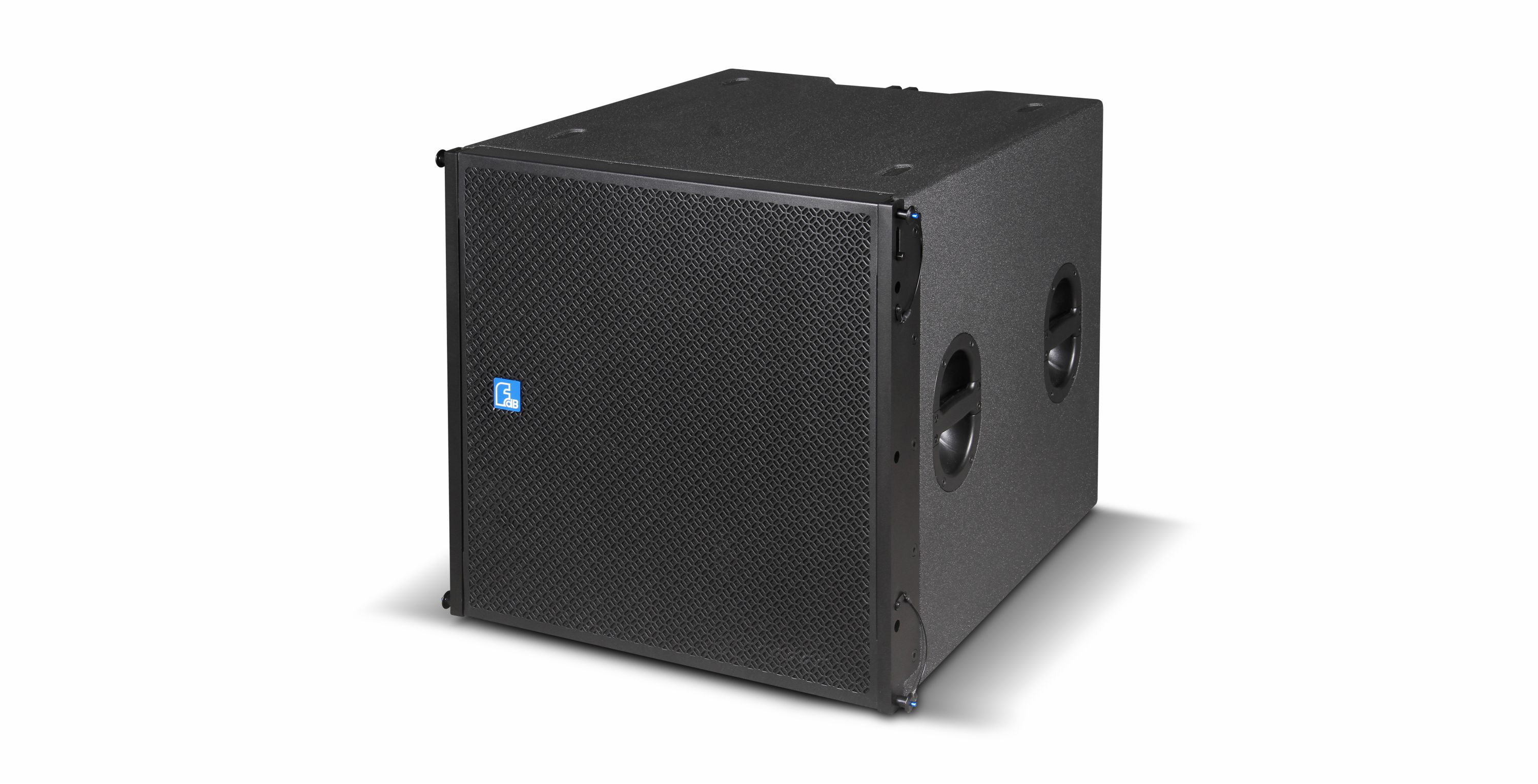

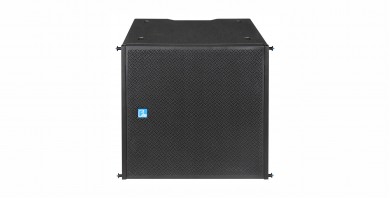

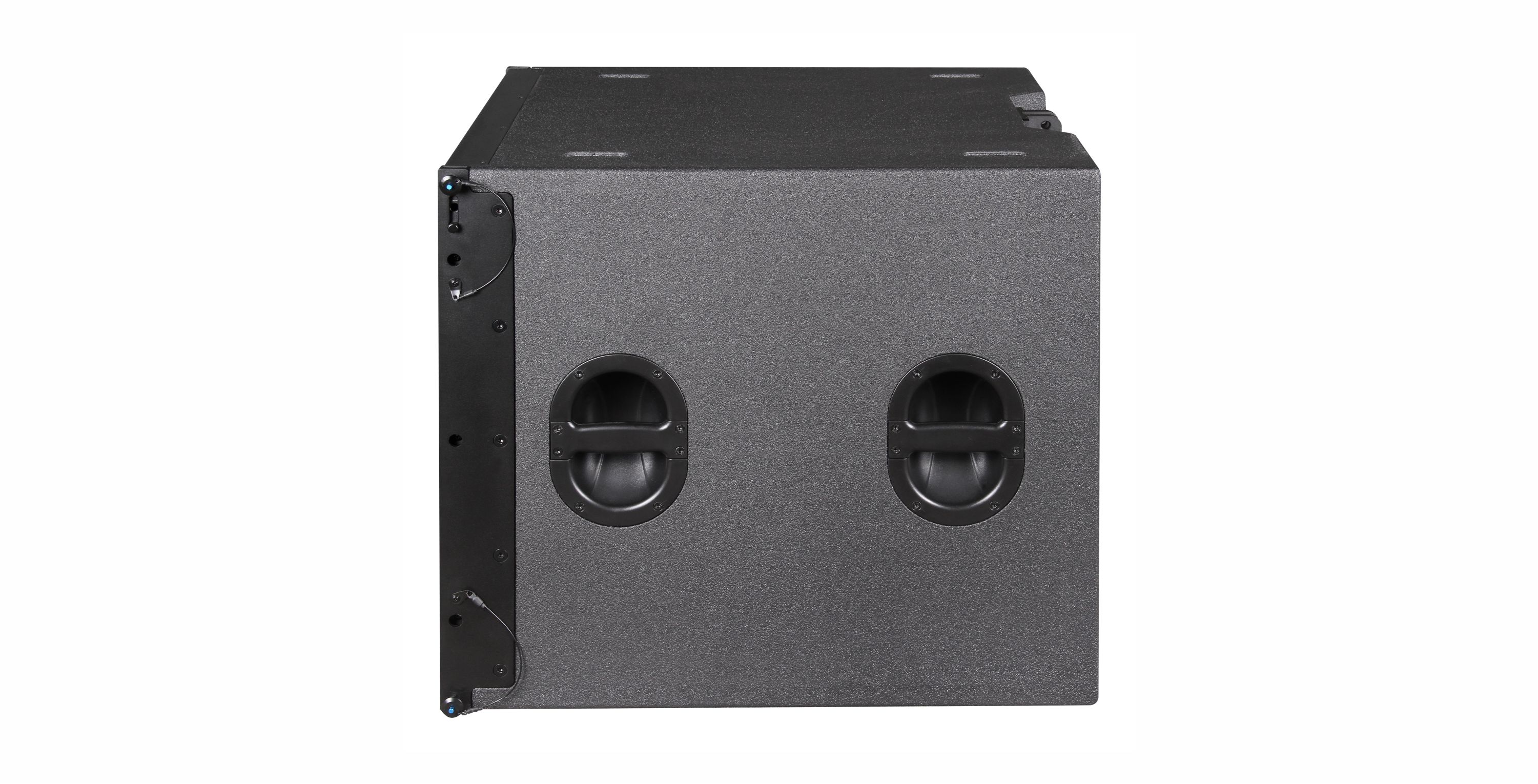

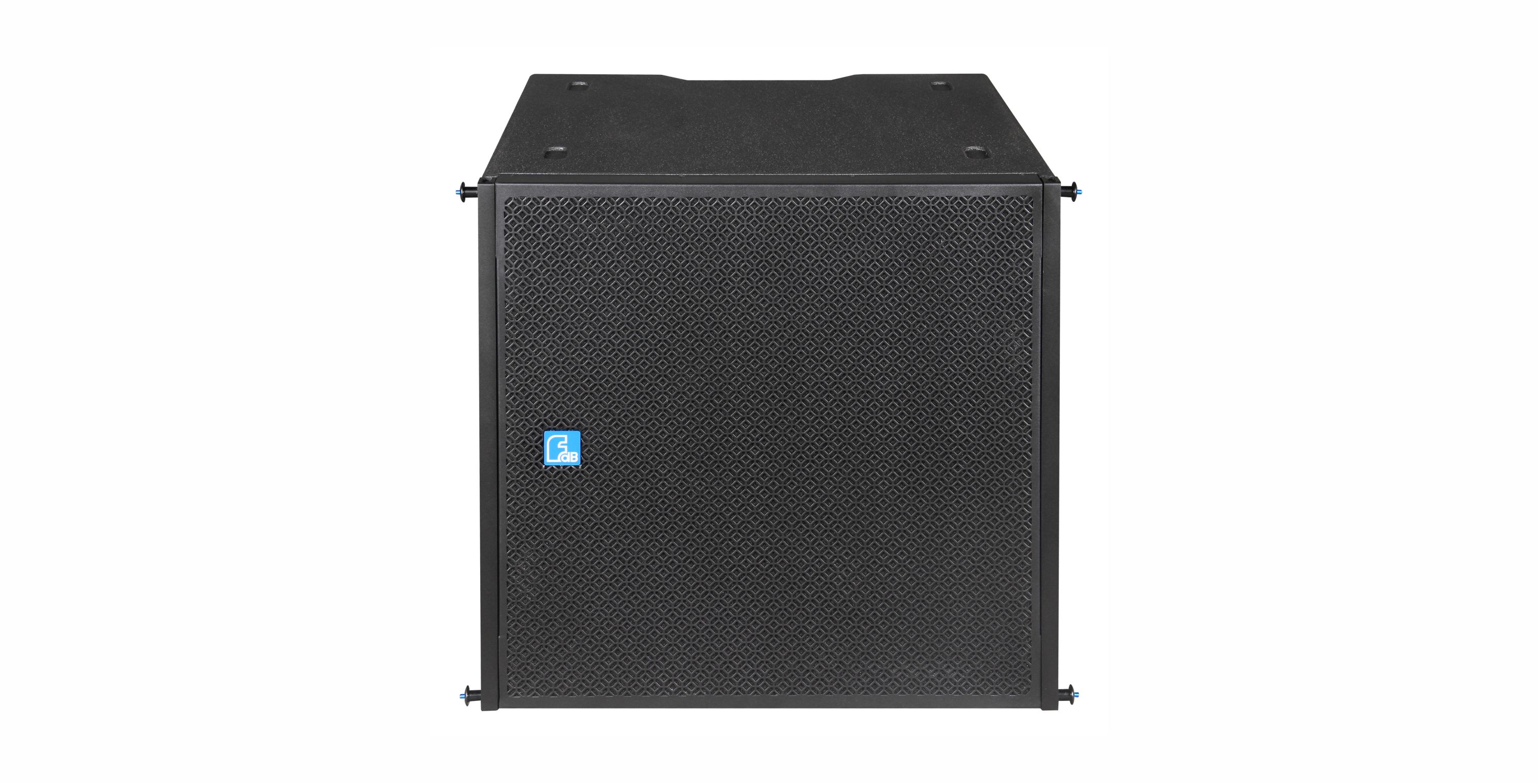

DLA118W/DLA118WA
1x18" 线阵超低音箱/1x18" 线阵有源超低音箱
DESCRIPTION

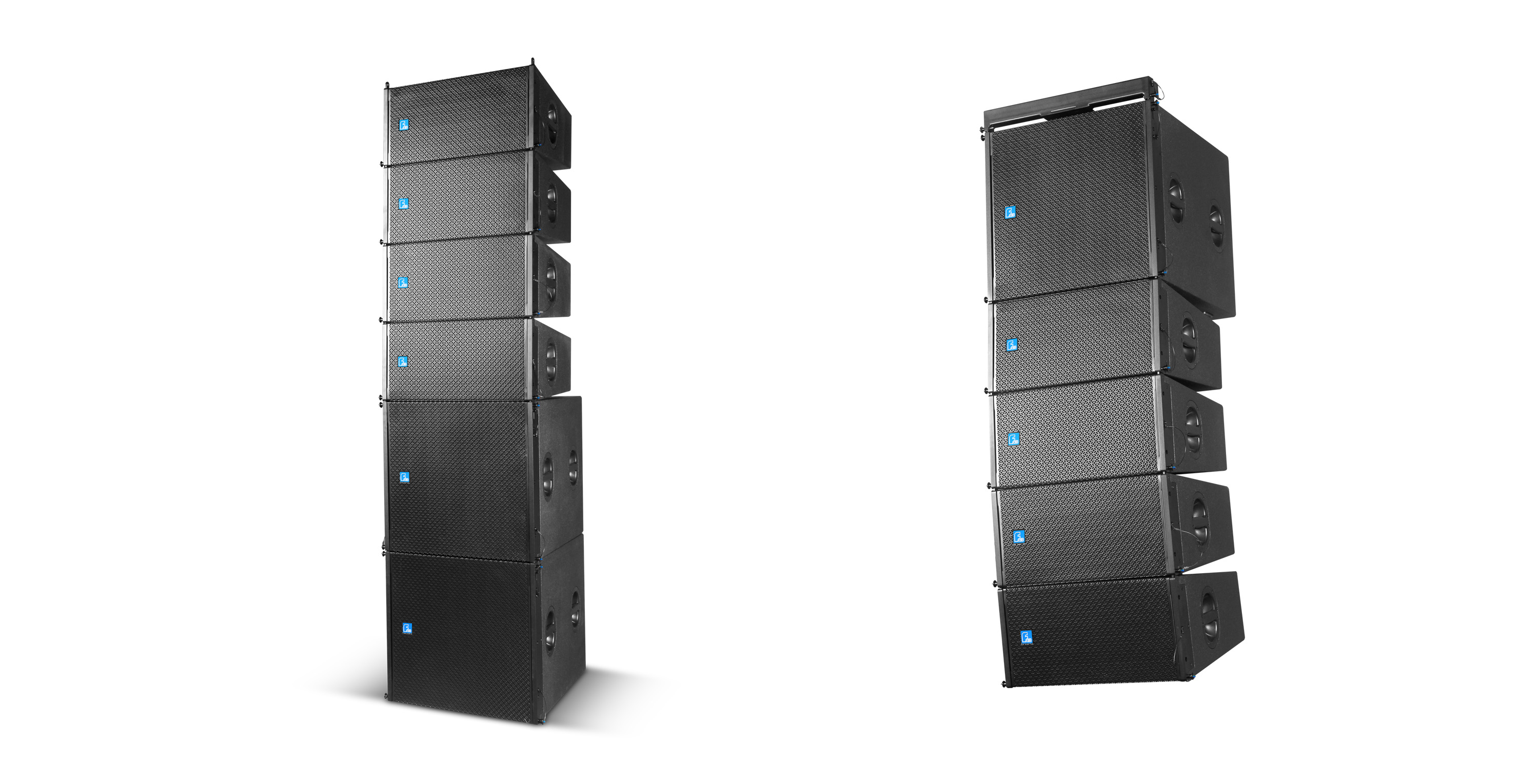

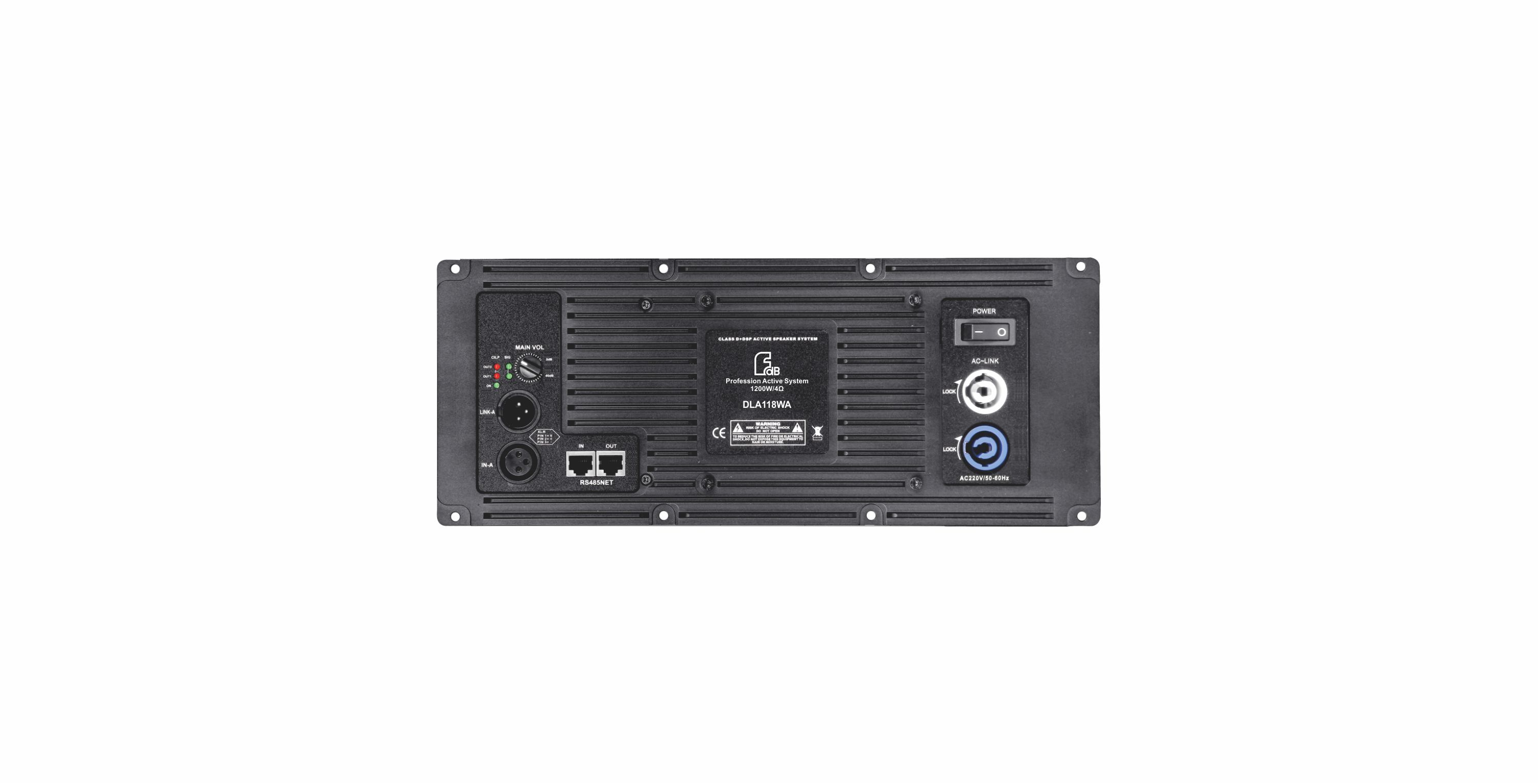

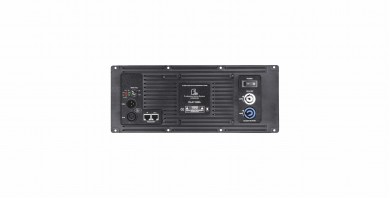

DLA118W is a single 18" subwoofer. It features 1x18" 100mm voice coil woofer, bass-reflex design, three-point hanging system matched with DLA410, can be hung and stacked to improve the low frequency performance of the system. The cabinet is made of multilayer composite plywood with wear-resistant polyurea paint. DLA118WA is an active subwoofer with one channel digital amplifier with DSP to match with DLA410A.
FEATURES
●High quality component, bass-reflex design, full and powerful sound
●Quick setup for hanging and stacking
●Applications: theaters, concert halls, multifunction halls, lecture halls, auditoriums, stadiums, live houses, and touring
●Quick setup for hanging and stacking
●Applications: theaters, concert halls, multifunction halls, lecture halls, auditoriums, stadiums, live houses, and touring
SPECIFICATIONS
| MODEL | DLA118W | DLA118WA |
| FREQUENCY RESPONSE(-3dB) | 40Hz-300Hz | 40Hz-300Hz |
| DRIVERS | 1×18"(460mm)/4"voice coil LF | 1×18"(460mm)/4"voice coil LF |
| RATED POWER | 600W RMS,2400W peak | 1200W/4Ω |
| SENSITIVITY | 99dB 1watt/1meter | — |
| MAXIMUM SPL | 127dB continuous,133dB peak | 127dB continuous,133dB peak |
| IMPEDANCE | 8 ohms nominal | — |
| INPUT CONNECTORS | 2×Speakon NL4 | INPUT TYPE: Balanced Differential line |
| PACKAGE SIZE | 772mm×715mm×615mm | 772mm×715mm×615mm |
| NET WEIGHT | 45 kg/pc | 47 kg/pc |
| GROSS WEIGHT | 51 kg/pc | 53 kg/pc |

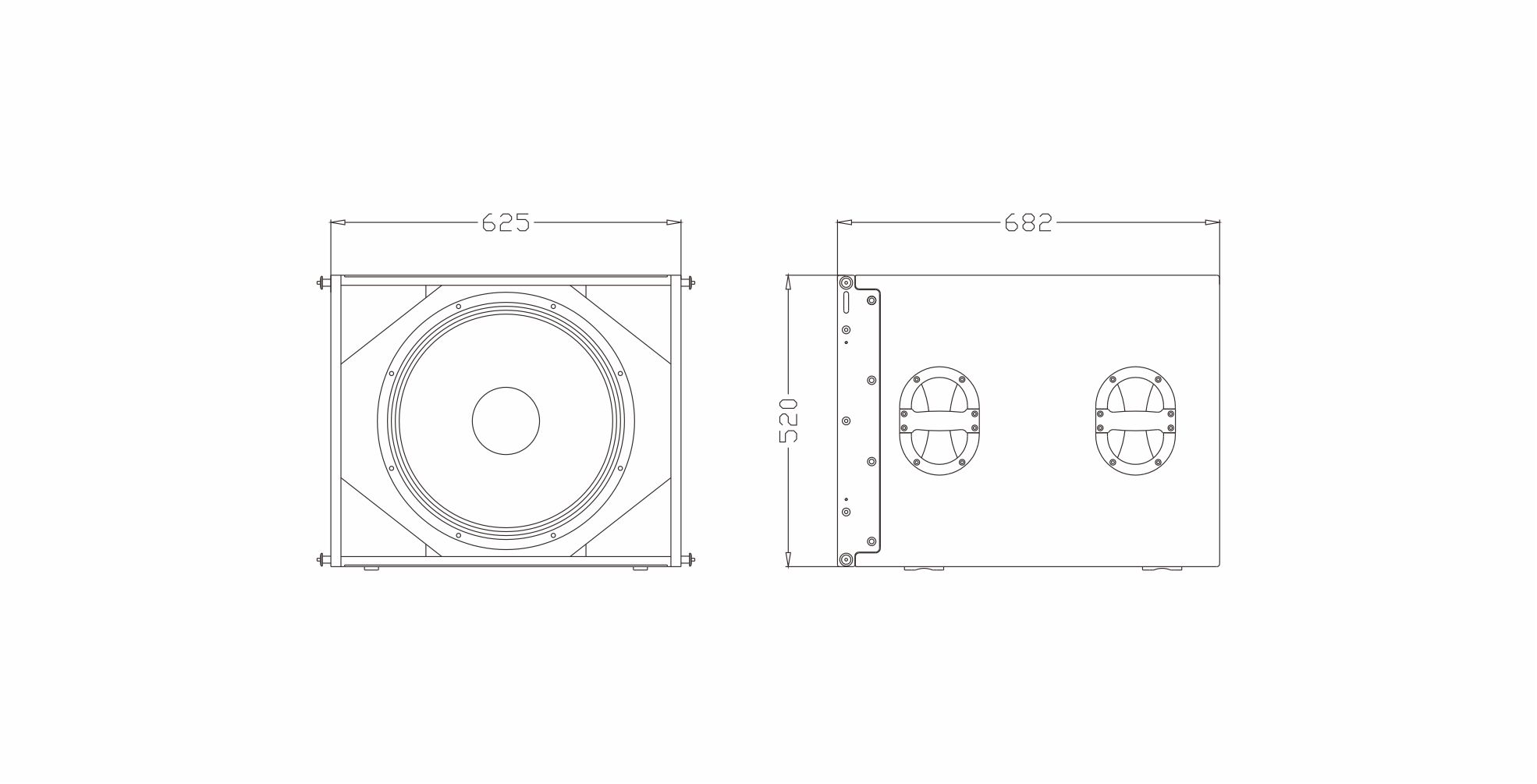

CONFIGURATION
DOWNLOAD
DLA118W&DLA118WA-2023
