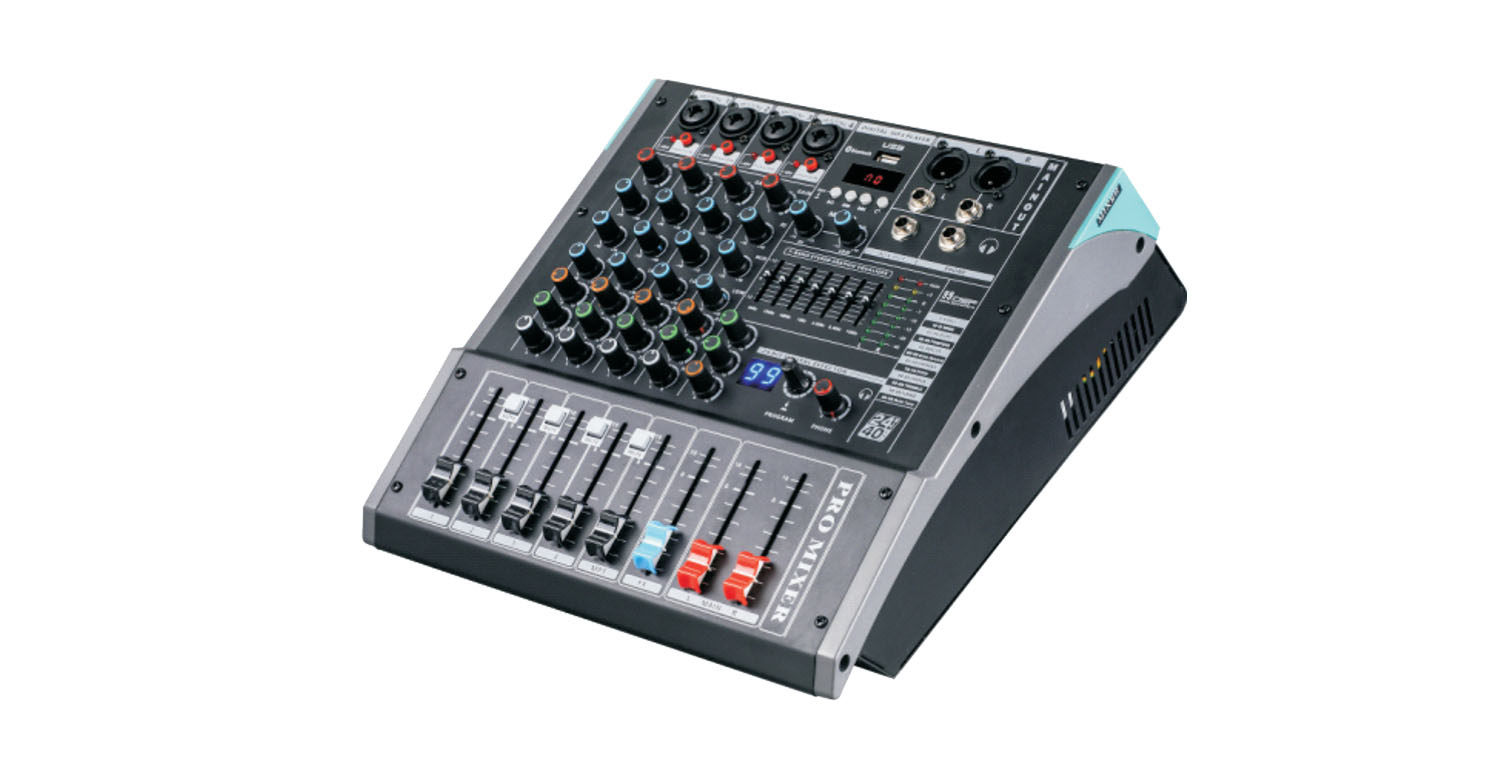

TXS-106

DESCRIPTION

Specification
1.6 XLR and MIC inputs ,2 stereo inputs.
2.3 segments EQ in each channel.
3.1 AUX output.
4.With mute function in each channel.
5.4 channels equiped with FBX function.
6.Stereo output
7.24 kinds of DSP effect.
8.48V phantom power supply.
9.Built-in soundcard function,it can record when connecting with PC or phone.
10.7 bands EQ in main output.
11.MP3 player with recording and bluetooth function.
12.2.5 inch LED dot matrix display
13.Power 750W*2 8Ω
14.With two hand-helds
Parameters
Input Channels:6 Mono,2 stereo inputs
AUX Channels:1
Groups:-
DSP EFF :24 kinds of DSP EFF
Phantom power:48V
Signal Noise Ratio:>88dB
Total Harmonic Distortion:0.03%
Line input:
Gain Zone:10dB -+20dB
MAX Output Level:22 dBu
Input sensitivity
MIC  Input:60dB
LINE Input:20dB
EQUALIZER
HIGH:12kHz/±15dB
MID:250Hz – 8kHz/±15dB
LOW:80Hz/±15dB
Frequency response:20HZ-20kHZ (+3dB)
Max output level:0dBu
Auxiliary max output level:19dBu(1kw,THD=0.5%)
Earphone Max output level:19dBu/150Ω(+25dBm)
Power supply:100 – 240V 6A 250V
