DESCRIPTION

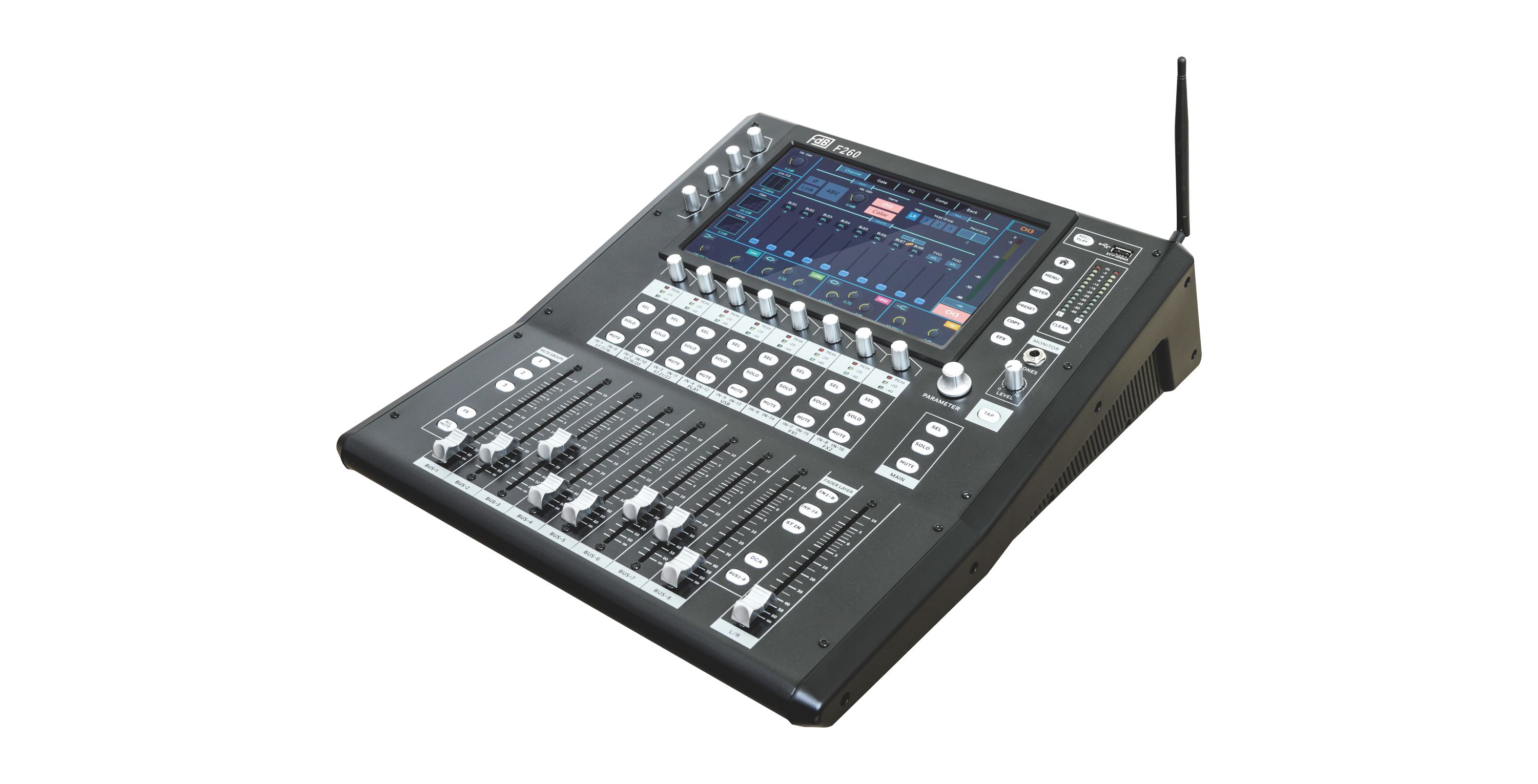

F260/F200 are two styles multi-function digital mixers with small size, light weight, full functions, friendly man-machine interface, intuitive and simple operation, quick response and other characteristics. They can be compatible with devices using iOS, Android, Windows, Mac OS and Linux operating systems, remotely controlled by connecting the WiFi / hot signal of the mixer via mobile phone, tablet or computer, have the function of the central control based on “UDP” protocol. The function permissions can be preset to avoid misoperation to the greatest extent. It is suitable for small and medium-sized performance, conference rooms, cultural auditoriums, multi-function halls and other sound amplification systems.
SPECIFICATIONS
| MODEL | F260 | F200 |
| Micphone Input | 16 channels | 12 channels |
| Stereo Input | 3 channels | 2 channels |
| Digital Stereo Input | 2 channels | |
| BUS Output | channels | 6 channels |
| Programmable DCA Channels | 8 channels | |
| Stereo Main Output | 1 channel | |
| Stereo Monitor Output | 1 channel | |
| Stereo Digital Output | 3 channels | 2 channels |
| Capacitive Touch Screen | 10" HD 1280x800 | 8" HD 1280x800 |
| Dimensions (WxDxH) | 380mmx490mmx140mm | 310mm x430mmx110mm |
| Packing Size(WxDxH) | 460mmx590mmx205mm | 350mmx460mmx150mm |
| N.W | 6.5Kg | 4.0Kg |
| G.W. | 8.8Kg | 6.0Kg |
| Hardware Parameters | ||
| Input Gain | Microphone /Line Gain: -20.0dB70.0dB | |
| Threshold: (Automatic Transient,Automatic Release) | ||
| Threshold Value: | -80~0dB | |
| Compressor | ||
| Threshold Value: | -60dB~0dB | |
| Compression Ratio: | 1:1~1000:1 | |
| Attack Time: | 1ms~120ms | |
| Release Time: | 10ms~4000ms | |
| Hold Time: | 1ms~2000ms | |
| Makeup Gain: | -20dB - +20dB | |
| Input Channel Equalizer: | 4 frequency range parameters equalizer | |
| each frequency range: | 20Hz~20kHz | |
| Q Value : | 0.05~15 | |
| 增益Gain: | -20dB - +20dB | |
| HPF: | 20Hz~20kHz连续可调continuous adjustable | |
| LPF: | 20Hz~20kHz连续可调continuous adjustable | |
| Output Channel Equalizer: | 4个31段GEQ, 20Hz~20kHz, 土15dB | |
| Slope: | -12dB/Oct、-24dB/Oct 可选 optional | |
| Type: | Butterworth、Linkwi?tz-Riley | |
| Output Compressor | ||
| Threshold Value | -60dB^ +0dB | |
| Compression Ratio | 1:1~1000:1 | |
| Attack Time | 1ms~120ms | |
| Release Time | 10ms~4000ms | |
| Hold Time | 1ms~2000ms | |
| Makeup Gain | -20dB - +20dB | |
| Delay | Mic Input -ADC-DSP-DAC-Line Output: <1ms | |
| Input/Output Impedance | Mic Input: 2.5kΩ, Line Input: 10kΩ,Output: 100Ω | |
| Power Supply | 88~265VAC 47~63Hz Auto-induction | |
| Power Consumption (Typical Value) |
<55W |
|
