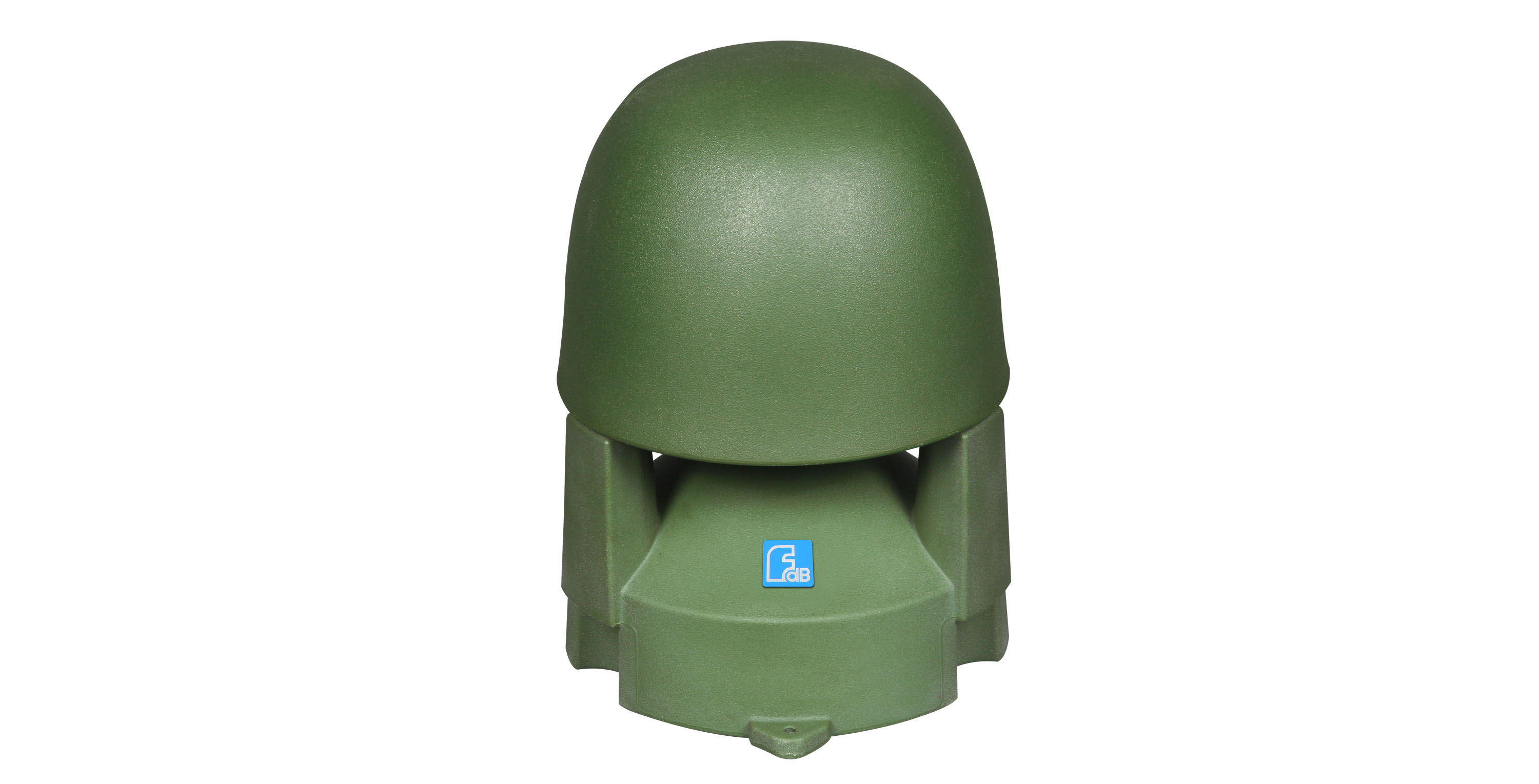

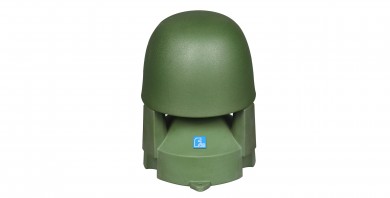

LS208
1x8" all-weather landscape speaker
DESCRIPTION
LS series is specially designed for outdoor applications, strong weather resistance speaker, with ingenious, stylish, compact structure design, close to the ground or buried installation, full bass, bright mid-high, grass green can be integrated with the environment. The product has passed the IP56 test, and the coverage angle is 360°×90°. Unit configuration: 5" and 8" coaxial units, the cabinet is molded with grass-green engineering plastic material, which is resistant to collisions and scratches.
FEATURES
●Pass IP56 testing
●Engineering plastic mold forming box, strong weather resistance
●360°×90° coverage angle
●Applications: green squares, pedestrian walkways, parks, hotel gardens, resorts, villa courtyards
●Engineering plastic mold forming box, strong weather resistance
●360°×90° coverage angle
●Applications: green squares, pedestrian walkways, parks, hotel gardens, resorts, villa courtyards
SPECIFICATIONS
| MODEL | LS208 |
| FREQUENCY RESPONSE(-10dB) | 60Hz-16KHz |
| LF DRIVER | 1×8"/ 2" voice coil |
| HF DRIVER | 1×0.8"/ 1" voice coil |
| INPUT VOLTAGE | 100V |
| RATED POWER | 37.5W/75W/150W/OFF/8Ω |
| SENSITIVITY | 93dB 1watt/1 metre |
| MAXIMUM SPL | 114dB continuous,120 dB peak |
| IMPEDANCE | 8 ohms |
| DISPERSION(-6dB) | 360°×90° |
| CROSSOVER FREQUENCIES | 2.8kHz passive |
| PACKAGE SIZE | 470×470×585 mm |
| NET WEIGHT | 10.5kg/pc |
| GROSS WEIGHT | 13kg/pc |
