LS525
1x5.25" all-weather landscape speaker
DESCRIPTION
LS series is specially designed for outdoor applications, strong weather resistance speaker, with ingenious, stylish, compact structure design, close to the ground or buried installation, full bass, bright mid-high, grass green can be integrated with the environment. The product has passed the IP56 test, and the coverage angle is 360°×90°. Unit configuration: 5" and 8" coaxial units, the cabinet is molded with grass-green engineering plastic material, which is resistant to collisions and scratches.
FEATURES
●Pass IP56 testing
●Engineering plastic mold forming box, strong weather resistance
●360°×90° coverage angle
●Applications: green squares, pedestrian walkways, parks, hotel gardens, resorts, villa courtyards
●Engineering plastic mold forming box, strong weather resistance
●360°×90° coverage angle
●Applications: green squares, pedestrian walkways, parks, hotel gardens, resorts, villa courtyards
SPECIFICATIONS
| MODEL | LS525 |
| FREQUENCY RESPONSE(-3dB) | 65Hz-16kHz |
| FREQUENCY RESPONSE(-10dB) | 55Hz-18KHz |
| DRIVERS | 1×5.25"(135mm)/1.5"voice coil LF |
| 1×0.8"(20mm)/dome tweeter | |
| INPUT VOLTAGE | 100V |
| RATED POWER | 7.5W/15W/30W/OFF/8Ω |
| SENSITIVITY | 86dB 1watt/1 metre |
| MAXIMUM SPL | 100dB continuous,106 dB peak |
| IMPEDANCE | 8 ohms nominal |
| DISPERSION(-6dB) | 360°×50° |
| CROSSOVER FREQUENCIES | 3.2kHz passive |
| PACKAGE SIZE | 405mm×405mm×500mm |
| NET WEIGHT | 6.5kg/pc |
| GROSS WEIGHT | 8.5kg/pc |

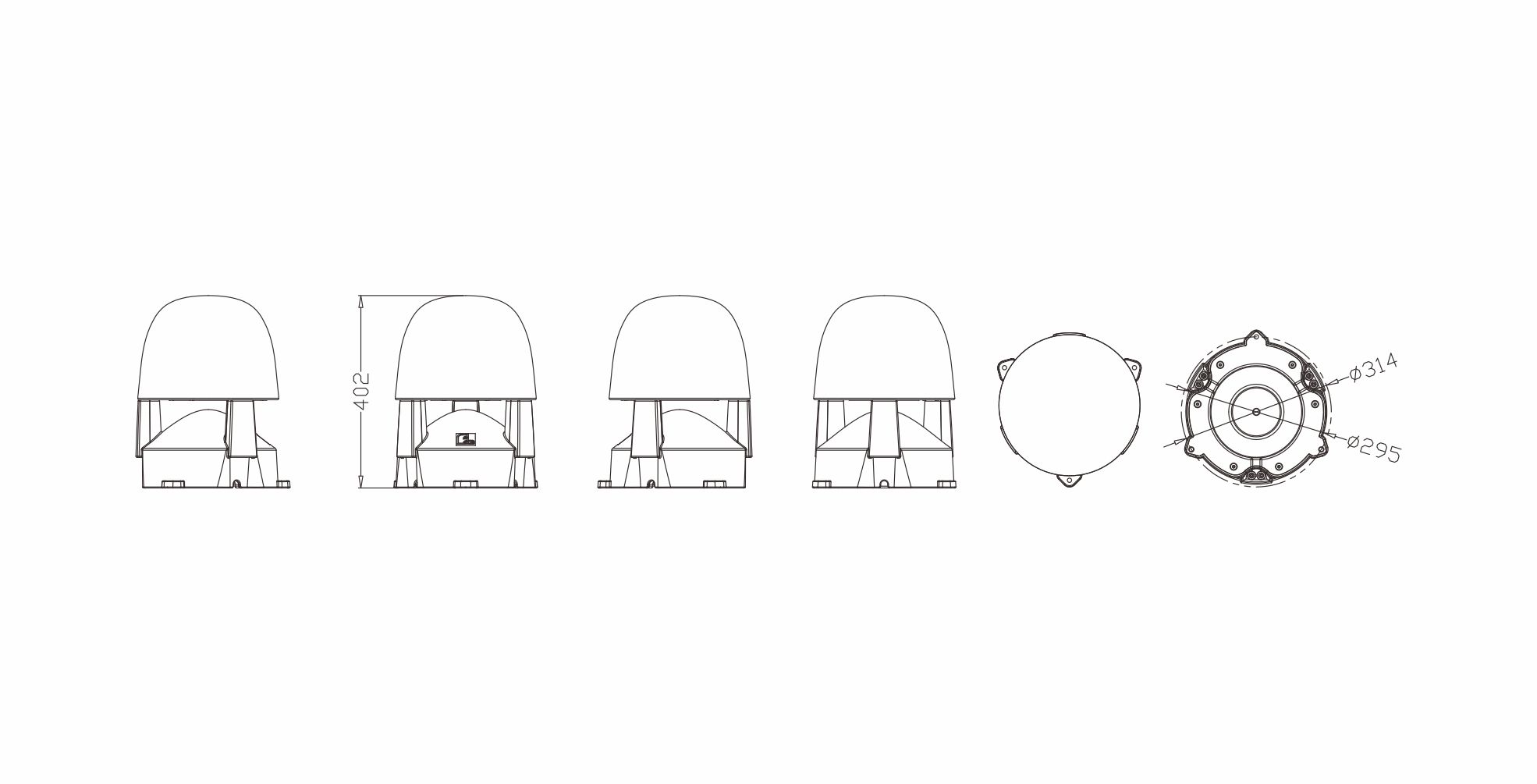

CONFIGURATION
