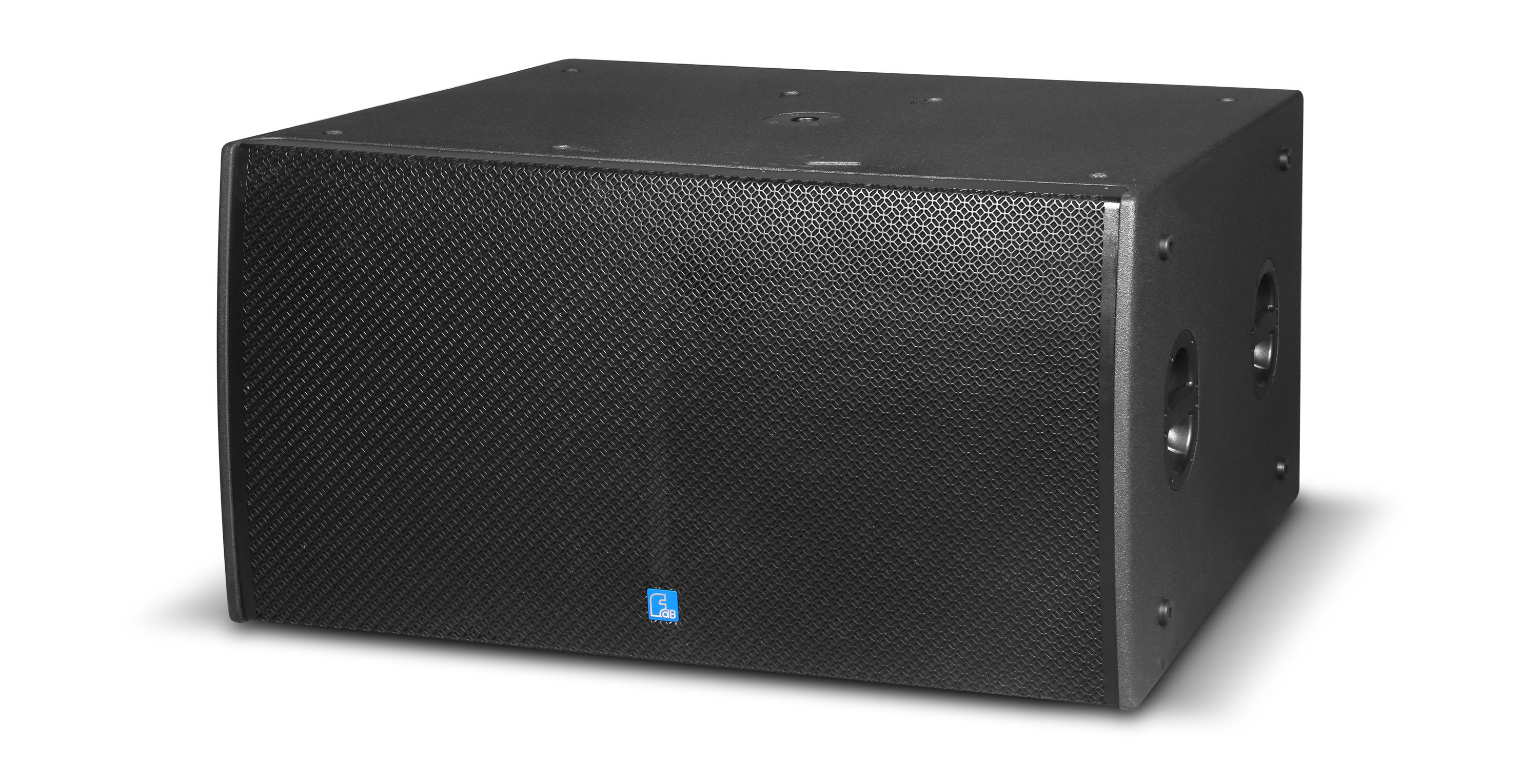

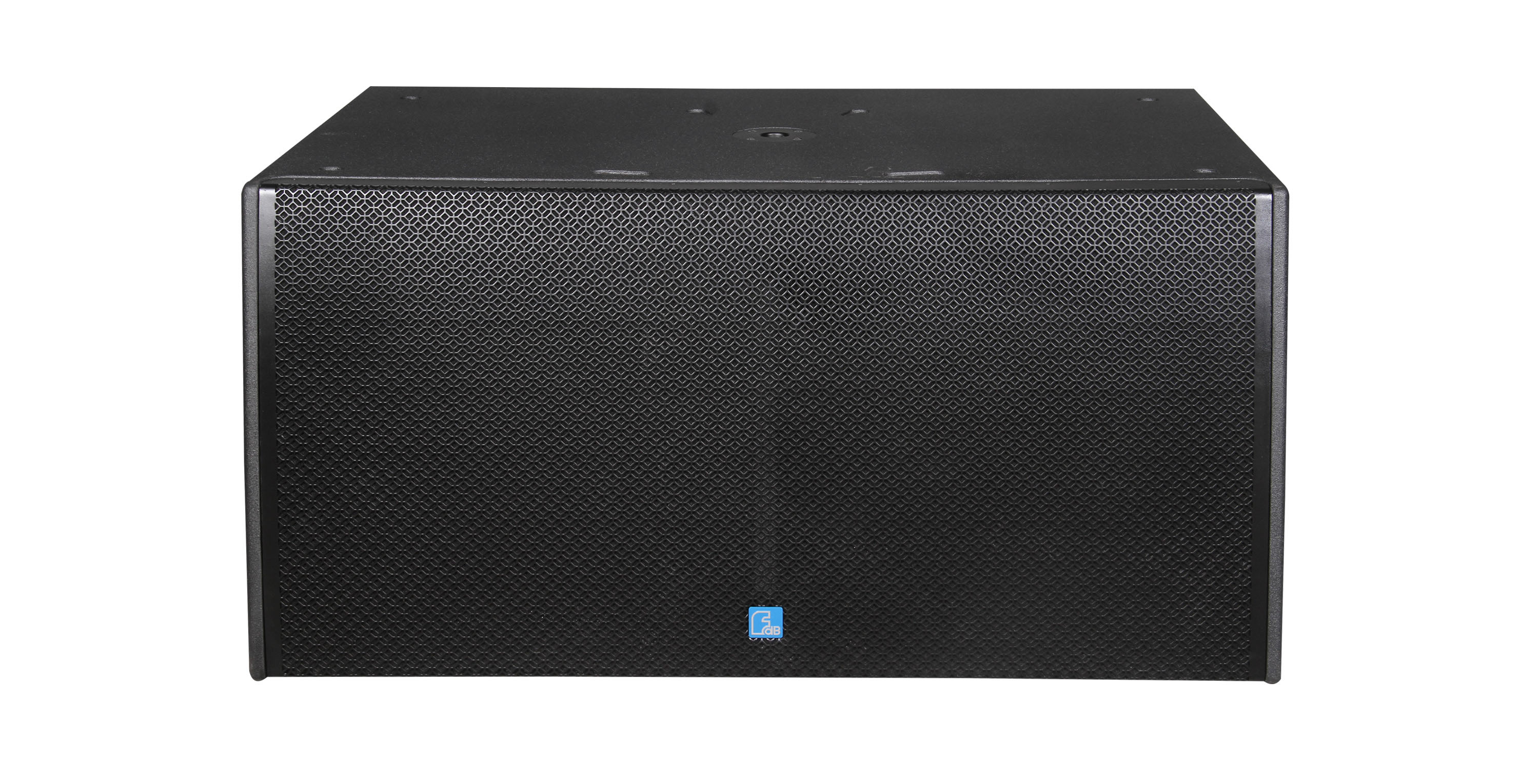

DLA221B
2x21" Sub-woofer
DESCRIPTION
DLA221B is a dual 21" subwoofer. It features 2x21" 115mm voice coil woofer, bass-reflex design, can be used with line array and point source full range speakers to improve the low frequency performance. The cabinet is made of multilayer composite plywood with wear-resistant polyurea paint.
FEATURES
●High quality components, bass-reflex design, full and powerful sound
●Applications: meet a variety of occasions, can be combined with line array and point source full range speaker freely
●Applications: meet a variety of occasions, can be combined with line array and point source full range speaker freely
SPECIFICATIONS
| MODEL | DLA221B |
| FREQUENCY RESPONSE(-3dB) | 35Hz-300Hz |
| DRIVERS | 2×21"(530mm)/4.5"voice coil LF |
| RATED POWER | 800W+800W RMS, 3200W+3200W peak |
| SENSITIVITY | 103dB 1watt/1meter |
| MAXIMUM SPL | 135dB continuous,141dB peak |
| IMPEDANCE | 4 ohms +4 ohms nominal |
| INPUT CONNECTORS | 2×Speakon NL4 |
| PACKAGE SIZE | 1275mm×870mm×695mm |
| NET WEIGHT | 104 kg/pc |
| GROSS WEIGHT | 112 kg/pc |
CONFIGURATION
DOWNLOAD
