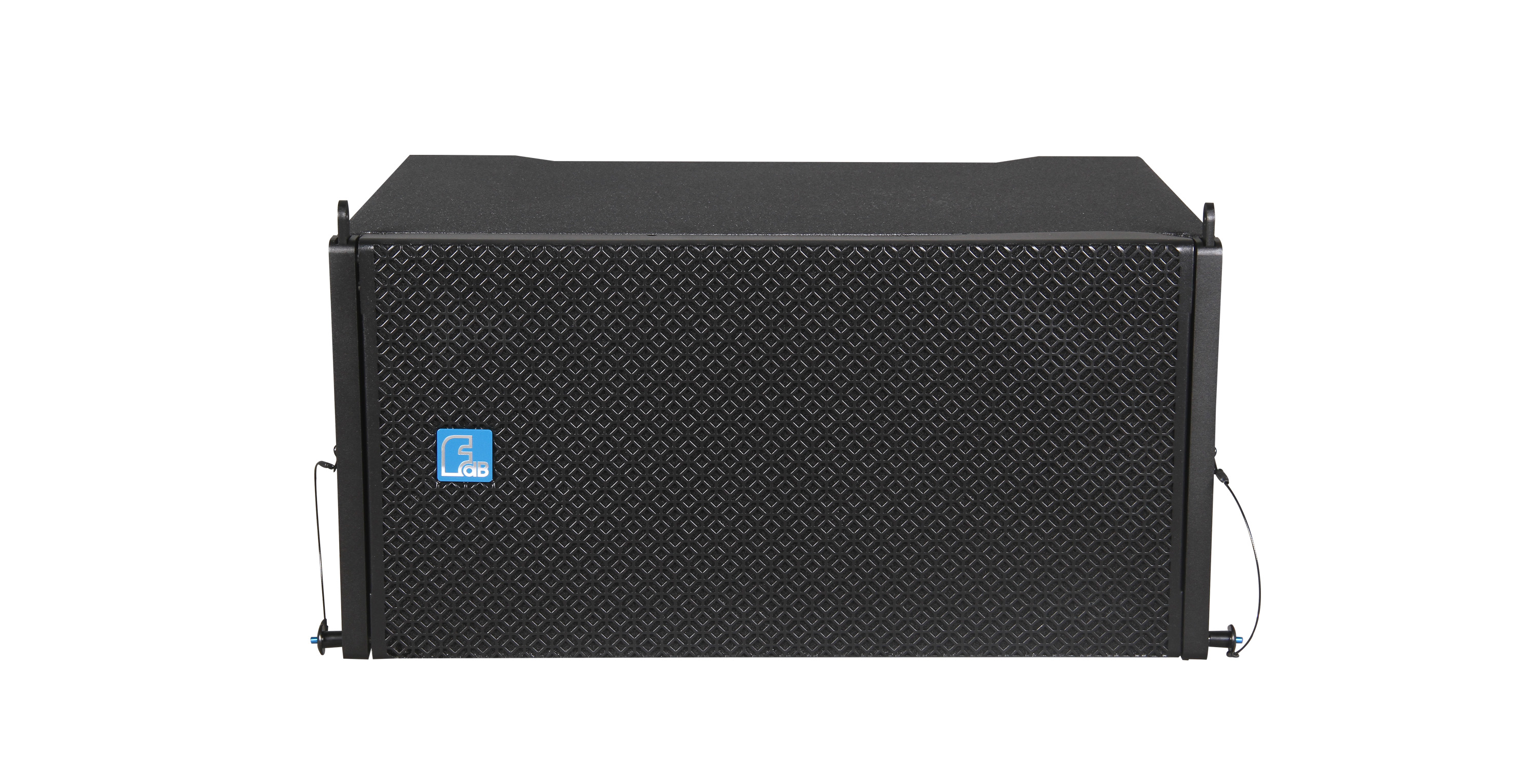

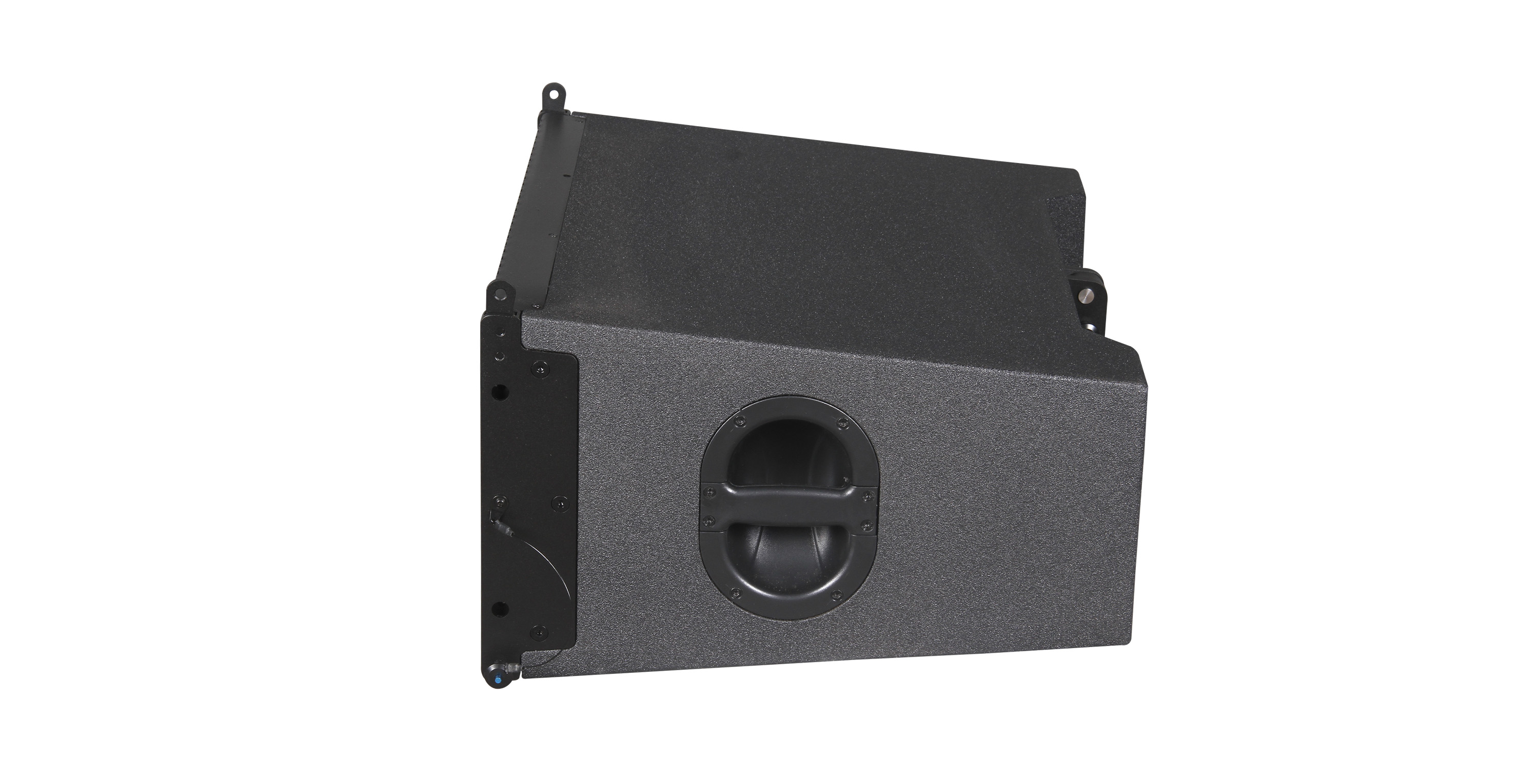

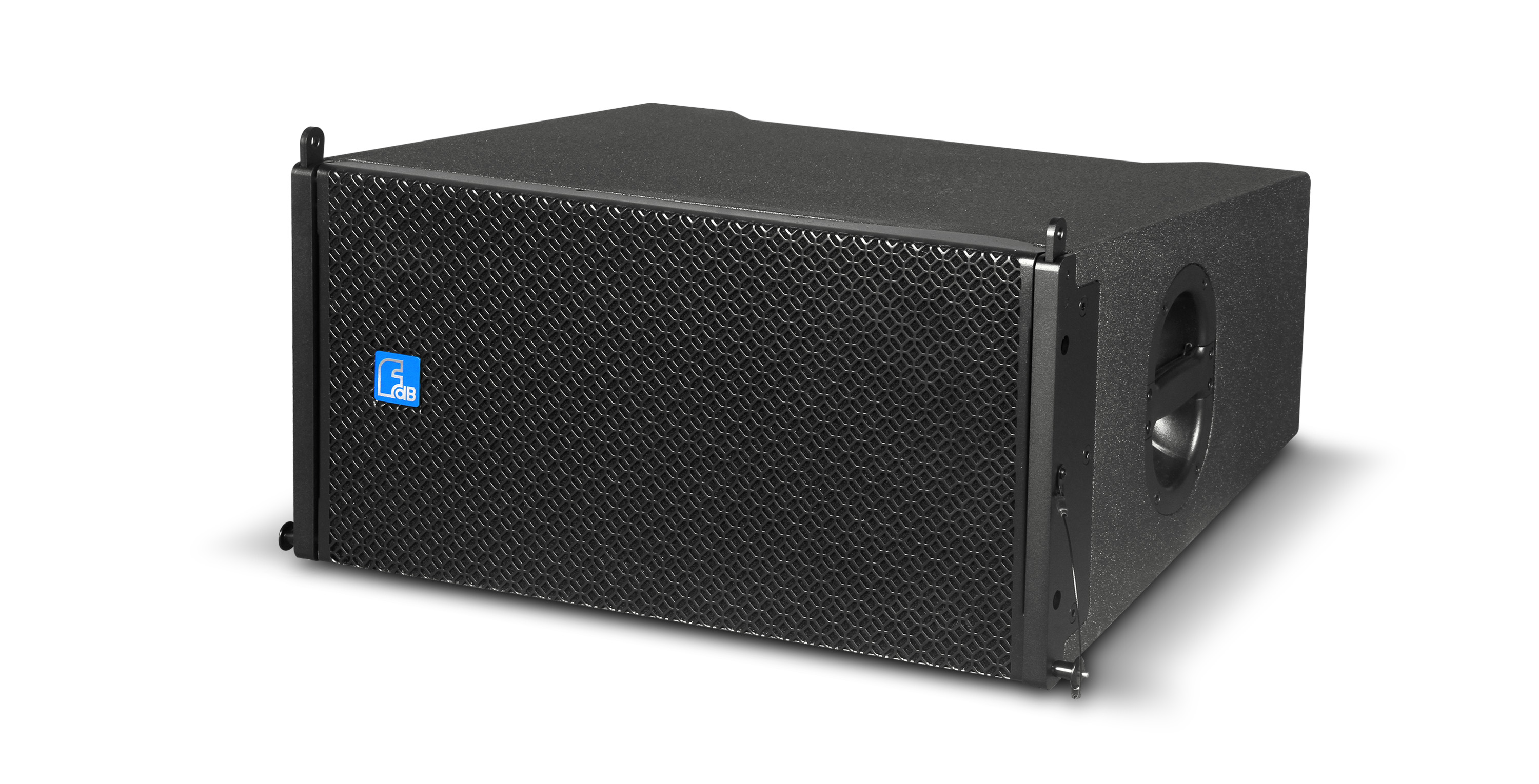

DLA410/DLA410A
2x10" 3-way line array system
DESCRIPTION

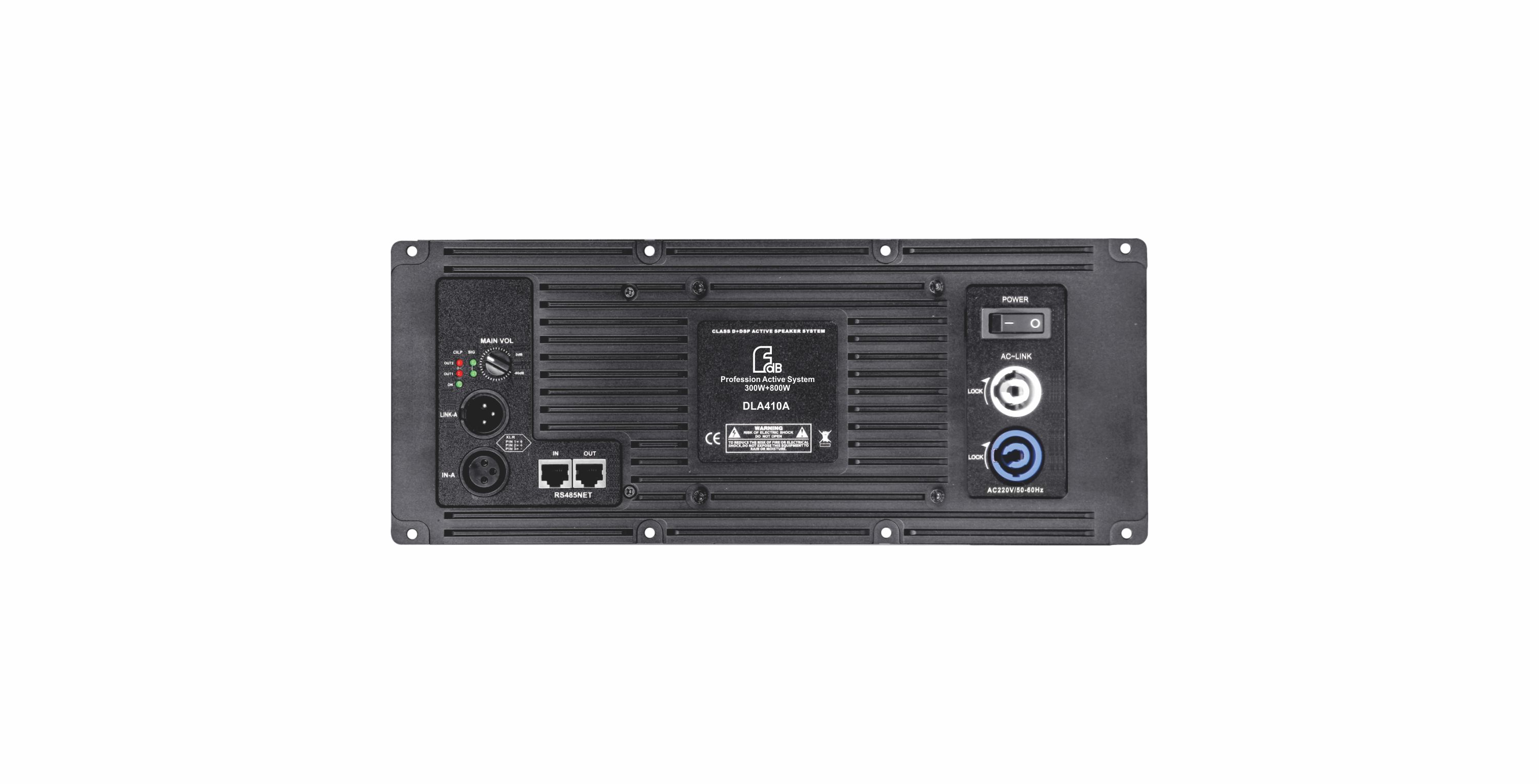

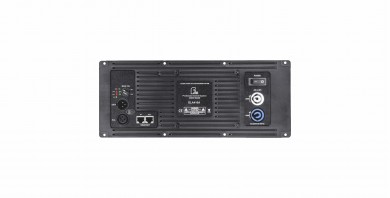

DLA410 is a compact, light weight, high SPL, 3-way line array speaker. It features low distortion mid-bass unit, mid-high coaxial driver with special waveguide and horn, accurate coverage, uniform changes, three-point hanging system, the whole system installation is fast, stable and safe. Unit configuration:2x10" high efficiency neodymium mid-bass units, 1x1.4" exit throat 90mm voice coil neodymium MF driver and 44mm HF driver coaxial neodymium unit. The cabinet is made of multilayer composite plywood with wear-resistant polyurea paint. DLA410A is an active line array speaker with two channels digital amplifier with DSP.
FEATURES
●Product parameters have been entered into EASE loudspeaker database
●Mid-high coaxial unit, real 3-way speaker, clear and powerful.
●Passive way, simple operation, save amplifiers

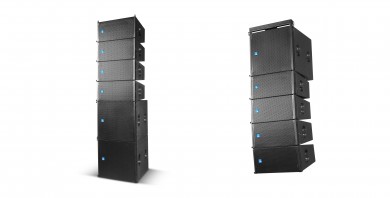

●Quick setup for hanging and stacking.
●Applications: theaters, concert halls, multifunction halls, lecture halls, auditoriums, stadiums, live houses, and touring
●Mid-high coaxial unit, real 3-way speaker, clear and powerful.
●Passive way, simple operation, save amplifiers
●Quick setup for hanging and stacking.
●Applications: theaters, concert halls, multifunction halls, lecture halls, auditoriums, stadiums, live houses, and touring
SPECIFICATIONS
| MODEL | DLA410 | DLA410A |
| FREQUENCY RESPONSE(-3dB) | 60Hz-18kHz | 60Hz-18kHz |
| FREQUENCY RESPONSE(-10dB) | 55Hz-20kHz | 55Hz-20kHz |
| DRIVERS | 2×10"(250mm)/3"voice coil LF | 2×10"(250mm)/3"voice coil LF |
| 1×1.4"(36mm)/3.5"voice coil MF | 1×1.4"(36mm)/3.5"voice coil MF | |
| 1×1.4"(36mm)/1.7"voice coil HF | 1×1.4"(36mm)/1.7"voice coil HF | |
| RATED POWER | 500W RMS,2000W peak | 300W/8Ω+800W/8Ω |
| SENSITIVITY | 101dB 1watt/1meter | — |
| MAXIMUM SPL | 127dB continuous,133dB peak | 127dB continuous,135 dB peak |
| IMPEDANCE | 8 ohms nominal | — |
| DISPERSION(-6dB) | Horizontal: 90° | Horizontal: 90° |
| Vertical coverage: Varies,depending on | Vertical coverage: Varies,depending on | |
| array length and configuration | array length and configuration | |
| CROSSOVER FREQUENCIES | 700Hz，6KHz passive | — |
| INPUT CONNECTORS | 2×Speakon NL4 | INPUT TYPE: Balanced Differential line |
| PACKAGE SIZE | 537mm×400mm×720mm | 537mm×400mm×720mm |
| NET WEIGHT | 26 kg/pc | 28 kg/pc |
| GROSS WEIGHT | 30 kg/pc | 32 kg/pc |

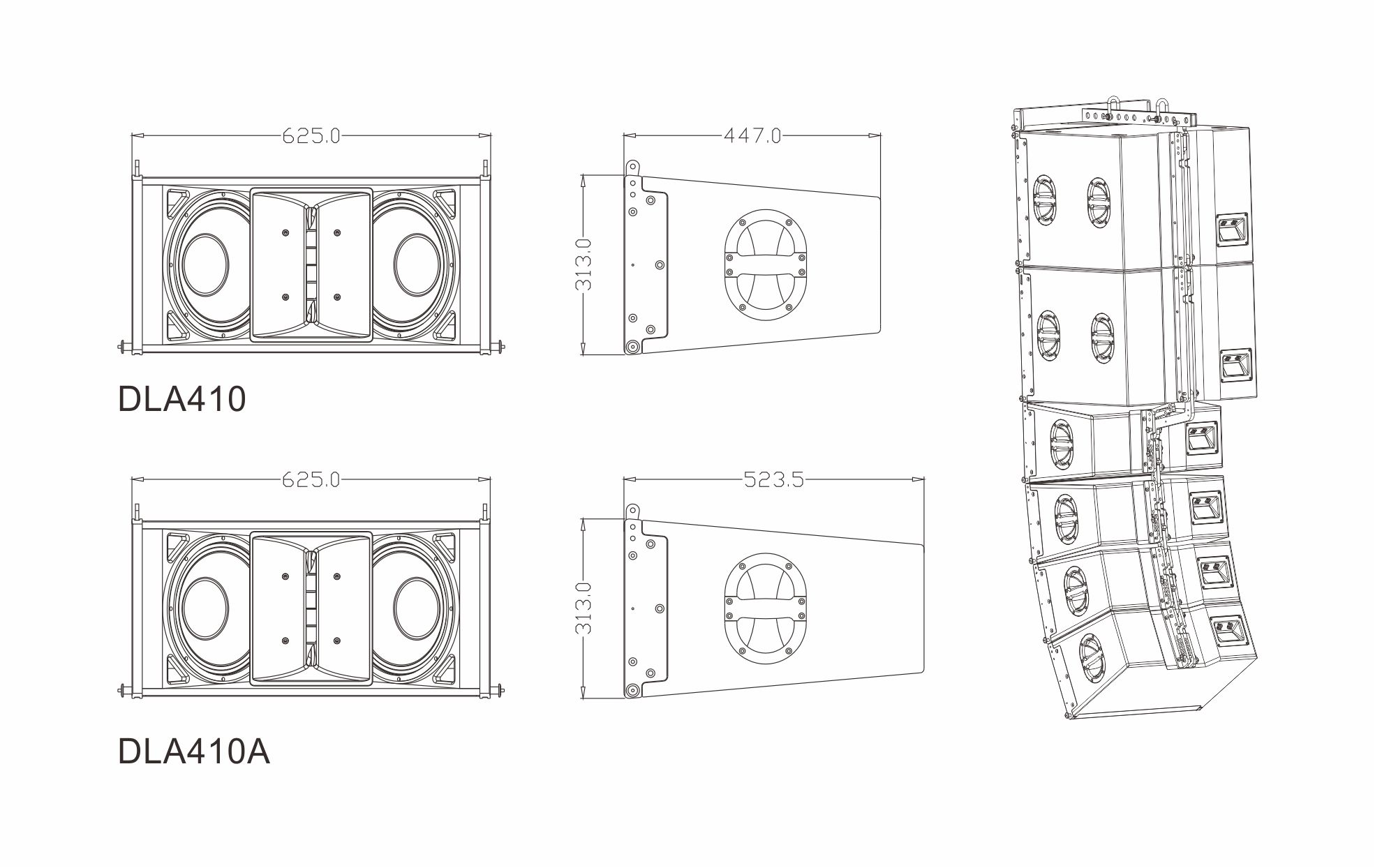

CONFIGURATION
