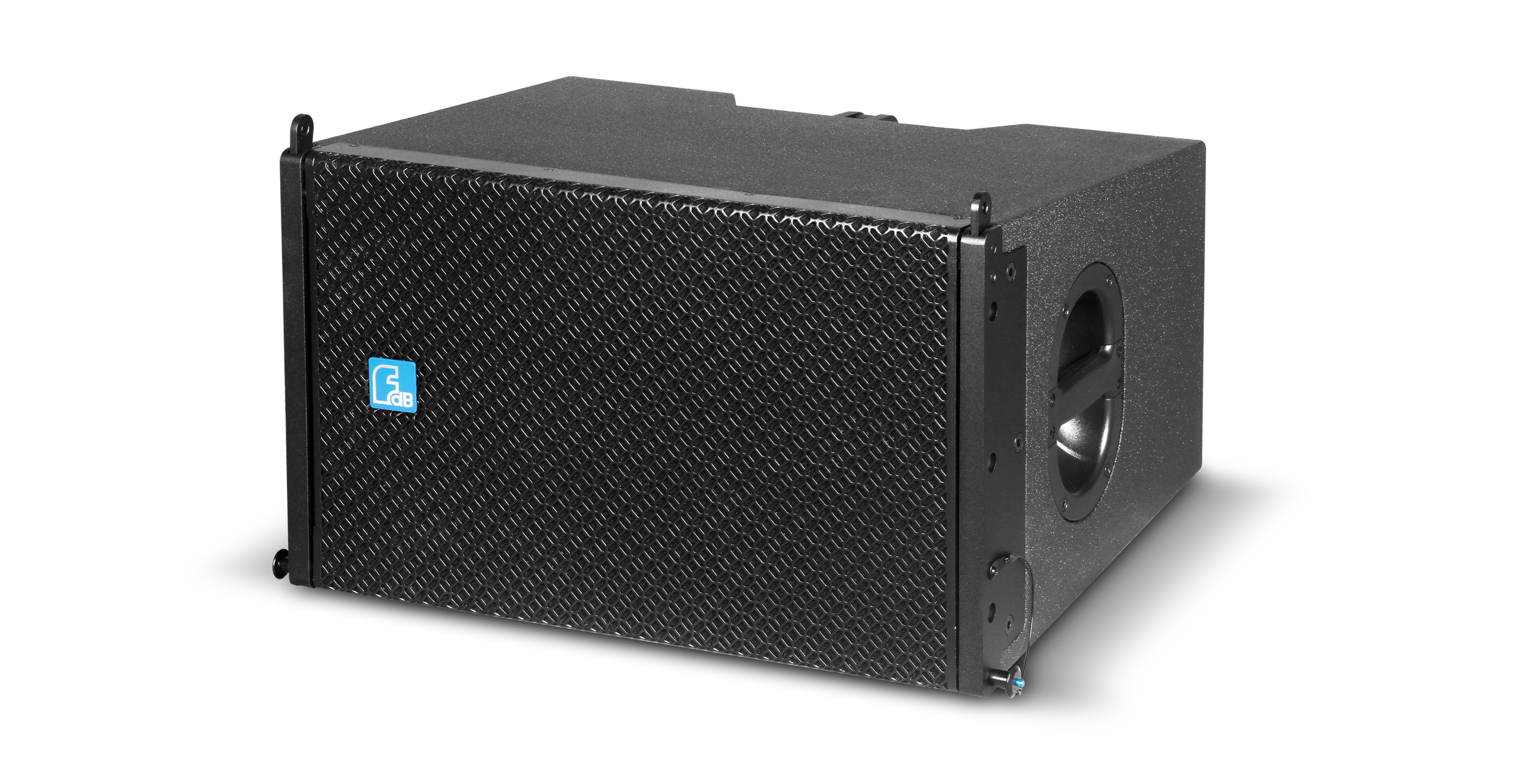

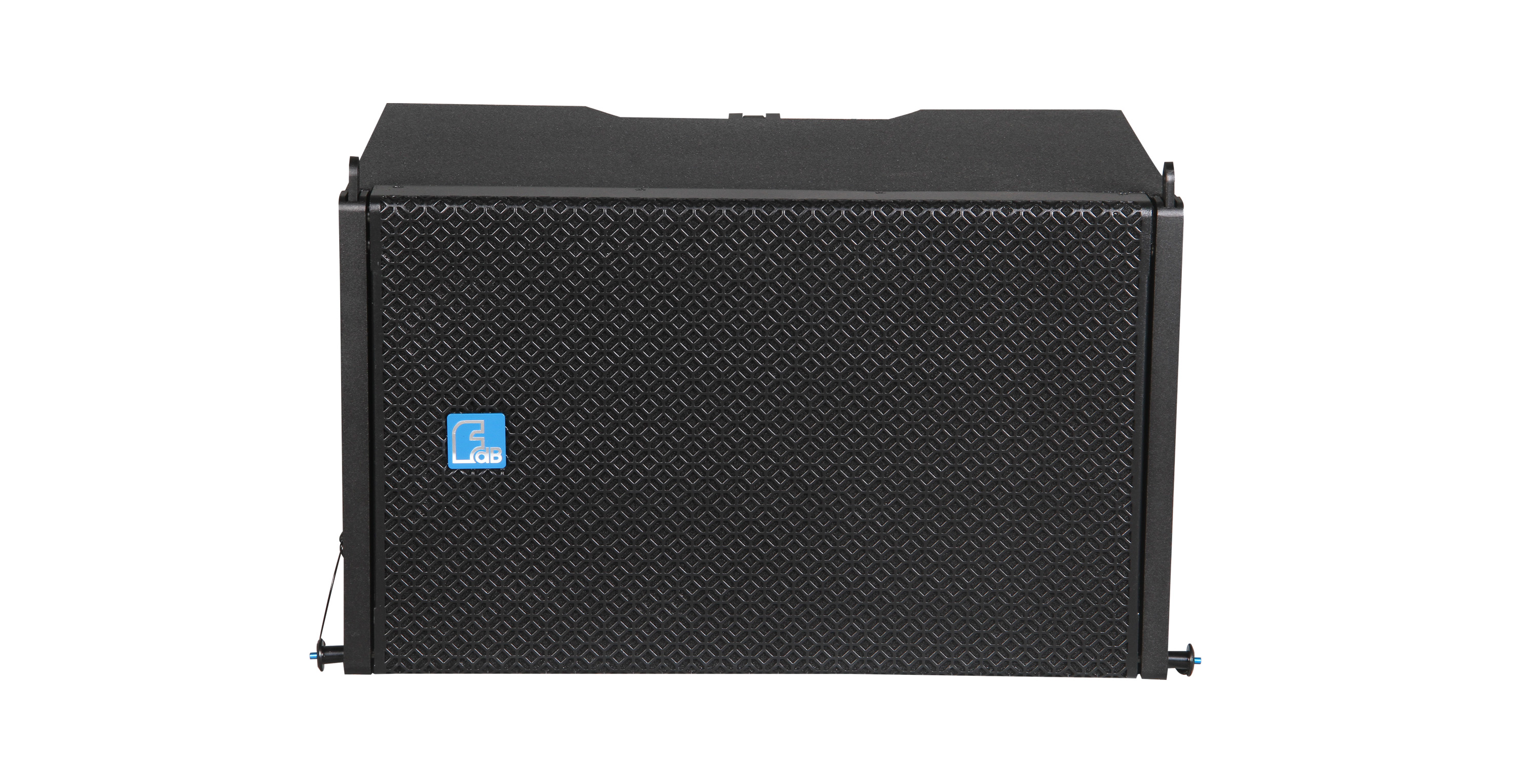

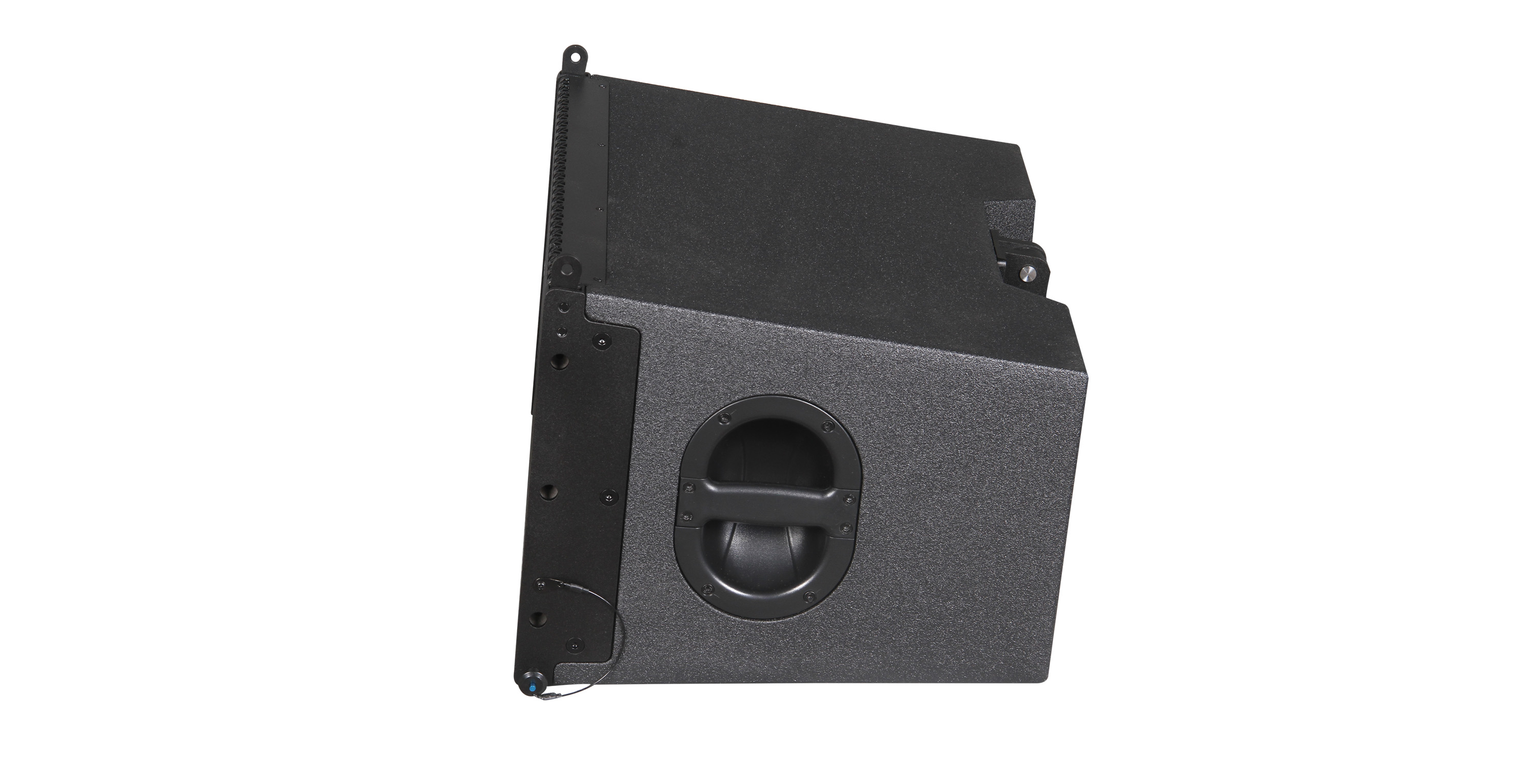

DLA112
1x12" 2-way line array system
DESCRIPTION
DLA112 is a light weight, high SPL, single 12" line array speaker. It features low distortion mid-bass unit, double HF drivers with special integrated waveguide and horn, accurate coverage, uniform changes, three-point hanging system, the whole system installation is fast, stable and safe. Unit configuration:1x12" high efficiency neodymium mid-bass unit, 2x1.4" exit throat 44mm voice coil neodymium HF driver. The cabinet is made of multilayer composite plywood with wear-resistant polyurea paint.
FEATURES
●High quality components, special designed waveguide and horn, ensure accurate coverage angle and uniform changes
●Passive way, simple operation, save amplifiers

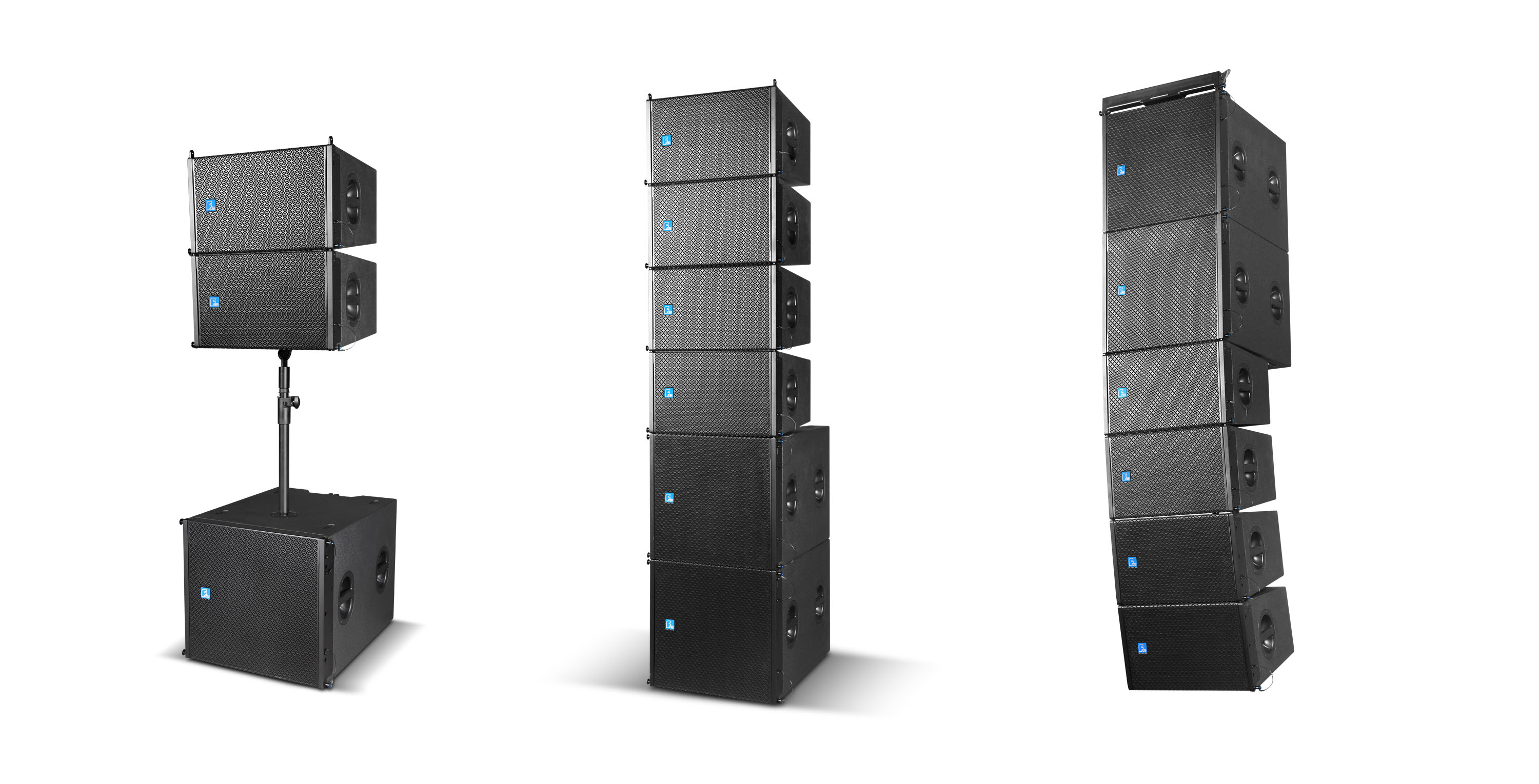

●Quick setup for hanging, stacking and supporting
●Applications: multifunction halls, lecture halls, auditoriums, stadiums and touring
●Passive way, simple operation, save amplifiers
●Quick setup for hanging, stacking and supporting
●Applications: multifunction halls, lecture halls, auditoriums, stadiums and touring
SPECIFICATIONS
| MODEL | DLA112 |
| FREQUENCY RESPONSE(-3dB) | 60Hz-18KHz |
| FREQUENCY RESPONSE(-10dB) | 55Hz-20kHz |
| DRIVERS | 1×12"(300mm)/3"voice coil LF |
| 2×1"(25mm)/1.7"voice coil HF | |
| RATED POWER | 400W RMS,1600W peak |
| SENSITIVITY | 98dB 1watt/1meter |
| MAXIMUM SPL | 122dB continuous,128dB peak |
| IMPEDANCE | 8 ohms nominal |
| DISPERSION(-6dB) | Horizontal coverage: 90° |
| Vertical coverage: Varies, depending on | |
| array length and configuration | |
| CROSSOVER FREQUENCIES | 1.3kHz passive |
| INPUT CONNECTORS | 2×Speakon NL4 |
| PACKAGE SIZE | 515mm×430mm×655mm |
| NET WEIGHT | 19 kg/pc |
| GROSS WEIGHT | 22 kg/pc |

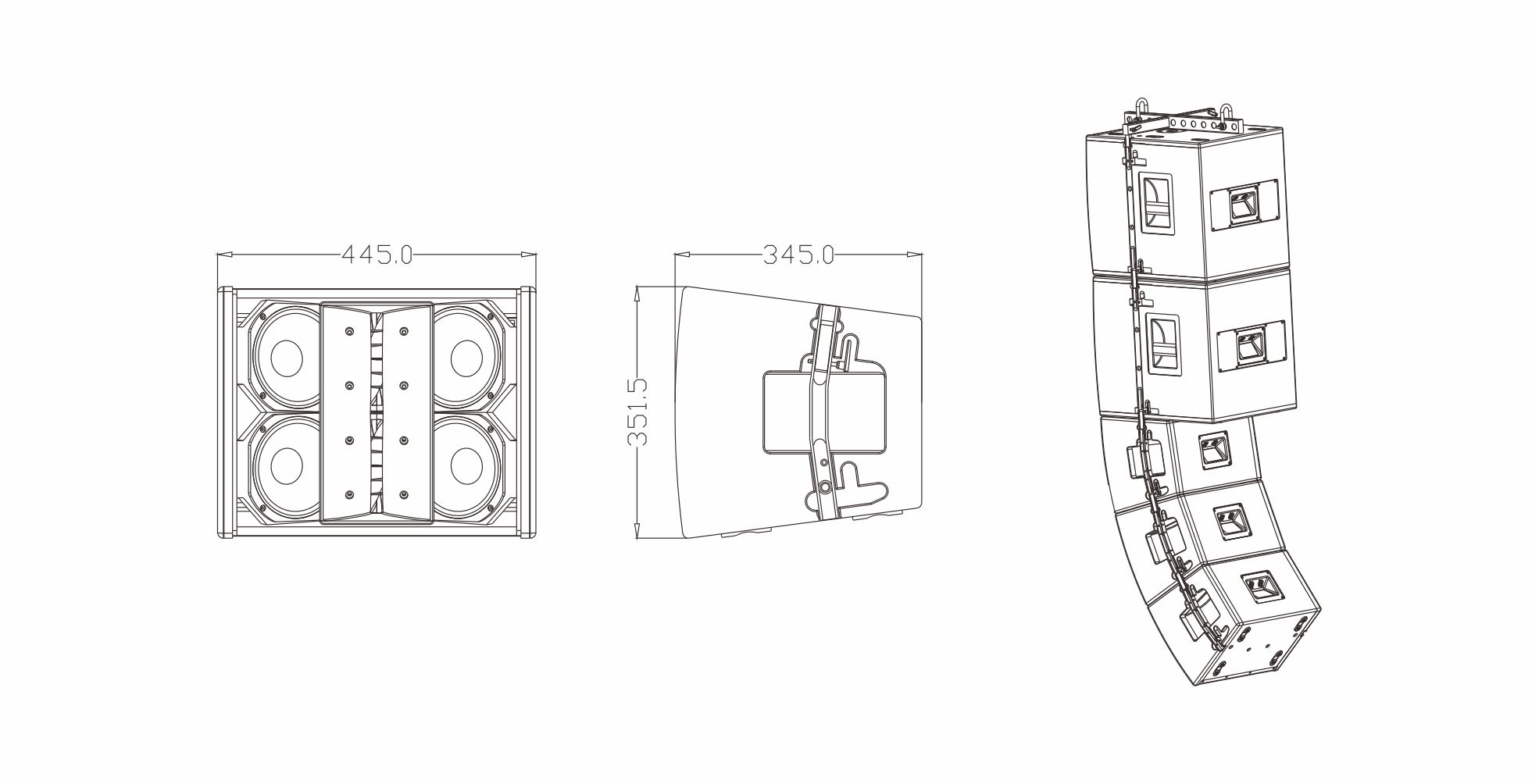

CONFIGURATION
