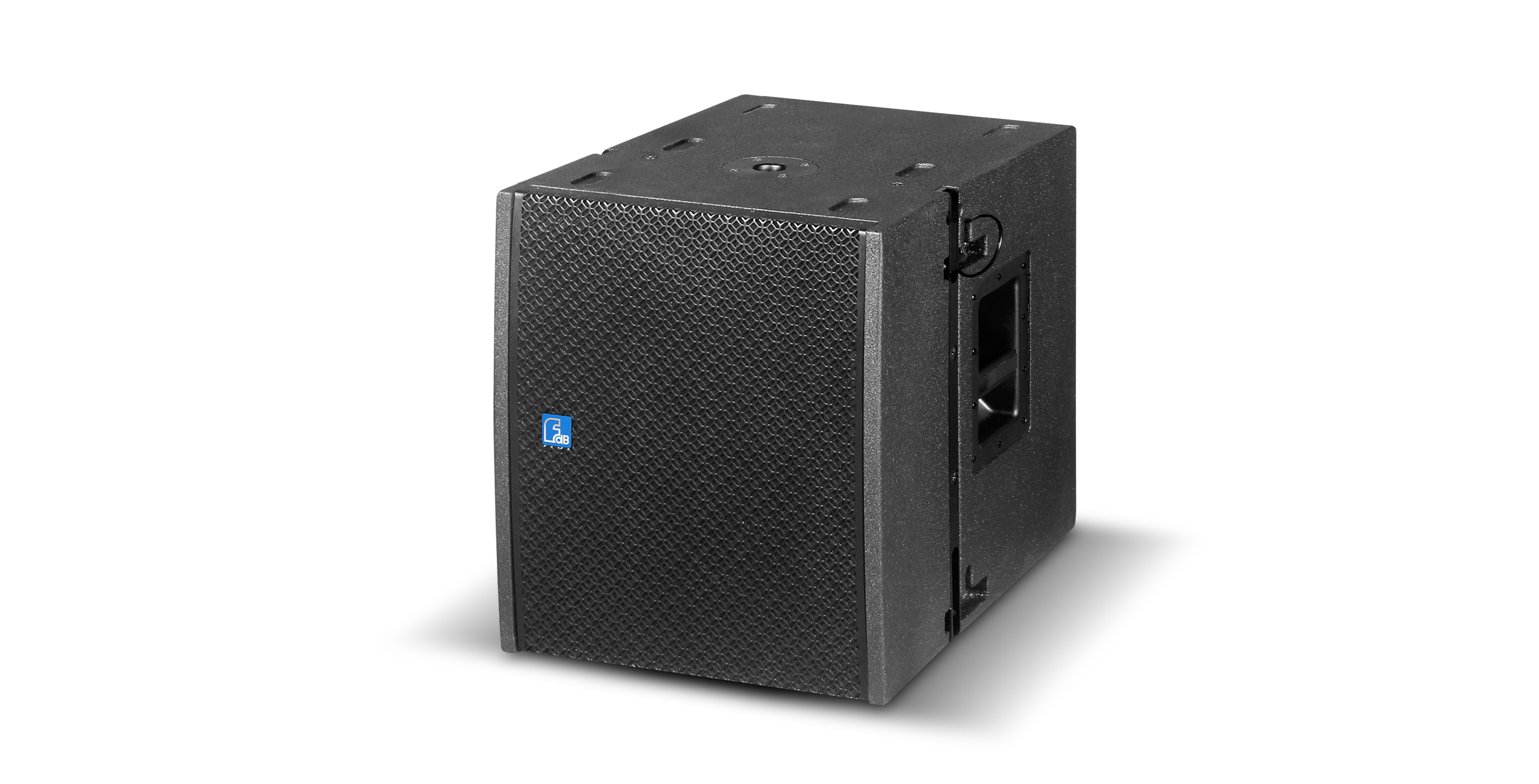

DLA115W/DLA115WAS
1x15" Sub-woofer /1x15"Active Sub-woofer
DESCRIPTION

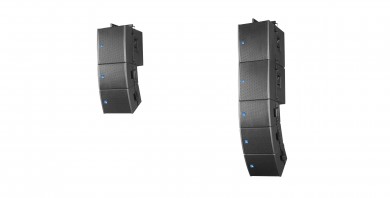

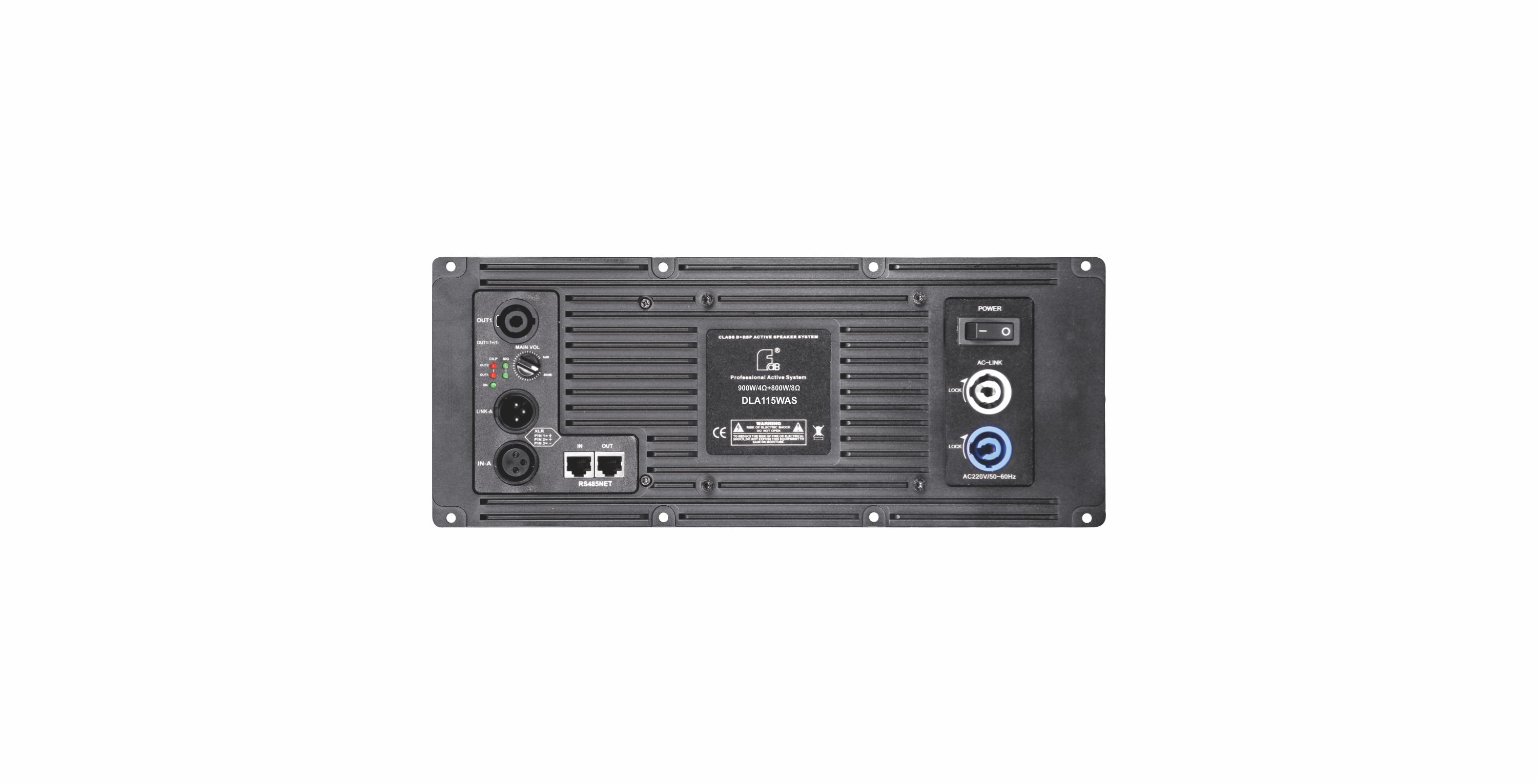

DLA115W is a single 15" subwoofer. It features 1x15" 75mm voice coil woofer, bass-reflex design, two-point hanging system matched with DLA406, can be hung, supported and stacked to improve the low frequency performance of the system. The cabinet is made of multilayer composite plywood with wear-resistant polyurea paint. DLA115WAS is equipped with two channels digital amplifier with DSP based on DLA115W to be an active system with DLA406.
FEATURES
●High quality component, bass-reflex design, full and elastic sound

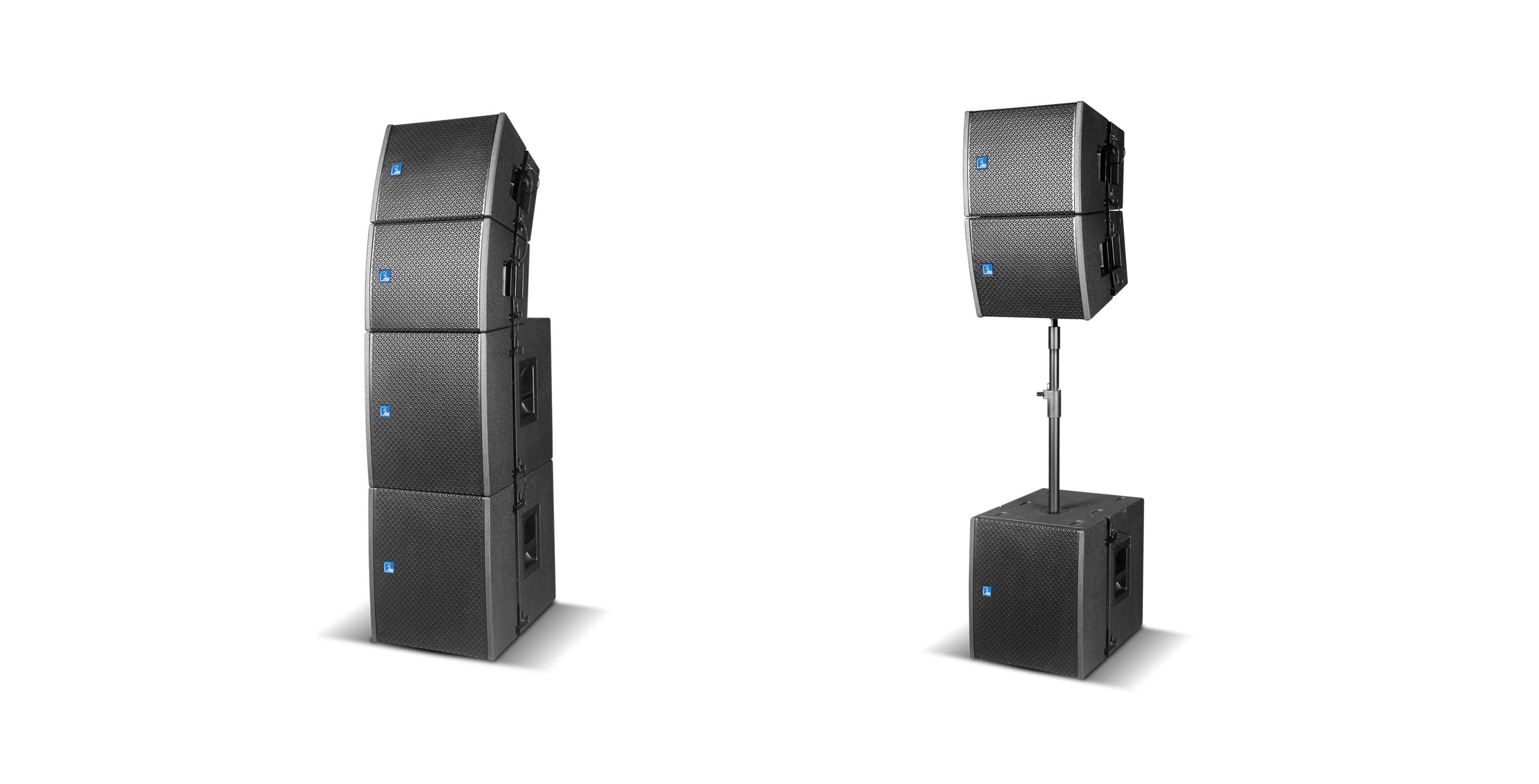

●Quick setup for hanging, stacking and supporting
●Quick setup for hanging, stacking and supporting
●Applications: multifunction halls, lecture halls, auditoriums, churches, and small touring
SPECIFICATIONS
| MODEL | DLA115W | DLA115WAS |
| FREQUENCY RESPONSE(-3dB) | 40Hz-300Hz | 40Hz-300Hz and 50Hz-20kHz |
| DRIVERS | 1×15"(385mm)/4"voice coil LF | 1×15"(385mm)/4"voice coil LF |
| RATED POWER | 400W RMS,1600W peak | 900W/4Ω+800W/4Ω |
| SENSITIVITY | 99dB 1watt/1 metre | — |
| MAXIMUM SPL | 127dB continuous,133 dB peak | 127dB continuous,133 dB peak |
| IMPEDANCE | 8 ohms nominal | — |
| INPUT CONNECTORS | 2×Speakon NL4 | INPUT TYPE: Balanced Differential line |
| PACKAGE SIZE | 660mm×535mm×605mm | 660mm×535mm×605mm |
| NET WEIGHT | 35 kg/pc | 37 kg/pc |
| GROSS WEIGHT | 39 kg/pc | 41 kg/pc |

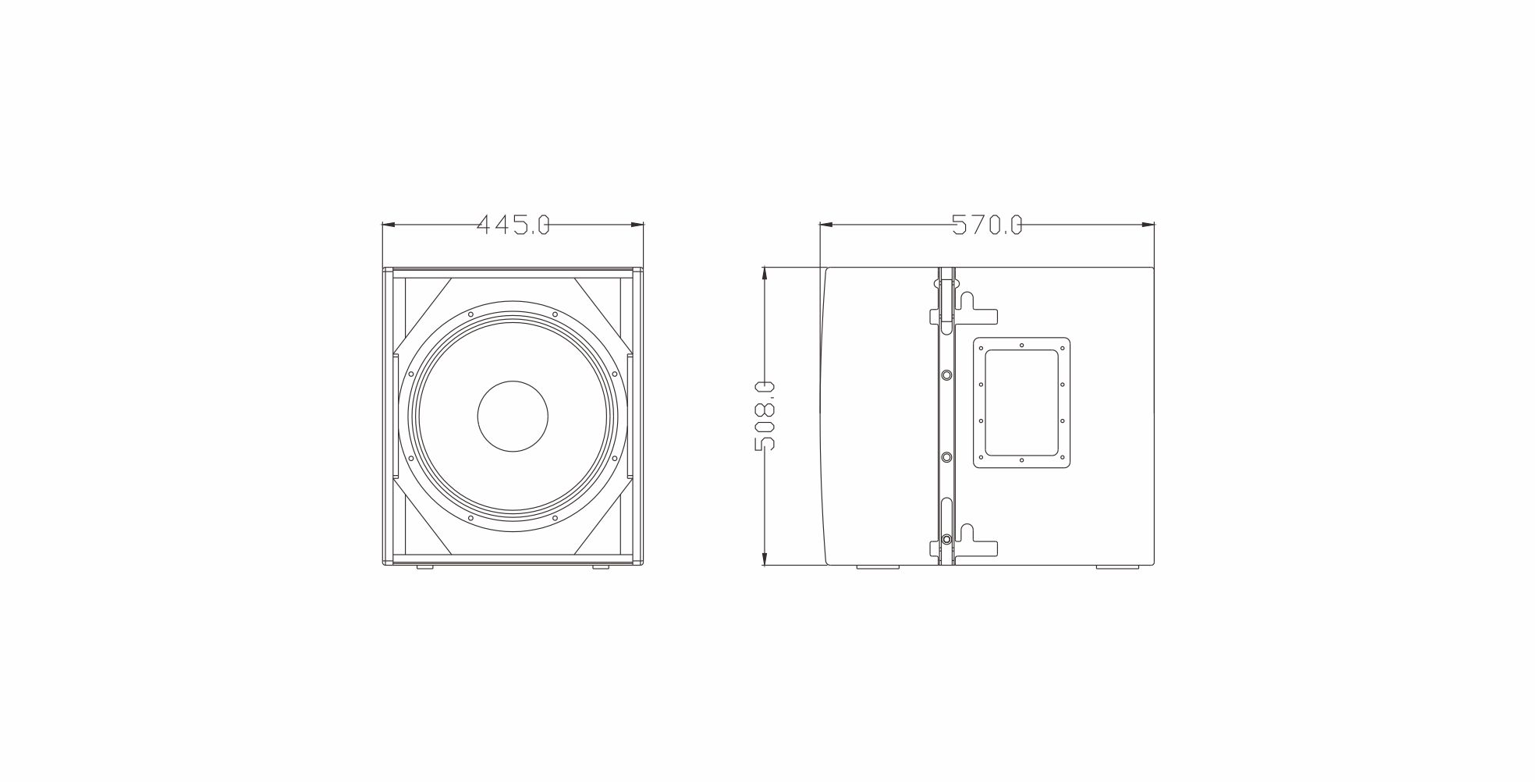

CONFIGURATION
