DESCRIPTION

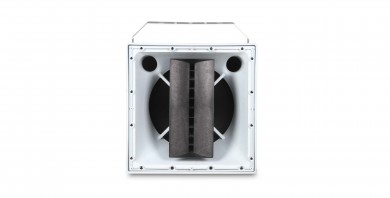

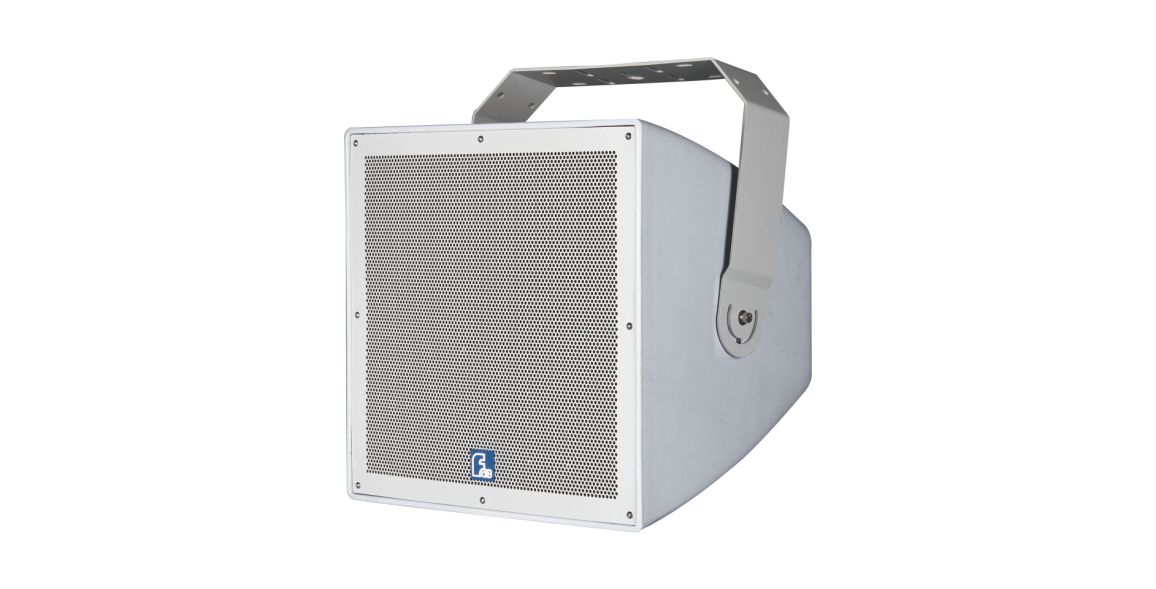

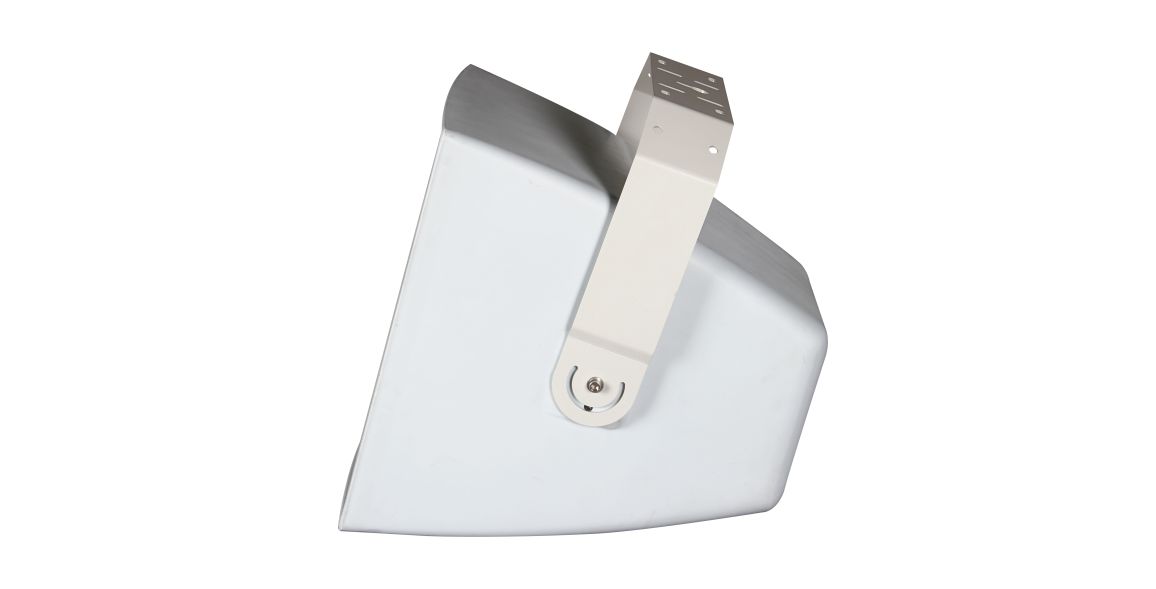

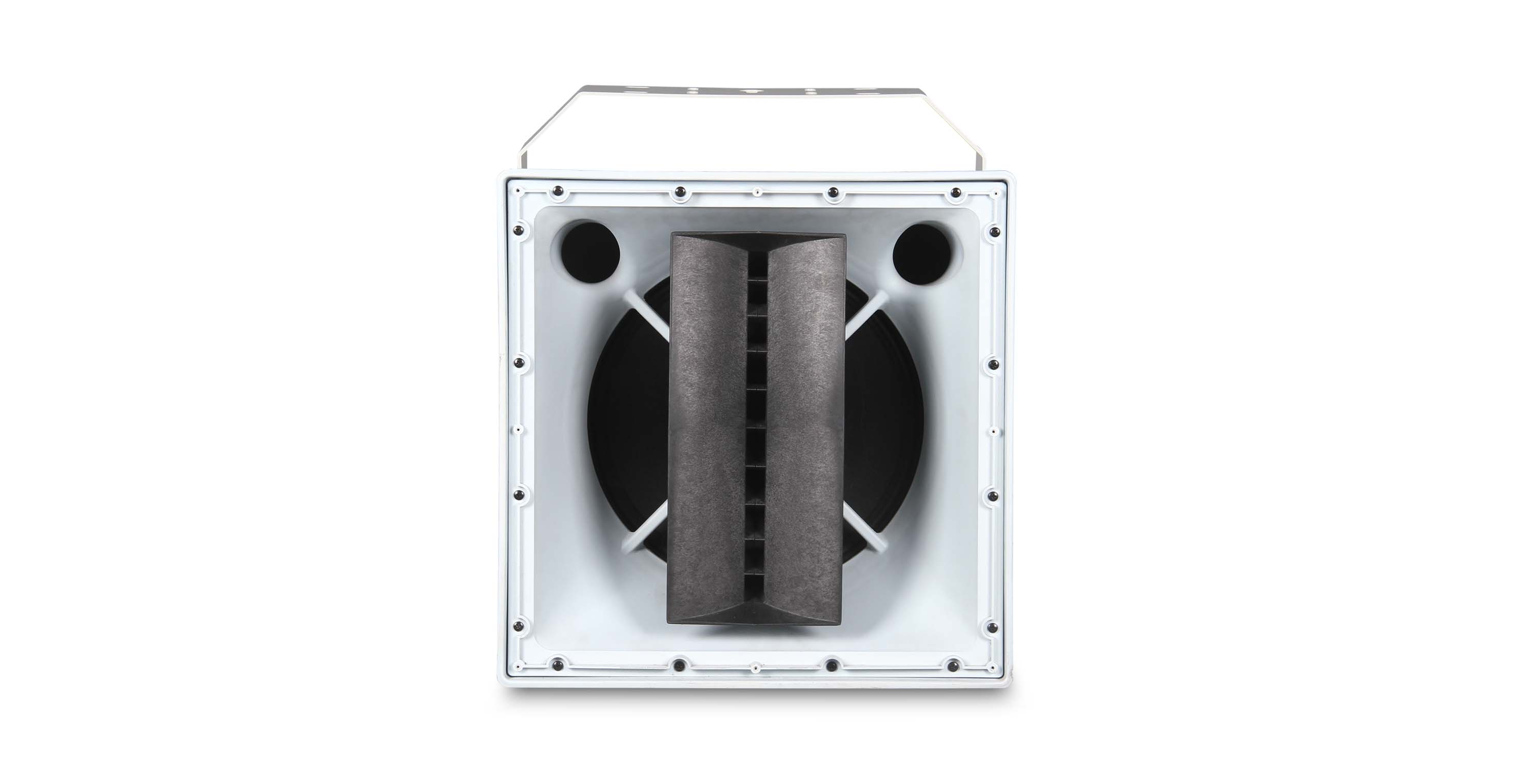

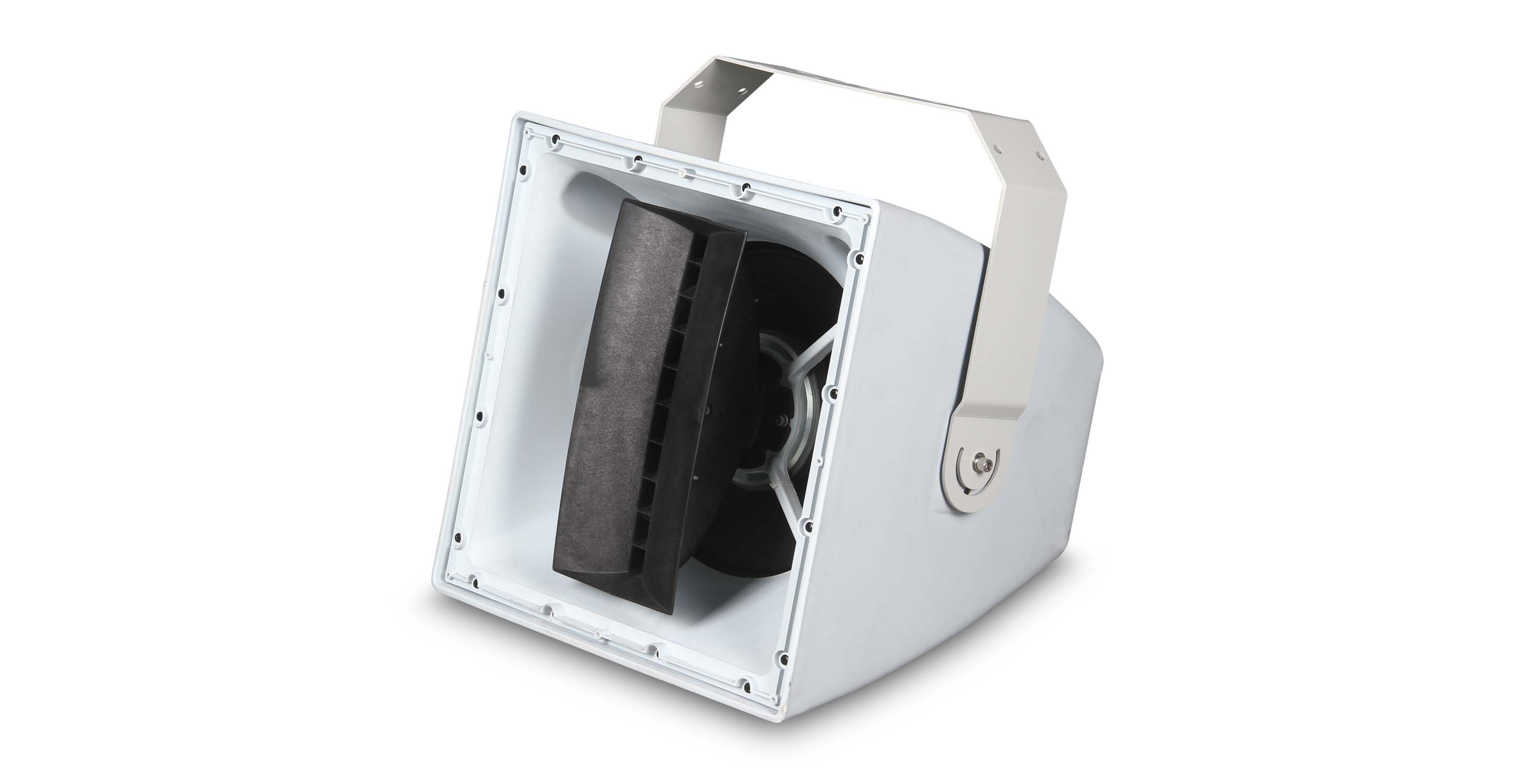

LT215L is a 15",coaxial, two-way, all-weather,line array speaker, with waterproof,dustproof,windproof,anti-uv aging, specially designed dustproof and waterproof cover for input and output, has a pressing device, five-layer different functional grille. The cabinet meets the IP56 standard. The exposed metal parts are made of stainless steel or aluminum, and the mounting bracket is sprayed with low-carbon steel, which can meet all-weather use (the version suitable for the marine environment can be customized, and the mounting bracket is upgraded to 316 stainless steel). Unit configuration: 1x15" ferrite mid-bass and 1x 1.4" exit throat 75mm HF driver with line array horn loaded, the cabinet is made of polymer compound injection molding. LT215LT is equipped with transformer and band switch based on LT215L to achieve a variety of different output powers including constant resistance.
FEATURES
●The cabinet is made of polymer compound injection molding
●Mid-high driver equipped with line array horn
●Applications: parks, plazas, stadiums, sound reinforcement of scenic areas, transportation hubs, seasides(customized)
SPECIFICATIONS
| MODEL | LT215L | LT215LT |
| FREQUENCY RESPONSE(-3dB) | 50Hz-18kHz | 50Hz-18kHz |
| FREQUENCY RESPONSE(-10dB) | 45Hz-20kHz | 45Hz-20kHz |
| DRIVERS | 1×15"(385mm)/3"voice coil LF | 1×15"(385mm)/3"voice coil LF |
| 1×1.4"(36mm)/3"voice coil HF | 1×1.4"(36mm)/3"voice coil HF | |
| INPUT VOLTAGE | 100V | |
| RATED POWER | 400W RMS,1600W peak | 75W/150W/300W/OFF/8Ω 400W |
| SENSITIVITY | 103dB 1watt/1 metre | 103dB 1watt/1 metre |
| MAXIMUM SPL | 129dB continuous,135dB peak | 129dB continuous,135dB peak |
| IMPEDANCE | 8 ohms nominal | 8 ohms nominal |
| DISPERSION(-6dB) | 60°×25° | 60°×25° |
| CROSSOVER FREQUENCIES | 1.5kHz passive | 1.5kHz passive |
| INPUT CONNECTORS | covered barrier strip terminals | covered barrier strip terminals |
| PACKAGE SIZE | 610mm×585mm×570mm | 610mm×585mm×570mm |
| NET WEIGHT | 29 kg/pc | 31.5 kg/pc |
| GROSS WEIGHT | 32 kg/pc | 34.5 kg/pc |

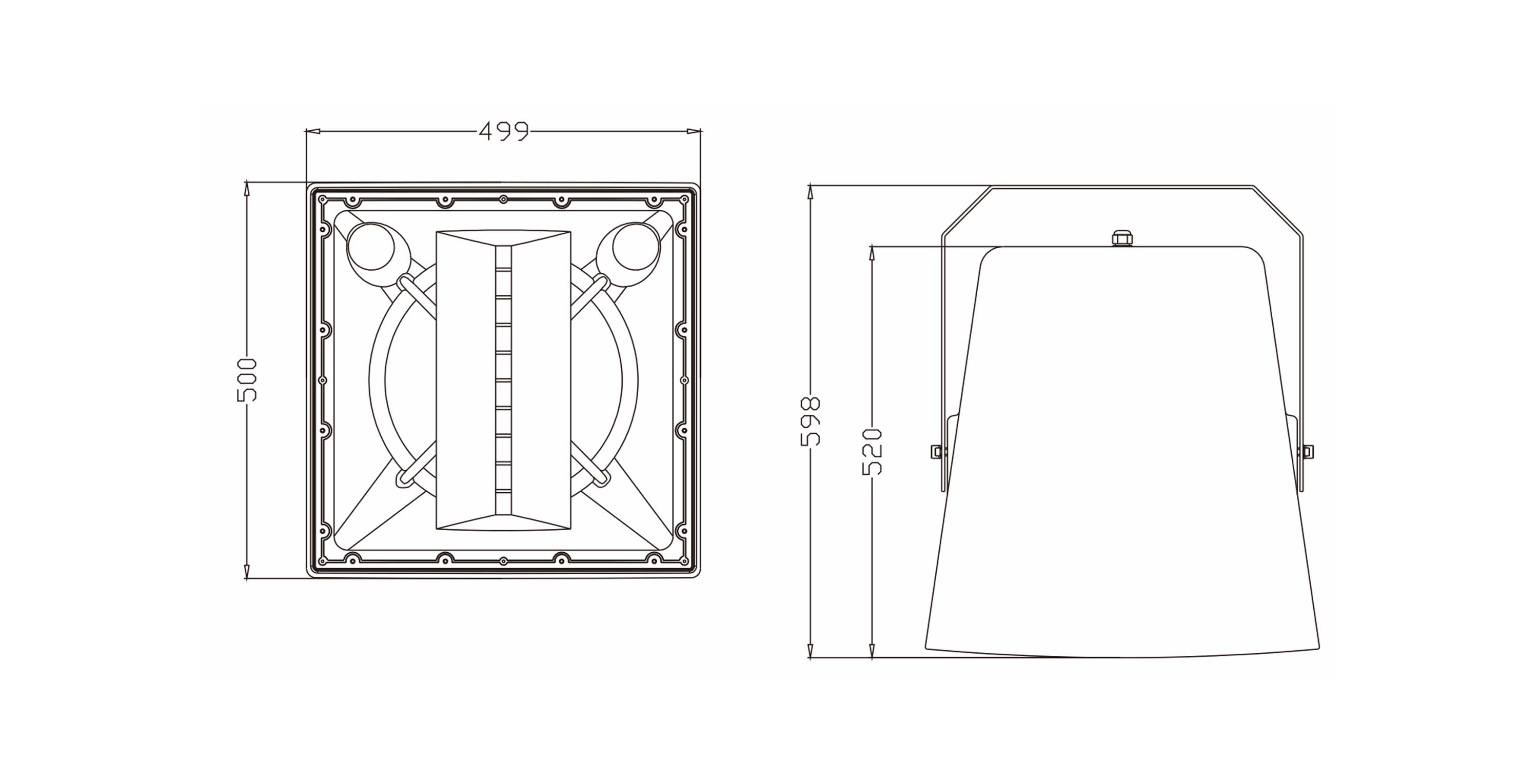

CONFIGURATION
