MR15/MR15A/MR15N/MR15NA

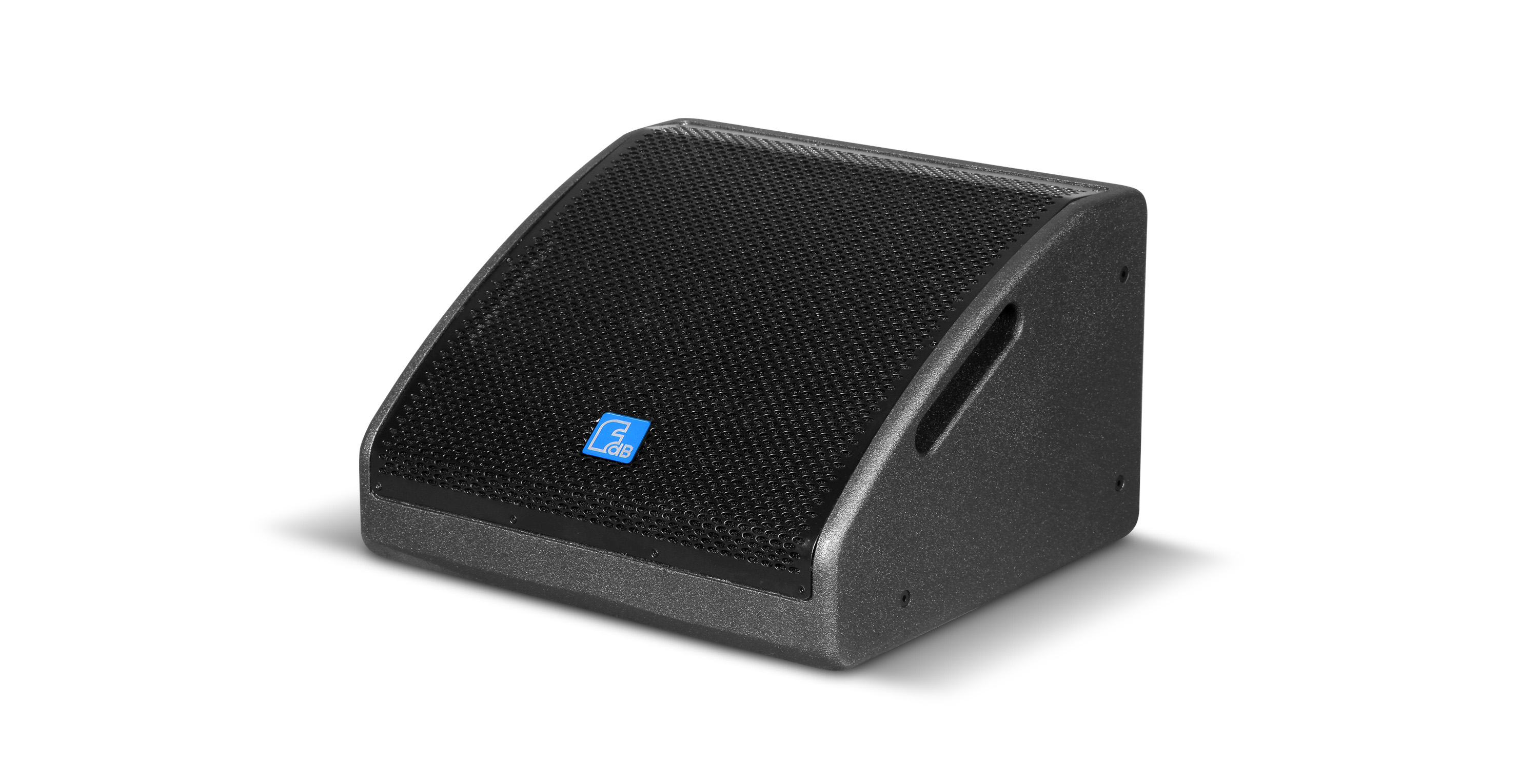

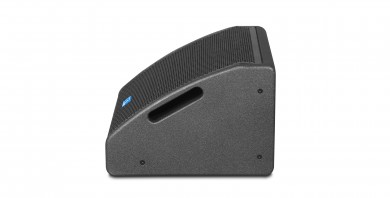

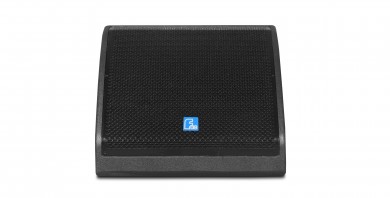

15" 2-way loudspeaker system
DESCRIPTION

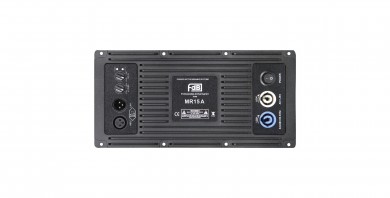

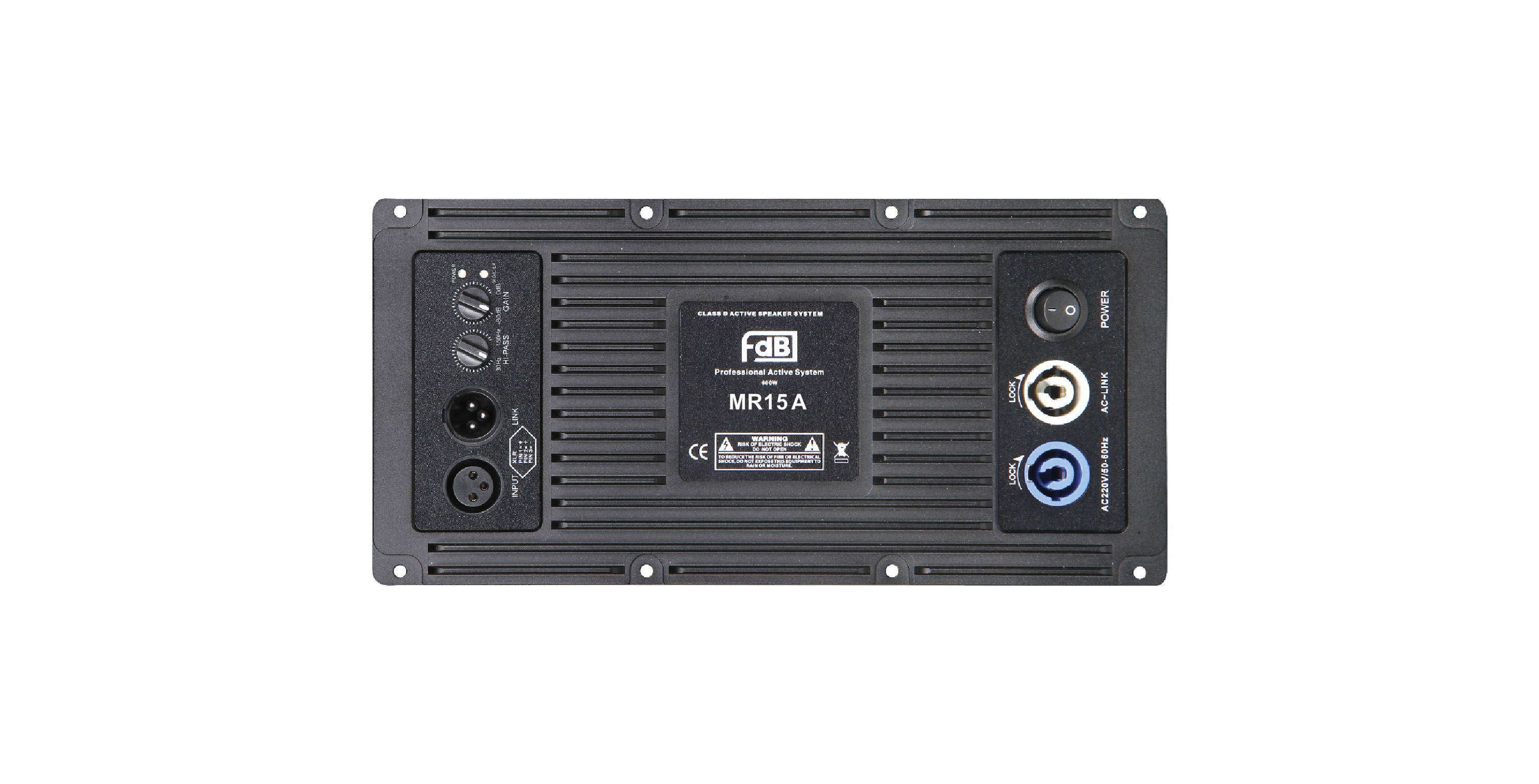

MR115 is compact, small height size, coaxial ,15" two-way full range monitor series speaker with different configurations, has balanced and real sound quality. Configuration:1x15" high efficency mid-bass unit and 1x1" exit throat 44mm voice coil HF driver with special designed horn. The cabinet is made of multilayer composite plywood with wear-resistant polyurea paint. The model with N is a neodymium magnetic unit, and the model with A is active.
FEATURES
●High quality components, high strength plywood housing
●Small height, take small space
●Can be placed on stage , can be hung
●Applications: Stage monitor
●Small height, take small space
●Can be placed on stage , can be hung
●Applications: Stage monitor
SPECIFICATIONS
| MODEL | MR115/ MR115N | MR115A/ MR115NA |
| FREQUENCY RESPONSE(-3dB) | 70Hz-18kHz | 70Hz-18KHz |
| FREQUENCY RESPONSE(-10dB) | 65Hz-20kHz | 65Hz-20kHz |
| DRIVERS | 1×15"(385mm)/3"voice coil LF | 1×15"(385mm)/3"voice coil LF |
| 1×1"(25mm)/1.7"voice coil HF | 1×1"(25mm) / 1.7"voice coil HF | |
| RATED POWER | 400W RMS,1600W peak | 600W/8Ω |
| SENSITIVITY | 97dB 1watt/1 metre | -- |
| MAXIMUM SPL | 124dB continuous,130dB peak | 124dB continuous,130dB peak |
| IMPEDANCE | 8 ohms nominal | -- |
| DISPERSION(-6dB) | 70°× 40° | 70° × 40° |
| CROSSOVER FREQUENCIES | 2.2kHz passive | -- |
| INPUT CONNECTORS | 2×Speakon NL4 | INPUT TYPE：Balanced Differential line |
| PACKAGE SIZE | 610mm×460mm×635mm | 610mm×460mm×635mm |
| NET WEIGHT | 26 kg/pc; 22 kg/pc | 28 kg/pc; 24kg/pc |
| GROSS WEIGHT | 31 kg/pc; 27 kg/pc | 33 kg/pc; 29kg/pc |

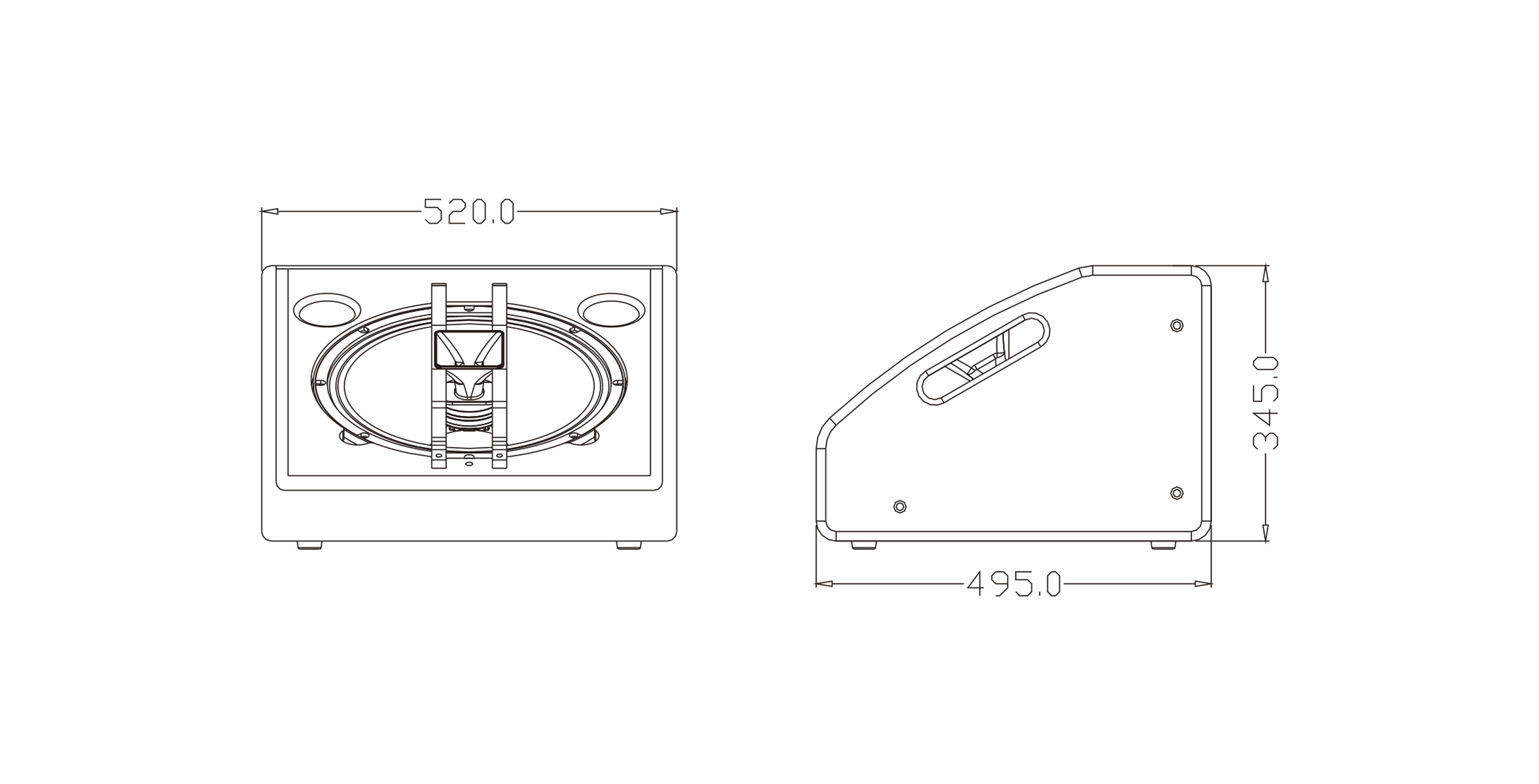

CONFIGURATION
