LT115B<115BT
1x15" Sub-woofer Loudspeaker
DESCRIPTION
LT115B is a 15" subwoofer, The cabinet meets the IP56 standard. The exposed metal parts are made of stainless steel or aluminum, and the mounting bracket is sprayed with low-carbon steel, which can meet all-weather use (the version suitable for the marine environment can be customized, and the mounting bracket is upgraded to 316 stainless steel). Unit configuration: 1x15" ferrite mid-bass, the cabinet is made of polymer compound injection molding. LT115BT is equipped with transformer and band switch based on LT115B to achieve a variety of different output powers including constant resistance. Can be matched with LT206/LT208/LT212/LT215 to improve the low frequency performance.
FEATURES
●Pass IP56 testing, meet all-weather use
●The cabinet is made of polymer compound injection molding
●Bass-reflex design, strong and natural bass
●Applications: Can be matched with LT206 /LT208/LT212/LT215
●The cabinet is made of polymer compound injection molding
●Bass-reflex design, strong and natural bass
●Applications: Can be matched with LT206 /LT208/LT212/LT215
SPECIFICATIONS
| MODEL | LT115B | LT115BT |
| FREQUENCY RESPONSE(-3dB) | 45Hz-300Hz | 45Hz-300Hz |
| DRIVERS | 1×15"(385mm)/3"voice coil LF | 1×15"(385mm)/3"voice coil LF |
| INPUT VOLTAGE | -- | 100V |
| RATED POWER | 400W RMS,1600W peak | 75W/150W/300W/OFF/8Ω 400W |
| SENSITIVITY | 98dB 1watt/1 metre | 98dB 1watt/1 metre |
| MAXIMUM SPL | 124dB continuous,130dB peak | 124dB continuous,130dB peak |
| IMPEDANCE | 8 ohms nominal | 8 ohms nominal |
| DISPERSION(-6dB) | -- | -- |
| CROSSOVER FREQUENCIES | -- | -- |
| INPUT CONNECTORS | covered barrier strip terminals | covered barrier strip terminals |
| PACKAGE SIZE | 610mm×585mm×570mm | 610mm×585mm×570mm |
| NET WEIGHT | 22 kg/pc | 24.5 kg/pc |
| GROSS WEIGHT | 25 kg/pc | 27.5 kg/pc |

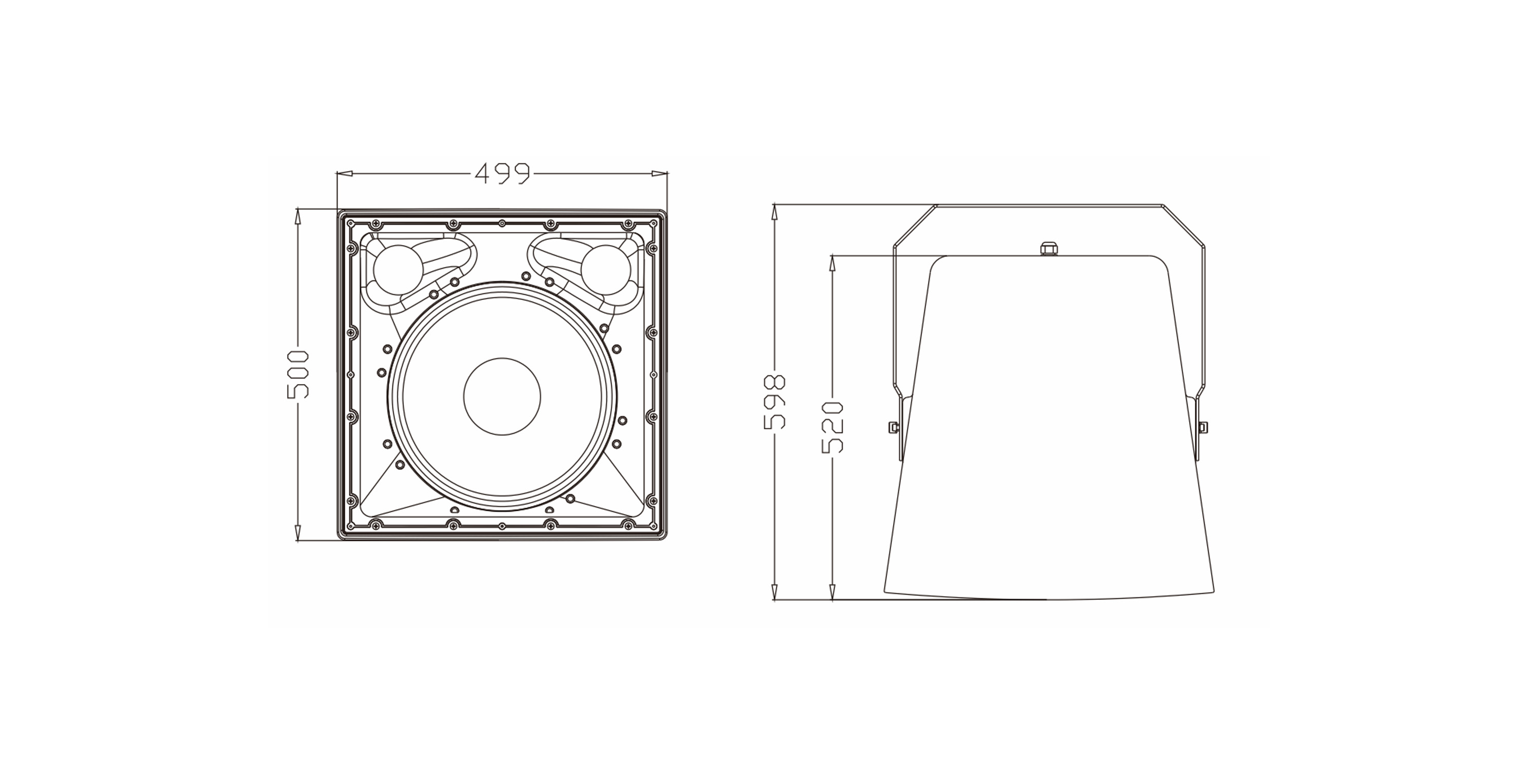

CONFIGURATION
DOWNLOAD
