U118SAS
1x18" Active Sub-woofer System
DESCRIPTION

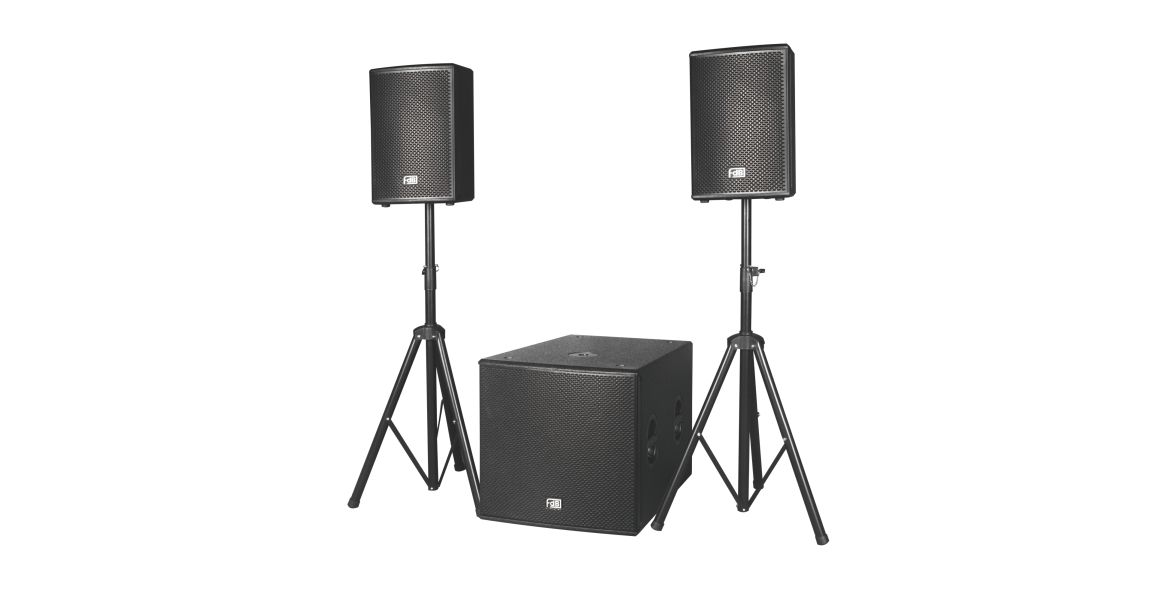

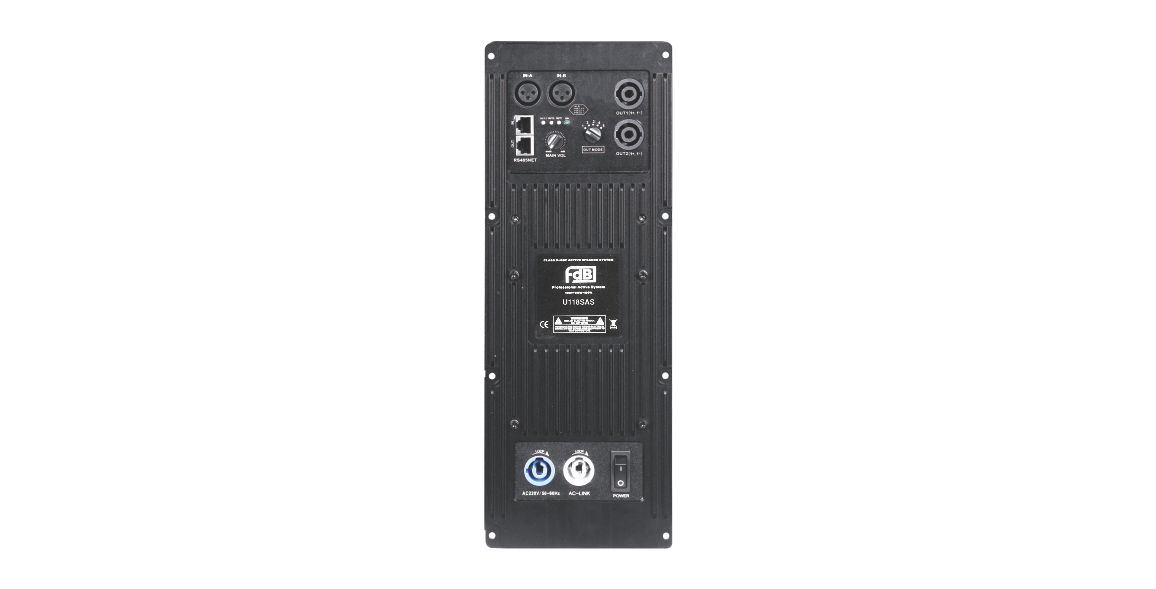

The U118SAS is a single 18" low frequency enclosure designed for sub-bass reinforcement to U compact series in a wide variety of fixed installation, made of high quality plywood. U118SAS is equipped with SA3.448 digital amplifier module to be an active system with left & right side full range output and sub output based on U118S.
FEATURES
● High quality plywood with special environmental protection paint
● Bass reflex design
● High temperature 4"(100mm) voice coil
● Bass reflex design
● High temperature 4"(100mm) voice coil
● Top hat fitting for pole mounting to U110V /U112V
SPECIFICATIONS
| MODEL | U118SAS |
| FREQUENCY RESPONSE(-3dB) | 35Hz-300Hz and 50Hz-18kHz |
| DRIVERS | 1×18"(460mm)/4"voice coil LF |
| RATED POWER | 2x400W/8Ω+1200W/4Ω |
| MAXIMUM SPL | 128dB continuous,134dB peak |
| INPUT CONNECTORS | Balanced Differential line |
| PACKAGE SIZE | 880mm×660mm×655mm |
| NET WEIGHT | 42 kg/pc |
| GROSS WEIGHT | 50 kg/pc |
