MR208/MR208A
2x8" 2-way loudspeaker system/2x8" 2-way active loudspeaker system
DESCRIPTION

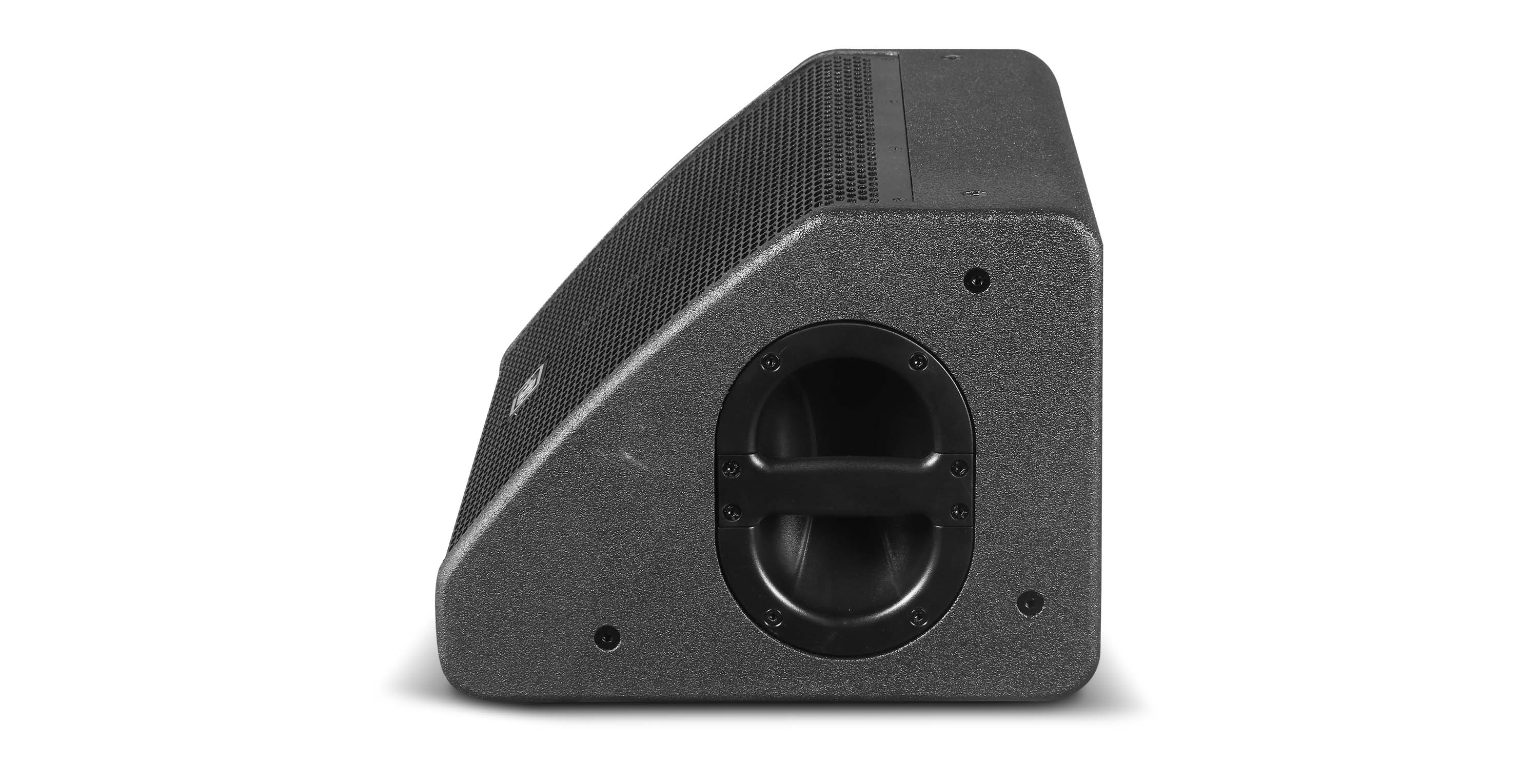

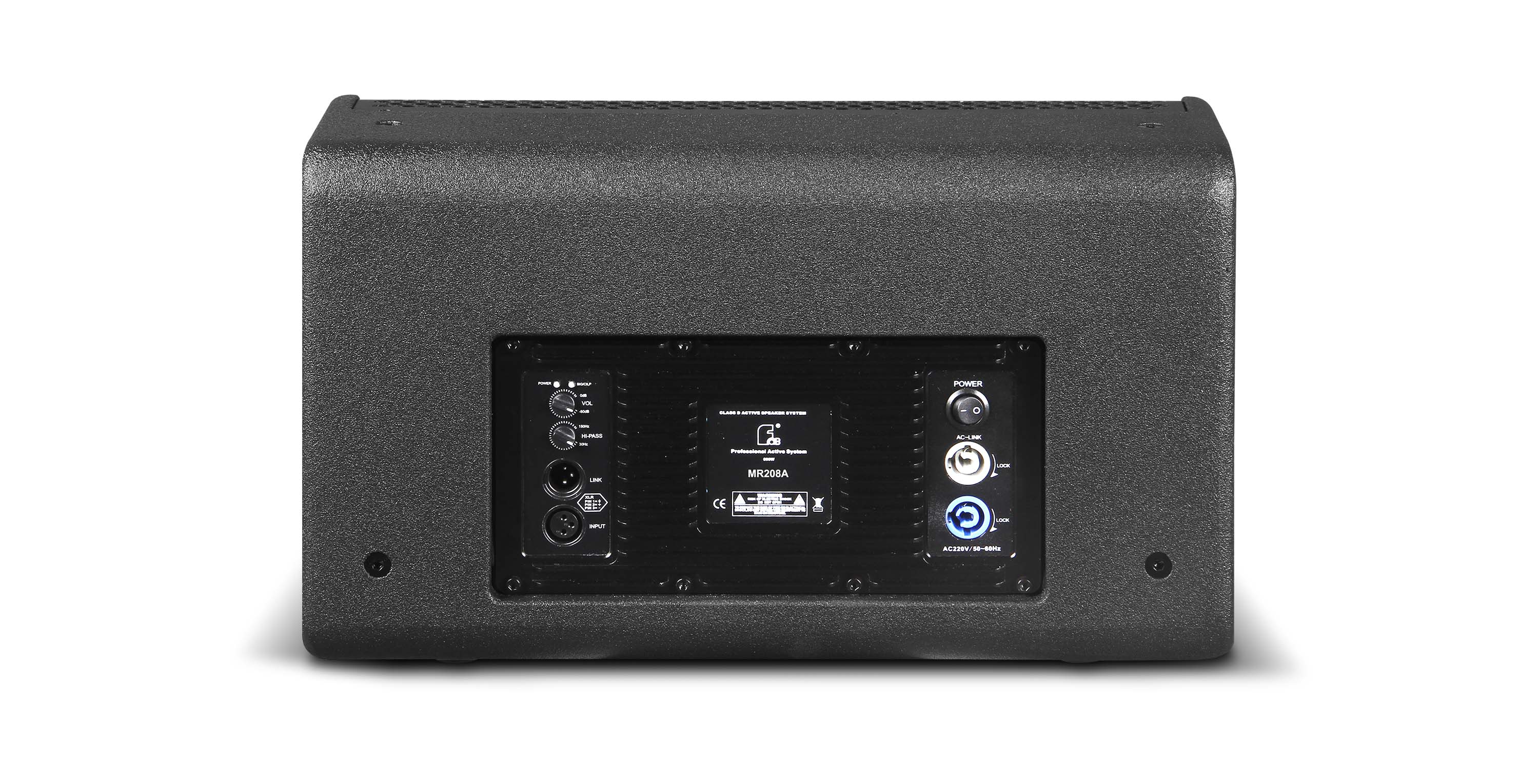

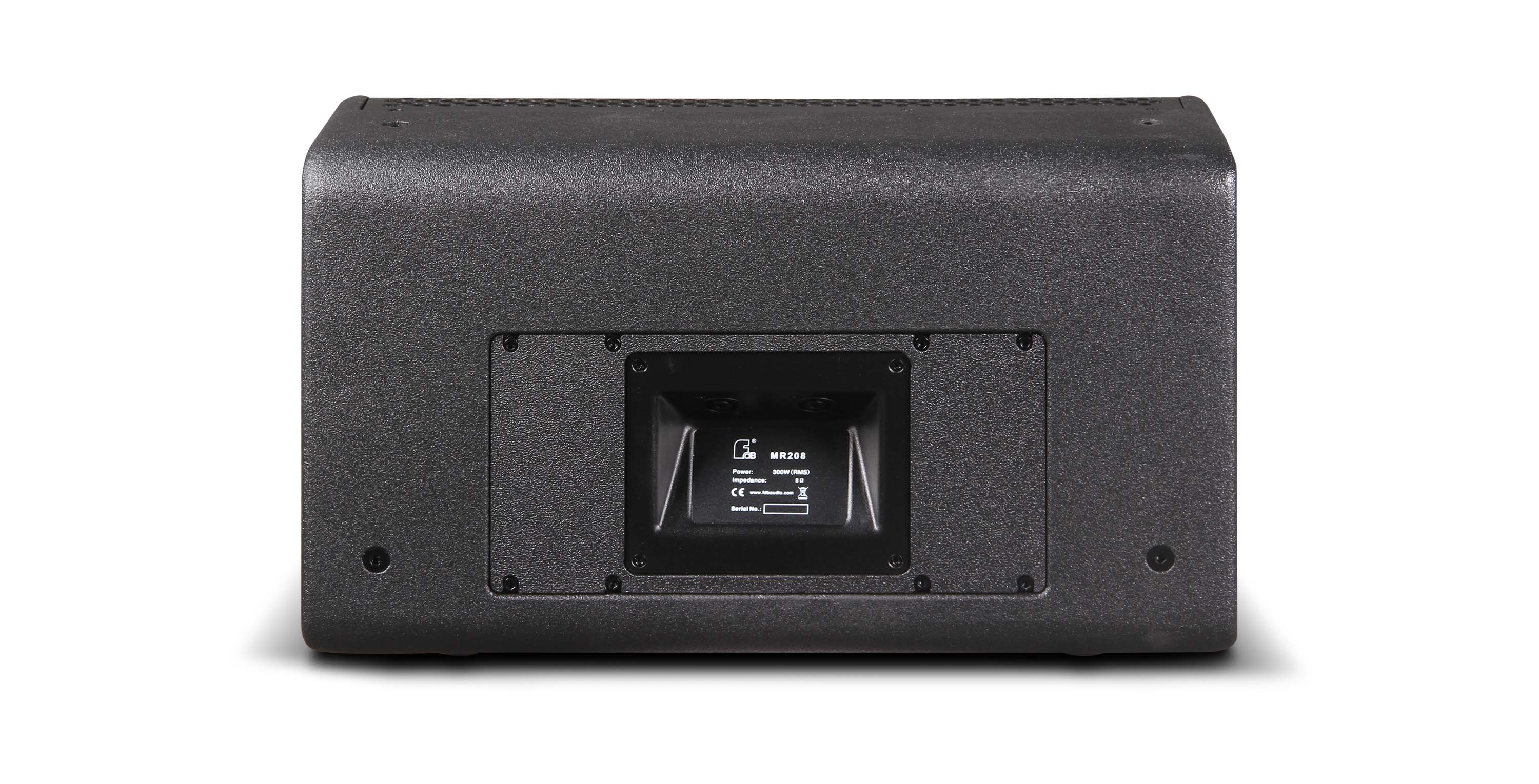

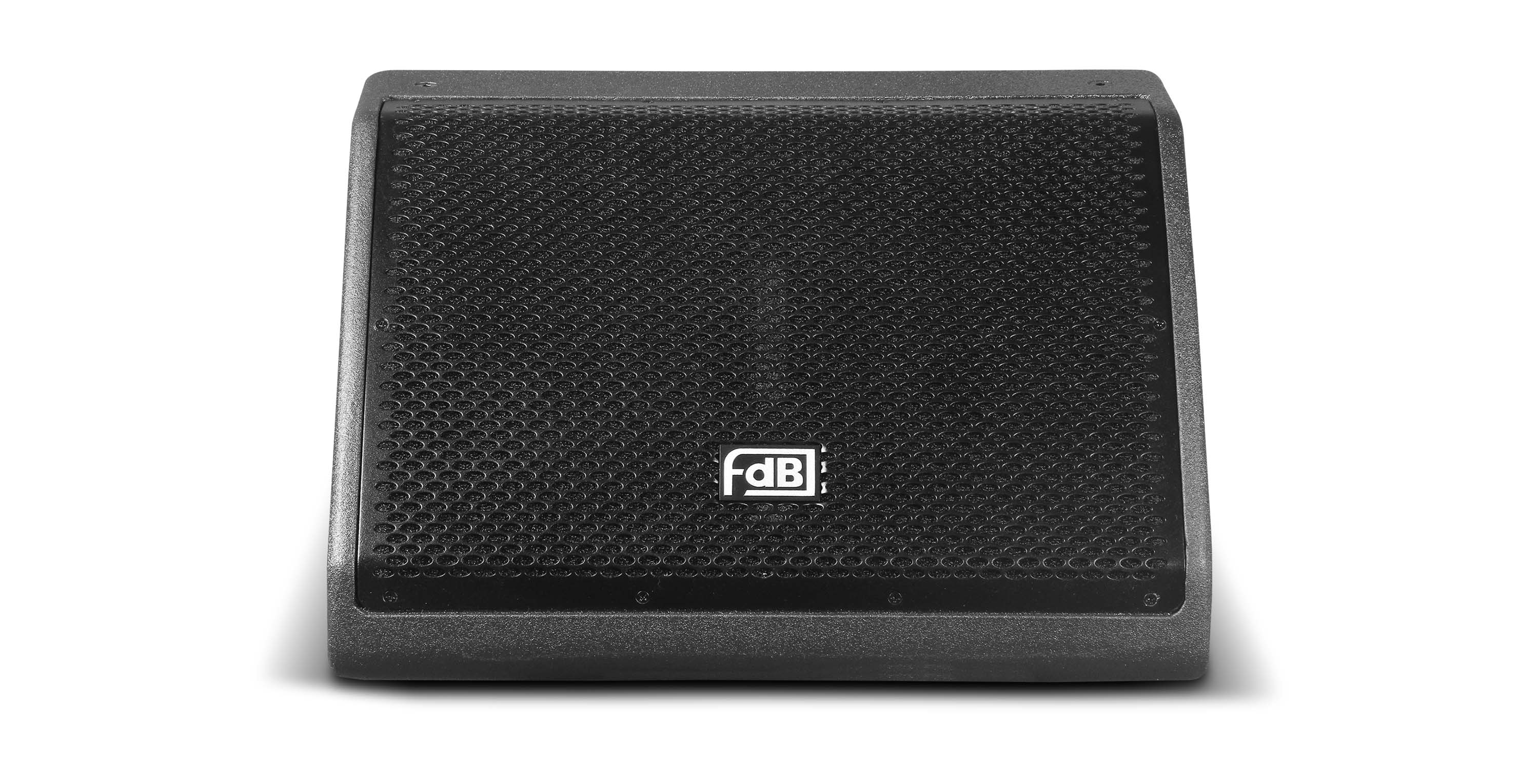

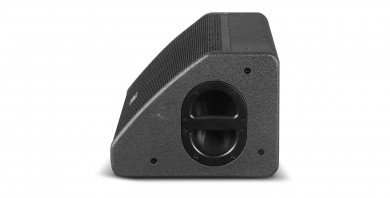

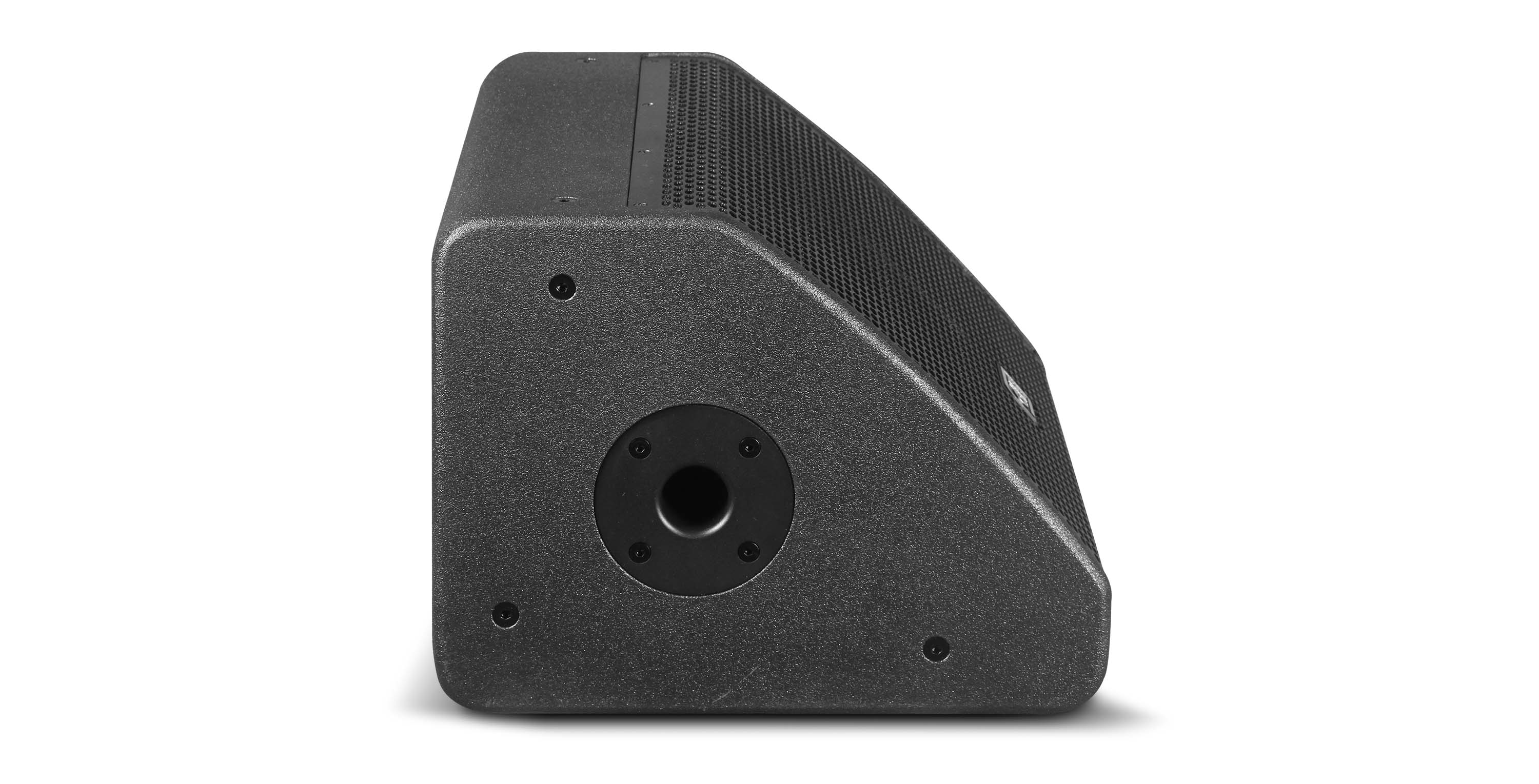

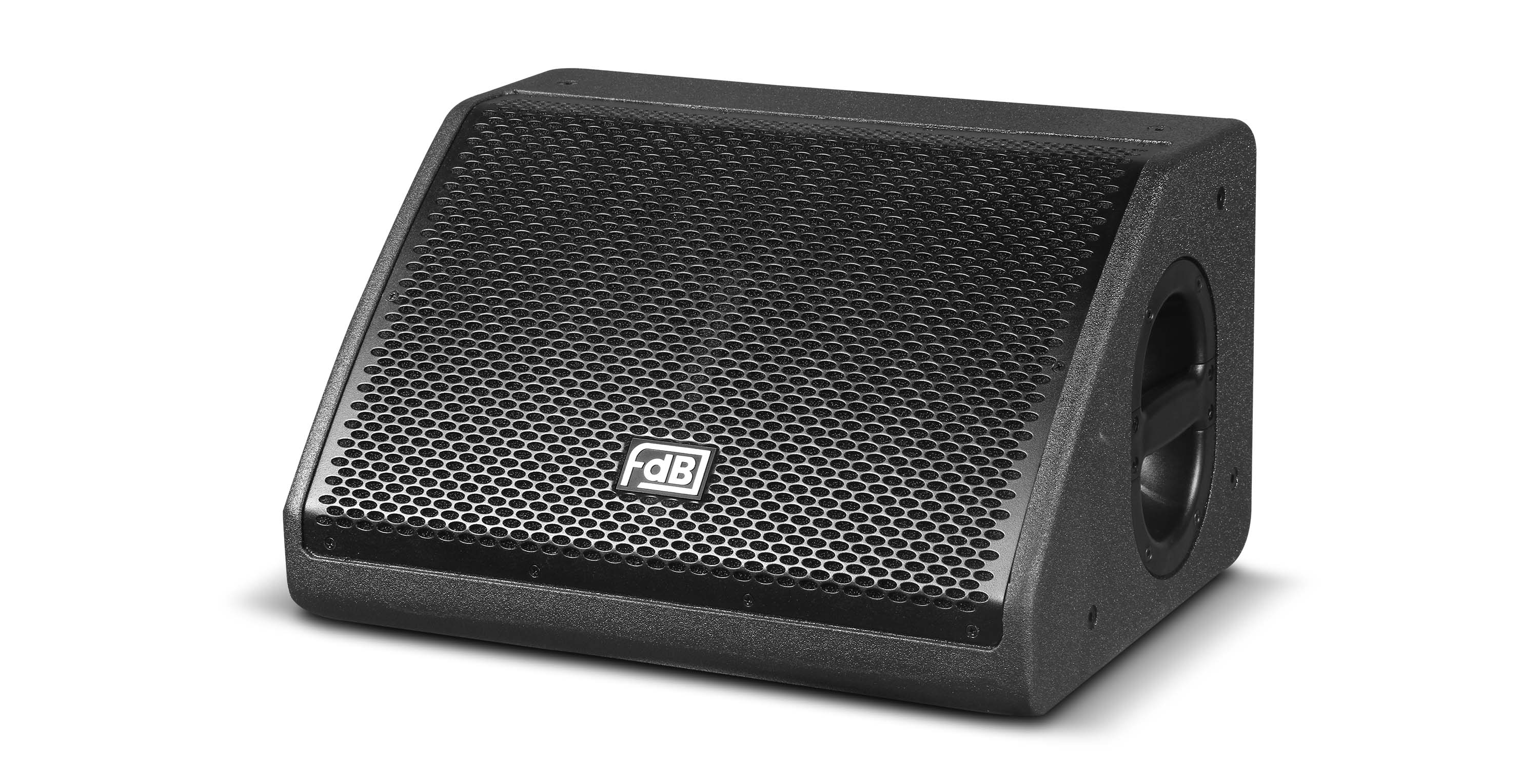

The MR208 is a high precision and high power stage monitor, made of high quality plywood with polyurea paint. It offers a " studio monitoring" type of response,exceptional dynamic capability and very low distortion. Fitted with two 8" woofer and one 1" exit neodymium compression driver. MR208A is equipped with FA1.6 digital amplifier module based on MR208 to be an active monitor.
FEATURES
● High quality plywood with polyurea waterproof paint
● Neodymium HF driver
● Neodymium HF driver
● Top hat fitting for pole mounting
SPECIFICATIONS
| MODEL | MR208 | MR208A |
| FREQUENCY RESPONSE(-3dB) | 70Hz-18kHz | 70Hz-18kHz |
| FREQUENCY RESPONSE(-10dB) | 65Hz-20kHz | 65Hz-20kHz |
| DRIVERS | 2×8"(200mm)/2" voice coil LF | 2×8"(200mm)/2" voice coil LF |
| 1×1"(25mm)/1.7" voice coil HF | 1×1"(25mm)/1.7" voice coil HF | |
| RATED POWER | 300W RMS,1200W peak | 600W/8Ω |
| SENSITIVITY | 96dB 1watt/1meter | -- |
| MAXIMUM SPL | 121dB continuous,127dB peak | 121dB continuous,127dB peak |
| IMPEDANCE | 8 ohms nominal | -- |
| DISPERSION(-6dB) | 90° × 60° | 90° × 60° |
| CROSSOVER FREQUENCIES | 2.7KHz passive | -- |
| INPUT CONNECTORS | 2×Speakon NL4 | INPUT TYPE：Balanced Differential line |
| PACKAGE SIZE | 510mm×350mm×585mm | 510mm×350mm×585mm |
| NET WEIGHT | 18kg/pc | 19kg/pc |
| GROSS WEIGHT | 21kg/pc | 22kg/pc |

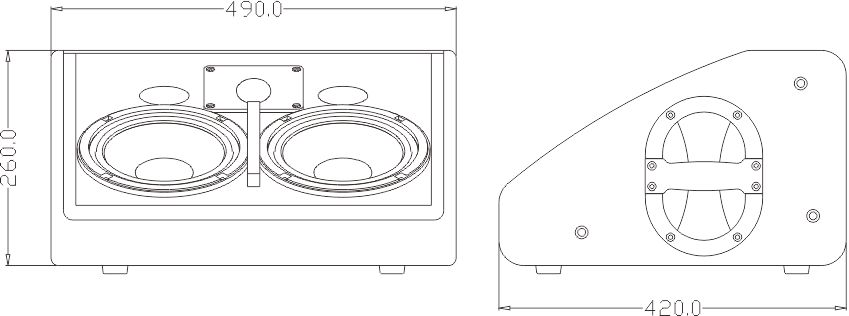

CONFIGURATION
DOWNLOAD
