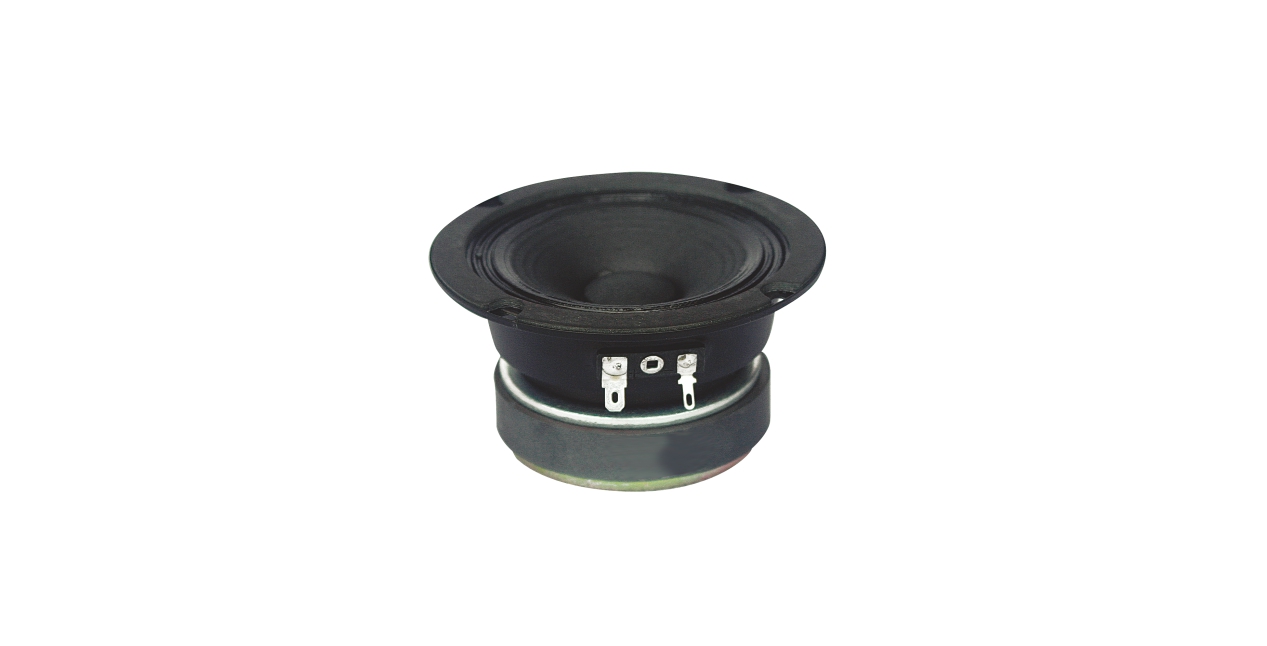

KM410
SPECIFICATIONS
| MODEL | KM410 | |
| GENERAL SPECIFICATIONS | ||
| Nominal Diameter | 100/4 | mm/inch |
| Rated Impedance | 8 | ohm |
| Peak Power Capacity | 100 | Watt |
| Power Capacity | 25 | Watt |
| Sensitivity | 94 | dB |
| Frequency Range | 800-18000 | Hz |
| Minimum Impedance | 6 | ohm |
| Voice Coil Diameter | 25.4/1 | mm/inch |
| Voice Coil Material | Copper | |
| Voice Coil Winding Depth | 6 | mm |
| Number of layers | 2 | |
| Kind of layer | outside | |
| Top Plate Thickness | 4 | mm |
| Cone Material | Half pressed pulp | |
| MOUNTING INFORMATION | ||
| Overall Diameter | 105x105 | mm |
| Bolt Circle Diameter | 115 | mm |
| Baffle Cutout Diameter | 94 | mm |
| Depth | 57 | mm |
| SHIPPING INFORMATION | ||
| Net Weight | 0.92 | kg |
| Shipping Weight | 0.96 | kg |
| Shipping Box | 118x118x60 | mm |
