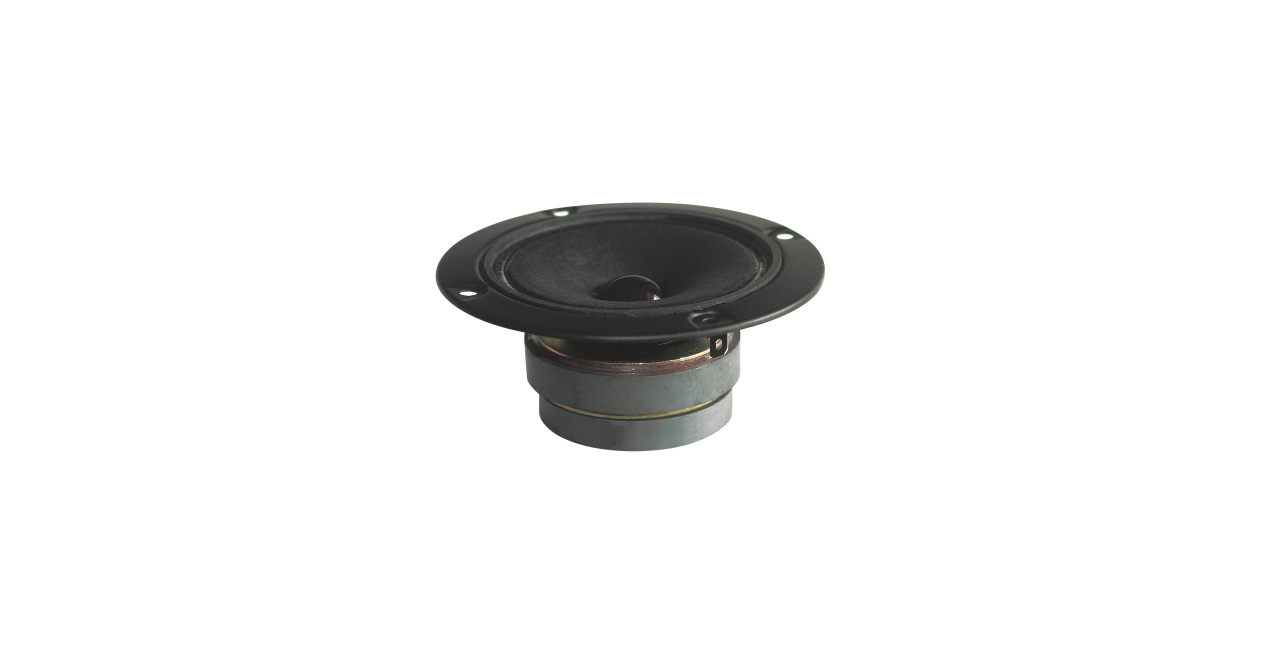

KT301
SPECIFICATIONS
| MODEL | KT301 | |
| GENERAL SPECIFICATIONS | ||
| Nominal Diameter | Mar-75 | mm/inch |
| Rated Impedance | 8 | ohm |
| Peak Power Capacity | 60 | Watt |
| Power Capacity | 15 | Watt |
| Sensitivity | 95 | dB |
| Frequency Range | 1500-18000 | Hz |
| Minimum Impedance | 6 | ohm |
| Voice Coil Diameter | 14/0.5 | mm/inch |
| Voice Coil Material | Copper | |
| Voice Coil Winding Depth | 3 | mm |
| Number of layers | 2 | |
| Kind of layer | outside | |
| Top Plate Thickness | 2.5 | mm |
| Cone Material | Half pressed pulp | |
| MOUNTING INFORMATION | ||
| Overall Diameter | 97.8 | mm |
| Bolt Circle Diameter | 87.8 | mm |
| Baffle Cutout Diameter | 75 | mm |
| Depth | 38.5 | mm |
| SHIPPING INFORMATION | ||
| Net Weight | 0.89 | kg |
| Shipping Weight | 0.93 | kg |
| Shipping Box | 118x118x60 | mm |
