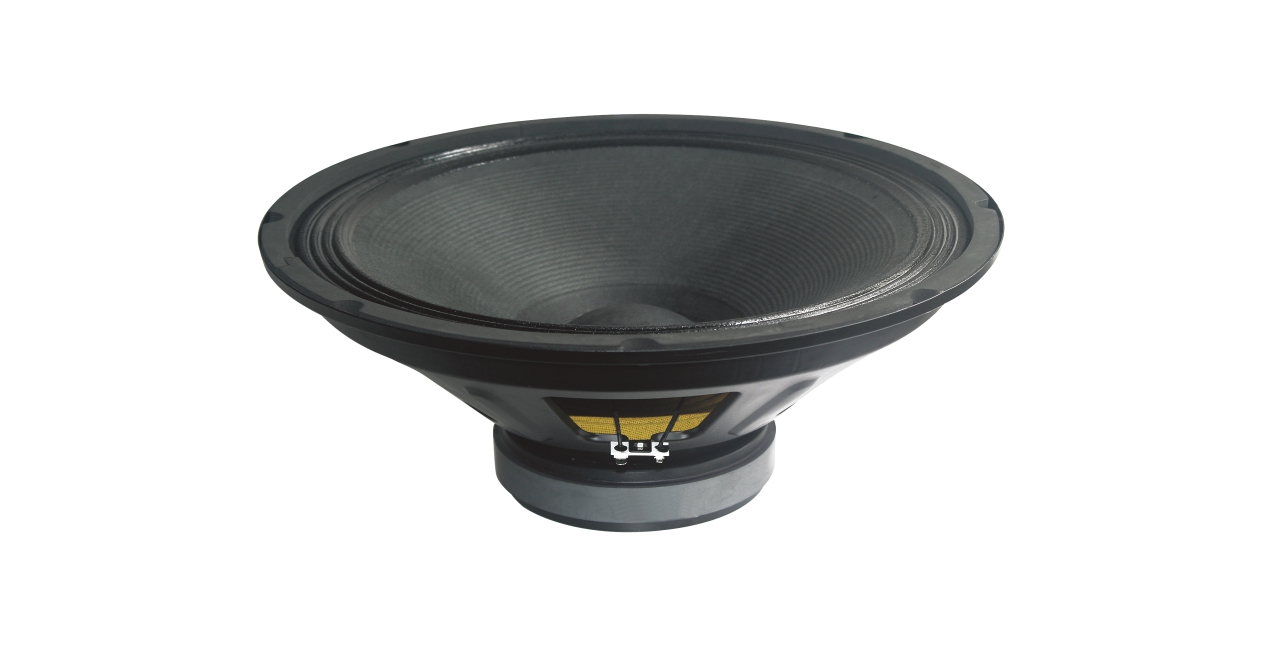

TB1525

SPECIFICATIONS

MODEL TB1525
GENERAL SPECIFICATIONS
Nominal Diameter 380/15 mm/inch
Rated Impedance 8 ohm
Peak Power Capacity  1000 Watt
Power Capacity  250 Watt
Sensitivity 96 dB
Frequency Range 35-2000 Hz
Minimum Impedance 6.3 ohm
Voice Coil Diameter 65/2.5 mm/inch
Voice Coil Material Copper
Voice Coil Winding Depth 13 mm
Number of layers 2
Kind of layer outside
Top Plate Thickness 8 mm
Cone Material Half pressed pulp
THIELE - SMALL PARAMETERS4
Resonance frequency                              Fs 35 Hz
DC resistance                                           Re 5.6 ohm
Mechanical facto                                      Qms 3.34
Electrical factor                                        Qes 0.45
Total factor                                                Qts 0.4
BL Factor                                                  BL 14.1 T.m
Effective Moving Mass                             Mms 86.1 gr
Equivalent Cas air load                            Vas 297.9 liters
Effettive piston area                                 Sd 0.086 m2
Max. linear excursion (mathematical)     Smax ±3 mm
Voice -C coil inductance @ 1KHz           Le 0.7 mH
MOUNTING INFORMATION
Overall Diameter 385 mm
Bolt Circle Diameter 372 mm
Baffle Cutout Diameter 352 mm
Depth 158 mm
SHIPPING INFORMATION
Net Weight 5 kg
Shipping Weight 5.5 kg
Shipping Box 405x405x190 mm
