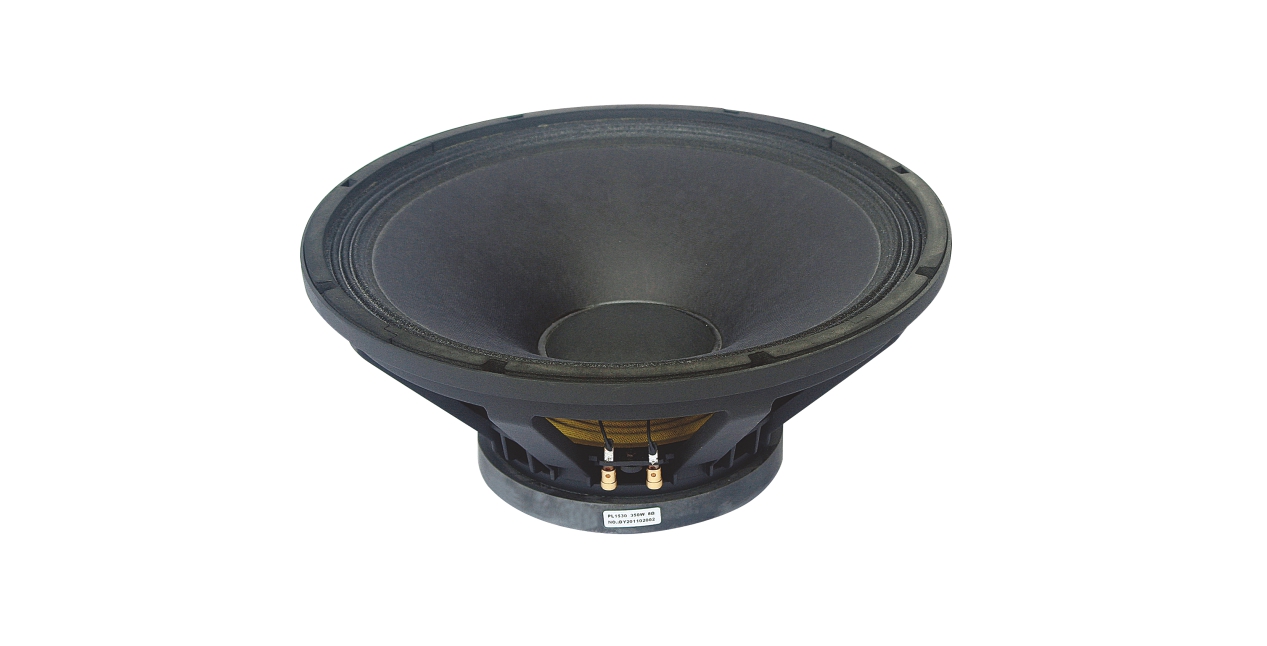

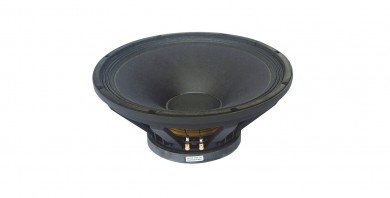

PL1530
SPECIFICATIONS
| MODEL | PL1530 | |
| GENERAL SPECIFICATIONS | ||
| Nominal Diameter | 380/15 | mm/inch |
| Rated Impedance | 8 | ohm |
| Peak Power Capacity | 1600 | Watt |
| Power Capacity | 400 | Watt |
| Sensitivity | 98 | dB |
| Frequency Range | 40-2500 | Hz |
| Minimum Impedance | 6.2 | ohm |
| Voice Coil Diameter | Mar-75 | mm/inch |
| Voice Coil Material | Copper | |
| Voice Coil Winding Depth | 19 | mm |
| Number of layers | 2 | |
| Kind of layer | outside | |
| Top Plate Thickness | 10 | mm |
| Cone Material | Half pressed pulp | |
| THIELE - SMALL PARAMETERS4 | ||
| Resonance frequency Fs | 40 | Hz |
| DC resistance Re | 5.6 | ohm |
| Mechanical facto Qms | 13.99 | |
| Electrical factor Qes | 0.43 | |
| Total factor Qts | 0.42 | |
| BL Factor BL | 19 | T.m |
| Effective Moving Mass Mms | 101.1 | gr |
| Equivalent Cas air load Vas | 132.5 | liters |
| Effettive piston area Sd | 0.086 | m2 |
| Max. linear excursion (mathematical) Smax | ±5 | mm |
| Voice -C coil inductance @ 1KHz Le | 0.9 | mH |
| MOUNTING INFORMATION | ||
| Overall Diameter | 390 | mm |
| Bolt Circle Diameter | 370 | mm |
| Baffle Cutout Diameter | 356 | mm |
| Depth | 175 | mm |
| SHIPPING INFORMATION | ||
| Net Weight | 8 | kg |
| Shipping Weight | 8.5 | kg |
| Shipping Box | 410x410x200 | mm |
