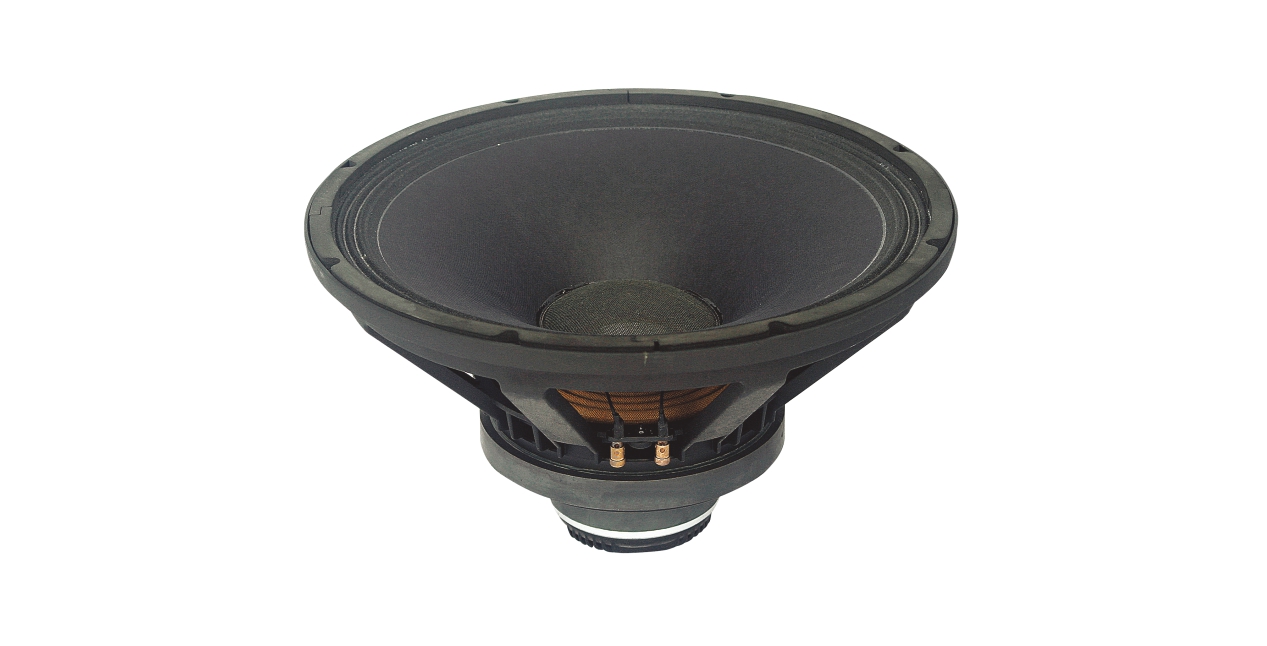

CX1544

SPECIFICATIONS

MODEL CX1544
GENERAL SPECIFICATIONS
Nominal Diameter (Lf)381/15,(hf)44.4/1.7 mm/inch
Rated Impedance 8 ohm
Peak Power Capacity  1400 Watt
Power Capacity  350 Watt
Sensitivity (lf)98,(hf)107 dB
Frequency Range (lf)40-2500,(hf)1500-18000 Hz
Minimum Impedance (lf)6, (hf)7.8 ohm
Voice Coil Diameter (lf)75/3,(hf)44.4/1.7  mm/inch
Voice Coil Material (lf)Copper, (hf)CCAR
Voice Coil Winding Depth (lf)19  mm
Number of layers (lf)2,(hf)1
Kind of layer outside
Top Plate Thickness 10 mm
Cone Material Half pressed pulp
Diaphragm Material Mylar
Suspension Material Mylar
THIELE- SMALL PARAMETERS4
Resonance frequency                         Fs 40 Hz
DC resistance                                       Re 5.6 ohm
Mechanical facto                                  Qms 12.7
Electrical factor                                    Qes 0.4
Total factor                                            Qts 0.39
BL Factor                                              BL 18.4 T.m
Effective Moving Mass                         Mms 92.5 gr
Equivalent Cas air load                        Vas 175.2 liters
Effettive piston area                             Sd 0.086 m2
Max. linear excursion (mathematical)  Smax ±5 mm
Voice-coil inductance @ 1KHz             Le 0.9 mH
MOUNTING INFORMATION
Overall Diameter 390 mm
Bolt Circle Diameter 370 mm
Baffle Cutout Diameter 356 mm
Depth 215 mm
SHIPPING INFORMATION
Net Weight 7 kg
Shipping Weight 7.5 kg
Shipping Box 410x410x240 mm
