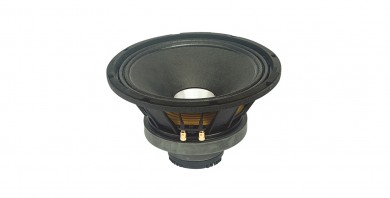

CX1034
SPECIFICATIONS
| MODEL | CX1034 | |
| GENERAL SPECIFICATIONS | ||
| Nominal Diameter | (lf)250/10,(hf)34.4/1.4 | mm/inch |
| Rated Impedance | 8 | ohm |
| Peak Power Capacity | 1000 | Watt |
| Power Capacity | 250 | Watt |
| Sensitivity | (lf)96,(hf)107 | dB |
| Frequency Range | (lf)50-3000,(hf)1500-20000 | Hz |
| Minimum Impedance | (lf)6, (hf)7.8 | ohm |
| Voice Coil Diameter | (lf)65/2.5,(hf)34.4/1.4 | mm/inch |
| Voice Coil Material | (lf)Copper, (hf)CCAR | |
| Voice Coil Winding Depth | (lf)13 | mm |
| Number of layers | (lf)2 | |
| Kind of layer | outside | |
| Top Plate Thickness | 8 | mm |
| Cone Material | Half pressed pulp | |
| Diaphragm Material | Pure Titanium | |
| Suspension Material | Pure Titanium | |
| THIELE- SMALL PARAMETERS4 | ||
| Resonance frequency Fs | 50 | Hz |
| DC resistance Re | 5.6 | ohm |
| Mechanical facto Qms | 12.57 | |
| Electrical factor Qes | 0.34 | |
| Total factor Qts | 0.33 | |
| BL Factor BL | 14.3 | T.m |
| Effective Moving Mass Mms | 33.8 | gr |
| Equivalent Cas air load Vas | 38 | liters |
| Effettive piston area Sd | 0.035 | m2 |
| Max. linear excursion (mathematical) Smax | ±2.5 | mm |
| Voice-coil inductance @ 1KHz Le | 0.9 | mH |
| MOUNTING INFORMATION | ||
| Overall Diameter | 261 | mm |
| Bolt Circle Diameter | 246 | mm |
| Baffle Cutout Diameter | 230 | mm |
| Depth | 175 | mm |
| SHIPPING INFORMATION | ||
| Net Weight | 6.8 | kg |
| Shipping Weight | 7.3 | kg |
| Shipping Box | 270x270x200 | mm |
