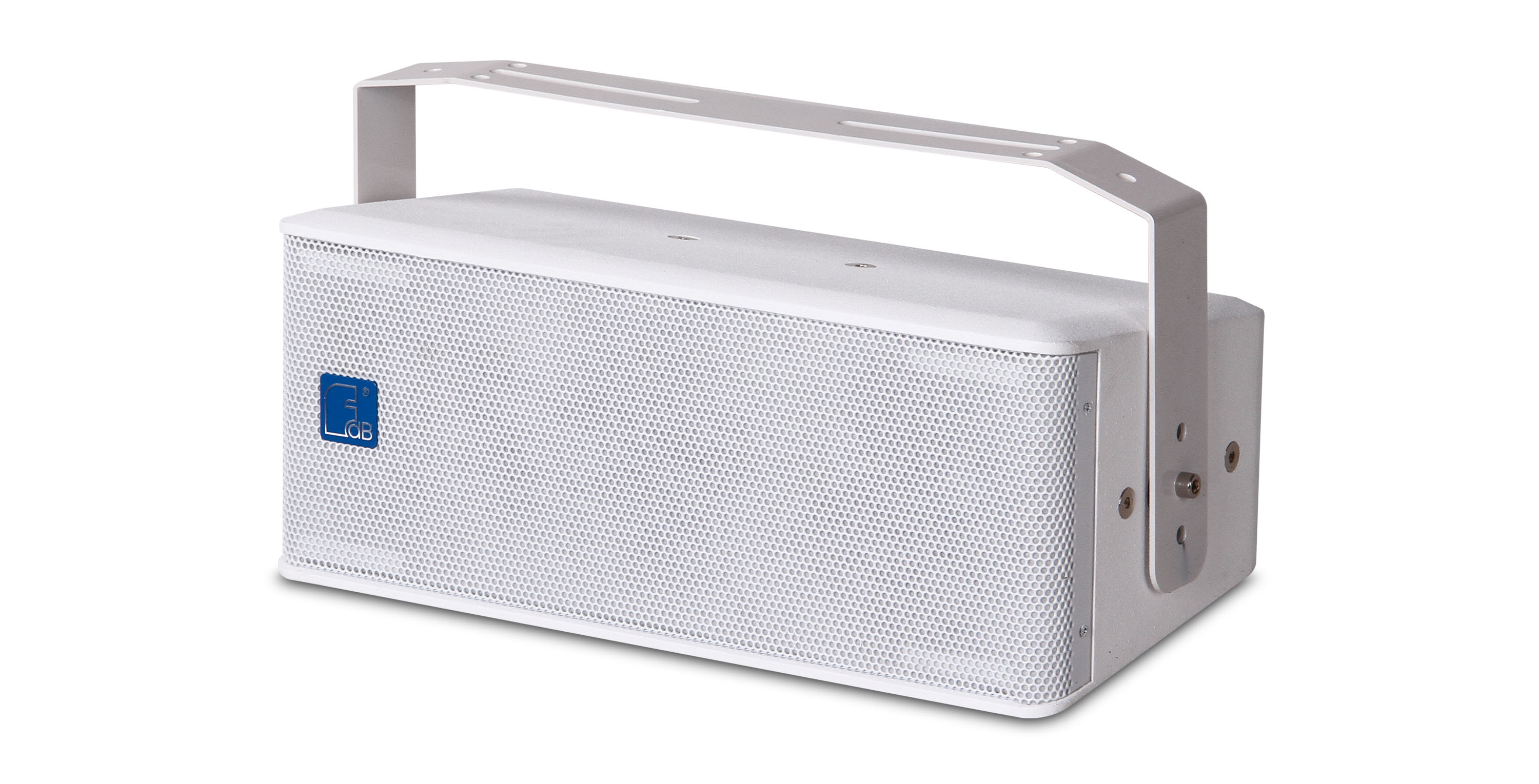

MINI205
2x5" 2-way Loudspeaker System
DESCRIPTION
The MINI 205 is a two-way loudspeaker system with two 5" woofer and 1" exit compression driver coupled to a round 140°×140° wide dispersion horn.
FEATURES
●High quality plywood with special environmental protection paint
●Round 140°×140° wide dispersion horn
●Multi-angle rigging bracket
●Round 140°×140° wide dispersion horn
●Multi-angle rigging bracket
●Used for conference room small clubs and luxury shops.
SPECIFICATIONS
| FREQUENCY RESPONSE(-3dB) | 75Hz-18KHz |
|
FREQUENCY RESPONSE(-10dB) |
70Hz-20KHz |
| DRIVERS | 2×5"(130mm)/1.5"voice coil LF |
| 1×1"(25mm)/ 1"voice coil HF | |
| RATED POWER | 160W RMS,640W peak |
| SENSITIVITY | 92dB 1watt/1 metre |
| MAXIMUM SPL | 113dB continuous,119 dB peak |
| IMPEDANCE | 8 ohms nominal |
| DISPERSION(-6dB) | 140°×140° |
| CROSSOVER FREQUENCIES | 2.2kHz passive |
| INPUT CONNECTORS | Terminal Clamp |
| PACKAGE SIZE | 583mm×266mm×533mm(carton/pair) |
| NET WEIGHT | 9 kg/pc |
| GROSS WEIGHT | 19 kg/pair |
