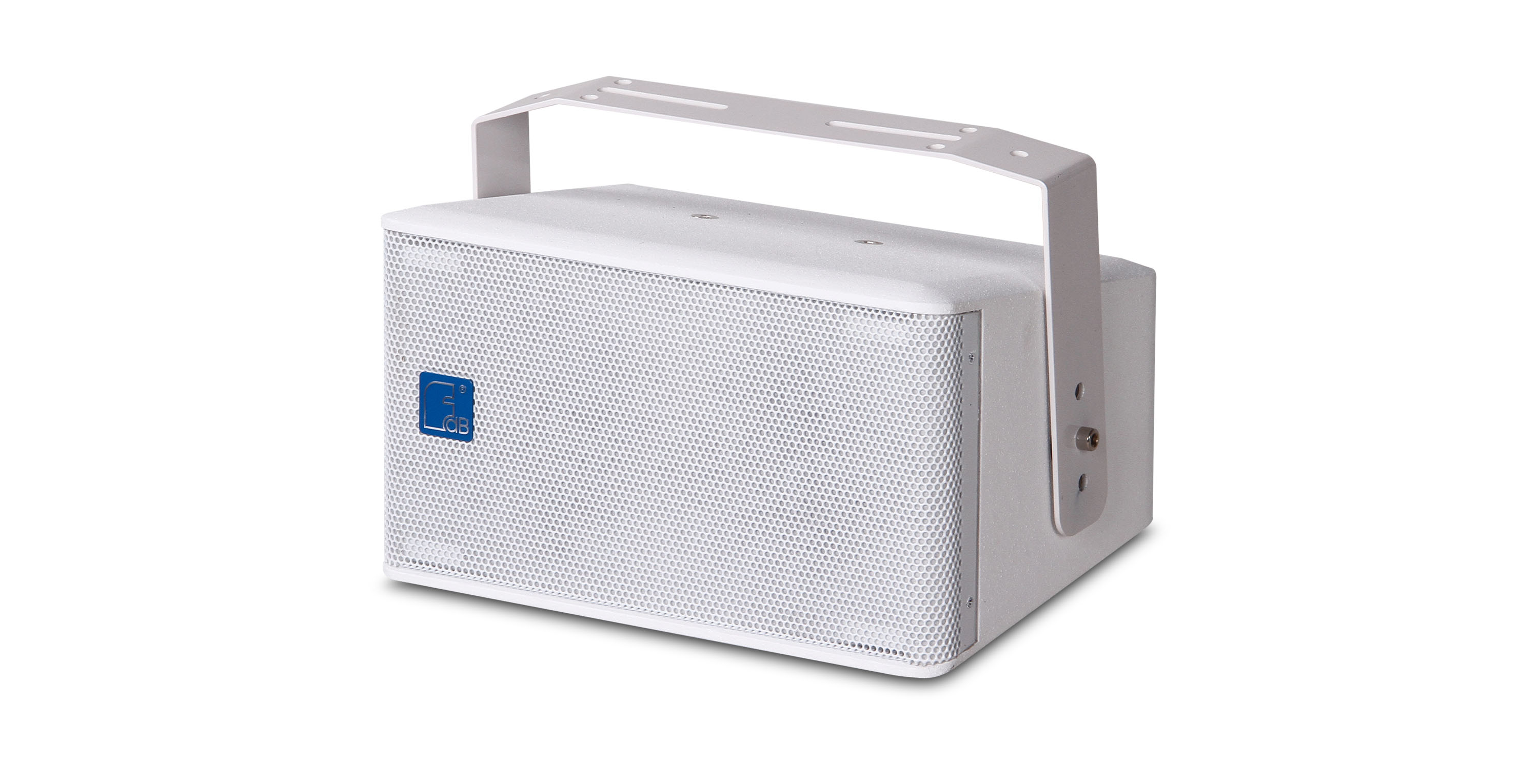

MINI106
1x6" 2-way Loudspeaker System
DESCRIPTION
The MINI 106 is a two-way loudspeaker system with one 6" woofer and 1" exit compression driver coupled to a round 140°×140° wide dispersion horn.
FEATURES
●High quality plywood with special environmental protection paint
●Round 140°×140° wide dispersion horn
●Round 140°×140° wide dispersion horn
●Multi-angle rigging bracket
●Used for conference room small clubs and luxury shops.
SPECIFICATIONS
| FREQUENCY RESPONSE(-3dB) | 65Hz-18KHz |
|
FREQUENCY RESPONSE(-10dB) |
60Hz-20KHz |
| DRIVERS | 1×6"(150mm)/1.5"voice coil LF |
| 1×1"(25mm)/ 1"voice coil HF | |
| RATED POWER | 80W RMS,320W peak |
| SENSITIVITY | 92dB 1watt/1 metre |
| MAXIMUM SPL | 110dB continuous,116 dB peak |
| IMPEDANCE | 16 ohms nominal |
| DISPERSION(-6dB) | 140°×140° |
| CROSSOVER FREQUENCIES | 2.5kHz passive |
| INPUT CONNECTORS | Terminal Clamp |
| PACKAGE SIZE | 633mm×281mm×435mm(carton/pair) |
| NET WEIGHT | 7 kg/pc |
| GROSS WEIGHT | 15 kg/pair |
