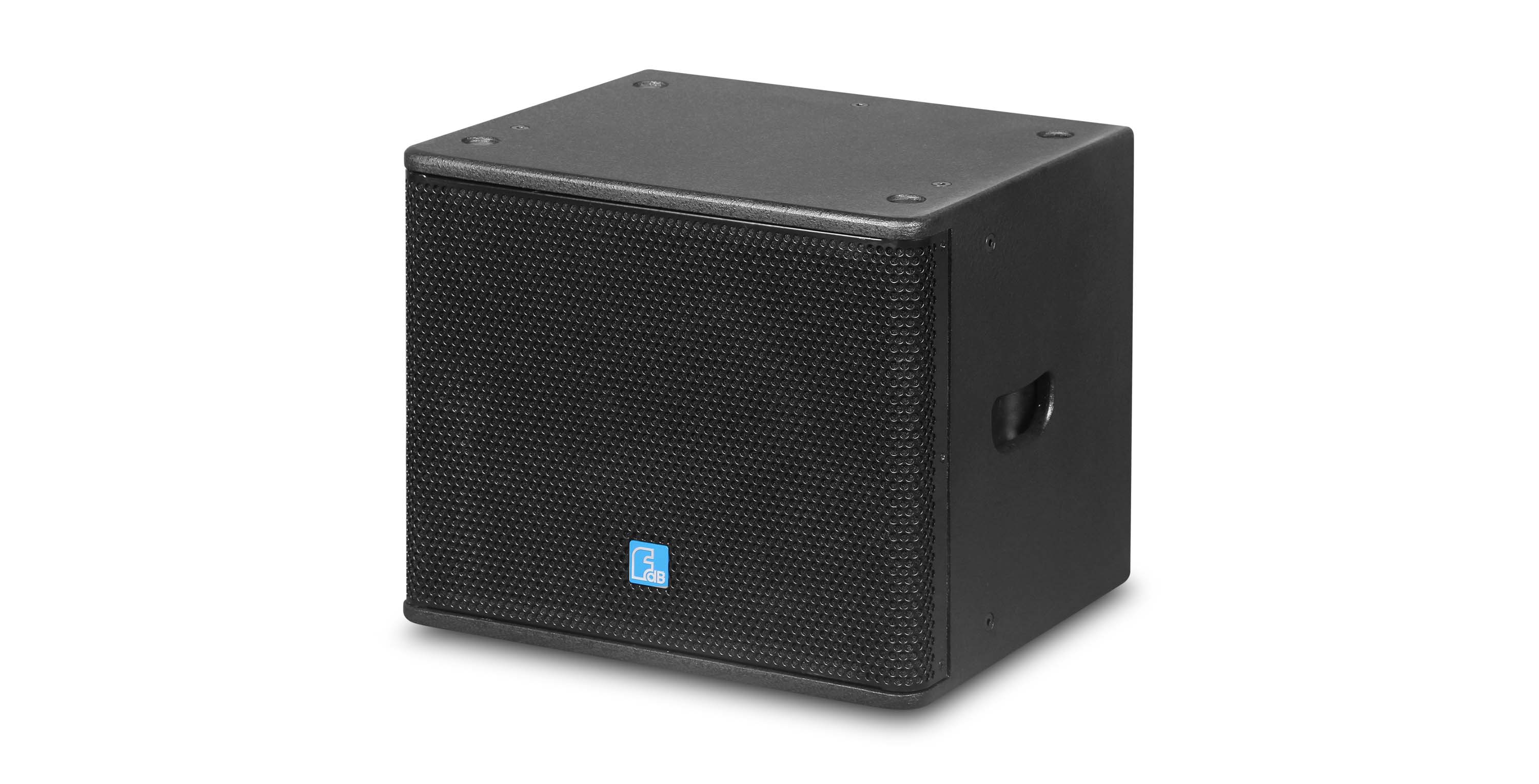

ES110S/ES110SA
1x10" Sub-woofer System
DESCRIPTION

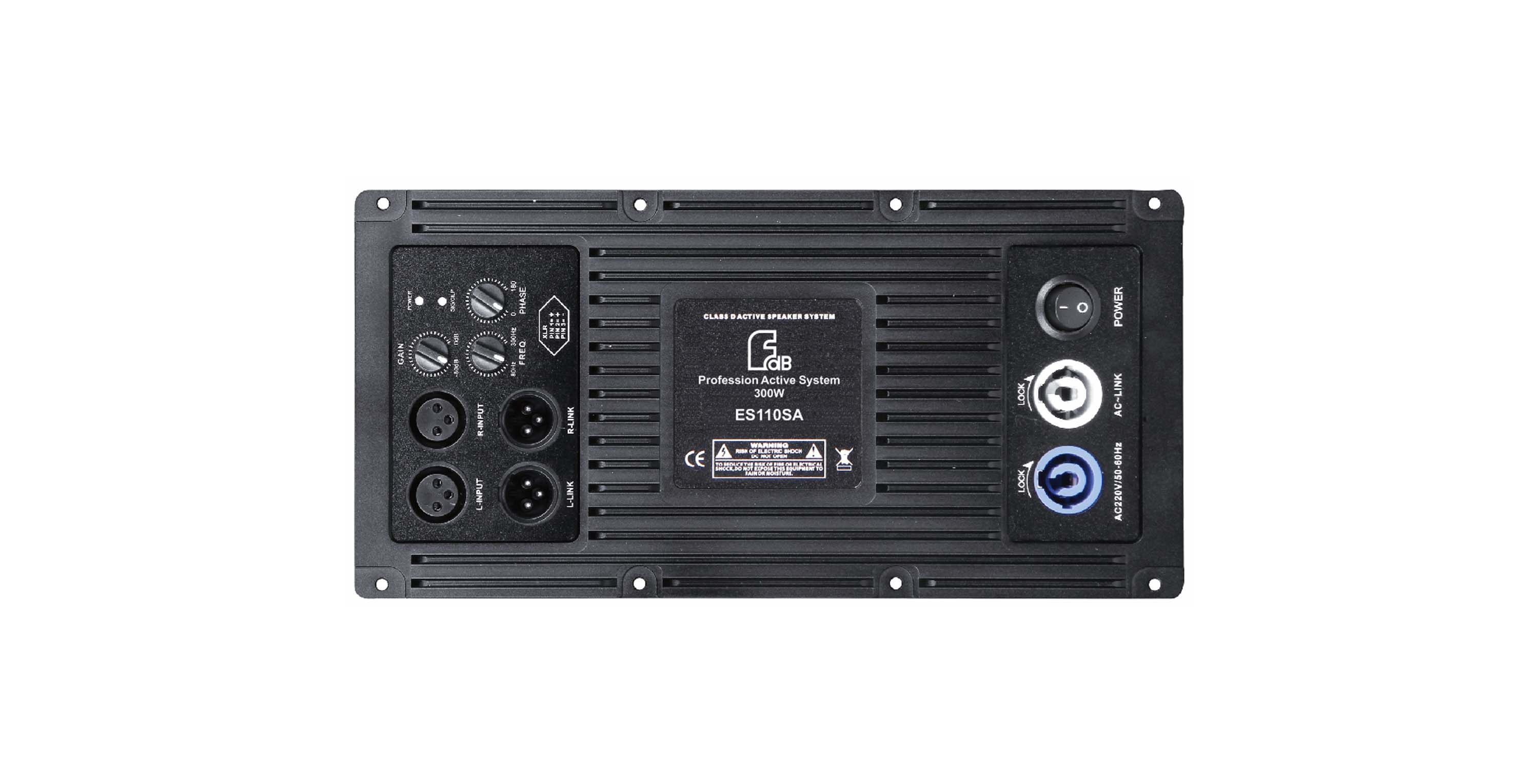

The ES110S is a single 10" subwoofer designed for sub-bass reinforcement to ES series, made of high quality plywood. ES110SA is equipped with BA1.3 digital amplifier module based on ES110S to be an active subwoofer.
FEATURES
● High quality plywood with special environmental protection paint
● Bass reflex design
● Bass reflex design
● High temperature 2" (50mm) voice coil
SPECIFICATIONS
| MODEL | ES110S | ES110SA |
| FREQUENCY RESPONSE(-3dB) | 45Hz-300KHz | 45Hz-300KHz |
| DRIVERS | 1×10"(250mm)/2"voice coil LF | 1×10"(250mm)/2"voice coil LF |
| RATED POWER | 150W RMS,600W peak | 300W/8Ω |
| SENSITIVITY | 94dB 1watt/1 metre | — |
| MAXIMUM SPL | 116dB continuous,122dB peak | 116dB continuous,122dB peak |
| IMPEDANCE | 8 ohms nominal | — |
| DISPERSION(-6dB) | — | — |
| CROSSOVER FREQUENCIES | — | — |
| INPUT CONNECTORS | Terminal Clamp | IPUT TYPE: Balanced Differential line |
| PACKAGE SIZE | 535mm×455mm×470mm | 535mm×455mm×470mm |
| NET WEIGHT | 13 kg/pc | 15 kg/pc |
| GROSS WEIGHT | 15 kg/pc | 17 kg/pc |

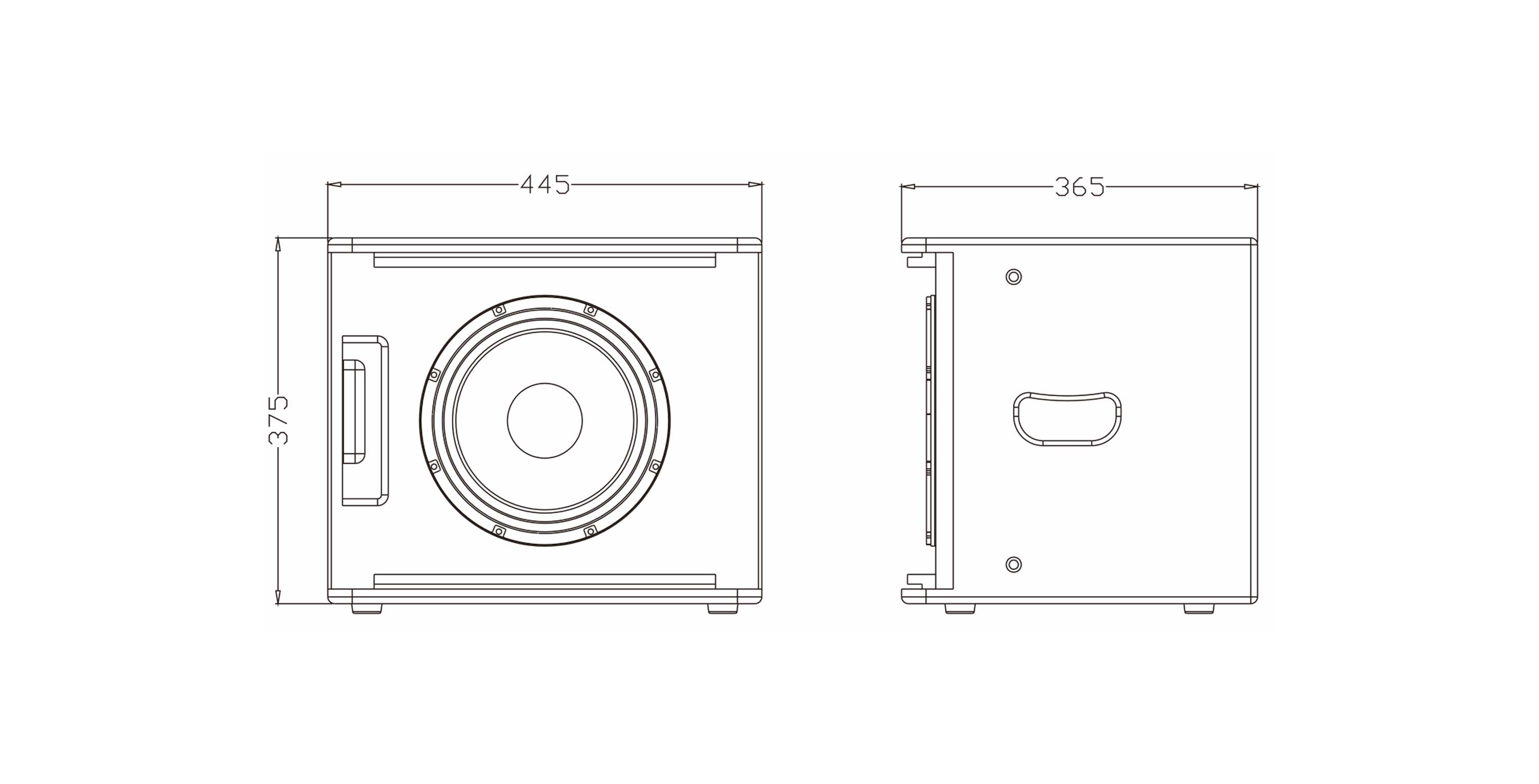

CONFIGURATION
DOWNLOAD
