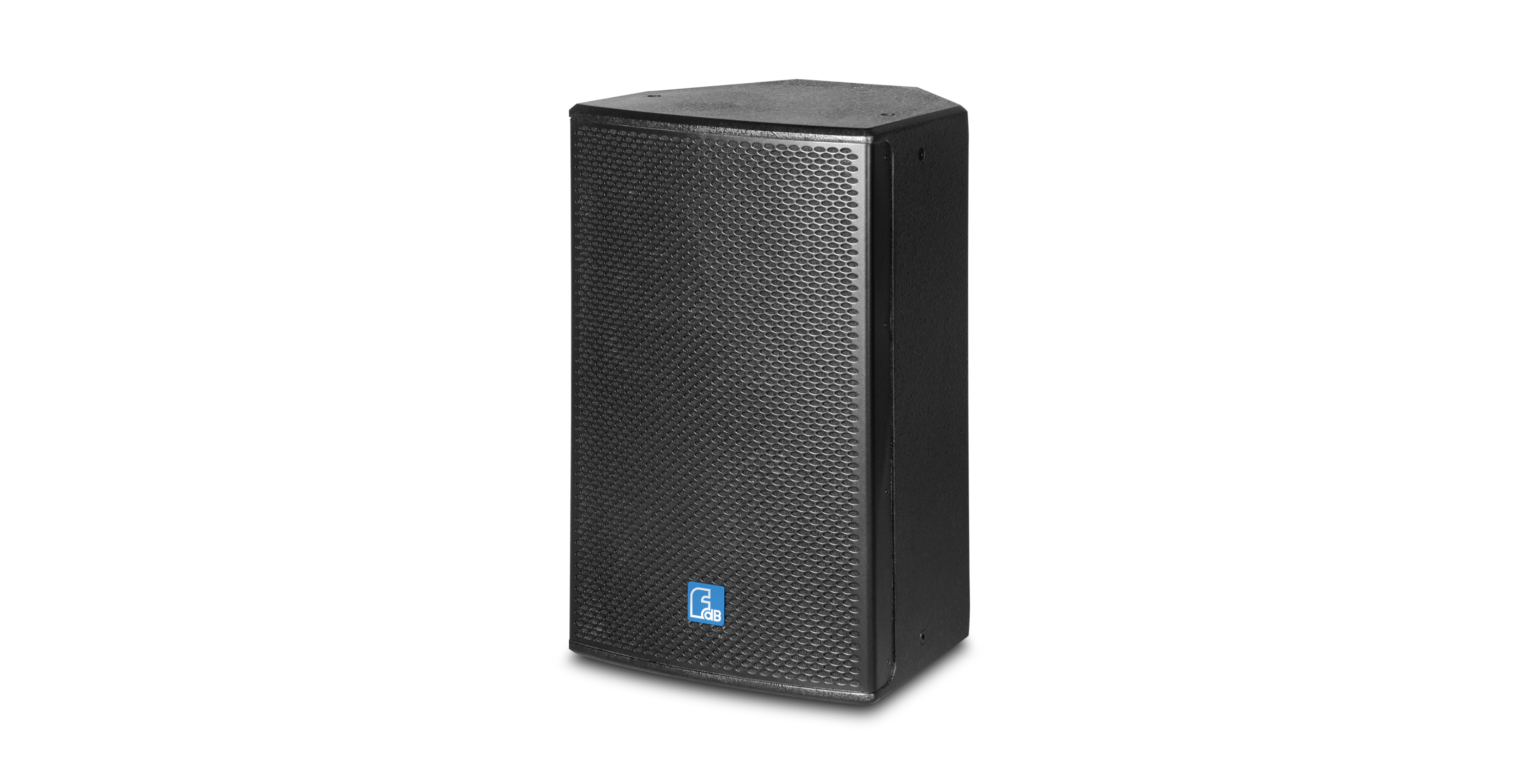

U112VI/U112AVI
1x12" 2-way Loudspeaker System/1x12" 2-way Active Loudspeaker System
DESCRIPTION
The U112VI is a 12" two way full range speaker with clear and bright sound. Unit configuration: 1x12" high efficiency mid-bass unit, 1x1" exit throat 44mm poliyimide diaphragm HF driver with 90°×40° rotatable horn. The cabinet is made of multilayer composite plywood with wear-resistant polyurea paint. U112AVI is an active speaker with two channels and DSP digital amplfier.
FEATURES
●High quality unit configuration, high strength plywood housing
●Multi-hanging points and support, easy and quick operation
●Applications: large-scale indoor sound reinforcement, multifunction halls, high-end hotel clubs, touring, band reinforcement and monitor speaker
●Multi-hanging points and support, easy and quick operation
●Applications: large-scale indoor sound reinforcement, multifunction halls, high-end hotel clubs, touring, band reinforcement and monitor speaker
SPECIFICATIONS
| MODEL | U112VI | U112AVI |
| FREQUENCY RESPONSE(-3dB) | 50Hz-18kHz | 50Hz-18kHz |
| FREQUENCY RESPONSE(-10dB) | 45 Hz-20kHz | 45 Hz-20kHz |
| DRIVERS | 1×12"(300mm)/3"voice coil LF | 1×12"(300mm)/2.5"voice coil LF |
| 1×1"(25mm)/1.7"voice coil HF | 1×1"(25mm)/1.4"voice coil HF | |
| RATED POWER | 300W RMS,1200W peak | 500W/4Ω+50W/8Ω |
| SENSITIVITY | 97dB 1watt/1meter | -- |
| MAXIMUM SPL | 122dB continuous,128dB peak | 122dB continuous,128dB peak |
| IMPEDANCE | 8 ohms nominal | -- |
| DISPERSION(-6dB) | 90°×40° | 90°x40° |
| CROSSOVER FREQUENCIES | 2kHz passive | -- |
| INPUT CONNECTORS | 2×Speakon NL4 | INPUT TYPE: Balanced Differential line |
| PACKAGE SIZE | 490mm×470mm×730mm | 490mm×470mm×730mm |
| NET WEIGHT | 21 kg/pc | 19 kg/pc |
| GROSS WEIGHT | 25 kg/pc | 23 kg/pc |

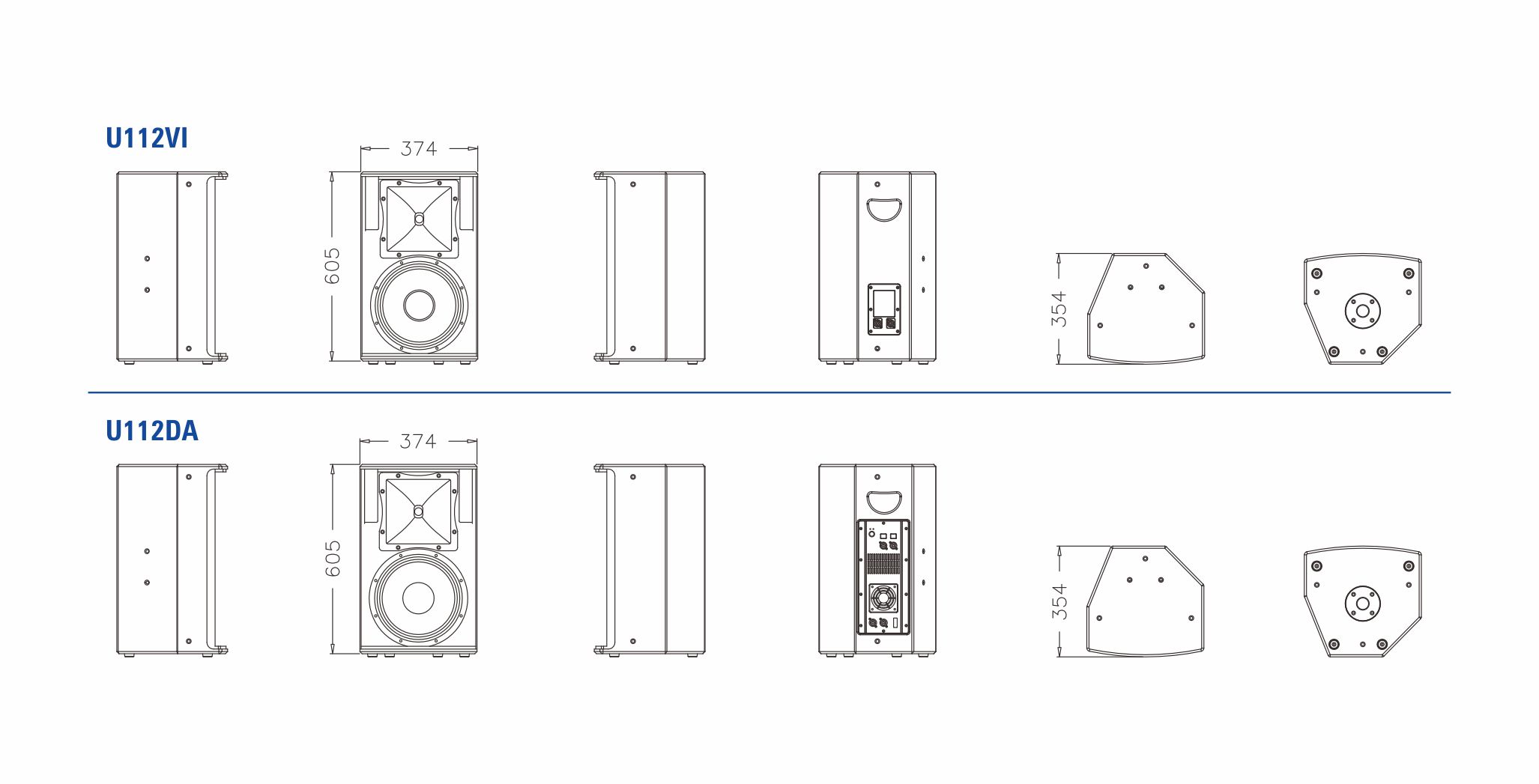

CONFIGURATION
