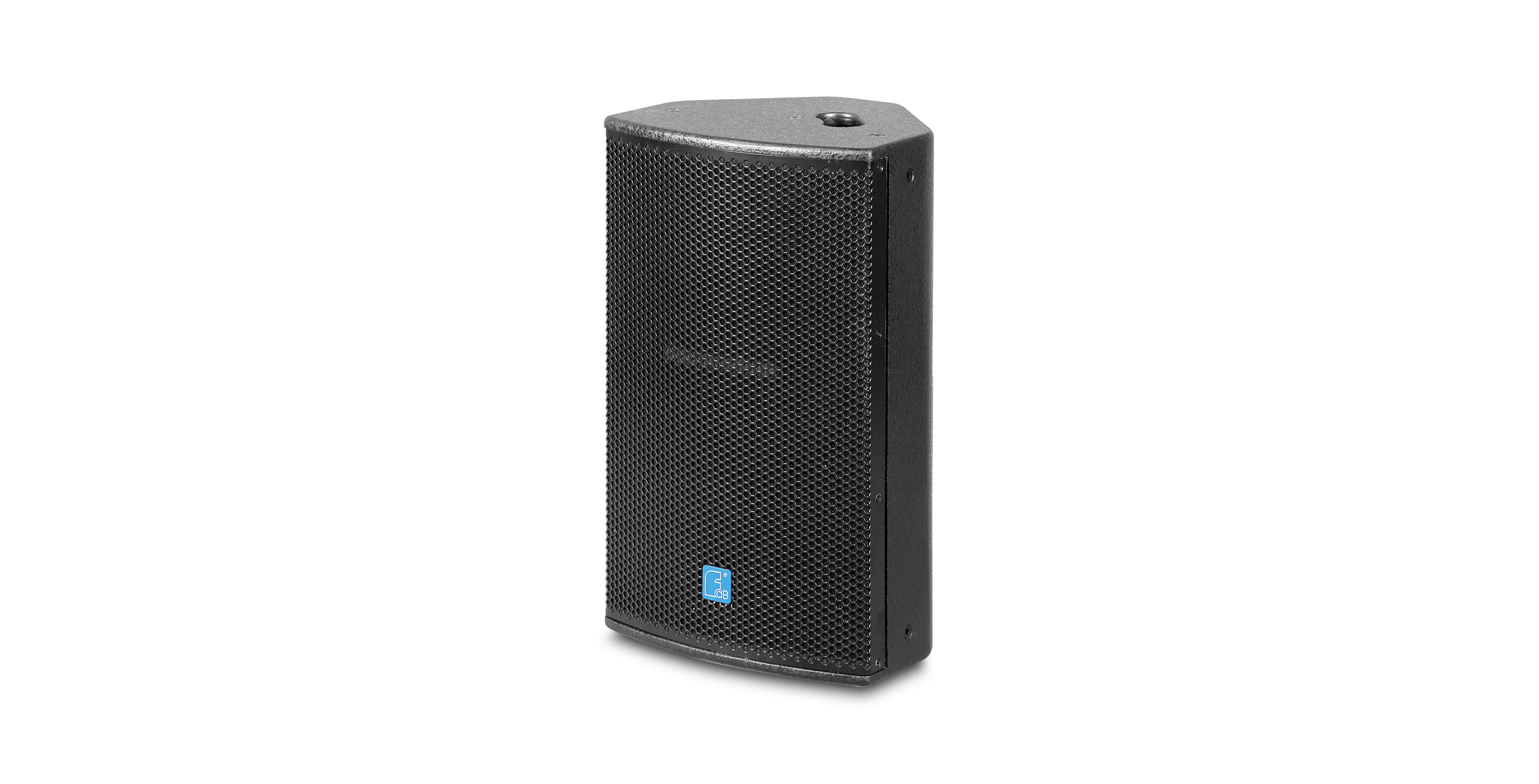

LH10II    1x10" 2-way Loudspeaker System

DESCRIPTION

The LH10Ⅱis a 10", small sized, light weight, high SPL,  two way full range speaker with clear and bright sound. Unit configuration: 1x10" high efficiency neodymium mid-bass unit, 1x1" exit throat 44mm neodymium poliyimide diaphragm  HF driver with 90°×50° rotatable horn.  The cabinet is made of multilayer composite plywood with wear-resistant polyurea paint.





FEATURES

●High quality unit configuration, high strength plywood housing
●Small size, light weight, easy handling and fixed installation
●Multi-hanging points and support, easy and quick operation
●Applications: speech reinforcement, conference rooms, multifunction halls,high-end hotel clubs, touring, band reinforcement and monitor speaker




SPECIFICATIONS

MODEL LH10Ⅱ
FREQUENCY RESPONSE(-3dB) 60 Hz-18kHz
FREQUENCY RESPONSE(-10dB) 55 Hz-20kHz
DRIVERS 1×10"(250mm)/3"voice coil LF
1×1"(25mm)/1.7"voice coil HF
RATED POWER 250W RMS,1000W peak
SENSITIVITY 96dB 1watt/1 metre
MAXIMUM SPL 120dB continuous,126 dB peak
IMPEDANCE 8 ohms nominal
DISPERSION(-6dB) 90°×50°
CROSSOVER FREQUENCIES 2.5kHz passive
INPUT CONNECTORS 2×Speakon NL4
PACKAGE SIZE 391mm×380mm×605mm
NET WEIGHT 13 kg/pc
GROSS WEIGHT 14 kg/pc
