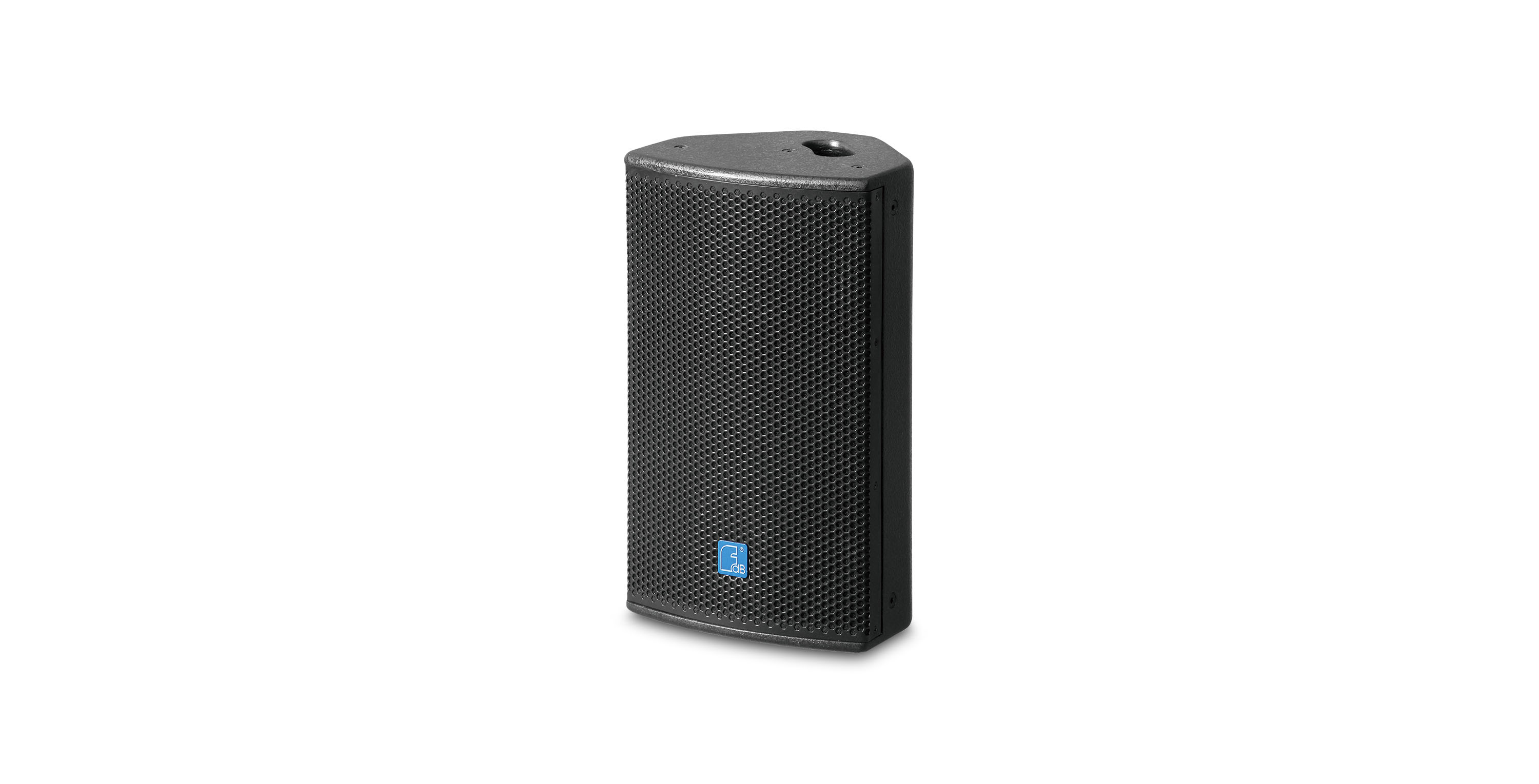

LH8II    1x8" 2-way Loudspeaker System

DESCRIPTION

The LH8Ⅱis a 8", small sized, light weight, high SPL,  two way full range speaker with clear and bright sound. Unit configuration: 1x8" high efficiency neodymium mid-bass unit, 1x1" exit throat 44mm neodymium poliyimide diaphragm HF driver with 90°×50° rotatable horn.  The cabinet is made of multilayer composite plywood with wear-resistant polyurea paint.




FEATURES

●High quality unit configuration, high strength plywood housing
●Small size, light weight, easy handling and fixed installation
●Multi-hanging points and support, easy and quick operation
●Applications: speech reinforcement, conference rooms, background music,  bars and monitor speaker for small stage


SPECIFICATIONS

MODEL LH8Ⅱ
FREQUENCY RESPONSE(-3dB) 80 Hz-18kHz
FREQUENCY RESPONSE(-10dB) 75 Hz-20kHz
DRIVERS 1×8"(200mm)/2"voice coil LF
1×1"(25mm)/1.7"voice coil HF
RATED POWER 150W RMS,600W peak
SENSITIVITY 93dB 1watt/1 metre
MAXIMUM SPL 115dB continuous,121 dB peak
IMPEDANCE 8 ohms nominal
DISPERSION(-6dB) 90°×50°
CROSSOVER FREQUENCIES 2.3kHz passive
INPUT CONNECTORS 2×Speakon NL4
PACKAGE SIZE 350mm×300mm×544mm
NET WEIGHT 8 kg/pc
GROSS WEIGHT 9 kg/pc
