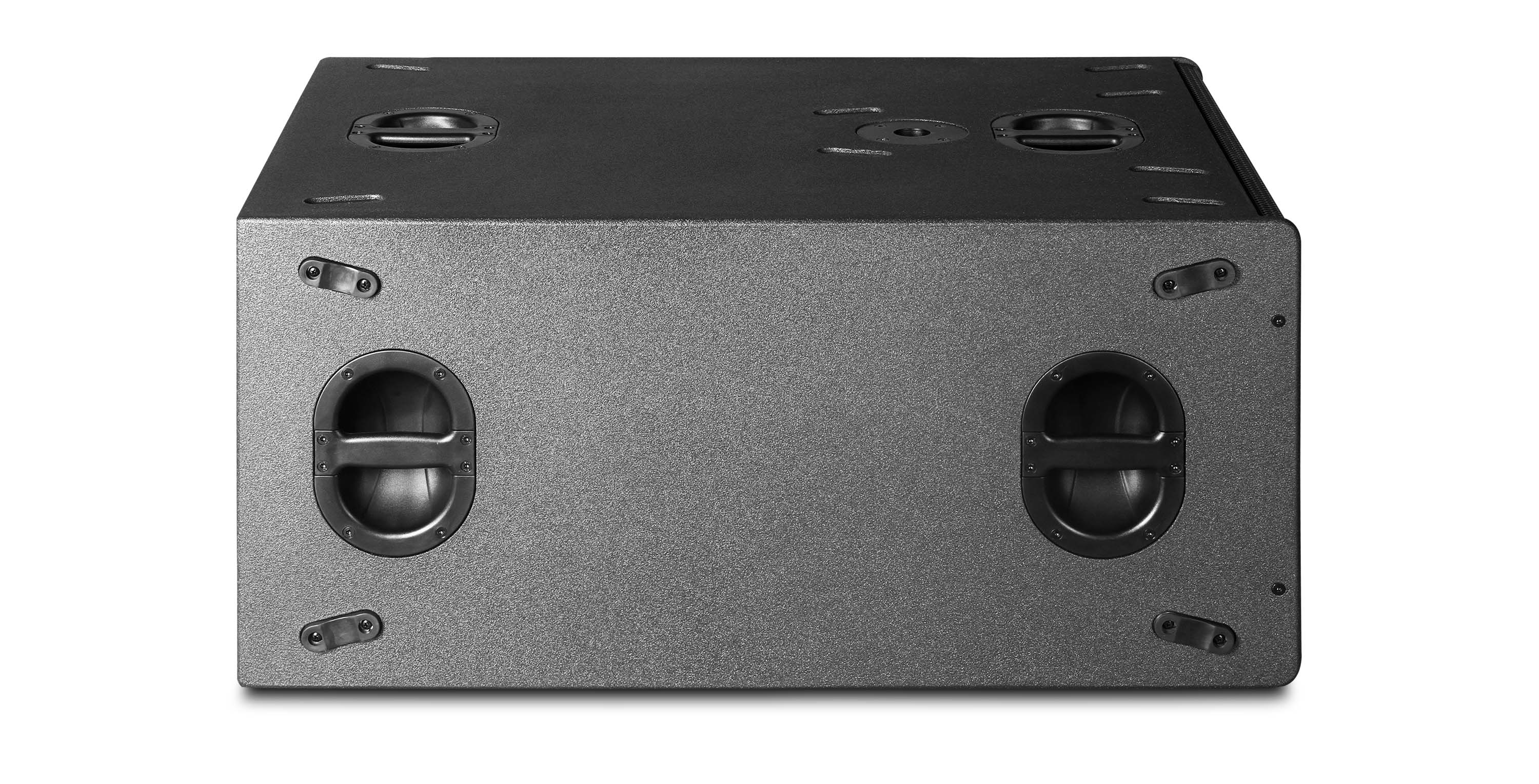

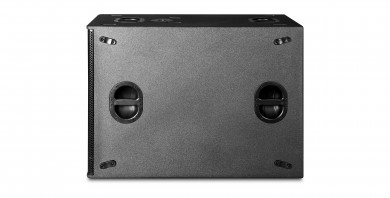

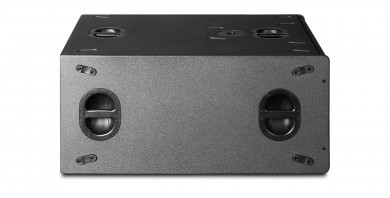

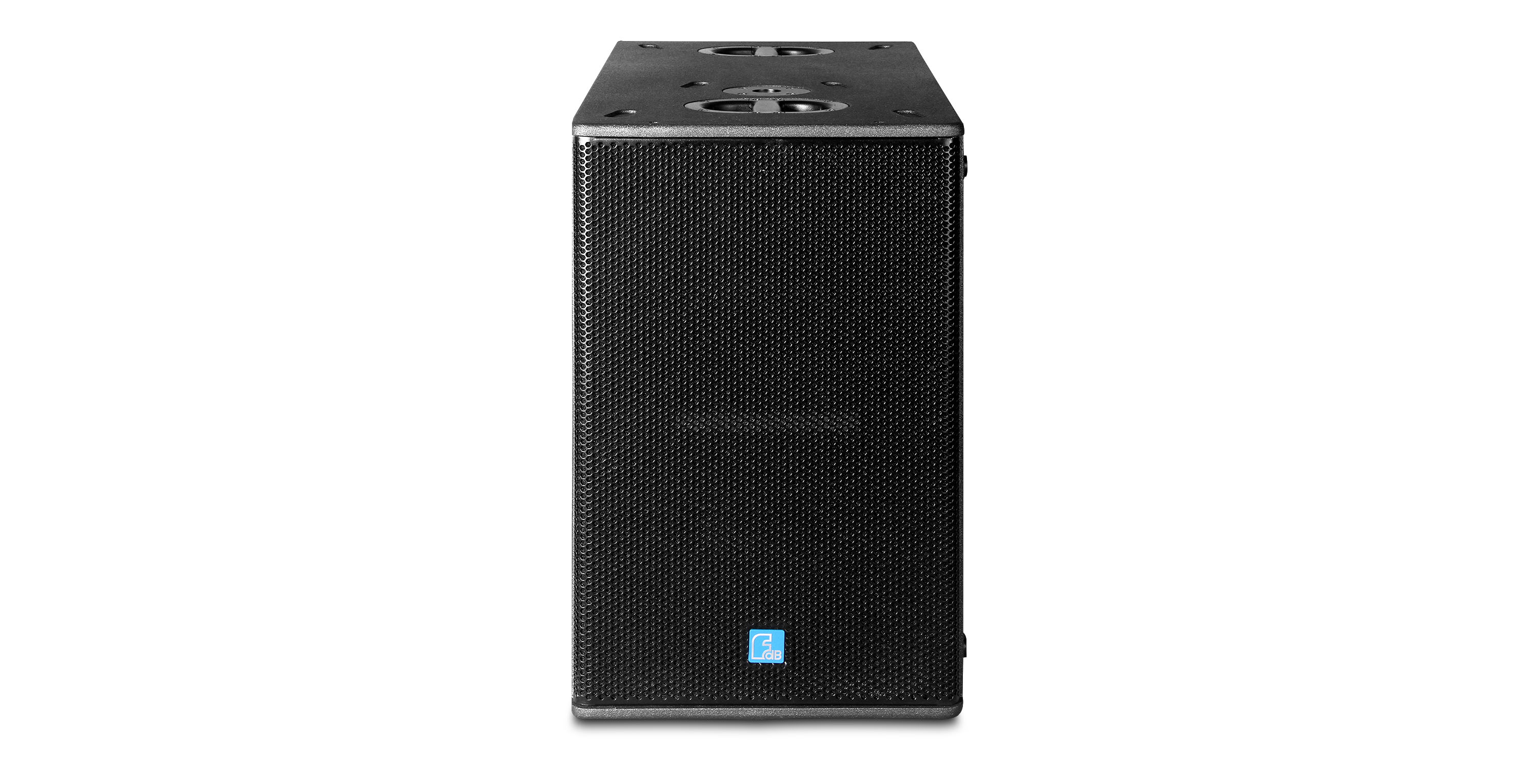

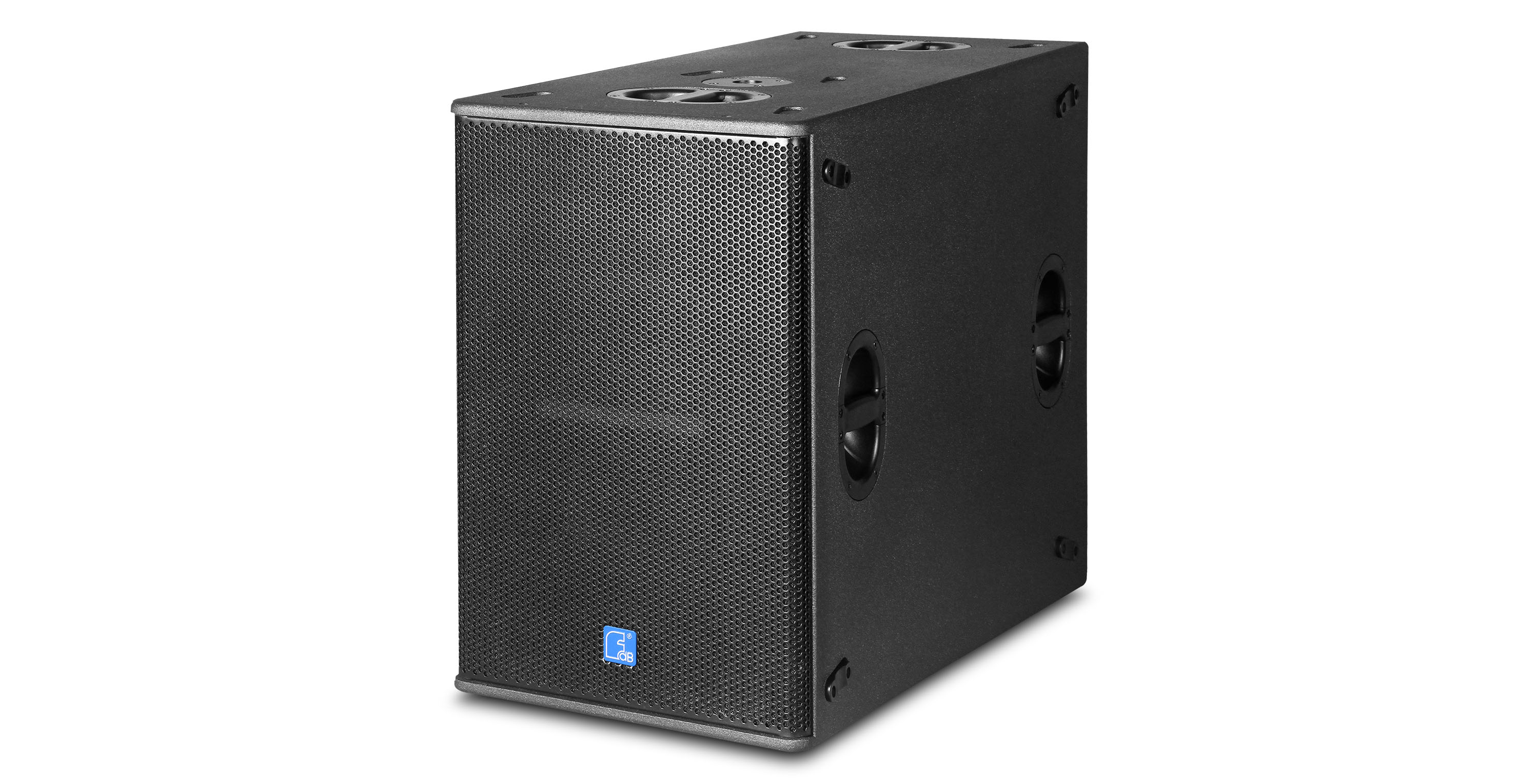

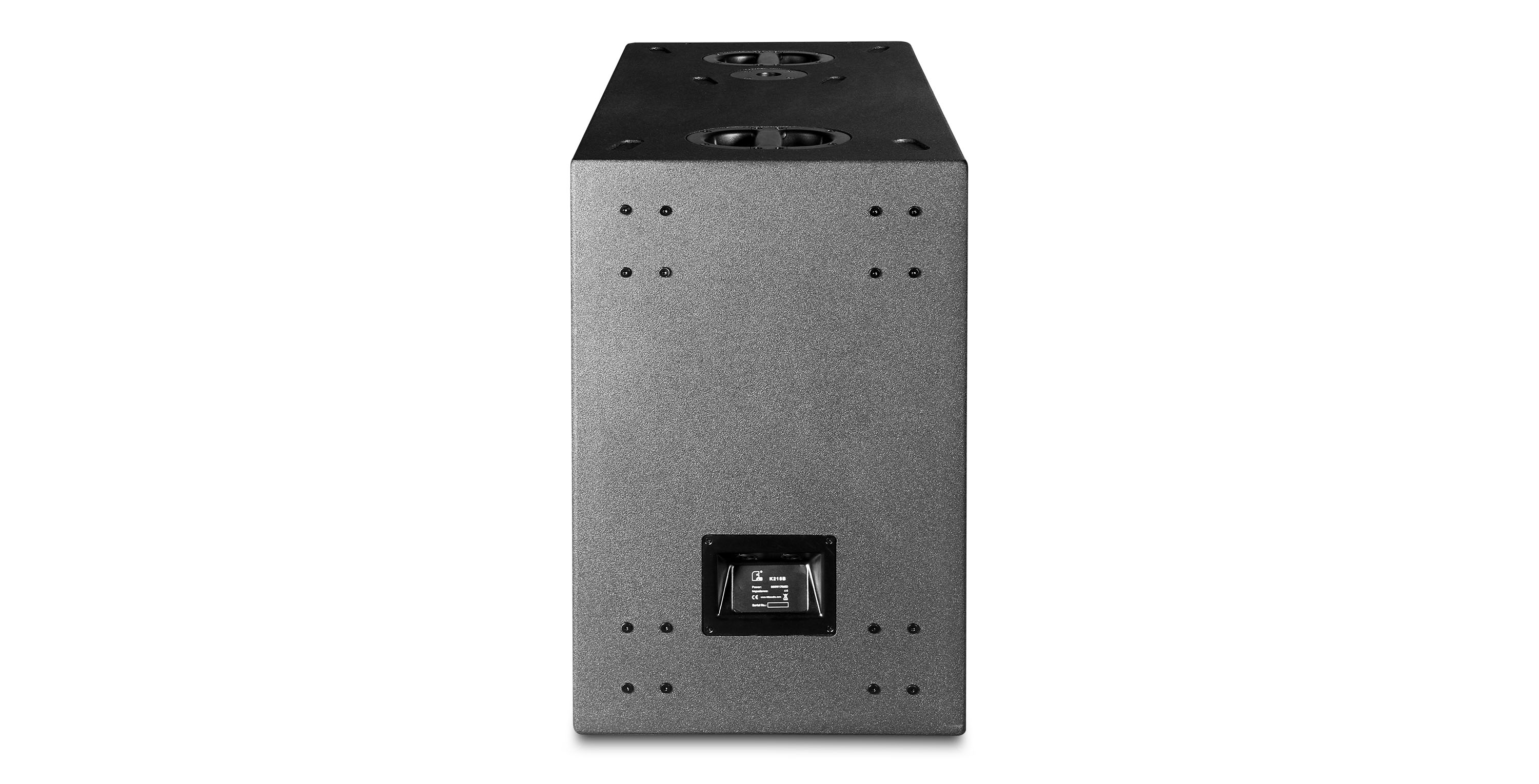

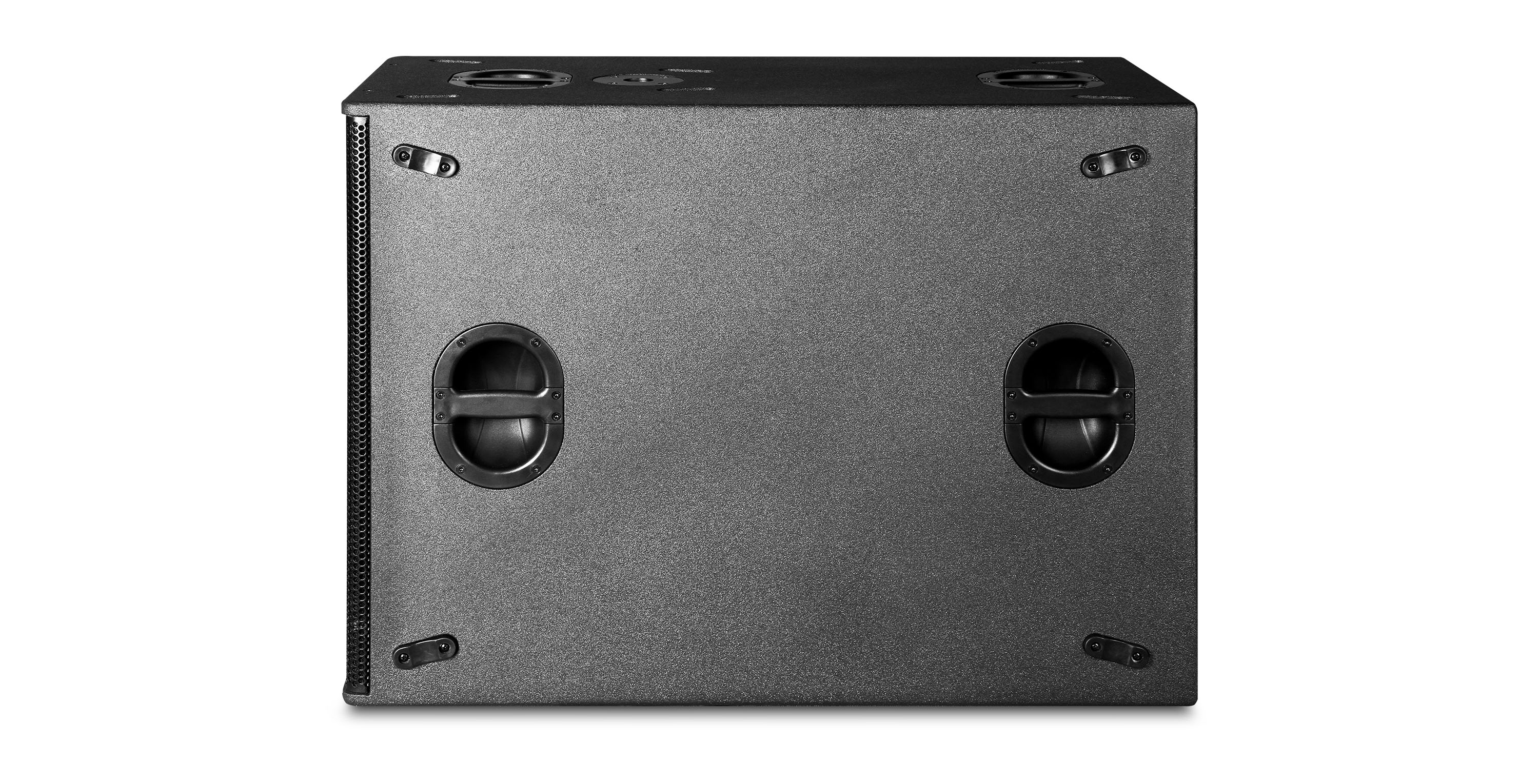

K215BII/K215BAII
2x15"Sub-woofer/2x15"Active Sub-woofer
DESCRIPTION

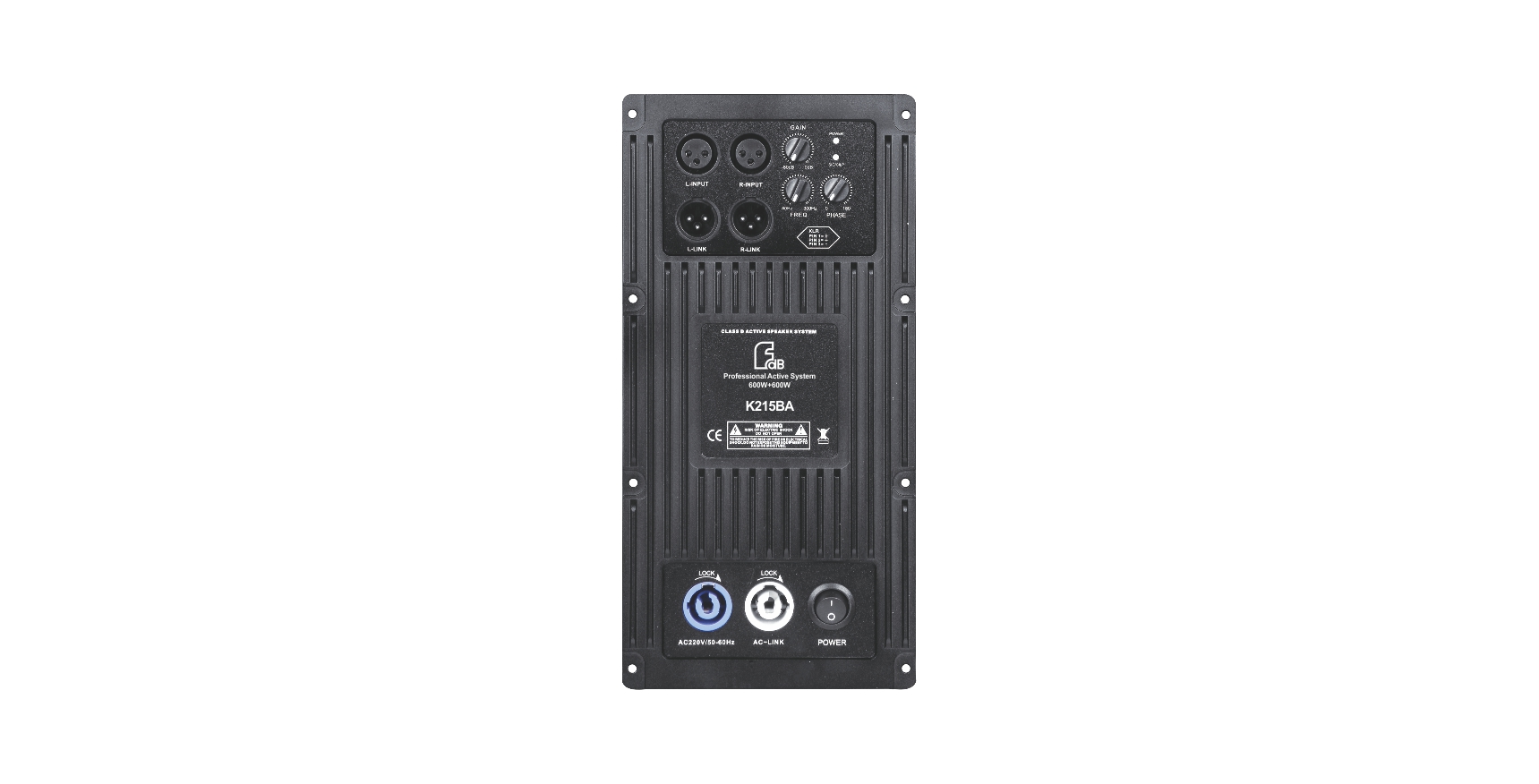

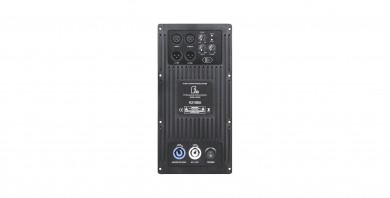

K215BII is a dual 15" subwoofer, designed for bass reinforcement to K312 made of high quality plywood with polyurea waterproof paint. K215BAII is equipped with BA2.88 digital amplifier module to be an active subwoofer based on K215BII.
FEATURES
● High quality plywood with polyurea waterproof paint
● Bass reflex and horn-loaded design

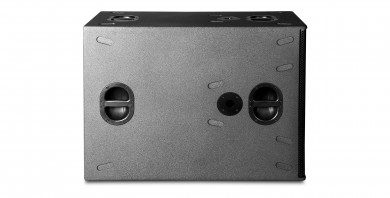

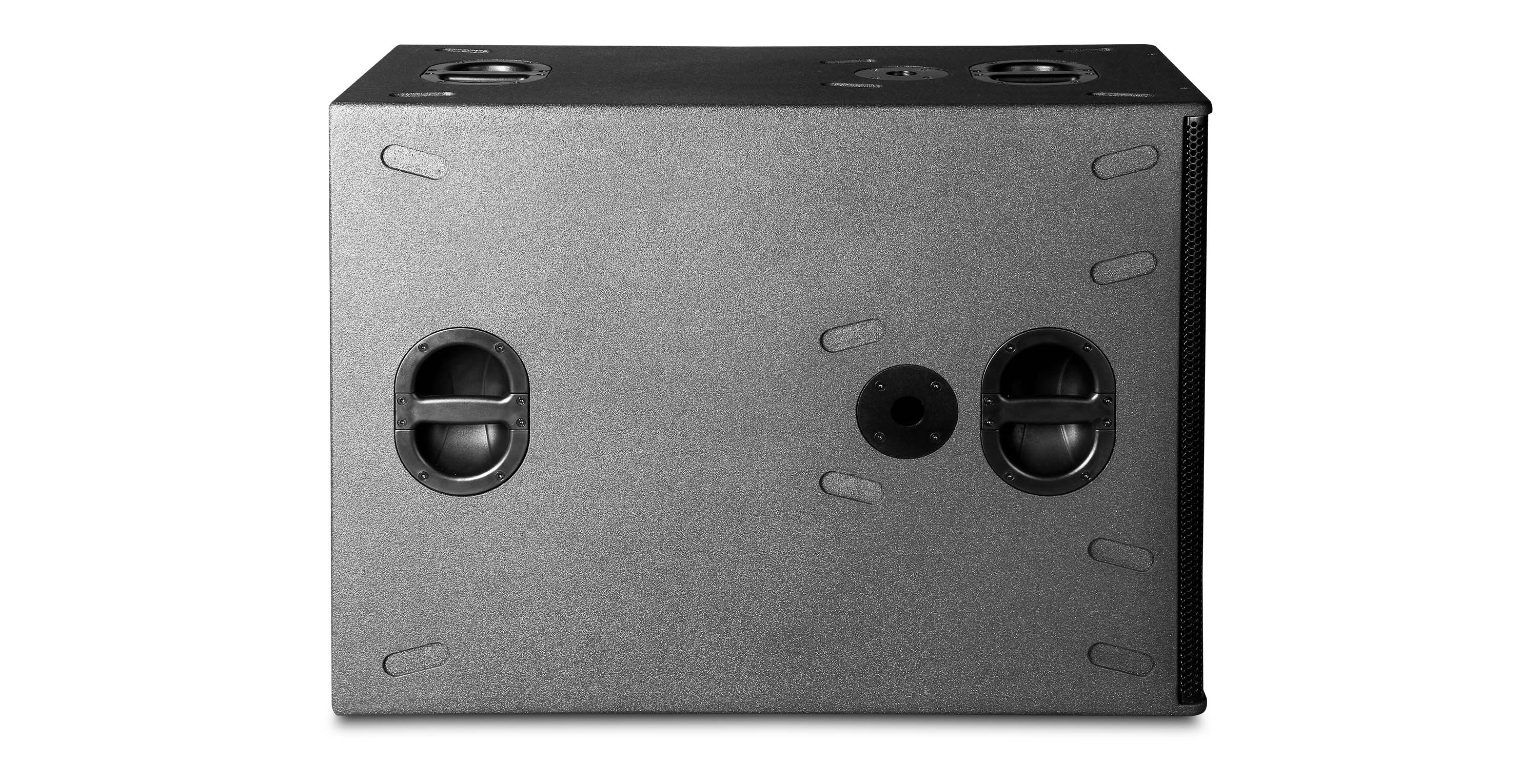

● Top hat fitting for pole mounting to K series
● To match K312N/312NA
● Bass reflex and horn-loaded design
● Top hat fitting for pole mounting to K series
● To match K312N/312NA
SPECIFICATIONS
| MODEL | K215BII | K215BAII |
| FREQUENCY RESPONSE(-3dB) | 40Hz-200Hz | 40Hz-200Hz |
| DRIVERS | 2x15"(385mm) | 2x15"(385mm) |
| 3"voice coil LF | 3"voice coil LF | |
| RATED POWER | 800W RMS,3200W peak | 1200W/4Ω+1200W/4Ω |
| SENSITIVITY | 101dB 1watt/1meter | -- |
| MAXIMUM SPL | 130dB continuous,136dB peak | 130dB continuous,136dB peak |
| IMPEDANCE | 4 ohms nominal | -- |
| INPUT CONNECTORS | 2×Speakon NL4 | INPUT TYPE:Balanced Differential line |
| PACKAGE SIZE | 1026mmx532mmx795mm | 1026mmx532mmx795mm |
| NET WEIGHT | 46 kg/pc | 48 kg/pc |
| GROSS WEIGHT | 53 kg/pc | 55 kg/pc |
