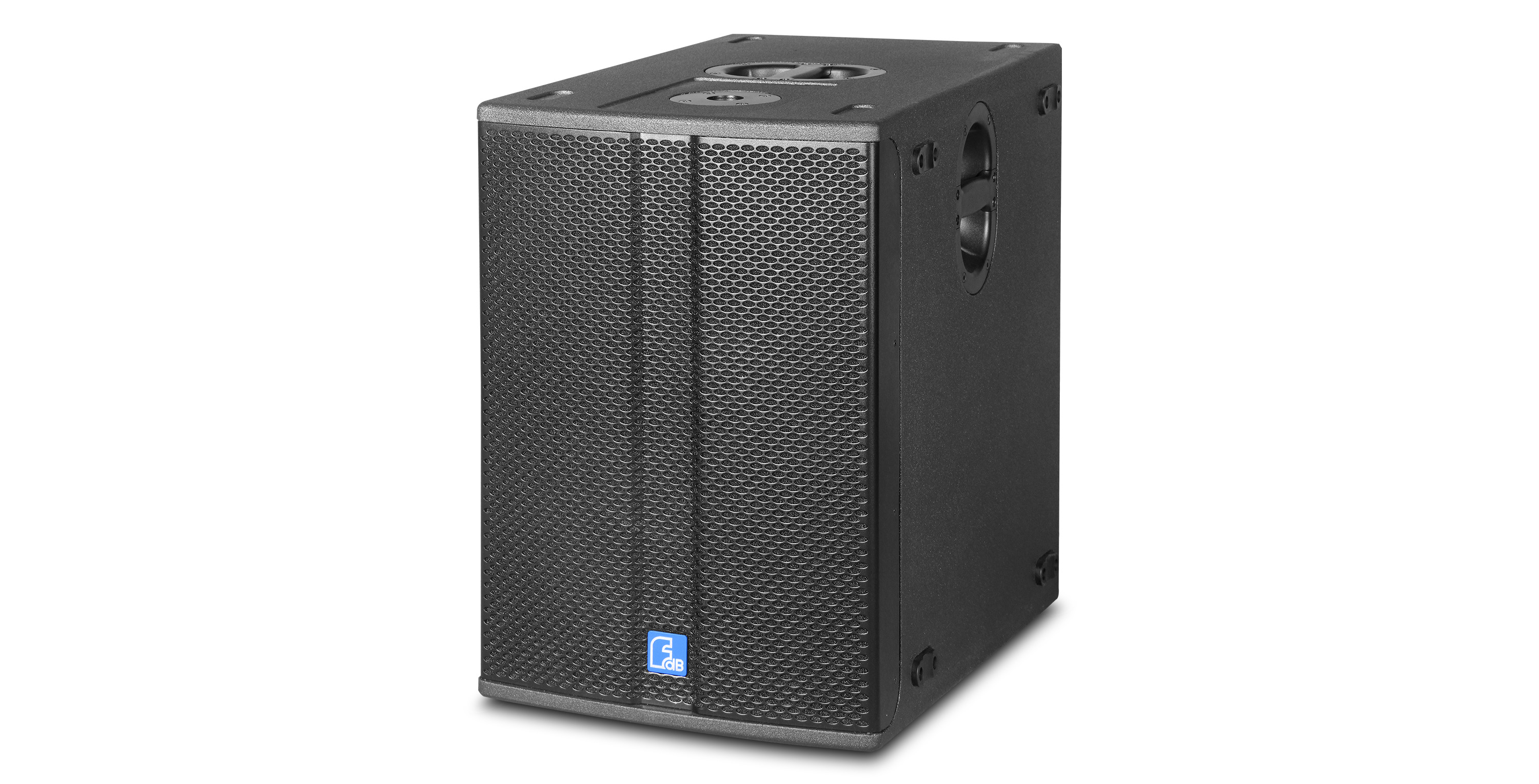

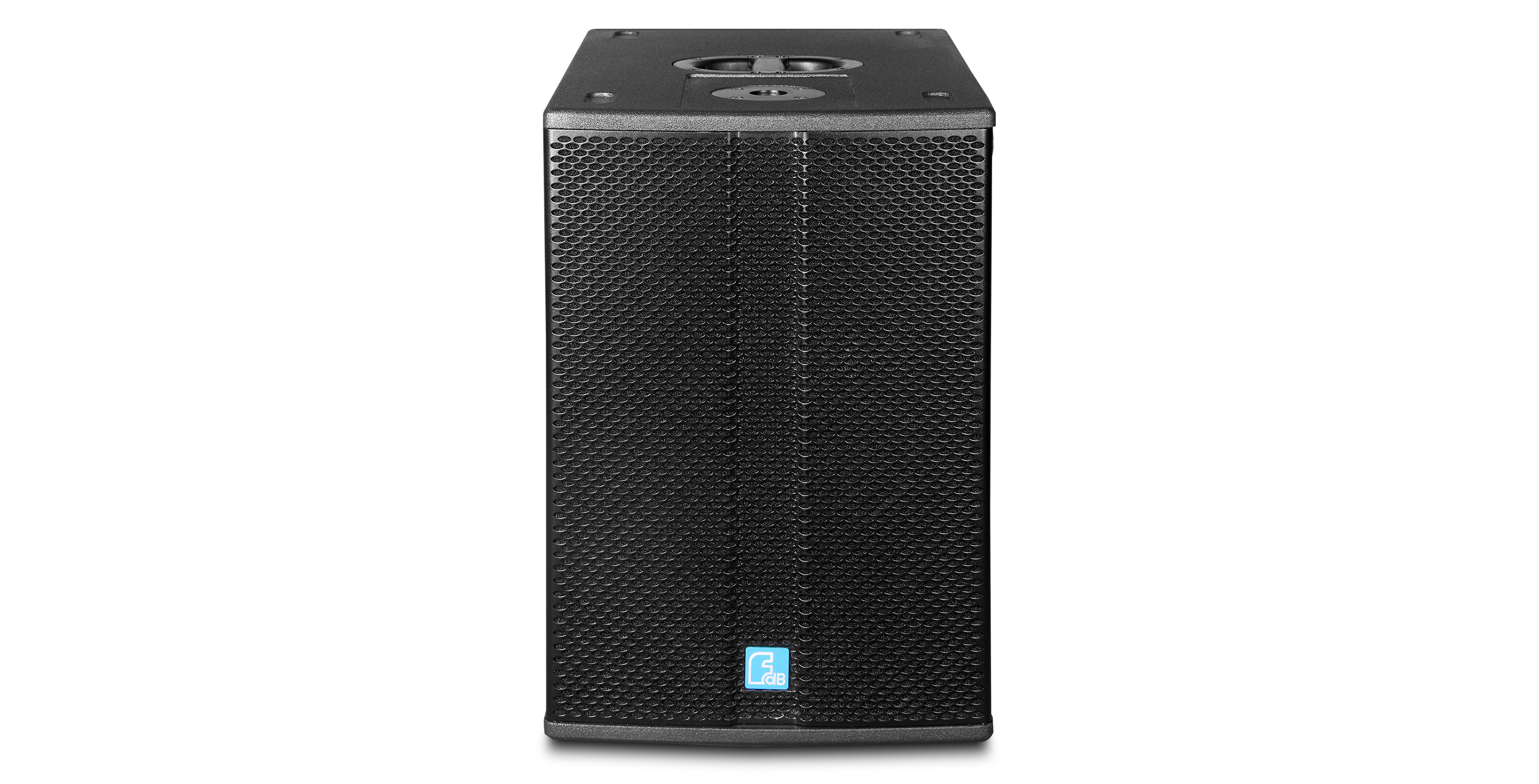

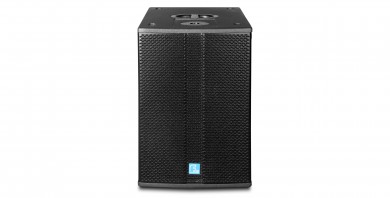

K115BII/K115BASII
1x15"Sub-woofer/1x15"Active Sub-woofer
DESCRIPTION

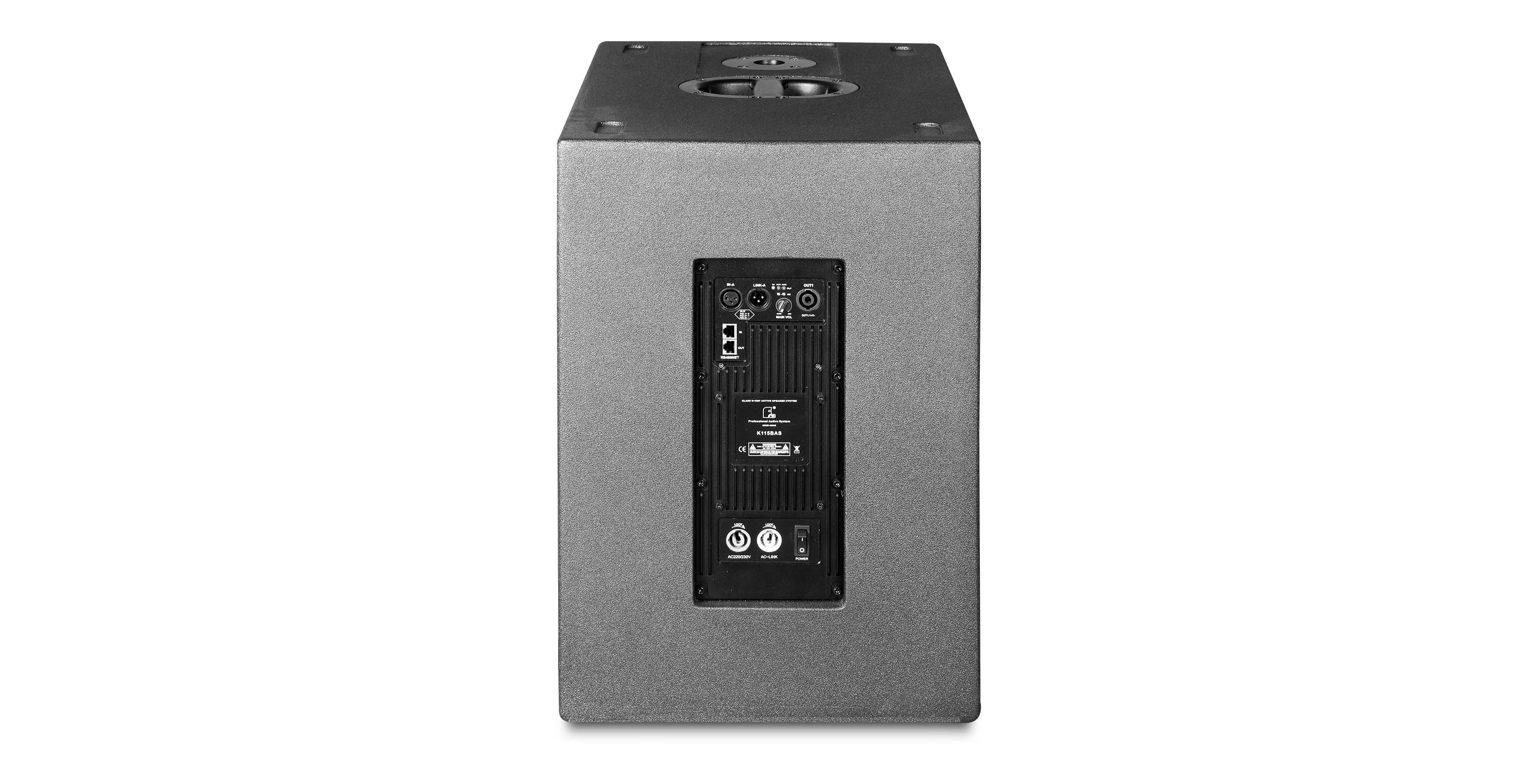

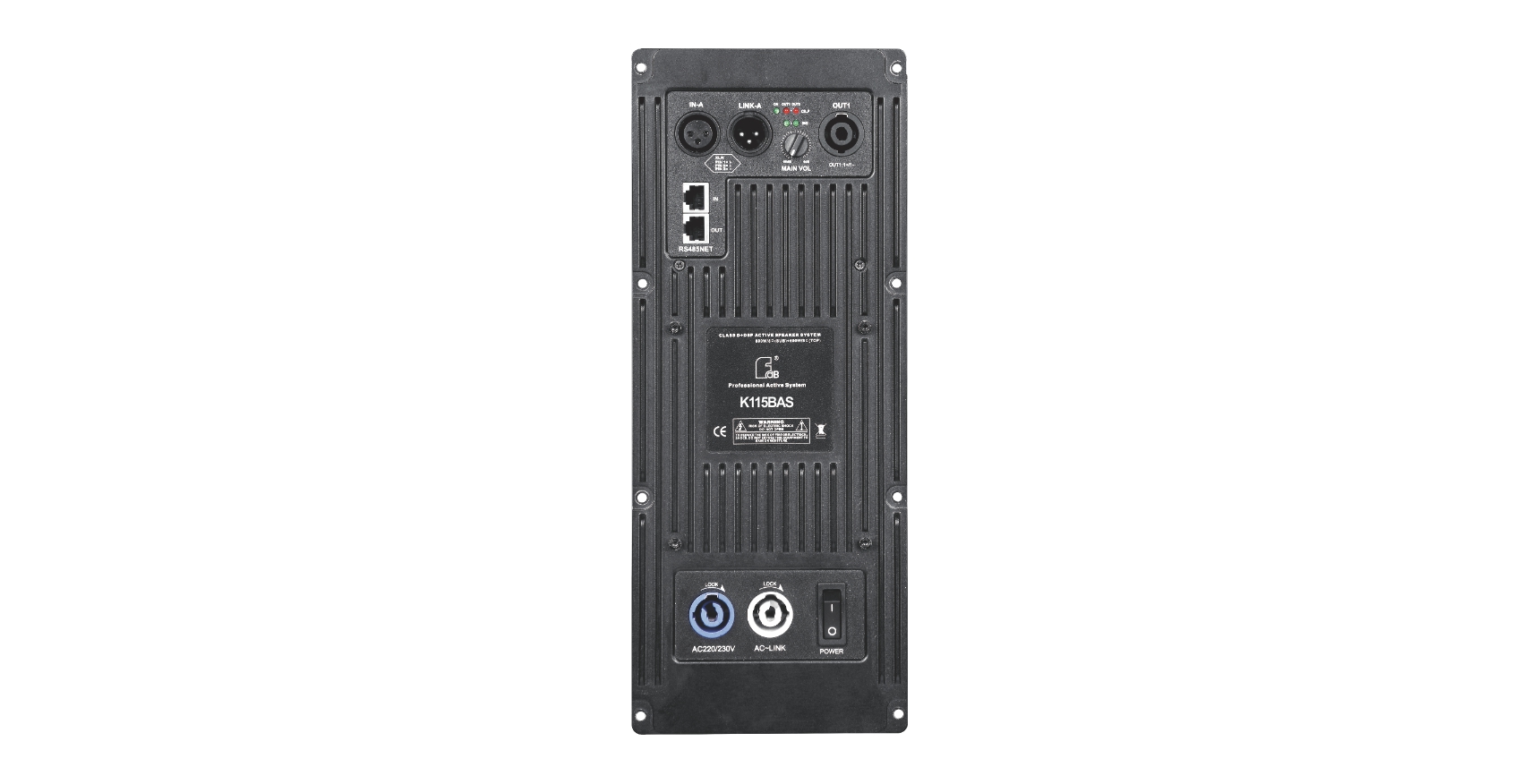

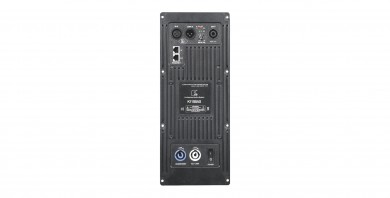

K115BⅡ is a single 15" subwoofer, using 4" voice coil woofer, made of high quality plywood with polyurea waterproof paint. K115BASⅡ is equipped with SA2.68 digital amplifier module to be an active system with full range and sub outputs based on K115BⅡ.
FEATURES
●High quality plywood with wear-resistant and waterproof polyurea paint
●Bass reflex design
●Hidden and external connections
●High temperature 4"(100mm) voice coil
●Top hat fitting for pole mounting to K series
●Bass reflex design
●Hidden and external connections
●High temperature 4"(100mm) voice coil
●Top hat fitting for pole mounting to K series
●To match K506Ⅱ/K606Ⅱ
SPECIFICATIONS
| MODEL | K115BII | K115BASII |
| FREQUENCY RESPONSE(-3dB) | 40Hz-300Hz | 40Hz-300Hz and 50Hz-18kHz |
| DRIVERS | 1X15"(385mm) | 1X15"(385mm) |
| 4"voice coil LF | 4"voice coil LF | |
| RATED POWER | 600W(RMS),2400W peak | 900W/4Ω+1200W/4Ω |
| SENSITIVITY | 99dB 1watt/1meter | -- |
| MAXIMUM SPL | 126dB continuous,132dB peak | 126dB continuous,132dB peak |
| IMPEDANCE | 8 ohms nominal | -- |
| INPUT CONNECTORS | 2×Speakon NL4 | INPUT TYPE:Balanced Differential line |
| PACKAGE SIZE | 740mmx495mmx695mm | 740mmx495mmx695mm |
| NET WEIGHT | 35 kg/pc | 37 kg/pc |
| GROSS WEIGHT | 39 kg/pc | 41 kg/pc |
